Summary of Contents for ScorpionExo EXO-COM

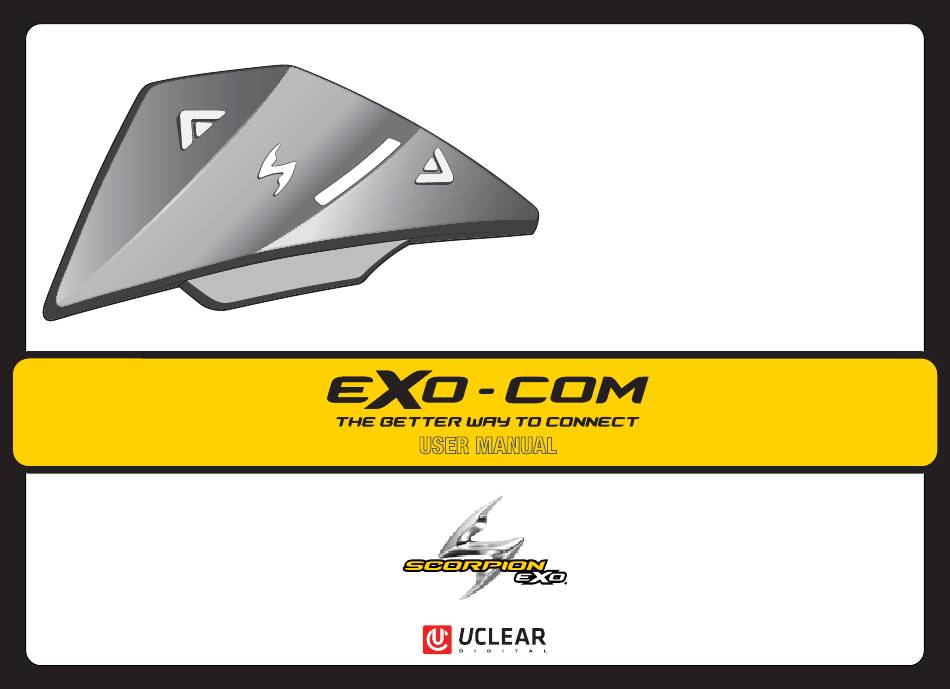

- Page 1 4-Rider DynaMESH Intercom Intercom Range: Up to 0.8KM (.5 mile) per person Dual Boomless Microphones USER MANUAL Powered by POWERED BY...
- Page 2 INTERCOM PAIRING SETUP (OTHER BRAND) BATTERY INSTALLATION MUSIC SHARING 14-15 BATTERY RECHARGE WIRE STORAGE ACTIVATE PHONE PAIRING VOICE PROMPT LANGUAGE SETTING 16-18 PAIRING EXO-COM TO APP FIRMWARE UPDATE 19-21 MOUNTING ADAPTER BASIC CONTROL MOUNTING ADAPTER ASSEMBLE 23-24 MUSIC ACTIVATE SIRI/GOOGLE ASSISTANT IMPORTANT NOTICES &...
- Page 3 QUICK START GUIDE - EN, FR, DE, ES, IT RETAIL PACKAGE ONLY MIC/SPEAKER BATTERY VELCRO MOUNTING ADAPTER USB-C CABLE 2 x Circular Velcro for Speaker/Mic, Mounting Adapter for Mounting Adapter for 3 x Capsule Velcro for wire management EXO-COM controller EXO-COM battery...
- Page 4 Indicator BLUE Blinking - Power on state Blinking - Powering off Double Blink - Phone call in progress Battery low Music Playing BLUE/RED PURPLE Blinking - Intercom Pairing Mode Alternate - Bluetooth phone pairing mode Blinking - Music Share Pairing, Incoming call GREEN Blinking - Intercom connecteed...
- Page 5 Mic/Speaker Installation 2. MIC/SPEAKER INSTALLATION After the Velcro sits properly on the speaker pocket, peel off the sticker paper on the Fabric (that was paired to Velcro), and attach it to the back of mic/speaker. Attach the mic/speaker to the Velcro.
- Page 6 Connector (3A) into the hole first, and then Battery Pack Male Connector (3B) referring to the above picture. Install the EXO-COM Controller (4), and make sure it is 3. Plug the Battery Pack male connector (3B) to properly positioned by sitting on two bumps (5) at the the Battery Pack referring to the above picture.
- Page 7 Mic/Speaker and its wire are all properly set. To find detailed information about using the EXO-COM Controller, refer to the EXO-COM Quick Start Guide, or User’s Manual by scanning QR code in the EXO-COM Quick Start Guide. NOTE: WHEN YOU RE-INSTALL THE LINER, CHECK IF ANY PART OF EXO-COM WIRE IS ON THE LINER SNAP HOLE.
- Page 8 LED blinking Press POWER once, or just say “Hello” ►End / Reject Incoming Call Hold UP+DOWN 2 sec. Find EXO-Com in your phone's Bluetooth device list, and tap Bluetooth List Hold POWER 2 sec. the name to pair the device.
- Page 9 Pairing EXO-COM to App Device Information Configuration 1. Turn on the EXO-Com, and pair it to the phone first. 2. Press POWER once. 3. Now it is ready to connect to the app. Homepage Connect EXO-Com EXO-COM 1 Firmware Update Easy firmware update: Click update button on...
- Page 10 Basic Control Hold 2 sec. Press Press Twice Hold 5 sec. Hold until light changes Hold POWER 2 sec. Hold POWER 5 sec. Volume Up Volume Down Press UP once. Press DOWN once.
- Page 11 Activate Music Siri/Google Assistant ► Play Pause Press POWER x 2 times Press QUICK ACCESS twice, wait for tone Press POWER once Product Support & Manual Download ►► Skip track SCORPIONSPORTS.EU (EU) SCORPIONUSA.COM (USA) ◄◄ Backtrack Press UP x 2 times. Press DOWN x 2 times.
- Page 12 Intercom Group Pairing Setup The initial setup Press POWER on one EXO-COM device to initiate pairing process. The units will blink green once they are connected. Power ON Status The last unit to pair continues to blink purple for 15 secs before system ends the pairing process.
- Page 13 After initial setup ►Intercom Connect Press UP+POWER+DOWN together once NOTE: 3-Button reset is a clearing/reboot process. It will NOT reset your EXO-COM device Hold UP 2 sec. to factory defaults, or erase settings or pairings. ►Intercom Disconnect To manually reboot EXO-COM devices, use the 3-button reset (does not erase your settings).
- Page 14 Intercom Pairing Setup (Other Brand) Intercom Pairing (Other Brand) Setup Set up other brand in "Phone Pairing mode” (please refer to other brand user manual) If the LED is purple, take off your hand from the device, and wait until LED turns green. If the LED is green, you are From OFF MODE, succesfully connected.
- Page 15 Music Sharing EXO-Com A EXO-Com B - Power ON state. - Power ON state. - Press Power and Down twice quickly. - Press Power and Up twice quickly. - LED indicator will blink blue - LED indicator will blink blue...
- Page 16 USB-C cable included into the package. LED turns red while charging. LED turns blue when fully charged. - Both EXO-COM units will start blinking blue when pairing completes. - Control music playback and volume as shown on ‘Music’ Example: Press POWER twice to start music play.
- Page 17 Voice Prompt Language Setting Select CONFIGURATION Select VOICE PROMPT 7 Languages are prepared : - English, French, German, Spanish, Italian, Chinese, Korean English and French are default setting. If you need to change the voice prompt setting, you can change it via PC or APP(iOS, Android) 2-3 min.
- Page 18 Select Language Confirm Download Download and Firmware Update Select Language and Update Firmware...
- Page 19 Update Firmware Update the Language Complete the Update and Reboot...
- Page 20 4 hrs. via App(Apple iOS) We recommend using PC or Android rather than Apple iOS as Apple iOS only supports a slow BLE data transmission. Connect device to EXO-COM Mobile App as shown on pages 7-8. Tap ‘UPDATE FIRMWARE’ and follow on-screen instructions.
- Page 21 Method 2 Firmware Update via PC or Mac 1. Press all three front buttons simultaneously to reset the EXO-COM unit. The LED will switch off during this reset. 3. Start EXO-COM firmware Update Wizard 2. After releasing the three buttons,...
- Page 22 7. Click ‘Finish’. Firmware update completed. 5. Click ‘Next’ 6.Check the language you want, and click ‘Next’...
- Page 23 Mounting Adapter kit is designed for the Scorpion EXO HX1, EXO S1, and EXO-Tech Carbon exclusively. Mounting Adapter kit is intended to be sold, distributed, and used in Europe with the listed models only. If installed on any other Scorpion model or any other helmet brand, or used for unintended purpose, the EXO-Com warranty will be considered void.
- Page 24 Mounting Adapter Assembly Mounting Adapter assembly for EXO-COM battery Mounting Adapter assembly for EXO-COM controller...
- Page 25 Exclusively Compatible Models EXO-S1 EXO-HX1 For EXO-Tech Carbon, please check if there is enough space between chin bar and battery housing. EXO-TECH (Carbon)
- Page 26 Notice BATTERY WARNING The UCLEAR™ /ScorpionExo helmet communicator contains a rechargeable lithium ion polymer battery. ® To reduce risks of fire or burns, do not disassemble, crush, puncture, short external contacts or dispose in fire or water. CHARGING NOTICE To reduce the risk of personal injury, electrical shock, fire or damage to equipments, please follow all the instructions below: - Do not immerse the product, AC adaptor or speakers in water.
- Page 27 The sender will bear all transportation charges for functioning products but which were declared defective. All product warranties for the product by UCLEAR™ /ScorpionExo are limited to those mentioned in the product manual.
- Page 28 Notice WAIVER AND DISCLAIMER BITwave Pte Ltd. /Kido Sports Co., Ltd. and all their representatives, agents, distributors, suppliers and resellers shall not be liable and will be held harmless from any and all litigation, claims, debts, demands, actions and liability which may arise, directly or indirectly, from operating or using the product for any damages, losses, distress, pain, suffering, discomfort, loss and injuries including bodily harm illness, strains, fractures, partial and/or total paralysis, death or other ailments that could cause serious disability either to any persons, or any parties whether the user or other third parties or their possessions, or to any goods, vehicles, properties, assets among...
- Page 29 Notice WAIVER AND DISCLAIMER (CON’T) All risks from operating or usage of the product rest solely and entirely with the user of this product, the original purchaser or any third parties, who assumes full responsibility for all injuries, losses and/ or damages, whether caused in whole or in part by the negligence, omissions or other conduct of others, including that of BITwave Pte Ltd.
- Page 30 Notice WAIVER AND DISCLAIMER (CON’T) You are warned not to operate the product if you are not physically capable of doing so in a safe manner, if you have or will consume any alcohol or any mind-altering substance during its operation so that your alertness is compromised or if you have any medical conditions or needs that may compromise your abilities to do so in a safe manner.
- Page 31 Notice PRODUCT INFORMATION BITwave Pte Ltd. /Kido Sports Co., Ltd. and all their representatives, agents, distributors, suppliers or resellers shall not be held responsible for any consequences arising from any errors or omissions in the guide or resulting directly or indirectly from the use of the information herein. BITwave Pte Ltd. /Kido Sports Co., Ltd. reserves the right to amend or improve the product design or user guide without any restrictions and without any obligation to notify users.
- Page 32 Notice TECHNICAL SUPPORT (NORTH AMERICA) For technical or warranty support, please visit: WWW.SCORPIONUSA.COM (USA) TECHNICAL SUPPORT (EUROPE) SCORPIONSPORTS.EU (EU) COPYRIGHTS Copyright © 2018 BITwave Pte Ltd. All rights reserved. No part of this guide may be reproduced in any form or by any process whatsoever without prior written consent from BITwave Pte Ltd.
- Page 33 Notice IC SAR STATEMENT This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and IEC 62209. This equipment should be installed and operated with minimum distance 0 mm between the radiator and your head. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 34 Notice FCC/SAR COMPLIANCE STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 35 Notice FCC/SAR COMPLIANCE STATEMENT This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the Federal Communications Commission (USA).
