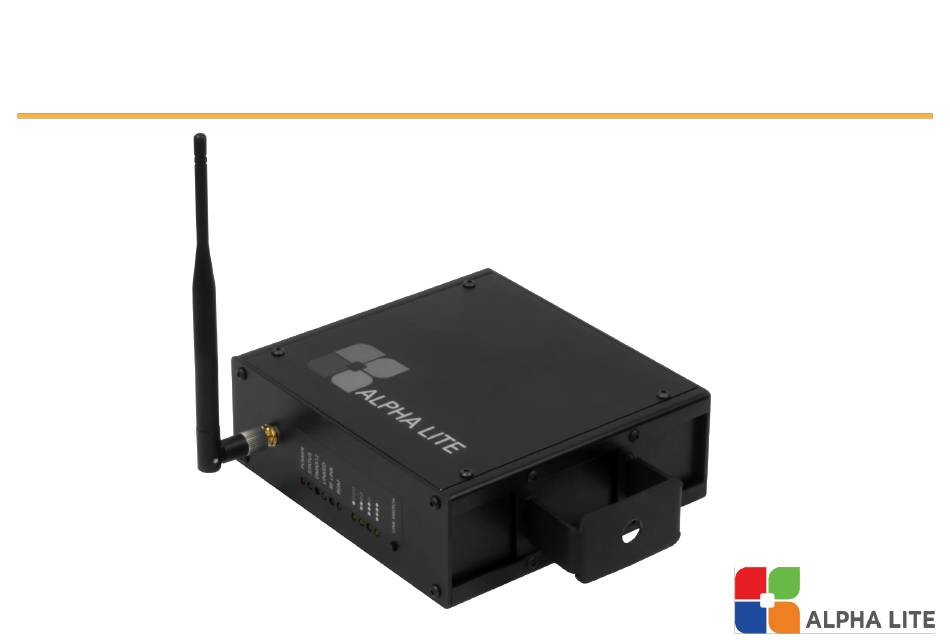

- Page 1 WIRELESS MODULE RX/TX USER MANUAL July 2019...
-
Page 3: Safety Information
Safety Information 1. Do not open or disassemble the cover to reduce the risk of electric shock. 2. Please wear safety equipment such as safety helmet during work. WARNING 3. Be sure to fix the safety chain on the product when installing and moving. 4. -
Page 4: Table Of Contents
Contents Safety Information Contents [Fixture Information] Fixture Information Fixture Exterior View Technical Specifications [Fixture Installation] Equipment Connection Power Connection DMX Connection Signal Link Signal Unlink Operation Indications - 4 -... -
Page 5: Fixture Information
Multiple CRMX TX units can be used together to transmit multiple DMX universes, allowing for easy system expansion. CRMX Nova RX is a receiver for one DMX universe being transmitted by any CRMX transmitter. It supports one full DMX universe of up to 512 channels at maximum refresh rate. -
Page 6: Fixture Exterior View
■ DMX Port Data send-only (2 ports) Data receive-only (2 ports) Connect with Connect with DMX OUT a Consol Lighting fixtures * If you insert the DMX input signal to the RX unit, an error may occur. - 6 -... -
Page 7: Technical Specifications
Technical Specifications TX / RX Power Input Voltage AC 100 ~ 240V, 50/60Hz Supported Protocol ANSI E1.11-DMX512-A / ANSI E1.20-RDM International license Free ISM band on 2.4GHz Operation Temperature Range -20~45°C (-4°F~122°F) (ambient) Operational Frequency Range 2402-2480 MHz Wireless Range... -
Page 8: Equipment Connection
Equipment Connection Main Console RX (Receiver) Lighting fixtures Lighting fixtures Lighting fixtures TX (Transmitter) RX (Receiver) Lighting fixtures Lighting fixtures Lighting fixtures DMX Cable Connection Wireless Connection RX (Receiver) Lighting fixtures Lighting fixtures Lighting fixtures - 8 -... -
Page 9: Power Connection
Consol Lighting fixtures * If you insert the DMX input signal to the RX unit, an error may occur. 1. Observe the proper voltage range 2. If power is supplied outside the range, noise may be generated from the SMPS. -
Page 10: Signal Link
Signal Link 3. Ensure that the RF Link indicators 1. Connect an antenna 2. Power on on all receivers are off. the transmitter(TX) and receivers(RX). (If necessary, follow the unlink procedure.) (TX/RX) (Connect (TX : Connect with the power) main consol) -
Page 11: Signal Unlink
Signal Unlink ■ Unlink one receiver (RX) 1. On the receiver, press and hold ‘LINK SWITCH’ button 2. The receiver’s RF Link indicator will extinguish, for more than 3 seconds to unlink it from a transmitter. and the connection with the transmitter will unlink. -
Page 12: Operation Indications
RF LINK : The length of the flashing indicates the connection signal status between TX and RX. (Flashing slowly on RX when far from the signal range of TX) RDM : Flashes to RDM activity. Signal quality indicates between TX and RX. - Page 13 Flashing (Off 100ms / on 100ms) : Linking with available RX : Off Flashing (Off 200ms / on 200ms) : Unlinking all currently linked RX Flashing (Off 900ms / on 100ms) : Active radio link, no DMX present Constant on : Active radio link, DMX data present ■...
- Page 14 LED Intelligent Lighting Solution For more information and questions, please visit our website or call. ALPHA LITE Co., Ltd. Floor, 5-8, Gyeongin-ro 88-gil, Yeongdeungpo-gu, Seoul, Republic of Korea, 07363 Email hello@alpha-lite.net (+82) 2-6317-0464 (+82) 2-2039-0464 www.alpha-lite.net...
