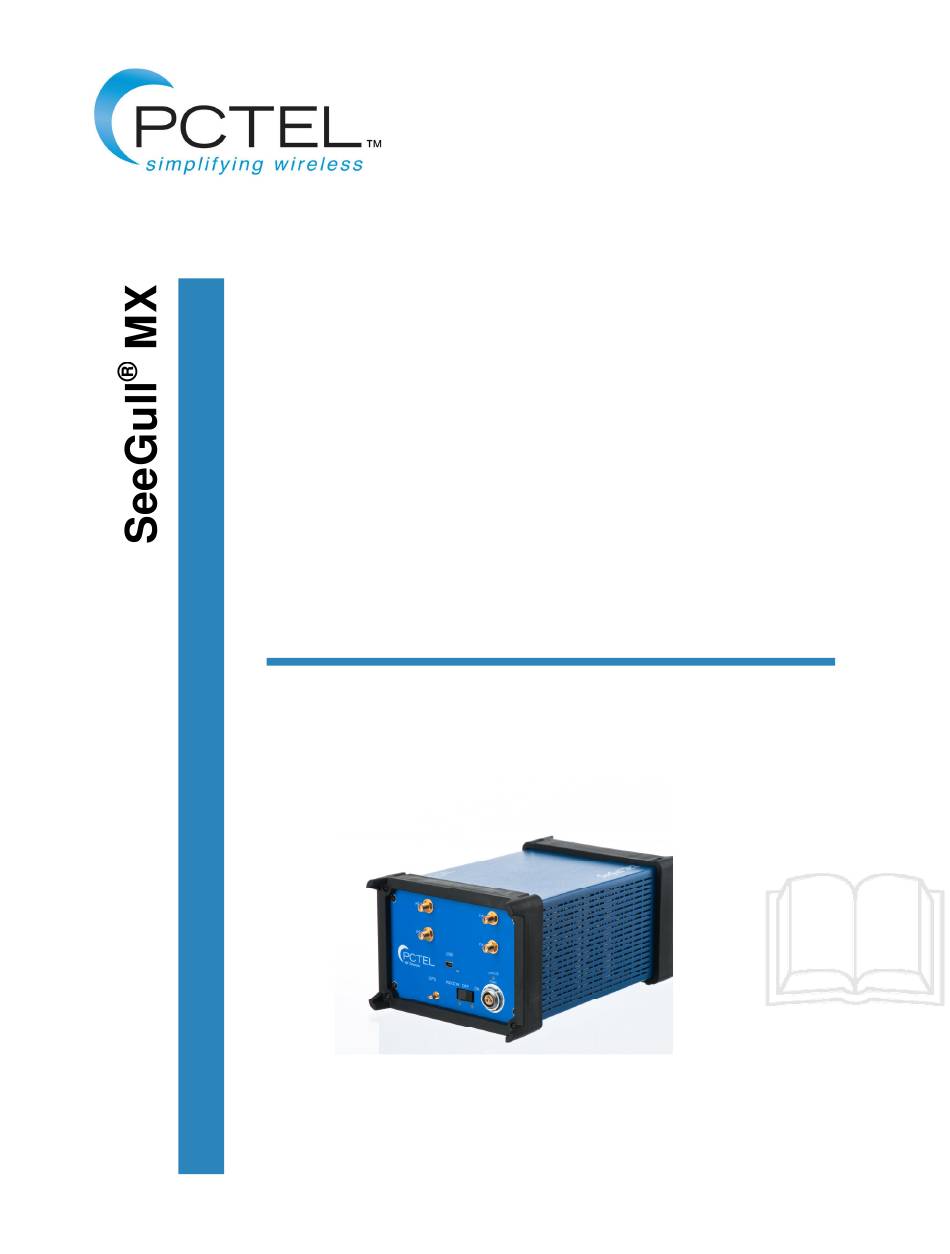

- Page 1 ® SeeGull MX Driver Installation Procedure Document Number: 100059-00 Revision B...
- Page 2 Restrictions: This document contains proprietary information that is protected by copyright; it is intended for use by PCTEL and its customers only. It is not to be disclosed to a third party. All rights reserved. No part of this document may be photocopied or reproduced in any way without the prior written permission of PCTEL, RF Solutions.
-
Page 3: Table Of Contents
Table of Contents PREFACE ..........................1 .......................... 1 URPOSE ........................1 EFERENCES ...................... 1 ICENSE GREEMENT INSTALLATION ........................2 PCTEL MX W USB D ................2 NSTALL RIVER PCTEL MX W USB D ............9 NINSTALL OF THE RIVER PCTEL Proprietary Information... -
Page 4: Preface
PCTEL SeeGull MX Driver Installation Procedure 1 Preface Purpose This document contains the installation procedure for the PCTEL MX WinUSB Driver. References The following documents complement the information contained within this document and should be consulted as required: 1. PCTEL, RF Solutions’ Terms & Conditions of Sale... -
Page 5: Installation
The following steps describe how to install the PCTEL MX WinUSB Driver: 1. Log in as Administrator. 2. Insert the PCTEL MX WinUSB driver CD into the PC’s CD ROM drive. 3. Determine the System type is 32 bit or 64 bit by right mouse clicking on the My Computer, and select Properties to bring up the System Panel. - Page 6 Note: For 32 bit Operating System run DPInst.exe from “install x86” folder and for 64 bit Operating System run DPInst.exe from “install x64” folder. 5. The PCTEL USB Device Installer window should appear as shown below: Figure 1 – PCTEL USB Device Installer Welcome Window 6.
- Page 7 PCTEL SeeGull MX Driver Installation Procedure Figure 2 - Windows Security Window (only for Windows 7 & Vista) 8. Click Install to continue with the installation. During the installation process, the following window may appear: Figure 3 – Installation Progress Window 9.
- Page 8 PCTEL SeeGull MX Driver Installation Procedure Figure 4 - Installation Completed Window 10. Click Finish to complete the Driver Installation. 11. Connect a PCTEL MX Scanner. 12. For Windows 7 and Vista users, proceed to step 18. For Windows XP, the following Found New Hardware Wizard window will appear: PCTEL Proprietary Information Rev.
- Page 9 PCTEL SeeGull MX Driver Installation Procedure Figure 5 – Found New Hardware Welcome Window for XP 13. Select No, not this time and click Next. The following window will appear: Figure 6 – Location for Driver Software Window 14. Select Install the software automatically (Recommended) and Click Next.
- Page 10 If you click on the device installation completed message at the right bottom corner of the screen, the following screen will appear: Figure 8 – PCTEL MX Scanner Ready-to-Use Window. Note: If Windows require restart, the following window will appear. Close the window and restart the PC.
- Page 11 PCTEL SeeGull MX Driver Installation Procedure Figure 9 – Restart Window 18. Device Manager will show PCTEL MX Scanner under PCTEL Devices as shown below: Figure 10 – Device Manager Window This completes the PCTEL MX WinUSB Device Driver Install Procedure.
-
Page 12: Uninstall Of The Pctel Mx Winusb Driver
Procedure Uninstall of the PCTEL MX WinUSB Driver This section describes the procedure to uninstall the PCTEL MX WinUSB Driver: 1. Open Control Panel. 2. For XP open Add or Remove Programs and for Windows 7 or Vista open Uninstall a program under Programs. - Page 13 PCTEL SeeGull MX Driver Installation Procedure 4. Click Yes to continue uninstall the driver. Figure 12 – Uninstall Confirmation Window This completes the PCTEL MX WinUSB Device Driver Uninstall Procedure. PCTEL Proprietary Information Rev. B...
- Page 14 PCTEL SeeGull MX Driver Installation Procedure PCTEL Proprietary Information Rev. B...
