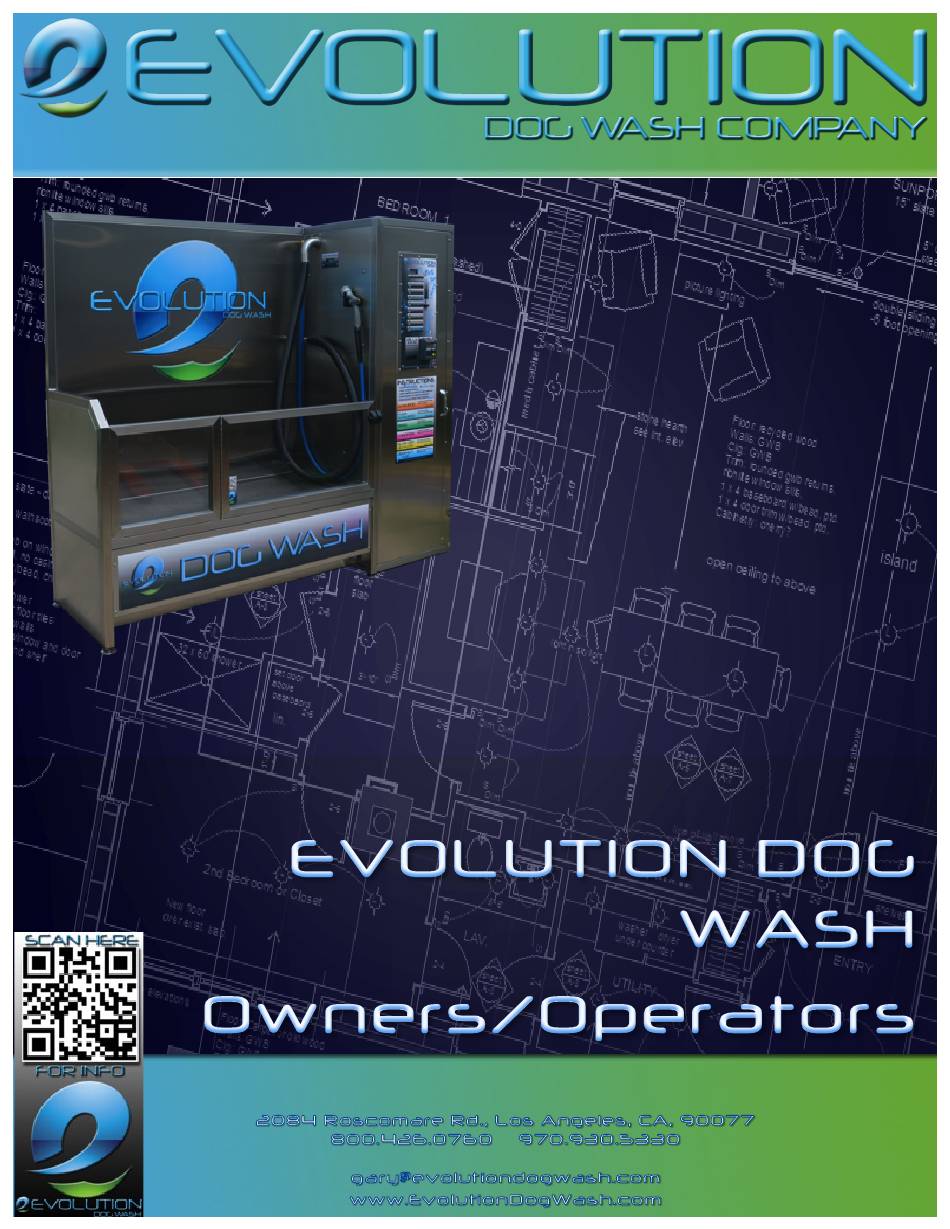

Evolution Dog Wash Evolution Owner's/Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evolution and is the answer not in the manual?

Questions and answers

Summary of Contents for Evolution Dog Wash Evolution

  • Page 2 Notice Evolution Dog Wash Company 2084 Roscomare Rd. Los Angeles, CA 90077 800.426.0760 / 970.930.5330 www.EvolutionDogWash.com All Rights Reserved Printed in USA Proprietary Material The information and descriptions contained herein are the property of The EVOLUTION DOG WASH COMPANY. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express written permission of The EVOLUTION DOG WASH COMPANY. This document is for information purposes only and is subject to change without notice. Statement of Limited Warranty Warranty of the equipment will be for one (2 )years after the purchase and delivery of the Goods. Warranty covers all parts, accrued; however, the warranty does not cover labor costs. The warranty does not cover theft, destructive acts, or gross neglect to the Goods. The manufacturer (or, designated representative of the manufacturer) has the rights to inspect the Goods to confirm that the damage is covered under the warranty. Warranty is considered voidable if Buyer does not use approved shampoo and disinfectant products (Tropiclean and KennelSol) throughout warranty period. No other warranty, express or implied, including any warranties of merchantability or fitness for a particular purpose is hereby made by Seller, and none shall be imputed or presumed. P/N: OWNERS/OPERATORS MANUAL JUNE 2018 Evolution Dog Wash Owners/Operators Manual Page 2...

  • Page 3: Table Of Contents

    3.0 INTRODUCTION ........................... 9 4.0 INSTALLATION ........................... 10 4.1 Receiving Unit and Condition Inspection ................. 10 4.1.1 Caution Heavy Crate ........................ 10 4.1.2 Unit Inspection ........................10 4.2 Uncrating and Positioning ......................10 4.3 Leveling and Securing the Unit ....................11 4.3.1 Leveling Unit ..........................11 4.3.2 Securing Unit ..........................12 4.4 Utility Connections ........................12 4.4.1 Sanitary Sewer ......................... 12 4.4.2 Water ............................14 4.4.3 Electrical ........................... 14 4.4.4 Electrical for Optional Water Heater ..................15 4.5 Layout Suggestions ......................... 15 5.0 Turn On & Setup ..........................16 5.1 Initial Turn On ..........................16 5.1.1 Electrical ............................ 16 5.1.2 Water ............................17 Evolution Dog Wash Owners/Operators Manual Page 3...
  • Page 4 Cleaning Procedures ........................33 7.2 Schedules ........................... 33 7.2.1 Daily ............................33 7.2.2 Monday and Friday ........................ 33 7.2.3 Monday and Friday ........................ 34 7.2.4 Monthly ..........................34 7.2.5 Bi-annually ..........................34 7.2.6 Annually ..........................34 7.3 Note Acceptor Maintenance ..................... 34 7.4 Coin Accpetor Maintenance ...................... 35 7.5 Dryer Filter Maintenance ......................35 7.6 Other Support Pictures ......................36 8.0 EVOLUTION Parts Identification and Location ................. 37 8.1 Outside The EVOLUTION ......................37 8.2 Inside The EVOLUTION ......................38 9.0 Troubleshooting ..........................40 Evolution Dog Wash Owners/Operators Manual Page 4...

  • Page 5: About Us

    1.0 ABOUT US Evolution Dog Wash Company holds the dominant position in the self-serve dog wash industry. The Evolution Dog Wash is a quantum leap forward in the self serve dog wash industry, employing technology only used in the worlds most advanced Informational applications, each EVOLUTION system is built by hand with the specifications of each client. Since the dog wash system is manufactured in the United States, it can be shipped to your business quickly. Replacement parts and repairs can also be made fast. While other dog wash companies claim to have great products and knowledge, Evolution Dog Wash Company is the only self-serve dog wash company whose sole mission is to provide the best quality dog wash along with providing the most qualified and informed team of experts. While other companies offer a dog wash as part of their business, the only purpose of Evolution Dog Wash Company is to provide the best self-serve dog wash in the world. Evolution dog wash can also be used for other purposes, such as routine dog grooming or bathing other small animals. 1.1 Contact Information Evolution Dog Wash Company Phone: 800.426.0760 8024 Roscomare Rd. Cell: 970.930.5330 Los Angeles, CA 90077 Web: www.EvolutionDogWash.com Owner: Gary Sherman email: gary@evolutiondogwash.com Evolution Dog Wash Owners/Operators Manual Page 5...

  • Page 6: Introduction

    2.0 INTRODUCTION 2.1 Principle of Operation The Evolution Dog Wash is a fully self-contained machine designed for the wash and care of dogs, cats, and other animals appropriate for bathing. The aircraft grade stainless steel cabinet is designed for indoor or outdoor use in a controlled or standalone configuration. The unit consists of currency acceptance in the form of coins, tokens, and notes. It also has the optional capabilities to accept credit cards. A timing device is used in conjunction with the currency or credit card acceptance to control the amount of wash time is provided to the unit. A selection control allows the user to select one of several functions to groom their animal. Shampoo, Flea and Tick Shampoo, Rinse, Low Blow, High Blow, and Disinfectant are the selections. A controlled wash area is included in the unit. A swing door allows larger animals to step into the compartment for washing. There are tether points in the unit that can be used to control and constrain the animal. A three part filtering system is provided to strain any animal hair from entering the sanitary sewer system. An operator key is provided for maintenance and cleanup of the unit. The user places their animal into the unit’s wash compartment and secures them. They then pay for their cycle using one of the methods described above. Once the turn on price is satisfied they began to wash their animals using the selections and the spray hose and nozzle of the unit. Once they have washed their animal then they can blow dry them using the provided blower. 2.2 Models There are several models of The Evolution Dog Wash to choose from: Evolution – Evolution Dog Wash, Rotary Switch with Coin and Note acceptance EvolutionM – Evolution Dog Wash Rotary Switch Manual Operated EvolutionPLC – Evolution Dog Wash Push Button Meter and PLC Integration EvolutionPLCHMI – Evolution Dog WashPush Button Meter, PLC Integration, and HMI EvolutionPLCHMIINT – Evolution Dog WashPush Button Meter, PLC Integration, HMI, and Internet Connectivity All models can have the optional water heater and / or credit card acceptor added. HMI – Human Machine Interface (Touch Screen) This circuit is for the main power to the unit. An additional dedicated 110 Volt AC / 20 Amp circuit is required if Evolution Dog Wash Owners/Operators Manual Page 6...

  • Page 7: Specifications

    2.4 Specifications Aircraft Grade Stainless Steel Construction Self-Contained Cabinet for Interior or Exterior Operations Triple Redundant Exterior Locking Key Secured Separate Coin and Maintenance Area Water Usage – 1.7>2.5 GPM (8-13G per wash) Standard wash charge is recommended to be between $10 and $12, for 10 minutes of wash time for minimum startup. Wash Cycle Cost is approx. $.90 - $1.20 2.5 Requirements Water (Required) ½” Cold Water Line 20-60 PSI/2.0 GPM ½” Hot Water Line 20-60 PSI/2.0 GPM 2” Sanitary Sewer Waste (Required) 110 Volts AC 30 Amps Hardwired Dedicated Circuit (Required) 2.6 Dimensions and Weights Length 81” / Height 70.375” / Depth 23.5” Weight 750 Pounds Crated Weight 1000 – 1050 lbs. approx. This circuit is for the main power to the unit. An additional dedicated 110 Volt AC / 20 Amp circuit is required if the unit comes with the optional water heater. Add 65 lbs. with optional water heater Evolution Dog Wash Owners/Operators Manual Page 7...

  • Page 8: Drawings

    2.7 Drawings Evolution Dog Wash Owners/Operators Manual Page 8...

  • Page 9: Introduction

    3.0 INTRODUCTION 3.1 Safety and Caution Notes Caution Symbol Anytime this symbol is displayed, special note should be made to observe the care of this particular function. This unit should only be installed by a qualified installer. Installation requires electrical, plumbing, mechanical, and more, expertise. Lack of knowledge in performing any one of these requirements can cause serious bodily harm up to and including death. WARNING Risk of electrical shock! The EVOLUTION Dog Wash is powered with an electrical minimum of 110 Volts AC, 50/60 Hz / 30 amps. A dedicated 30 amp circuit should be hard wired to the unit at the provided attach point inside the main cabinet. This connection should only be made by a qualified electrician. All local codes should be followed as well at National Electrical Code (NEC). Branch circuit protection is provided on the unit meeting or exceeding UL1077 and/or UL489 ratings. This unit is supplied with a grounding source that should have its integrity maintained. To reduce the risk of shock, be certain that it is connected only to a properly grounded, grounding type buss with ratings conforming to NEC codes. Prior to any maintenance on the unit, disconnect the unit from the electrical power source. Failure to comply with the previous statement may void the EVOLUTION Dog Wash warranty. Plumbing Precautions The EVOLUTION Dog Wash requires a minimum of 20 PSI and maximum of 60 PSI at 2.0 gpm of water flow for proper operation. Failure to provide the requirements may cause the unit to not perform as designed. To insure a safe installation, all plumbing connections should be made by a qualified, licensed plumber familiar with local and national plumbing code. Any and all exposed plumbing connections should be weather proofed to prevent damage to the plumbing and unit. The EVOLUTION Dog Wash Company is not responsible for failure or operational errors due to improper installation. Failure to comply with the previous statement may void the EVOLUTION Dog Wash warranty. Chemicals The EVOLUTION Dog Wash was designed around the wash products provided with the unit, TROPICLEAN and KENNELSOL. The solution ratios suggested in this manual are for those This circuit is for the main power to the unit. An additional dedicated 110 Volt AC / 20 Amp circuit is required if the unit comes with the optional water heater. Evolution Dog Wash Owners/Operators Manual Page 9...

  • Page 10: Installation

    4.0 INSTALLATION 4.1 Receiving Unit and Condition Inspection 4.1.1 Caution Heavy Crate Extreme caution should be taken when the EVOLUTION Dog Wash has been delivered and is being unloaded. As pointed out in Section 2.5 the unit will weigh between 1000 and 1065 lbs. crated. Equipment designed to handle this type of load should be used with qualified personnel operating it. 4.1.2 Unit Inspection The EVOLUTION should be inspected prior to accepting shipment. Note any damage to the unit crating or unit itself. If damage is substantial EVOLUTION Dog Wash Company should be contacted immediately, failure to so may cause insurance claim to not be accepted 4.2 Uncrating and Positioning The EVOLUTION is crated with care to prevent damage to the unit during shipping. Upon receiving the unit, carefully remove the exterior crating and dispose of properly. Caution should be used when removing crating for exposed and jagged wood edges and/or exposed nails and fasteners. Remove the inner wrapping by carefully cutting the paper and wrap while pulling away from unit. DO NOT use a razor knife when removing inner wrappings to prevent possible damage to decaling or stainless steel surface. Evolution Dog Wash Owners/Operators Manual Page 10...

  • Page 11: Leveling And Securing The Unit

    The unit is mounted on a shipping skid that is held in place with 4 lag screws. Prior to removing this skid, it is recommended to position the unit in close proximity of its final location. Remove Shipping Skid Remove Hold Down Bolts the lag screws in the shipping skid to remove it from the unit and position the unit into it final location leaving adequate room to access the unit to connect to water, electricity, and sanitary sewer. 4.3 Leveling and Securing the Unit 4.3.1 Leveling Unit Once the unit has been positioned, then it needs to be anchored into place. Provided with the unit are 2 – 3/8” anchor bolts for the right hand side of the unit. Drill into the substructure, screw these anchors in and tighten with the provided hex nut. There are 4 – Plastic anchors and screws for the four remaining feet on the unit. Drill into the substructure, insert the plastic anchors and use screws provided to anchor in place. Leveling the unit is done by placing a level on the top of the main control cabinet from front to back, level by inserting spacer between the unit and substructure. Place the level on the wash compartment door and adjust leveling legs and secure using provided hardware. Left to Right Leveling Front to Back Leveling Evolution Dog Wash Owners/Operators Manual Page 11...

  • Page 12: Securing Unit

    4.3.2 Securing Unit THIS UNIT MUST BE SECURED. The EVOLUTION Dog Wash is a very stable unit, but must be secured to the substructure that it is mounted on. This will prevent accidental tipping over of the unit. There are 2 mounting bolts for the main mounting feet on the right side of the unit, see drawing below for information. There are also 4 mounting anchors and screws for the 4 legs on the unit, see drawing below for information. Mounting Nut Washer Bolt Leg Insert Mounting Foot Mounting Foot Screw Anchor 4.4 Utility Connections All utility connections should be done by a qualified installer; failure to do so may cause injury or equipment damage. Any equipment damage done due to incorrect installation and hookup will void equipment warranty. 4.4.1 Sanitary Sewer All plumbing connections should follow the local and national plumbing codes and requirements. A 2” Sanitary Sewer connection is required for drainage. If working from the front of the unit remove the 4 allen head bolts holding the front access panel to the unit, remove access panel taking caution to protect decal. Front Access Panel Screws Evolution Dog Wash Owners/Operators Manual Page 12...
  • Page 13 The drain is located in the center of the dog wash compartment 9” off surface. 2” Drain with P trap Drain in center of wash installed. compartment. Connect the provided 2” sanitary connection to the unit’s drain. A p trap should be installed per local and national codes to prevent backflow of possible dangerous sewer gases. Shown above is a EVOLUTION that was installed into an existing room, so the connection points were run along the wall. If completing a “NEW” site, these connections can be run through the floor or through the rear wall. Consult your plumber to determine what best suits your situation. Evolution Dog Wash Owners/Operators Manual Page 13...

  • Page 14: Water

    4.4.2 Water Water connection should be brought to the unit with cutoffs to assist in connect and disconnect functions. Adequate water lines should be used that will support the necessary water pressure needed. ½” Female pipe threads are provided on the unit. Connect to these lines cold water to the cold water connection and heated water to the hot water connection. Water (Required) ½” Cold Water Line 20-60 PSI/2.0 GPM ½” Hot Water Line 20-60 PSI/2.0 GPM 4.4.3 Electrical The electrical connections to the unit should only be made by a qualified electrician aware, trained, and skilled in the connection of electrical components. An untrained person performing these functions risks the chance of serious injury or possibly death. Provide a 110 Volt AC 30 Amp Dedicated circuit to the unit. Observe all local and national codes when providing power to the unit. This circuit is for the unit alone, no other appliance should be connected to this circuit. Connect Dedicated 110 VAC / 30 Amp circuit through hole and into bottom of electrical panel. There will not be a hot water plumbing connection if a water heater is provided. Evolution Dog Wash Owners/Operators Manual Page 14...

  • Page 15: Electrical For Optional Water Heater

    4.4.4 Electrical for Optional Water Heater As an option, a 20 gallon water heater may be purchased. In the event it is provided it will require a dedicated 20 amp circuit to operate. A qualified electrician will be able to provide this circuit and connection. By no means should the main circuit for the unit be used for this connection. Failure to observe this warning will void warranty with risk of damage to the unit. 4.5 Layout Suggestions 120.0000 STANDARD SYSTEM REQUIREMENTS Main Power 110 VAC 30Amp –EVOLUTION Other Power 110 VAC 20Amp-Water Heater 2" Sanitary Sewer Water 20-60 PSI Hot ½” Supply Line Electrical and Water Stub ups 2GPM Cold ½” Supply Line K9000 Dog Wash Unit Sanitary Waste 2” Diameter Outlet Perimeter Pool Fence 120.0000 Swing Gate...

  • Page 16: Turn On & Setup

    5.0 Turn On & Setup The EVOLUTION comes to you fully wet/electrically tested. The unit is then labeled, drained, and prepped for shipping. The following topics will guide you through the turn on and setup. Initial Turn On 5.1 Prior to turn on inspect the unit to insure that it is level and secure, electrical source has been provided, water connections have been made, and sanitary sewer connection has been made. 5.1.1 Electrical Turn the main breaker or disconnect on to the system (not part of the EVOLUTION). Open the main door and lift the cover to the electrical panel located to the left of the cabinet and turn on (up) each breaker , if breakers are not in the off (down) position, turn off (down) then turn on (up) Cover Single Pole - 10 Amp – Control Panel Single Pole - 15 Amp – High Blower Single Pole - 15 Amp – Low Blower Double Pole – Neutral and Main Ground Block and Connection You should observe the digital timer display light up and start scrolling. You will also hear a low beep as the digital display powers up. If equipped you will Due to manufacture change or redesign the pictures depicted may not fully represent the breakers in your unit. Evolution Dog Wash Owners/Operators Manual Page 16...

  • Page 17: Water

    In the event that the unit does not power up when the breakers are turned on, 2 possible problems may exist. 1 Check that the supply circuit to the unit is turned on and providing power. 2 Remove the cover to the main control panel and check the 2 breakers inside that panel. The normal position of these breakers should be on (up). If you find them in any other position, turn them to the off (down) position and then back to the on (up) position. Re-observe the above description. Cover Single Pole – 5 Amp – Transformer Single Pole – 10 Amp – Main Control Panel 5.1.2 Water Turn on the water valves that connect the unit to the water supply. Observe connections for leaks by looking for puddling water in and around the unit. Water Valves Open the main door and check to insure that the main valve is horizontal to the plumbing. These valves allow water to flow through the system. Evolution Dog Wash Owners/Operators Manual Page 17...

  • Page 18: Optional Water Heater Electrical And Prepping

    As an option, a 20 gallon water heater may be purchased. If the water heater is provided it will require a dedicated 20 amp circuit to operate. A qualified electrician will be able to provide this circuit and connection. By no means should the main circuit for the unit be used for this connection. Failure to observe this warning will void warranty with risk of damage to the unit. In addition to a separate dedicated circuit the electrician must provide circuit protection adequate to the circuit in accordance to NEC. A separate connection and cutoff point will be required to include this circuit. By NO means should the main circuit breaker box of the unit be used for the drop point of this circuit. Temperature and Pressure (TP) Valve Factory Installed Water Heater NOTICE: Prior to turning on the power to the water heater, it must be filled with water. This is accomplished by 1)Opening the TP Valve located on the top of the heater, 2)Turning on the supply water until water flows out of the TP Valved, 3) Shut TP Valve. It is now safe to turn on the power to the heater. 5.2 Setup The EVOLUTION requires a minimum amount of setup once it is received, uncrated, positioned, and utilities connected. However the following sections will describe the setup process for future references. 5.2.1 Shampoo and Disinfectant Products The EVOLUTION Dog Wash was designed around the wash products provided with the unit, TROPICLEAN and KENNELSOL. The solution ratios suggested in this manual are for those products only. Failure to use these products throughout the warranty period makes warranty voidable. Neem Berry Clean Kiwi Disinfectant Flea & Tick Shampoo Conditioner Shampoo Evolution Dog Wash Owners/Operators Manual Page 18...

  • Page 19: Product Setup

    1:8 Ratio Approx 100 dry, sensitive skin. Rich botanical 150 Washes conditioners create a healthy sheen. Strokes/Min Eliminates static and tangles, leaving the coat soft and easy to comb. Disinfectant A total system of high quality product that is safe, effective and environmentally friendly. Use for every aspect of cleaning, disease 1:64 Ratio Approx 400 control, odor control and system 100 Washes maintenance in your unit. Kills pathogens, Strokes/Min does not require rinsing and is safe around animals and people. Berry Clean 5.2.2 Product Setup Shampoo Inside of the EVOLUTION is 3 gallons of product in gallon containers. They are Neem marked Berry Clean, Neem Flea and Tick Flea & Tick Shampoo, and Kiwi Conditioner. The Shampoo KenneLSol Disinfectant will arrive separately via ground delivery truck. Identify each product and place inside of the EVOLUTION on the middle shelf as shown. Kiwi Disinfectant Conditioner Evolution Dog Wash Owners/Operators Manual Page 19...
  • Page 20 Remove the caps and cover to each product. Place the product suction hose and foot valve into the 1 gallon containers and screw on the white lid to the containers. See diagram for proper product orientation. Product Suction Hose and Foot Valve Screw On Cap Berry Clean Kiwi Shampoo Conditioner Disinfectant Neem Flea & Tick Shampoo Product and Pump Orientation Evolution Dog Wash Owners/Operators Manual Page 20...

  • Page 21: Product Dispensing Pumps

    5.2.3 Product Dispensing Pumps The EVOLUTION uses the best product metering pump recognized in the dispensing industry. The Walchem EZ Series electronic metering pump with microprocessor control offer precise product injection and ratio control. The compact size and simple control make it ideal for the EVOLUTION application. On/Off Switch Increase Stroke Decrease Stroke Product Dispensing Bleeder Valve Pump Injector Hose Bleeder Hose Dosing Pump Pump Components And Connections Product Suction Hose 5.2.3.1 Pump Priming During the Quality Control check prior to shipping, each pump is activated, set to the proper dosing measure, and primed with water. This will allow you to place the proper product suction hose into the proper product and begin using the EVOLUTION. It will take several minutes for the product to be provided to the pump through the hose. In the event the pump needs to be primed follow these procedures: 1. Insure that the product suction hose, foot valve, and cap have been installed. 2. Turn on the unit using the operator key located on front of meter. 3. Choose the product to be primed on the selection switch on meter. 4. Open the bleeder valve by turning counter clockwise. 5. Increase the stroke speed by pressing the up arrow to 360 strokes/min. 6. Observe the product coming up the suction hose. 7. When product reaches pump and starts out the bleeder hose close bleeder valve. 8. Decrease the stroke speed by pressing the down arrow to original setting. 9. Turn product selection to the off position and turn off operator key. Evolution Dog Wash Owners/Operators Manual Page 21...
  • Page 22 Evolution Dog Wash Owners/Operators Manual Page 22...
  • Page 23 Evolution Dog Wash Owners/Operators Manual Page 23...

  • Page 24: Thermostatic Water Mixing Valve

    5.2.4 Thermostatic Water Mixing Valve The EVOLUTION water temperature is maintained by providing hot water to the unit or installing the optional water heater. The water temperature is maintained with a Thermostatic Water Mixing Valve. The water temperature is set to 70 degrees coming from the factory, this is what the water temperature will be at the nozzle providing adequate hot water is supplied to the unit. This temperature can be adjusted at the mixing valve. Locking Screw Adjusting Knob To adjust the preset water temperature on the EVOLUTION follow these steps: 1. Loosen the locking screw by backing out approx. 1/2 inch. 2. Pull the adjusting knob out towards the front of the unit. 3. Turn the EVOLUTION on using the operator’s key, select rinse, press nozzle button. 4. Turn the adjusting knob counter clockwise while feeling the water coming from nozzle. 5. Once you are satisfied with the water temperature, reverse the steps above. 5.2.5 Water Pressure Regulator The Water Pressure Regulator is located on the Water Manifold and is used to restrict the flow of water through the system to protect the animals being washed. The recommended incoming water pressure should be Min. 20 PSI – Max. 60 PSI. The Acme EB35 ½ Pressure Reducing Valve (Water Regulator) is preset from the factory at 45 PSI. Water Manifold Press Regulator Shut Off Valve Thermostatic Valve Typically water that is comfortable to humans is too hot for animals, do not make water too warm. Caution should be used when adjusting this valve not to exceed a pressure greater than the animal can tolerate. Evolution Dog Wash Owners/Operators Manual Page 24...

  • Page 25: Solenoid Maintenance

    To adjust the water pressure lift the orange Range Adjustment Knob upward, turn counterclockwise (-) to decrease pressure and clockwise (+) to increase the pressure. Snap the orange knob back down after adjusting. In the event that maintenance is required on the reducing valve, close the isolating valve prior to the reducer before performing any maintenance. Use a wrench to unscrew the Pressure Reducing Cartridge. Remove the cartridge by pulling straight up. Clean cartridge with cold water only. Clean and/or replace the Strainer Screen before re- installing the cartridge. Screw the cartridge back into the Valve Body and re-tighten to the following torque: 10 lb/ft. Be careful not to over tighten the cartridge and risk cracking the valve body. 5.2.6 Solenoid Maintenance The water solenoid valve controls the flow of water through the EVOLUTION. It is a positive shutoff valve, controlled by the electromagnetic coil on the valve. Once power has been applied to the coil the valve will allow water to flow thru the unit and out the wash gun hose and wash gun, providing the push button has been pushed on the wash gun. Once power has Solenoid Valve been removed the solenoid will close and no water will flow. In the event that water continues to come out the wash gun after the solenoid has been de-activated there is a good chance that trash in the valve is preventing it from completely closing. This can be caused by improper clean up from plumbing connections, trash in the system, or most likely a build-up of calcium deposits from “hard water”. The following procedures will lead you through correcting this problem. 1. Remove the coil from the valve by loosening the screw on top of the coil. 2. Remove the stem by loosening the large brass nut on the solenoid body. 3. Once you have the nut loose, then carefully pull on the stem to remove the plunger. Place hand under valve to catch any falling parts.
  • Page 26 4. As you will see on the plunger it is shaped with a point. The point goes into the seat and seals off the pressure on the valve. Clean any debris from the seat and point on the plunger. The seat can be removed by grabbing the raised portion and lifing out. Turn the seat over and observe the small orifice hole in the seat, this is most likely where trash will be found. 5. Once any trash has been removed then re-assemble the solenoid by reversing the above steps. Evolution Dog Wash Owners/Operators Manual Page 26...

  • Page 27: Digital Timer Setup

    5.2.7 Digital Timer Setup The EVOLUTION is supplied with one of the most reliable Digital Timer/Display available on the market today. It is user friendly, multi price and time settings, and the brightest liquid fluorescent display that is sunlight readable. The timer comes pre programmed to what you elected in your purchase options. Default setting is $10.00 for 10 minutes. Main Display and Remote Display 1. 2. 3. 4. 5. 5.2.7.1 Digital Timer Programming Observe the timer front and back and orientate yourself with its display and control buttons. Front Mode Button Set Button 1. Liquid Fluorescent Display Back Power Plug Connection Evolution Dog Wash Owners/Operators Manual Page 27...
  • Page 28 The following steps will guide you through a complete setup. Once you have begun programming you will need to complete the cycle for the programming to take effect. Pressing the mode button will advance you through the different programming modes. Once you are in a programming mode you will use the set button to advance to the options available in that mode. Press and hold the MODE button for 5 seconds to enter first programming sequence. FUNCTION: (PET) The function mode allows the timer to be set to a different mode, activating additional functions. For the EVOLUTION this should be showing “PET”, if it does not, then press the SET button until “PET” shows in the display then press the MODE button to advance to the next sequence. UNIT NUMBER:(01) This is not currently being used in the EVOLUTION. NATIONALITY:(DOM) The nationality setting is used to setup pricing and display of the EVOLUTION, Domestic(DOM) is the default setting TOKEN:(T:01) This is not currently being used in the EVOLUTION. PRICE:(10:00) The EVOLUTION default price is $10 for 10 minutes, to change press the SET button, this will advance the price in .25 increments. TIME:(10:00) The EVOLUTION default time is 10 minutes, to change press the SET button, this will advance the minutes, press MODE to move to the seconds press the SET button to advance the seconds. SECONDS PER ADDITIONAL COIN:(C:015) The seconds per additional coin is calculated by the price and time setup. In the $10 for 10 minutes scenario it will show 15 seconds. This is Evolution Dog Wash Owners/Operators Manual Page 28...
  • Page 29 (10 min x 60 secs)/40. If you want your customer to receive a greater value then you can change this setting and the next coin, after the price is satisfied will give your set time to the customer. GRACE TIME:(G:020) The EVOLUTION offers grace time to its customers with the default period of 20 seconds. Grace time allows the customer to continue their washing period with the smallest of coin (.25) for the period of time setup for that coin. Scenario – Customer is in the process of finishing their wash cycle and time expires. The customer just likes a small amount of time to finish and does not want to commit to another 10 minutes of time. The customer may at this time insert coins, tokens, or bills giving them additional time on the meter, but must be done within the grace time period. If this selection is set to “0”, then no grace time is available. The grace time function is only available once per cycle. HORN:(h:10) When the time reaches the last sixty seconds of the cycle, the horn will beep for the amount set in this setting. FINISHING THE PROGRAM: After the horn setting has been set/changed then continue to press the mode button until you see the version setting displayed on the screen SOFTWARE VERSION:(V7.40) Once the last function is set on the timer and the mode button is pressed, then the display will show the current software version of the timer. Once you see this then rest assured that the programming changes have taken effect. Evolution Dog Wash Owners/Operators Manual Page 29...

  • Page 30: Operating The Unit

    6.0 Operating The Unit Once you have completed the Uncrating, Inspecting, Leveling and Securing, Utilities Connections, and Setup you are ready to put your EVOLUTION into service and begin collecting revenue. The following section will identify and explain the basics of operations. 6.1 Operations Operating The EVOLUTION Dog Wash is very simple with just a bit of understanding. It is very Important that the owner/operator have a clear understanding on how to operate the unit and be able to instruct the customers in its proper use. 6.1.1 Manual Operations There is just a simple instruction in the manual operations of the EVOLUTION. This is done by using Operator Key located on the front of the Meter Box. Insert the operator key into the key slot and turn the key to the right 90degrees. The unit now has complete power and operation capabilities. Any function may be used while the operator key is in the “on” position. The manual operations will be done while performing maintenance, priming product pumps, or customer operations in the event other possible operational problems. Once one of these operations have been completed, turn off the operator key by turning to the left and removing the key. 6.1.2 Customer Operations The EVOLUTION is designed to offer to the end user/customer the best Dog Wash available in the industry. You as the owner operator selected what functions you would offer your customer including Coin/Token acceptance, Note acceptance, and optional Credit Card Acceptance. The following descriptions involve a typical customer usage you will train your customers to your preferred methods. 1. Customer brings their dog/animal to be washed in the EVOLUTION. 2. Secure the dog in the wash compartment using the latch and chain in the EVOLUTION. Evolution Dog Wash Owners/Operators Manual Page 30...
  • Page 31 3. Satisfy the turn on price for the EVOLUTION wash cycle using either Coin Token Note Credit Card 4. The Digital Timer display will start counting down for the wash cycle. 5. It is recommended that you first disinfect the tub . Begin to wash the dog following the guidelines stated on the Menu decal by starting with shampoo selection, removing the wash gun from the hold and press the button on top of gun to start washing. Push Button Default pricing is $10.00 for 10 Minute. While disinfecting the wash tub area, no animals should be in the unit. Evolution Dog Wash Owners/Operators Manual Page 31...
  • Page 32 6. Continue through each cycle, thoroughly washing the animal. 7. Use the Low Blow and High Blow positions on the selection decal to turn on the blower, thoroughly dry the animal 8. Upon completion of the wash and dry cycle rinse down the wash area using the disinfectant selection. The customer should be encouraged to use disinfectant on the beginning and also at the end of the wash cycle. This will give then a comfort level for their animal’s care. 9. Hang up hoses, unlatch the latch from the animal and help animal to exit EVOLUTION. Some smaller animals prefer the lower speed dryer. Evolution Dog Wash Owners/Operators Manual Page 32...

  • Page 33: Maintenance

    7.0 Maintenance As with any piece of equipment, the maintenance to the EVOLUTION is the key to its longevity. Insure that the person(s) performing the maintenance understands the steps and tools needed to perform the maintenance. The following is a list of suggested maintenance items. If a operational problem occurs it should be addressed immediately to prevent downtime or possible damage to the EVOLUTION. You will develop your own procedures based on your business model. 7.1 Cleaning Procedures Suitable clothing, hand and eye protection should be used prior to any cleaning procedure. 1. Use the operator key to turn the EVOLUTION on, select the rinse option on the rotary dial and wash the tub area of the dog wash using the dog washing gun, rinse all the excess waste to the edges and under the floor and turn off gun. 2. Using the lifting tool, lift the floor and support using the support rod under the floor. 3. Carefully gather all of the waste hair prior to removing the square hair guard and properly dispose of, do not dispose of into a waste drain. 4. Remove the square hair filter in the middle of the floor, clean any large remaining waste and properly dispose. 5. Turn the wash gun on and rinse the tub area again, pushing the waste towards and into the center filter/drain, while doing so wash the bottom side of the floor. 6. Remove the cylindrical filter from the drain in the middle of the floor. Do this by lifting out the basket using the lip to assist removal. Empty the contents into the trash, again not disposing into the waste drain system. Do not attempt to wash anything while this basket is removed. Replace basket and do any other washing that may be needed at this time. 7. Replace the square primary drain. 8. Turn the wash gun on and select the disinfect option on the menu, wash underneath the floor and the complete wash tub area. 9. Lower the floor and wash the complete tub area with disinfectant. 10. Turn off gun and operator key and remove key. 11. Using a soft cloth, wipe over the meter front , menu, and dog wash area. Do Not use abrasive solvents, powders or paste.

  • Page 34: Monday And Friday

    Collect Revenue from EVOLUTION • Using the lifting tool, provided, lift the floor platform, remove hair and waste from • filters, rinse and disinfect. (Every 25 wash cycles.) Open main cabinet, check soap levels and re-supply as needed. • Check product hoses for proper delivery of product. Perform maintenance or bleeding • of the pumps as needed. See manual section 4.2.3.1 Pump Priming 7.2.3 Monday and Friday Clean the stainless steel by wiping down with a light oil spray such as WD-40. Use • caution if using any type of stainless steel polish and follow the grain of the panel being cleaned. Do Not use any abrasive cloth, chemical, paste, or cleaner. 7.2.4 Monthly Clean dryer filter. • Clean coin mechanism. • Clean note acceptor. • See Pictures at the end of this section for orientation. 7.2.5 Bi-annually Inspect and replace any damaged hoses, fittings, valves, including the wash gun. • 7.2.6 Annually Inspect and replace dryer hose assembly if needed. • Remove all products from main cabinet, clean and inspect for possible problems. • Re-Install any removed objects. • Re-Prime pumps. • Inspect and replace any damaged decals if needed.

  • Page 35: Coin Accpetor Maintenance

    Remove the lower sensor block by raising the locator pin shown and slice the sensor unit out by slightly pulling on it. Once unit is removed clean it with a damp cloth. Pay special attention to the optical lights. DO NOT use harsh solvents. 7.4 Coin Accpetor Maintenance The EVOLUTION uses the Micro Coin coin acceptor for the features it offers. It will accept coins from $.25 to $1.00 and also pre-programmed tokens purchased from The EVOLUTION Dog Wash Company. Open the upper meter door to access the coin mechanism. Remove the clip holding the coin acceptor in place by pushing upwards on the bent tab. Pull the clip forward, it is hinged on the bottom. With the bracket down grasp the coin acceptor and pull it towards you. Open the coin acceptor door exposing the coin path. Using a damp cloth clean the coin path and then replace the coin acceptor in the reverse order you removed it. 7.5 Dryer Filter Maintenance Metro Vacuums and Dryers are the most robust in the industry. They are widely used by groomers around the world for their superior performance, low maintenance, and great quality. This is the dyer that used in the EVOLUTION. It requires little to no maintenance. The following will show how to clean and maintain the filter. Remove the cover on the bottom of the dryer by turning the black plastic thumb screw. Pull the housing down exposing the filter. Remove the filter and clean using a light soapy solution. Dry the filter and replacein the housing. Evolution Dog Wash Owners/Operators Manual Page 35...

  • Page 36: Other Support Pictures

    7.6 Other Support Pictures Lifting Tool Primary Hair Screen Use these pictures as reference to the cleaning procedures in section 6.1. Floor Support Rod Final Hair Filter Evolution Dog Wash Owners/Operators Manual Page 36...

  • Page 37: Evolution Parts Identification And Location

    8.0 EVOLUTION Parts Identification and Location The EVOLUTION Dog Wash Company strives to provide the best products available to us at time of manufacture, but due to design changes by EVOLUTION or providing manufacture the components provided in your EVOLUTION may be slightly different than shown here but will function in the same or similar manner. 8.1 Outside The EVOLUTION Front Blower Hose Wash Gun and Gun Holder Meter Blower Nozzle and Bracket Door Swing Handle and Locking Point Instruction Menu Door Locking Lugs(2) Back Wash Compartment Latch Wash Compartment Door Removable Access Panel Water Connection Point Drain Basket Electrical Access Hole Removable Access Panel Evolution Dog Wash Owners/Operators Manual Page 37...

  • Page 38: Inside The Evolution

    Door Closure 8.2 Inside The EVOLUTION Door Main Control Panel Blower Product Pumps Meter Box Injector Manifold Breaker Panel Water Manifold Incoming Water Vent Louvers Door Lock Injector Manifold Product Injector Optional Water Heater Compartment Solenoid Valve Pressure Switch Gauge Manifold Water Manifold Press Regulator Shut Off Valve Thermostatic Valve Evolution Dog Wash Owners/Operators Manual Page 38...
  • Page 39 8.3 EVOLUTION Meter Box Meter Front Timer Display Coin Slot Wash Selections Upper and Lower Meter Operator Key Doors Selector Knob Coin Return Credit Card Note Acceptor Reader Digital Display Timer Coin Mech Coin Mech Pwr Supply Operators Key Rotary Switch Wiring Strip Horn Credit Card Acceptor Note Acceptor Coin Box Evolution Dog Wash Owners/Operators Manual Page 39...

  • Page 40: Troubleshooting

    9.0 Troubleshooting The following section of Troubleshooting will help you to determine the most common problems and fixes related to the EVOLUTION. By no means is this all of the problems and fixes but seem to be the most common. Troubleshooting The Most Common EVOLUTION Problems Problem Solutions EVOLUTION fails to power up 1. Insure that the supply power is turned on to the unit. 2. Check circuit breakers in the breaker panel 3. Remove main control panel cover and verify that the 5 amp and 10 amp breakers are armed. 4. Check primary side of transformer inside the main control panel for voltage of 110 VAC. 5. Check secondary side of transformer for voltage of 24 VAC. No water comes out the wash gun hose 1. Make sure the unit water supply has not been when powered up turned and there is water coming to the unit. 2. Make sure a selection has been made. 3. Make sure that either the operator key is in the on position or the timer has time being counted down on it. 4. Make sure the wash gun button has been pushed. 5. Verify that the water pressure regulator has not been adjusted, allowing a greater pressure than 60 psi to flow through the unit. 6. Remove the wash gun and see if water will flow, indicating the wash gun is clogged.
  • Page 41 Credit Card unit not accepting cards 1. Check status on front of credit card reader. 2. Contact USA Technologies for assistance. Not receiving Credit Card income into my 1. Contact USA Technologies for assistance. bank account. Unit does not accept $20 bills 1. Remove note acceptor and set the proper dip switch to accept $20’s. Leaking after freezing temperatures 1. Check for leaking hoses and replace as needed. 2. Check for leaks at pressure regulator. 3. Check water manifold, gauge, pressure regulator for leaks and repair as needed. Does not accept bills 1. Check for solid red lite on back of bill acceptor. 2. Check that bill box has been properly installed. 3. Check flashing lights on front of acceptor. Does not accept coins 1. Verify that there is power to coin acceptor by seeing green LED. 2. Clean coin path. Tokens do not work 1. Only token from EVOLUTION will work. 2. Send acceptor in for testing and programming. Evolution Dog Wash Owners/Operators Manual Page 41...
