MAG TOOLS MB155UC Assembly Instructions

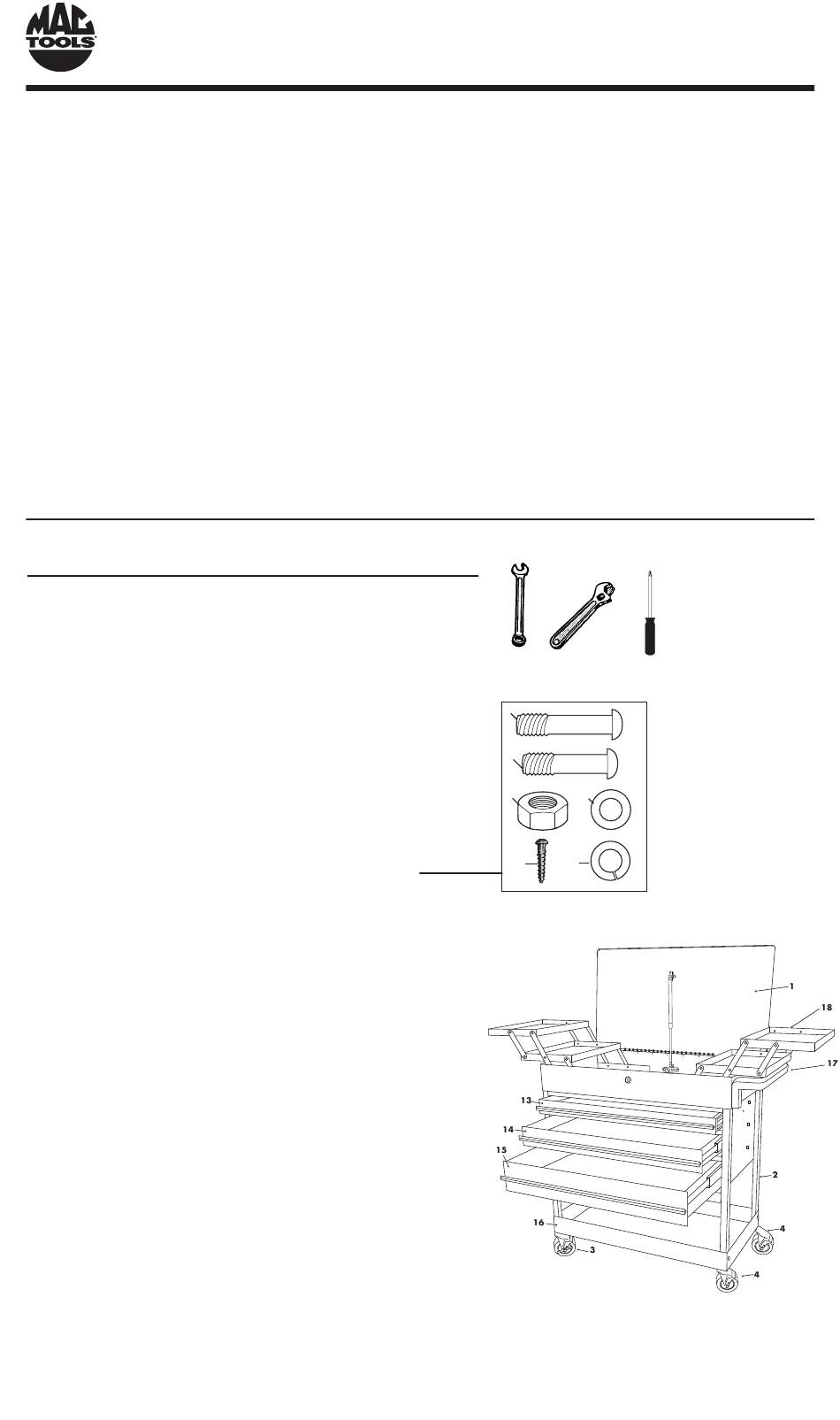

ASSEMBLY INSTRUCTIONS

Step 1

Place the Locking Top and Drawer Unit (#1) on its back. Carefully open the Locking Top and lay it back
against the ground.

Step 2

Slide chrome legs (#2) into square holes in corners of Locking Top (#1) until bolt holes are aligned at top
of legs.

Step 3

Determine on which side of the cart the side push handle (#17) will be mounted. Then, insert two long
bolts (#7) with two flat washers (#10) into the aligned holes in handle, locking top and legs. Fasten nuts
(#9) using flat washers (#10) and lock washers (#12). Repeat this procedure for other corners using short
bolts (#8).

Step 4

Slide bottom tray (#16) onto legs and fasten as in Step 3.
Step 5 Mounting casters: Put the four casters in place. The two locking casters (Part #3) should be on one side
of the cart (recommend same side as push handle) and the two non locking casters (Part #4) should be
on the other (Left or right side NOT front or Back). Using the 16 bolts, 32 washers, and 16 fasteners
(located in Casters Hardware Kit, Part #5) completely tighten the casters to the bottom tray using a
13mm socket and 14mm combination wrench for the bolt head. (Note: Bolt head and one washer should
be on the inside of the bottom shelf, nylock nut and one washer will be on the caster side.)

Step 6

Return cart to upright position.

Step 7

Using the screws (#11) provided, install drawer handles by aligning pre-drilled holes in drawers with slots
in handle. Tighten all screws securely.

PARTS LIST

Item Part No.
No. No. Req'd
1 MB155UCLID
MB155UCLID-BK
MB155UCLID-BL
MB155UCLID-YE
MB155UCLID-NG
MB155UCLID-OR
MB155UCLID-GR
MB155UCLID-PP
2 RS155LG
3 RS155LC
4 RS155NLC
5 RS155CHK
6 RS150UCBK
13 MBD150UCB-1
MBD150UCB-1BK
MBD150UCB-1BL
MBD150UCB-1YE
MBD150UCB-1NG
MBD150UCB-1OR
MBD150UCB-1GR
MBD150UCB-1PP
14 MBD150UCB-2
MBD150UCB-2BK
MBD150UCB-2BL
MBD150UCB-2YE
MBD150UCB-2NG
MBD150UCB-2OR
MBD150UCB-2GR
MBD150UCB-2PP
15 MBD150UCB-3
MBD150UCB-3BK
MBD150UCB-3BL
MBD150UCB-3YE
MBD150UCB-3NG
MBD150UCB-3OR
MBD150UCB-3GR
MBD150UCB-3PP
MB155UC
Description
1 Lid (Red)
Lid (Black)
Lid (Blue)
Lid (Yellow)
Lid (Neon Green)
Lid (Orange)
Lid (Green)
Lid (Purple)
2 Extra Long Chrome Leg/ea.
2 Locking Casters/ea.
2 Non-Locking Casters/ea.
1 Caster Hardware Kit
(Inc. 16 M8X16 bolts, 32 washers,
& 16 fasteners).
1 Bolt Kit (Incl. #7, 8, 9, 10, 11, 12)
1 2-1/4" Replacement Drawer #1 (Red)
2-1/4" Replacement Drawer #1 (Black)
2-1/4" Replacement Drawer #1 (Blue)
2-1/4" Replacement Drawer #1 (Yellow)
2-1/4" Replacement Drawer #1 (Neon Green)
2-1/4" Replacement Drawer #1 (Orange)
2-1/4" Replacement Drawer #1 (Green)
2-1/4" Replacement Drawer #1 (Purple)
1 3" Replacement Drawer #2 (Red)
3" Replacement Drawer #2 (Black)
3" Replacement Drawer #2 (Blue)
3" Replacement Drawer #2 (Yellow)
3" Replacement Drawer #2 (Neon Green)
3" Replacement Drawer #2 (Orange)
3" Replacement Drawer #2 (Green)
3" Replacement Drawer #2 (Purple)
1 4-1/2" Replacement Drawer #3 (Red)
4-1/2" Replacement Drawer #3 (Black)
4-1/2" Replacement Drawer #3 (Blue)
4-1/2" Replacement Drawer #3 (Yellow)
4-1/2" Replacement Drawer #3 (Neon Green)
4-1/2" Replacement Drawer #3 (Orange)
4-1/2" Replacement Drawer #3 (Green)
4-1/2" Replacement Drawer #3 (Purple)
Tools Needed for
Assembly:
10 mm
or
7
8mm x 70mm
8
8mm x 46mm
9
(8)
12
11
(12)
Bolt Kit (#6) included for attaching legs and
tray to MB155UC cart:
Bolt on casters replaced stem style casters in July 2006.
If your MB155UC has stem style casters contact Mac
customer service for caster and bottom shelf part numbers.
Copyright © Professional Tool Products, 2006
1
MB155UC
Ultimate Cart
#3
Phillips
(2)
(6)
10
(16)
(8)
All rights reserved.
Rev. 11/02/06
