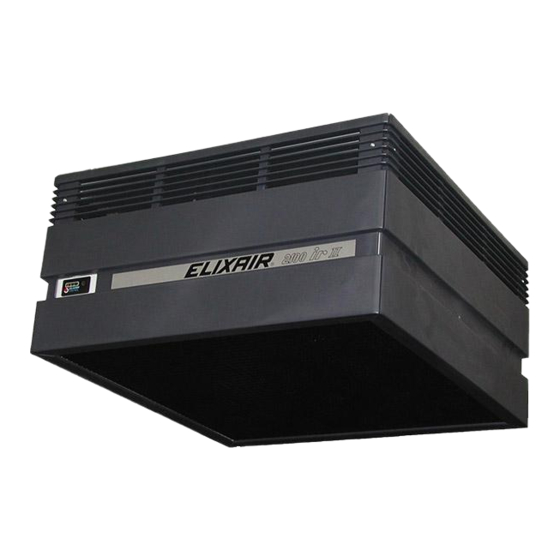

ELIXAIR E 2100 AIR PURIFIER

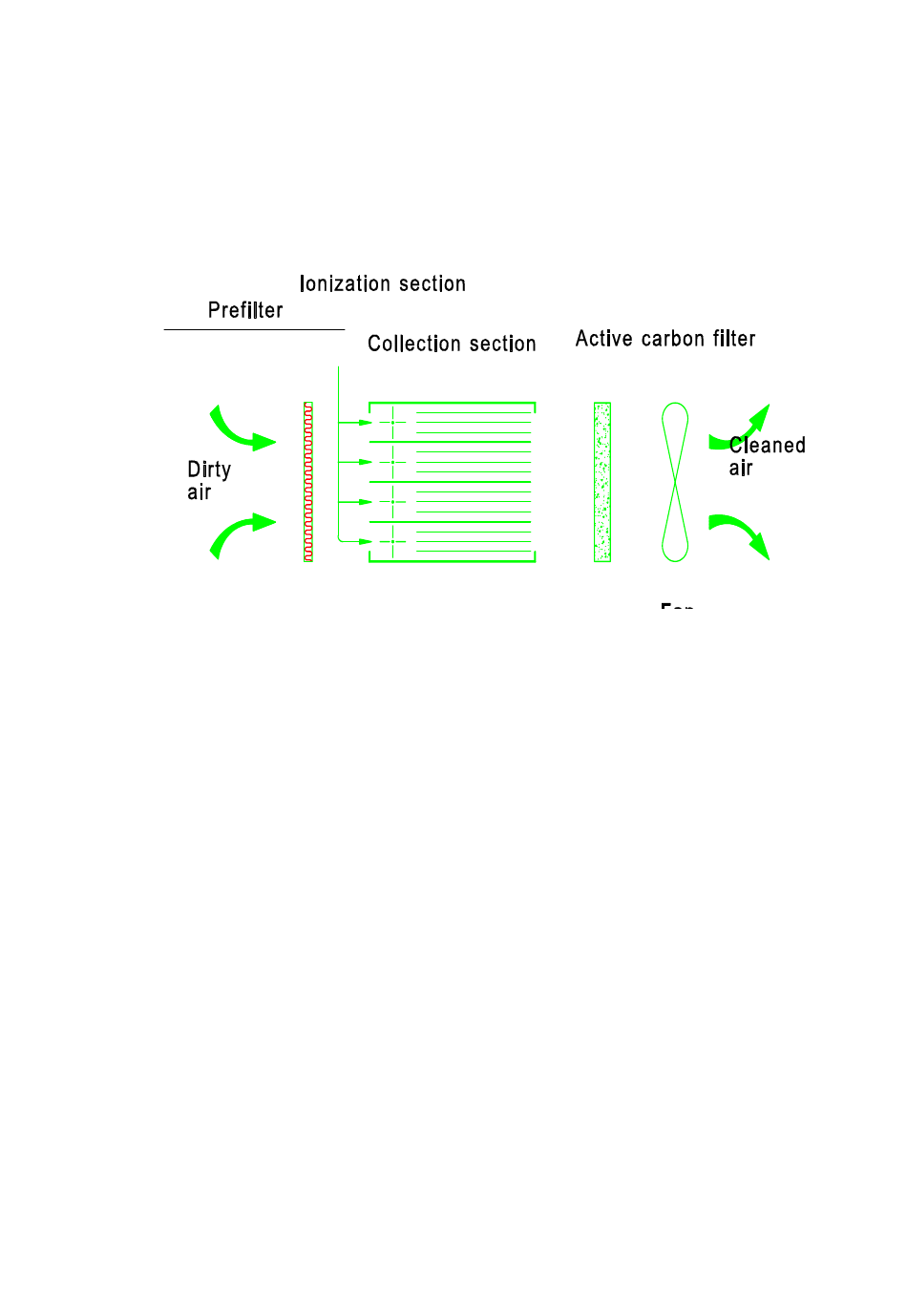

ELIXAIR AIR PURIFIER; OPERATING PRINCIPLE (figure 1)
1. The fan of Elixair draws the particles suspended in the air into the air purifier.
2. Fluff, fibres and other large particles remain in the prefilter.
3. The majority of airborne particles are so small that they are not caught by the prefilter.
In stead they proceed to the ionization section of the electronic collector cell, where
they receive a powerful electrical charge (8 kV).
4. The charged particles travel in the air stream to the collection section of the cell and
are drawn to the collector plates as a result of a strong electric field (4 kV) in the same
way as iron filings are drawn to a magnet. The particles cling to the plates until the cell
is washed.
5. The remaining gaseous impurities, such as odours, are removed by an active carbon
filter which is a standard replacement component.
6. The fan of the unit returns the clean air back to the room.

Advertisement

loading
Need help?

Need help?

Do you have a question about the E 2100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ELIXAIR E 2100

Summary of Contents for ELIXAIR E 2100

  • Page 1 ELIXAIR E 2100 AIR PURIFIER ELIXAIR AIR PURIFIER; OPERATING PRINCIPLE (figure 1) 1. The fan of Elixair draws the particles suspended in the air into the air purifier. 2. Fluff, fibres and other large particles remain in the prefilter. 3. The majority of airborne particles are so small that they are not caught by the prefilter.
  • Page 2 When installing your Elixair purifier, make sure to choose such a place where the normal ventilation is not disturbed and on the other hand, where the functioning of Elixair will not be disturbed. Thus avoid installing the air purifier next to fresh-air vents or exhaust vents.
  • Page 3 For best cleaning results install your Elixair purifier in the ceiling in the middle of the room. Maintenance is easy and there are no obstructions for infra-red remote control.
  • Page 4 INSTALLATION OF ELIXAIR E 2100 AIR PURIFIER After finding a suitable place for the air purifier, install it using the mounting bracket provided. A) Ceiling installation (figure 3) 1) Attach the bracket with the enclosed screws so that the control panel of the purifier will be facing the direction where the remote control is used.

  • Page 5: Testing The Operation

    4) The unit has a built-in option for wire-operated remote control. This requires, however, additional installations. If you want to use this option (equivalent to pressing control panel button) please call your authorized Elixair service company for further instructions.
  • Page 6 2000 operating cycles or 5 years. We recommend Elixair 2100 for rooms of 80C160 m5 in area. In smaller rooms of around 40 m5, with people frequently moving about, fan speed II is used to make the air in the room circulate to the purifier.
  • Page 7 2. Spray solution of ELIXAIR cell detergent (4 parts water and 1 part detergent) on the collector plates of the cell. A flower spray bottle is handy for that purpose (figure 7). ELIXAIR cell detergent, 3 litres; product no. 600031, 10 litres; product no. 600050.
  • Page 8 3. Allow the detergent to work for about 5 to 15 minutes. Rinse then thoroughly with warm water (figure 6) 4. Check that the also the ends of the collector plates are clean. Repeat cleaning if necessary. 5. Allow the cells to dry thoroughly, preferably overnight.
  • Page 9 2. Mix the detergent solution in a suitable container which is large enough to hold the cells entirely. The proportions of the solution is 5 to 8 parts of water to one part of ELIXAIR cell detergent. You can use the same solution 2 to 5 times.
  • Page 10 If the high voltage indicator light still indicates a fault (the light is off or it blinks) take the air purifier to authorized Elixair service. Using the purifier while the high voltage indicator is off or blinks may severely damage the unit.

  • Page 11: Eu Declaration Of Conformity For Electrical Appliances

    EU DECLARATION OF CONFORMITY FOR ELECTRICAL APPLIANCES Elixair Oy, Virusmäentie 65 M, 20300 Turku, Finland declares, that Air purifier ELIXAIR: E 2100 IR2 has been manufactured in accordance with the applicable harmonized standards. It complies with the essential elements of low voltage directive (73/23/ETY,...
  • Page 12 SERVICE MEMO ELIXAIR E 2100 IR2 Date of installation Act. Act. Act. filter filte filte repl...
