ATOMEX X-900BD
AUTOMATIC GUN MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-900BD and is the answer not in the manual?

Questions and answers

Related Manuals for Atomex X-900BD

Summary of Contents for Atomex X-900BD

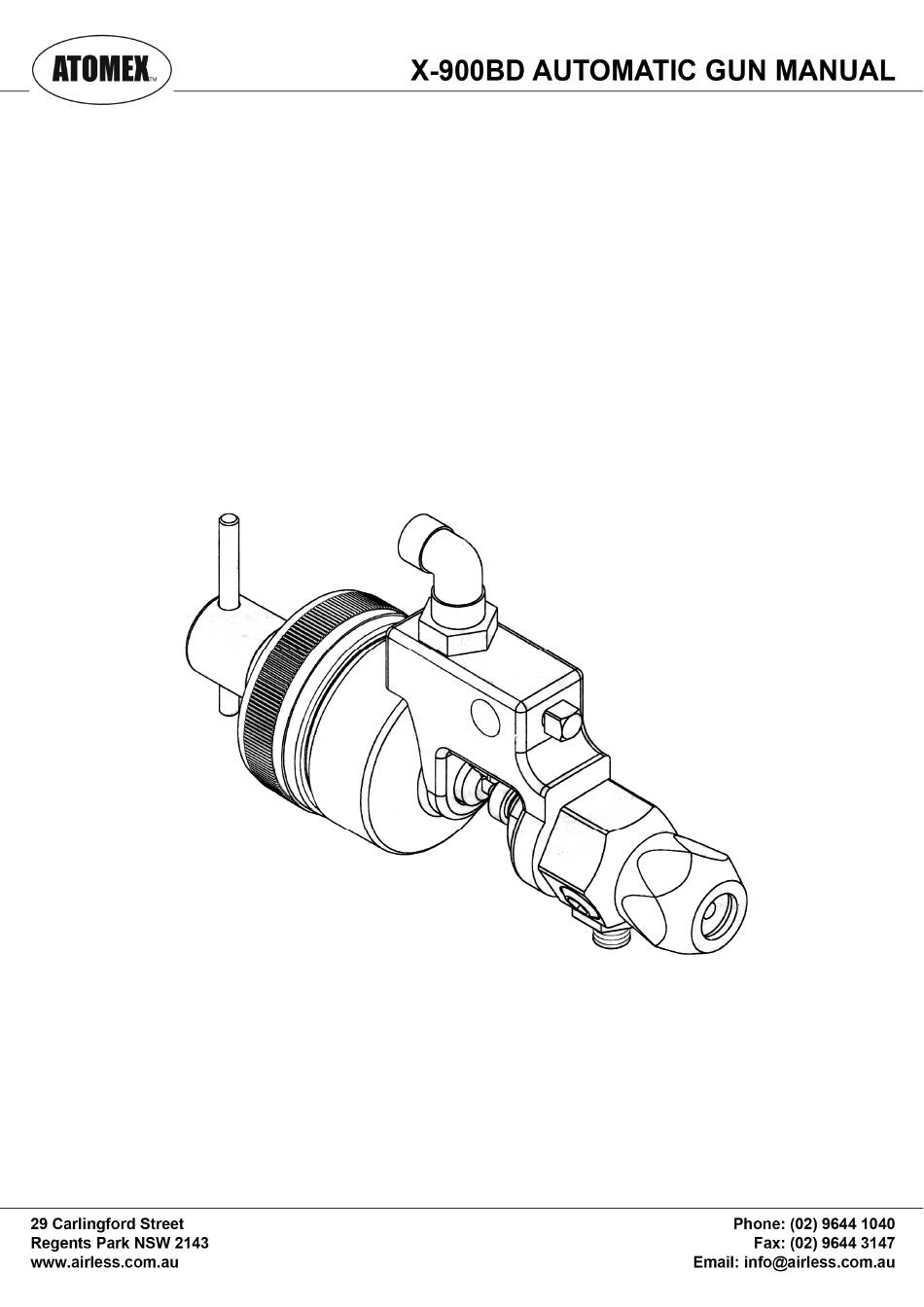

  • Page 1 ATOMEX X-900BD AUTOMATIC GUN MANUAL...
  • Page 2 WARNING 1. FLUID INJECTION HAZARD This equipment generates very high fluid pressure. Spray from gun, leaks or ruptured components can inject fluid through your skin and into your body and cause extremely serious bodily injury, including the need for amputation. Never point the gun at anyone or at any part of the body.
  • Page 3 3. EQUIPMENT MISUSE HAZARD Any misuse of the gun, spray equipment or accessories, such as over pressuring, modifying parts, using incompatible chemicals and fluid, or using worn or damaged parts, can cause them to rupture and result in fluid injection or other serious bodily injury such as splashing in the eyes or on the skin, fire, explosion, or property damage.
  • Page 4 X-900BD TECHNICAL DATA Maximum working pressure 5,000psi (350bar) Application Buffing compounds Zic-rich materials Fabricated heavy materials Core material Aluminum Air inlet 1/4” PT ELBOW (∅8 Hose) Fluid inlet 1/4” PF Fluid return 1/4" PT...
  • Page 5 X-900BD PART DRAWING NO. PART NO. DESCRIPTION QTY NO. PART NO. DESCRIPTION AX/02-900-001 Tip retainer AX/02-900-012 AX/02-900-002 Gasket AX/02-900-013 Screw AX/02-900-003 Seat AX/02-900-014 O-Ring AX/02-900-004 Gasket AX/02-900-015 Piston AX/02-900-005 Head AX/02-900-016 O-Ring AX/02-900-006 Adapter AX/02-900-017 Guide AX/02-900-007 Packing AX/02-900-018 Spring...

  • Page 6: Mount Gun

    INSTALLATION MANUAL 1. MOUNT GUN Mount the gun on a 13mm diameter rod on a mounting fixture or spray machine. See Fig 1 and Fig 2. The tip of the gun should be 300mm from the surface of the work piece. 2.

  • Page 7: System Accessories

    system, connect a return line from the 1/4" PT circulating port to the back pressure valve. 4. SYSTEM ACCESSORIES Two accessories are required in your system: a bleed type master air valve and a fluid drain valve. These accessories help reduce the risk of serious bodily injury including fluid injection, splashing in the eyes or on the skin, and injury from moving parts if you are adjusting or repairing the pump.
  • Page 8 INSTALLATION MANUAL NO. DESC. Tip retainer Gasket Seat Adapter Head Adapter Packing Packing nut Plug Needle Body Screw O-Ring Piston O-Ring Guide Spring Adjusting screw Elbow • Check the tightness of the spray tip retaining nut. • Before each day’s operation, lubricate the exposed portions of the needle and the piston with a lubricant compatible with the fluid to be sprayed.

  • Page 9: Troubleshooting Chart

    TROUBLESHOOTING CHART PROBLEM CAUSE SOLUTION • Fluid pressure too low. • Increase pressure to Uneven spray pattern. pump, or adjust fluid pressure regulator. • Fluid pressure too low. • Increase pressure to Tails or fingers in spray • Fluid too viscous, or pattern.
