MARMON Cornelius WCC700R Training

Carbon models
Hide thumbs

Advertisement

Quick Links

Download this manual
2019 Ice Maker Training
Feb, 2019
• •
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cornelius WCC700R and is the answer not in the manual?

Questions and answers

Summary of Contents for MARMON Cornelius WCC700R

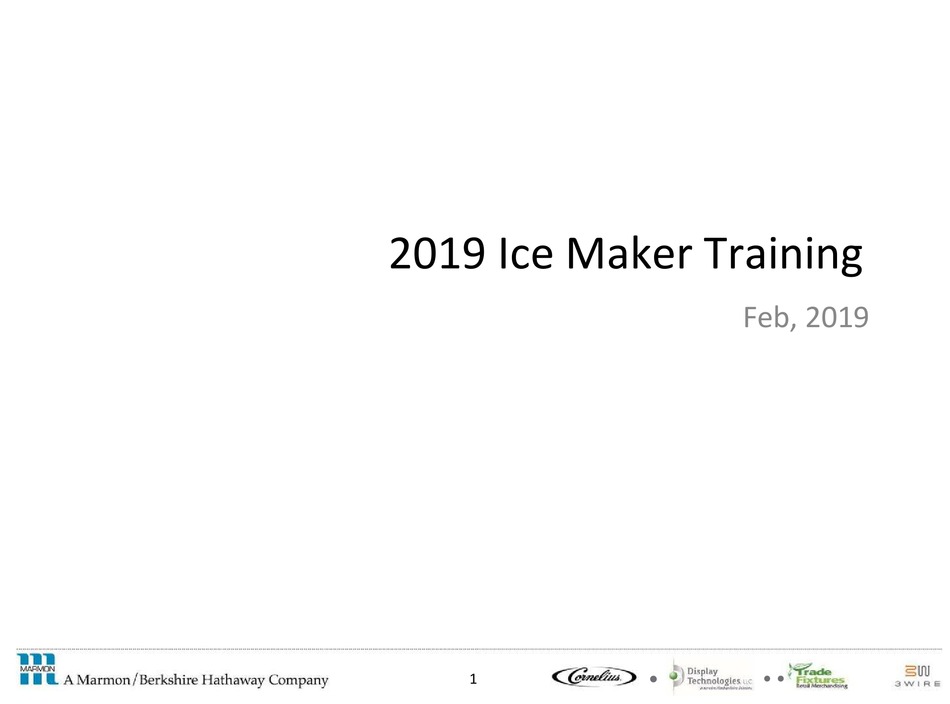

  • Page 1 2019 Ice Maker Training  Feb, 2019   • •  1 ...
  • Page 2 Health & Safety topics Before starting the presentation lets understand safety: • Physical Site / Location • Safety exits for building • Safe assembly area • Electrical Hazards • Voltage in Building • Refrigeration • We handle R404a refrigerant • Gas Management / CO2 •...
  • Page 3 What Is Chunklet Ice? • Also referred to as “Soft”, “Chewy”, or “Extruded” Ice. • It is produced through continuous compression of ice flakes… similar to a snowball. • This process allows beverage to surround the ice and cool faster and absorb into the ice. •...
  • Page 4 Cornelius Ice – Carbon Models Easy to clean, plastic front panel High-yield - Ideal for use in demanding, high volume applications. Matches IDC Pro for modern, high-end ice maker & dispense combination. Designed based on our current 700# Durable Corrosion free stainless unit, more reliable.
  • Page 5 Installation Guide lines Location:  Make Sure proper air clearances for proper circulation – front and side on air cooled.  12” clearance on air Intake to be maintained.  4” clearance minimum on air exhaust.  Ice-Maker should not be placed in direct sunlight or in close proximity of any object generating additional heat load on system.
  • Page 6 Installation Guide lines Water supply: Water Inlet ‐ Fitting is a 1/4” (6.35mm) SAE male flare located at the rear of the unit.  • Connect water supply with a 1/4” (6.35mm) or larger copper or flexible tubing. Main water line should  • be 3/8”. Unit must be installed with only potable water.  • A shut‐off valve with a loop of additional tubing for service is recommended.  • • Water Pressure ‐ Unless otherwise specified, the unit is designed to operate on water pressures  between 20 P.S.I. (0.69 Mpa) and 90 P.S.I. (0.62 Mpa). 50 PSI is the ideal incoming water pressure. • A recommended water supply is with temperatures between 50° F ‐ 90° F (10° C ‐ 32° C) with a pressure  between 20‐70 p.s.i (0.138 ‐ 0.48 Mpa).  • For pressures above 90 P.S.I. (0.62 Mpa) a regulator must be installed. Include 50Psi water regulator. • This equipment must be installed with adequate backflow protection to comply with applicable federal  state and local codes.  • Filter – Filtration should consist of a pre filter and carbon filters to remove taste and odor.   IMF (Phosphate Feeder) Water Filters and Scale inhibitors are not to be used with the Continuous  • Flow Ice‐Maker, Taste & Odor only should be used.  Total dissolved solids in the water should be within the below specified limit MIN dissolved solids = 270 ...
  • Page 7 Pictorial representation:  • • ...

  • Page 8: How Ice Is Made

    How Ice is Made: • The Cornelius Chunklet Ice Maker creates Ice in a process called extrusion. • Ice is frozen to an evaporator wall until it grows thick enough to harvest. At that point the ice is shaved from the wall by an auger and carried upwards to the extruding head.
  • Page 9 Water System Overview Water level in the reservoir should be set to the water level line while  • operating. Looking at the center picture take note that with proper water level  setting the top evaporator coil should be covered with water.  During installation the float should be verified for: • Proper water level. • • System safety shutdown. Typically water pressure would be regulated if greater than 50 psi. • Make provisions for plastic tubing overflow lines as well. •  • • ...
  • Page 10 Extruder Assembly / Evaporator Extruder & Evaporator The extruding oilite head bushing is replaceable. It is a special bushing that contains no lead Breakaway mounts – should the Ice Machine and needs to be pressed into the shaft. The thrust bearings will become worn and should be not shut down these mounts are designed to replaced bi-annually or as needed.
  • Page 11 Gear Motor – over amp manual reset switch • Bison gearbox with GE/other reputed make motor (# 620067555) • Manual overload (located on opposite side of motor) trips at approx. 2.4A. • Motor cover to prevent condensation penetration. Manual reset button – underneath bottom casing of motor.
  • Page 12 Transmission – front end assembly AUGER AND EXTRUDING HEAD REMOVAL 1. Disconnect unit from power supply. 2. Remove storage container cover and put aside. 3. Turn off water supply to icemaker. 4. After ice has been melted from head take hold of the auger nut and lift straight up to disengage from icemaker.

  • Page 13: Auger Engagement

    Auger Engagement Install the extruder head as shown in the picture. When Auger is lowered into the evaporator, rotate the auger to engage the motor drive shaft. Carefully rotate the extruder head until the tabs on the extruder head drop into the slots on evaporator ...
  • Page 14 Wiring diagram WCC700A & Carbon units All Units are equipped with Auger delay timer to safeguard the equipment. Auger delay time: After the refrigeration cycles shut down it helps the Auger to run 3 minutes so that it can flush out the Ice in Barrel. This will help to reduce the initial Torque on the Next start up of unit. ...
  • Page 15 Key Safety Controls WCC Controls and Electrical The WCC control circuit is a series circuit consisting of the following components: 1. Bin Control/s – Electrical power is run through the solid state bin control/s (one for the 700). This circuit consists of a PC Board, thermistor, thermistor locating sleeve and drop tube to direct the ice drop zone into the bin.
  • Page 16 Bin stat/s – Solid State Reservoir tray with drop tube and solid stat Std. drop tube & extended drop (stainless steel) probe tube shown below. tube for Chunklet Ice shown below.  • • ...
  • Page 17 Bin Thermostat “Lowering Kit” Picture of Kit – lowers Ice level +/- 4 inches to reduce compacting and “snow coning”. •Remove existing thermostat sensor from existing stainless steel sensor sleeve (sensor to be reused). •Remove existing s/s sensor sleeve from Dispense tray cover.
  • Page 18 Ice Maker Amperage & refrigeration check Model Voltage Nameplate Amps (A) Running Amps (A) WCC700A Carbon 115V / 60Hz 11.0 ‐ 12.5 Evaporator Efficiency The evaporator on the Cornelius/Wilshire icemaker can be tested for efficiency in three easy ways. Simply observe the ice coming out of the extruder head during production. As the auger rotates, an ice chunklet should pop out of each extruder slot on every rotation.

  • Page 19: Preventative Maintenance Procedures

    Preventative Maintenance Procedures Evaporator Squealing • Squealing noises coming from the evaporator are accompanied by low production. These noises are caused by a “rotational freeze”. A  rotational freeze is usually caused by mineral buildup on the evaporator walls. These deposits are not always visible, especially when the  evaporator is wet. The production of ice depends on the ice freezing to the wall of the evaporator and being shaved off by the auger. • The evaporator wall is belt sanded to create scratches from top to bottom. These scratches give the ice something to hold onto, preventing  it from rotating with the auger. If the grooves become filled with mineral deposits, the ice will not have any grip on the evaporator and  begin to rotate, instead of being shaved and pushed upward. The squealing noise is caused by the ice continuing to expand as it rotates. • Ice sticking together in the bin is almost always the result of water chemistry. High concentrates of minerals in the water, chlorine, and  salinity are usually found to be the cause. Filters that are specially designed for cubed ice makers usually contain chemicals called  phosphates. These phosphates will prevent minerals from freezing into the ice cubes as the bind with the impurities, this will allow the  purest water to freeze first and the mineral laden water to be dumped during the harvest cycle. The WCC Chunklet use 100% of their  water, if phosphate feeders are used the minerals have no choice but to fill the bin with the Chunklet – should not use. Once there it  behaves like salt causing the ice to breakdown and potentially stick together, this can result in damaged agitator blades or a large block of  ice (snow cone) may form due to clumping together. Therefore for phosphate feeders and scale inhibitors should not be used with  Chunklet ice.  • • ...
  • Page 20 Preventative Maintenance Procedures ICEMAKER CLEANING AND SANITIZING PROCEDURES  • WARNING: Do not use any of the ice made during cleaning operations. Clean and sanitize ice storage area when cleaning icemaker.  • Turn machine off. • Shut off water supply. • Remove ice from storage bin. • Mix approved cleaner (2 gallons as directed). Recommended cleaner: Nu‐Calgon liquid ice machine cleaner. Mixture: 3‐1/3 ounces per  gallon of water. Cleaner must be safe for stainless steel. NO EXCEPTIONS.  • • Clean auger/diverter assembly and ice transition/drop tube in a sink using cleaner mixture and reinstall in icemaker. Using cleaner,  wipe down the dispense tray.  • Turn machine on and add cleaner solution to water level control until 2 gallons have been used.  • Turn on water supply and run machine for 15 minutes.  • Turn off machine and remove all ice. • Sanitize using household liquid bleach (50 ppm chlorine). Mixture: 1 fluid ounce per gallon room temperature water. 2 minute  exposure time.  • Sanitize auger/diverter assembly and ice transition/drop tube in a sink using sanitizing solution and reinstall in icemaker. Using  sanitizer, wipe down the dispense tray.  • Fill icemaker with sanitizer by slowly pouring solution into water feed reservoir until full. Solution will drain through overflow tube. Do  not run machine. Allow to air dry.  • If icemaker is used in conjunction with ice dispenser or storage bin, follow manufacturer’s recommended cleaning instructions at this  time. ...
  • Page 21 Preventative Maintenance Procedures • MAINTENANCE Preventive maintenance can increase the trouble free life of your icemaker.  • Many authorized service agencies offer service contracts for your icemaker.  • Monthly 1. Clean the condenser. Use a brush, vacuum cleaner or blow from inside with air or CO2 gas. • Inspect water feed reservoir at least once a month until a definite pattern for cleaning and sanitizing has been established. • Quarterly This is the maximum period of time between cleaning and sanitizing the icemaker. In addition to recommended monthly procedure, and if a more frequent cleaning and sanitizing pattern has not been established, unit must be cleaned and sanitized. For more details please refer the service manuals  • • ...
  • Page 22 Preventative Maintenance Procedures – Evaporator / Extruder area Nylon & Delrin thrust bearings should be Extruding Head Bushing should be inspected for wear replaced bi-annually or before if less than 1/16” annually or before. During bi-annual PM this should be thick (see diagram-).
  • Page 23 PM – Parts • P/N:638090219 – Nylon Bearing • P/N:638090220 – Delrin thrust bearings • P/N:630900608 – Extruder head or a bearing bush kit  • • ...

  • Page 24: Recommended - Parts

    Recommended – Parts Part No. Description 629096836 KIT EVAPORATOR REPLACEMENT WCC Kit Compressor RST70 629097851 620068304 COMP START RELAY RST70 620054229 Electrical Box Assembly 630900547 Water Level Control Assembly 638008483 Reed Switch Assembly 620068259 Valve Thermal Expansion 620067555 Fan Motor - 115V 638004393 Dryer 638090050...
  • Page 25 Slide 24 IS this bassed off of location or market penetration? This list is typically based off or market penetration and high failure components. Wells, Robert, 2/18/2019...
  • Page 26 Soft Ice Dispensing Tips - Take note in regards to the IDC/ED units  • • ...
  • Page 27 Soft Ice Dispensing Tips - Take note in regards to the IDC… •WCC700 can be front or back mounted for ease of Service. •Hopper redesigned to accommodate hard or “chewable” Chunklet Ice. •Hopper Ice Slide provided with Adapter Kit (to be installed in IDC). •Agitation of the Ice should be changed to turn 2 (.5) seconds every 3 hours (dependent on throughput).
  • Page 28 Agitator Off cycle Timer ON TIME Should be set to 2 (.5 sec) seconds run time maximum. OFF TIME Should be set to rest for 3 hours. Note: Should agitation be set incorrectly the ice may grind into small particles creating the “Snow cone effect”.
  • Page 29 Pictures of IDC Ice Slide – helps better direct the ice flow. Ice Slide IDC Pro Agitator  • • ...
  • Page 30 Ice Restrictor Plate should be fully opened & Diverter Plate should be Installed To open Ice Restrictor plate simply loosen the top 2 Ice Chute nuts and slide the plate up until it stops then tighten nuts. Take care not to pinch the rubber gasket.
  • Page 31 Adjustment Ice Restrictor Plate Restrictor Plate The restrictor plate will need to be  placed in the open position. 1. Remove the merchandiser. 2. Loosen but do not remove the four  nuts on the studs that hold the ice  chute onto the ice bin.   3. Once loosened, move the  restrictor plate up to increase  opening.  4. Retighten the nuts and reinstall  the merchandiser.  DO NOT  OVERTIGHTEN Nuts on studs  • • ...

  • Page 32: Technical Support

    Technical support For Any technical issues please reach out to Cornelius Number: +1-800-238-3600. Link to the Website for Manuals: www.ice.Cornelius.com...
  • Page 33 Questions?  • • ...
