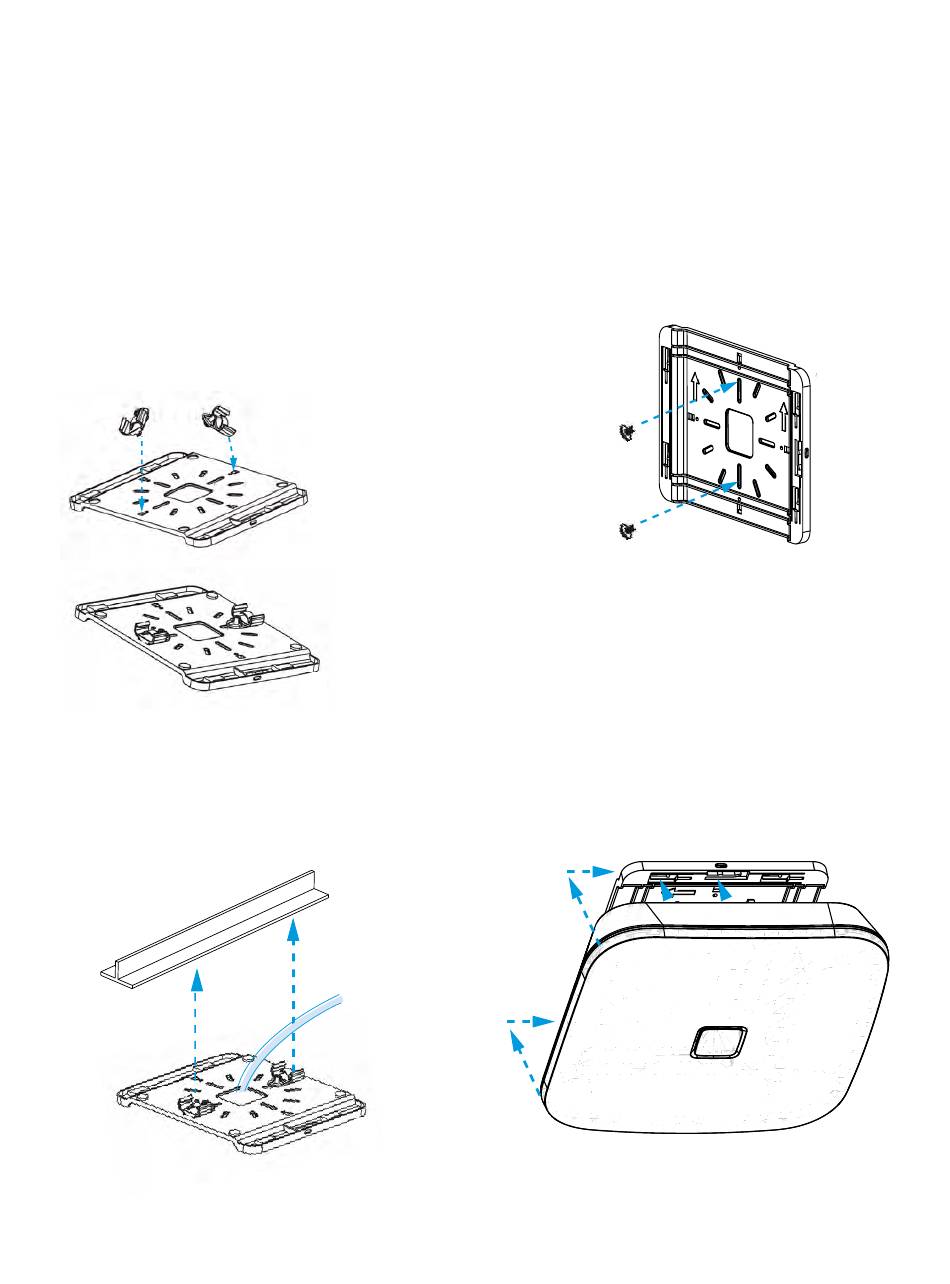

T-Rail Ceiling Mount
For attaching to drop ceiling T-Rail or other T-Rail System.
1)Place Desired T-Rail clip
set into mounting plate.
clips facing away from each
other then lay flat
3) Install the mounting plate on the
T-rail by tightening both sides until
secure
2) Flip over Mount and Screw
in screws toto T-Rail Clips
4) Align the 4 posts on the AP with the
plate then Slide device toward I/O
Ports to lock in place.
15
Advertisement
Summary of Contents for Datto DNWAP840
- Page 1 T-Rail Ceiling Mount For attaching to drop ceiling T-Rail or other T-Rail System. 2) Flip over Mount and Screw 1)Place Desired T-Rail clip in screws toto T-Rail Clips set into mounting plate. clips facing away from each other then lay flat 4) Align the 4 posts on the AP with the 3) Install the mounting plate on the plate then Slide device toward I/O...
- Page 2 Wall or Solid Ceiling Mount Attach the universal mounting plate to any solid surface 1) Mount flat side of plate to wall or ceiling. 3) Align the 4 posts on the AP with the 2) Connect ethernet cable to plate then Slide device toward I/O Ports device (2.5G Ethernet) to lock in place.
- Page 3 Unmounting Directions (2) Slide the access (1) To unlock, insert a point upwards until it small, flat screwdriver disengages from the into the Mount Release mounting plate. (Away Hole on the side of the from I/O) mounting plate. 3) Pull the access point towards the installer and disconnect cables...
- Page 4 Configuring a Network Manager Network Your network should now be up and running, but there’s a lot we can do to customize it to meet your specific needs. We’ll walk you through the most common settings here. Configure > General Settings The General Settings tab controls network-wide settings.
- Page 5 Splash Page/Splash Page Type: Enable or disable a page users will see before connecting to your network. You can set this to Custom (hosted by Datto), Facebook WiFi, or a hosted remotely version for advanced users. Splash Page Authentication: Choose Datto, RADIUS or HTTP...
- Page 6 Schedule WiFi A WiFi schedule allows you to enable or disable each SSID for specific times of the day. The SSID will be enabled or disabled upon checkin to Datto, typically within five minutes of the times specified. This schedule will control the SSID only if Enabled for the SSID.
- Page 7 The Radio settings controls network-wide access point settings. The main items you'll want to set are Channels and Internet Check. Channels: Auto Channel will let Datto Network Manager optimize channel settings daily for your network, taking into consideration mesh repeaters, nearby access points, and sources of interference.
- Page 8 Internet Check: When selected, the wireless network will only be available when there is an active Internet connection. This allows access points to recover quickly when they lose a connection and is the recommended setting. When deselected, the wireless network will stay up even when there is no Internet connection.
- Page 9 setting applies to all SSIDs and can be overridden by setting an Alternate DNS for each individual SSID. Settings to configure exporting presence data about wireless clients. Presence Reporting Commonly used for location analytics. Note that this feature will be part of a paid package of services in the future. Learn more Status LED(s) When disabled, this turns off LED lights on your APs...
- Page 10 >2Mbps Solid Green You can use each of these tools to see how your network is doing and troubleshoot issues. Datto Network Manager Troubleshooting in Have you have created a strong, healthy network? While there are plenty of diagnostic tools available, the following two are most telling: On the Node Outages Chart: dark/light green indicate a gateway/repeater is online and hasn't...
- Page 11 On the Node Map: (click on a node, then select Neighbors) all nodes will have at least one (preferably two) connections with an RSSI of 17 or more. If not, you need to reposition your node closer to the others or in a better line through fewer walls. You may need to add new nodes. On the Node List: the number of Hops should be three or less (fewer is better).
-
Page 12: Additional Resources
To learn more about planning and optimizing your network, download the Datto Network Planning Guide. To learn more about Datto's splash page feature, download the Using the Splash Page Editor Guide. To learn more about Datto's vouchers feature, download the Using Vouchers in Network Manager Guide. - Page 13 Appendix A: FCC Professional Installation Instruction 1. Installation Personnel This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting.
- Page 14 Appendix B: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful...
- Page 15 Appendix C: IC Professional Installation Instruction 1. Installation Personnel This product is designed for specific application and needs to be installed by a qualified personal who has RF and related rule knowledge. The general user shall not attempt to install or change the setting. 2.
- Page 16 Appendix D: Industry Canada Statement Canada, Industry Canada (IC) Notices This device complies with Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Canada, avis d’Industry Canada (IC) Cet apparel est conforme avec industrie Canada exemptes de licence RSS stanard(s).
-
