Summary of Contents for CRZ Technology DaisyPlus
- Page 1 DaisyPlus Board User Guide DaisyPlus Board User Guide Revision 1.0 2021. 04. 19 CRZ Technology http://www.crz-tech.com/ CRZ Technology...
- Page 2 DaisyPlus Board User Guide Document History Revision Date Change note 2021.04.19 First draft CRZ Technology...
-
Page 3: Table Of Contents
DaisyPlus Board User Guide Table of Contents Overview ......................................4 1.1. Block Diagram ..........................................4 1.2. Board Layout ..........................................5 LEDs and Connectors ..................................6 2.1. Status LED ............................................. 6 2.2. User LEDs ............................................7 2.3. JTAG Connector Pinout[J7] ....................................8 2.4. -
Page 4: Overview
DaisyPlus Board User Guide 1. Overview 1.1. Block Diagram Figure 1. High Level Block Diagram CRZ Technology... -
Page 5: Board Layout

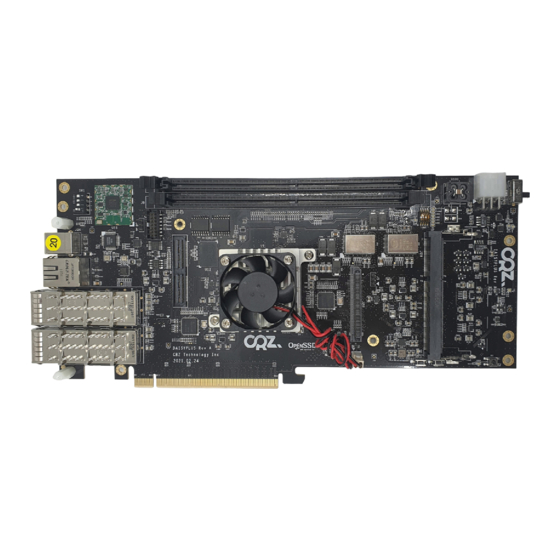

DaisyPlus Board User Guide 1.2. Board Layout Front/Top(primary) side of Board Figure 2. DaisyPlus Physical Layout: Front, Top CRZ Technology... -
Page 6: Leds And Connectors
DaisyPlus Board User Guide 2. LEDs and Connectors 2.1. Status LED Color Board Label Pin Name Device GREEN/RED PS_INIT_B GREEN PS_DONE ErrOut(LD1) PS_ERR_OUT ErrStatus(LD2) PS_ERR_STATUS Table 1. MPSOC Status LED Color Board Label Description GREEN 3V3 rail power good signal... -
Page 7: User Leds
DaisyPlus Board User Guide 2.2. User LEDs There are 4 LEDs connected to PL part. All these LEDs are active High. Please refer to the following Figure and table. High on output = LED is ON Low or Tri-state = LED is OFF... -
Page 8: Jtag Connector Pinout[J7]
DaisyPlus Board User Guide 2.3. JTAG Connector Pinout[J7] Figure 3. JTAG Connector[J7] Device Pin Name Schematic Net Name Device VCC_3V3 AD26 B503_PS_JTAG_TMS JTAG_TMS AC26 B503_PS_JTAG_TCK JTAG_TCK AD27 B503_PS_JTAG_TDO JTAG_TDO AD25 B503_PS_JTAG_TDI JTAG_TDI NO CONNECT PS_ARM_JTAG_SRST_B Table 4. Xilinx Config/Debug[J7] Signal Connections... -
Page 9: Usd Card Reader[J2]
DaisyPlus Board User Guide 2.4. uSD Card Reader[J2] MPSOC Schematic Net Name Device Pin Name SDIO_DETECT B501_PS_MIO45 SDIO_D0 B501_PS_MIO46 SDIO_D1 B501_PS_MIO47 SDIO_D2 B501_PS_MIO48 SDIO_D3 B501_PS_MIO49 SDIO_CMD B501_PS_MIO50 SDIO_CLK B501_PS_MIO51 Table 5. uSD Card Reader[J2] Signal Connections 2.5. 2 Pin Fan connector[J1] Figure 4. -
Page 10: Operation Information
DaisyPlus Board User Guide 3. Operation Information 3.1. Mode Select DIP Switch [SW1] There is DIP switch to select Boot mode. Figure 5. Mode select DIP switch Switch MODE JTAG LOW(ON) LOW(ON) LOW(ON) LOW(ON) QSPI 32 LOW(ON) LOW(ON) HIGH(OFF) LOW(ON) HIGH(OFF) HIGH(OFF) HIGH(OFF) LOW(ON) Table 6. -
Page 11: Push Buttons
DaisyPlus Board User Guide 3.2. PUSH buttons There are 3 push buttons and the default value is high. Button released = HIGH Button pressed = LOW MPSOC Device Board Label Pin Name POR_B B503_PS_POR_B B503_PS_PROG_B SRST_B B503_PS_SRST_B AB27 Table 8. Signal assignment of push buttons... -
Page 12: I2C Bus Interfaces
DaisyPlus Board User Guide 3.3. I2C bus interfaces There are multiple I2C buses to communicate with several other devices. The block diagram below shows all I2C connections on the board. Figure 6. I2C Bus Block Diagram The “CLKGEN” I2C bus is can be accessed via a 3-pin header(J4, J5) Figure 7. - Page 13 DaisyPlus Board User Guide Device Pin Name Schematic Net Name Pin Name Device Name AJ32 B500_PS_MIO14 SI5391_0_SCL SCLK AD35 B500_PS_MIO15 SI5391_0_SDA SDA/SDIO CLKGEN AJ31 B500_PS_MIO16 SI5391_1_SCL SCLK AJ30 B500_PS_MIO17 SI5391_1_SDA SDA/SDIO AJ31 B500_PS_MIO16 PS_I2C1_SCL Ethernet MAC AJ30 B500_PS_MIO17 PS_I2C1_SDA AJ32...
-
Page 14: Loopback Board
DaisyPlus Board User Guide 4. Loopback board There is loopback board helpful for development and testing NVME M.2 Loopback Card ⚫ 4.1. NVME M.2 Loopback Card Figure 8. NVME M.2 Loopback Card Connector REF DES Description Pin Name TP53 P_12V... -
Page 15: Clock System
DaisyPlus Board User Guide 5. Clock system 5.1. 12-CH Clock Generator[U7] Part Manufacturer : Silicon Labs Part Number : Sl5391 Device Pin Name Schematic Net Name Device Pin Name GTR_REF_CLK0_100M_P AG37 OUT0 PS_MGTREFCLK0P_505_AG37 GTR_REF_CLK0_100M_N AG38 OUT0b PS_MGTREFCLK0N_505_AG38 GTR_REF_CLK1_108M_P AE37 OUT0A... -
Page 16: 12-Ch Clock Generator[U8]
DaisyPlus Board User Guide 5.2. 12-CH Clock Generator[U8] Part Manufacturer : Silicon Labs Part Number : Sl5391 Device Pin Name Schematic Net Name Device Pin Name B224_REFCLK_N AK11 OUT0b MGTREFCLK0N_224_AK11 B224_REFCLK_p AK12 OUT0 MGTREFCLK0P_224_AK12 B225_REFCLK_N AH11 OUT0Ab MGTREFCLK0N_225_AH11 B225_REFCLK_P AH12... -
Page 17: Mpsoc System Connections
DaisyPlus Board User Guide 6. MPSoC System Connections 6.1. NOR Flash 1GBIT [U9, U10] Schematic Net Device Pin Name Pin Name Pin Device Name AM33 PS_MIO0_AM33 QSPI_LWR_CS_B AM29 PS_MIO1_AM29 QSPI_LWR_CLK AM31 PS_MIO2_AM31 QSPI_LWR_DQ1 AM30 PS_MIO3_AM30 QSPI_LWR_DQ2 W_N/VPP/DQ2 AL33 PS_MIO4_AL33 QSPI_LWR_DQ3... -
Page 18: Nvme1[J25]
DaisyPlus Board User Guide MGTHTXN0_228_AC5 B228_TX0N PETN0 MGTHTXP1_228_AB8 B228_TX1P PETP1 MGTHTXN1_228_AB7 B228_TX1N PETN1 MGTHTXP2_228_AA6 B228_TX2P PETP2 MGTHTXN2_228_AA5 B228_TX2N PETN2 MGTHTXP3_228_Y8 B228_TX3P PETP3 MGTHTXN3_228_Y7 B228_TX3N PETN3 OUT4 EXP_B228_REFCLK_P REFCLKP OUT4b EXP_B228_REFCLK_N REFCLKN AB12 MGTREFCLK0P_228_AB12 B228_REFCLK_P OUT3 AB11 MGTREFCLK0N_228_AB11 B228_REFCLK_N OUT3b IO_L10P_AD10P_94_B3... -
Page 19: Qsfp28 100G Ethernet
DaisyPlus Board User Guide MGTHTXN3_230_M7 B230_TX3N PETN3 102 OUT8 EXP_B230_REFCLK_P REFCLKP 105 OUT8b EXP_B230_REFCLK_N REFCLKN 107 MGTREFCLK0P_230_V12 B230_REFCLK_P OUT7 MGTREFCLK0N_230_V11 B230_REFCLK_N OUT7b IO_L10N_AD10N_94_A3 GT_EXP_1_IO5 PERSTn IO_L5N_HDGC_94_D3 GT_EXP_1_IO15 CONFIG_1 Table 15. Signal assignment of NVME1 M.2 [J25] 6.3. QSFP28 100G Ethernet 6.3.3. -
Page 20: Qsfp1 [J23]
DaisyPlus Board User Guide MGTYTXN2_130_K35 QSFP1_TX3_N TX3N MGTYTXP3_130_J36 QSFP1_TX4_P TX4P MGTYTXN3_130_J37 QSFP1_TX4_N TX4N Table 16. Signal assignment of QSFP0 [J20] 6.3.4. QSFP1 [J23] Device Pin Name Schematic Net Name Pin Device Name PS_MIO40_P28 QSFP2_LPMODE MODSELL PS_MIO41_P30 QSFP2_RESETL RESETL PS_MIO42_T30 QSFP2_MODSELL... -
Page 21: Ps Lpddr4 [U12]
DaisyPlus Board User Guide 6.4. PS LPDDR4 [U12] Device Pin Name Schematic Net Name Device Name BA38 PS_DDR_A0_BA38 PS_LPDDR4_CA0_A CA0_A BB36 PS_DDR_A1_BB36 PS_LPDDR4_CA1_A CA1_A BA35 PS_DDR_A2_BA35 PS_LPDDR4_CA2_A CA2_A BB35 PS_DDR_A3_BB35 PS_LPDDR4_CA3_A CA3_A BB38 PS_DDR_A4_BB38 PS_LPDDR4_CA4_A CA4_A AY35 PS_DDR_A5_AY35 PS_LPDDR4_CA5_A CA5_A... - Page 22 DaisyPlus Board User Guide AR30 PS_DDR_DQS_P2_AR30 PS_LPDDR4_SDQS0_T_B DQS0_t_B AT30 PS_DDR_DQS_N2_AT30 PS_LPDDR4_SDQS0_C_B DQS0_c_B AR32 PS_DDR_DQS_P3_AR32 PS_LPDDR4_SDQS1_T_B DQS1_t_B AT32 PS_DDR_DQS_N3_AT32 PS_LPDDR4_SDQS1_C_B DQS1_c_B AY29 PS_DDR_DM0_AY29 PS_LPDDR4_DMI0_A DMI0_A AY34 PS_DDR_DM1_AY34 PS_LPDDR4_DMI1_A DMI1_A AR29 PS_DDR_DM2_AR29 PS_LPDDR4_DMI0_B DMI0_B AR33 PS_DDR_DM3_AR33 PS_LPDDR4_DMI1_B DMI1_B AV29 PS_DDR_DQ0_AV29 PS_LPDDR4_DATA0_A DQ0_A...
- Page 23 DaisyPlus Board User Guide AT31 PS_DDR_DQ20_AT31 PS_LPDDR4_DATA4_B DQ4_B AU30 PS_DDR_DQ21_AU30 PS_LPDDR4_DATA5_B DQ5_B AU31 PS_DDR_DQ22_AU31 PS_LPDDR4_DATA6_B DQ6_B AU29 PS_DDR_DQ23_AU29 PS_LPDDR4_DATA7_B DQ7_B AV34 PS_DDR_DQ24_AV34 PS_LPDDR4_DATA8_B DQ8_B AU33 PS_DDR_DQ25_AU33 PS_LPDDR4_DATA9_B DQ9_B AT33 PS_DDR_DQ26_AT33 PS_LPDDR4_DATA10_B DQ10_B AU34 PS_DDR_DQ27_AU34 PS_LPDDR4_DATA11_B DQ11_B AN33 PS_DDR_DQ28_AN33 PS_LPDDR4_DATA12_B DQ12_B...
- Page 24 DaisyPlus Board User Guide CRZ Technology...
- Page 25 DaisyPlus Board User Guide CRZ Technology...
-
Page 26: Dimm Card Slots
DaisyPlus Board User Guide 6.5. PL DIMM Card Slots 6.5.1. DIMM0 [J8] Device Pin Name Schematic Net Name Device AN18 DDR4_0_RTL_ODT0 IO_L21P_T3L_N4_AD8P_66_AN18 AN17 DDR4_0_RTL_ODT1 IO_L21N_T3L_N5_AD8N_66_AN17 AN16 DDR4_0_RTL_PAR IO_L24P_T3U_N10_66_AN16 AM16 DDR4_0_RTL_RESET_N IO_L23N_T3U_N9_66_AM16 AL16 DDR4_0_RTL_ACT_N IO_L23P_T3U_N8_66_AL16 AN23 DDR4_0_RTL_ALERT_B IO_L22N_T3U_N7_DBC_AD0N_65_AN23 AU15 DDR4_0_RTL_BA0 IO_L14N_T2L_N3_GC_66_AU15... - Page 27 DaisyPlus Board User Guide BA10 DDR4_0_RTL_ADR8 IO_L9P_T1L_N4_AD12P_66_BA10 BB10 DDR4_0_RTL_ADR9 IO_L9N_T1L_N5_AD12N_66_BB10 AU13 DDR4_0_RTL_ADR10 IO_L10P_T1U_N6_QBC_AD4P_66_AU13 AV13 DDR4_0_RTL_ADR11 IO_L10N_T1U_N7_QBC_AD4N_66_AV13 AU14 DDR4_0_RTL_ADR12 IO_L12P_T1U_N10_GC_66_AU14 AV14 DDR4_0_RTL_ADR13 IO_L12N_T1U_N11_GC_66_AV14 AV17 DDR4_0_RTL_ADR14 IO_L13P_T2L_N0_GC_QBC_66_AV17 AV16 DDR4_0_RTL_ADR15 IO_L13N_T2L_N1_GC_QBC_66_AV16 AT15 DDR4_0_RTL_ADR16 IO_L14P_T2L_N2_GC_66_AT15 AN27 DDR4_0_RTL_DQS_T0 IO_L16P_T2U_N6_QBC_AD3P_65_AN27 AP27 DDR4_0_RTL_DQS_C0 IO_L16N_T2U_N7_QBC_AD3N_65_AP27 AU28 DDR4_0_RTL_DQS_T1 IO_L10P_T1U_N6_QBC_AD4P_65_AU28...
- Page 28 DaisyPlus Board User Guide AV23 DDR4_0_RTL_DQS_C12 IO_L7N_T1L_N1_QBC_AD13N_64_AV23 AT22 DDR4_0_RTL_DQS_T13 IO_L13P_T2L_N0_GC_QBC_64_AT22 AT21 DDR4_0_RTL_DQS_C13 IO_L13N_T2L_N1_GC_QBC_64_AT21 DDR4_0_RTL_DQS_T14 IO_L1P_T0L_N0_DBC_67_AW9 DDR4_0_RTL_DQS_C14 IO_L1N_T0L_N1_DBC_67_AY9 AV12 DDR4_0_RTL_DQS_T15 IO_L7P_T1L_N0_QBC_AD13P_67_AV12 AW12 DDR4_0_RTL_DQS_C15 IO_L7N_T1L_N1_QBC_AD13N_67_AW12 AR13 DDR4_0_RTL_DQS_T16 IO_L13P_T2L_N0_GC_QBC_67_AR13 AR12 DDR4_0_RTL_DQS_C16 IO_L13N_T2L_N1_GC_QBC_67_AR12 BA23 DDR4_0_RTL_DQS_T17 IO_L1P_T0L_N0_DBC_64_BA23 BB23 DDR4_0_RTL_DQS_C17 IO_L1N_T0L_N1_DBC_64_BB23 AM28 DDR4_0_RTL_DQ0 IO_L17P_T2U_N8_AD10P_65_AM28 AN28 DDR4_0_RTL_DQ1...
- Page 29 DaisyPlus Board User Guide BA25 DDR4_0_RTL_DQ23 IO_L3N_T0L_N5_AD15N_65_BA25 AU21 DDR4_0_RTL_DQ24 IO_L11P_T1U_N8_GC_64_AU21 AV21 DDR4_0_RTL_DQ25 IO_L11N_T1U_N9_GC_64_AV21 AU20 DDR4_0_RTL_DQ26 IO_L12P_T1U_N10_GC_64_AU20 AV19 DDR4_0_RTL_DQ27 IO_L12N_T1U_N11_GC_64_AV19 AV22 DDR4_0_RTL_DQ28 IO_L8P_T1L_N2_AD5P_64_AV22 AW22 DDR4_0_RTL_DQ29 IO_L8N_T1L_N3_AD5N_64_AW22 AW20 DDR4_0_RTL_DQ30 IO_L9P_T1L_N4_AD12P_64_AW20 AW19 DDR4_0_RTL_DQ31 IO_L9N_T1L_N5_AD12N_64_AW19 AP20 DDR4_0_RTL_DQ32 IO_L17P_T2U_N8_AD10P_64_AP20 AR20 DDR4_0_RTL_DQ33 IO_L17N_T2U_N9_AD10N_64_AR20 AP19 DDR4_0_RTL_DQ34 IO_L18P_T2U_N10_AD2P_64_AP19...
- Page 30 DaisyPlus Board User Guide AN11 DDR4_0_RTL_DQ57 IO_L17N_T2U_N9_AD10N_67_AN11 AM10 DDR4_0_RTL_DQ58 IO_L18P_T2U_N10_AD2P_67_AM10 AN10 DDR4_0_RTL_DQ59 IO_L18N_T2U_N11_AD2N_67_AN10 AP10 DDR4_0_RTL_DQ60 IO_L14P_T2L_N2_GC_67_AP10 AR10 DDR4_0_RTL_DQ61 IO_L14N_T2L_N3_GC_67_AR10 AR15 DDR4_0_RTL_DQ62 IO_L15P_T2L_N4_AD11P_67_AR15 AR14 DDR4_0_RTL_DQ63 IO_L15N_T2L_N5_AD11N_67_AR14 BB20 DDR4_0_RTL_DQ64 IO_L5P_T0U_N8_AD14P_64_BB20 BB19 DDR4_0_RTL_DQ65 IO_L5N_T0U_N9_AD14N_64_BB19 BA18 DDR4_0_RTL_DQ66 IO_L6P_T0U_N10_AD6P_64_BA18 BB18 DDR4_0_RTL_DQ67 IO_L6N_T0U_N11_AD6N_64_BB18 AY23 DDR4_0_RTL_DQ68 IO_L2P_T0L_N2_64_AY23...
- Page 31 DaisyPlus Board User Guide CRZ Technology...
- Page 32 DaisyPlus Board User Guide CRZ Technology...
- Page 33 DaisyPlus Board User Guide CRZ Technology...
-
Page 34: Dimm1 [J9]
DaisyPlus Board User Guide 6.5.2. DIMM1 [J9] Device Pin Name Schematic Net Name Device AJ17 DDR4_0_RTL_ODT2 IO_L22P_T3U_N6_DBC_AD0P_66_AJ17 AK17 DDR4_0_RTL_ODT3 IO_L22N_T3U_N7_DBC_AD0N_66_AK17 AN16 DDR4_0_RTL_PAR IO_L24P_T3U_N10_66_AN16 AM16 DDR4_0_RTL_RESET_N IO_L23N_T3U_N9_66_AM16 AL16 IO_L23P_T3U_N8_66_AL16 DDR4_0_RTL_ACT_N AN23 DDR4_0_RTL_ALERT_B IO_L22N_T3U_N7_DBC_AD0N_65_AN23 AU15 DDR4_0_RTL_BA0 IO_L14N_T2L_N3_GC_66_AU15 AU18 IO_L15P_T2L_N4_AD11P_66_AU18 DDR4_0_RTL_BA1 AV18 IO_L15N_T2L_N5_AD11N_66_AV18... - Page 35 DaisyPlus Board User Guide BB10 DDR4_0_RTL_ADR9 IO_L9N_T1L_N5_AD12N_66_BB10 AU13 DDR4_0_RTL_ADR10 IO_L10P_T1U_N6_QBC_AD4P_66_AU13 AV13 DDR4_0_RTL_ADR11 IO_L10N_T1U_N7_QBC_AD4N_66_AV13 AU14 DDR4_0_RTL_ADR12 IO_L12P_T1U_N10_GC_66_AU14 AV14 DDR4_0_RTL_ADR13 IO_L12N_T1U_N11_GC_66_AV14 AV17 DDR4_0_RTL_ADR14 IO_L13P_T2L_N0_GC_QBC_66_AV17 AV16 DDR4_0_RTL_ADR15 IO_L13N_T2L_N1_GC_QBC_66_AV16 AT15 DDR4_0_RTL_ADR16 IO_L14P_T2L_N2_GC_66_AT15 AN27 DDR4_0_RTL_DQS_T0 IO_L16P_T2U_N6_QBC_AD3P_65_AN27 AP27 DDR4_0_RTL_DQS_C0 IO_L16N_T2U_N7_QBC_AD3N_65_AP27 AU28 DDR4_0_RTL_DQS_T1 IO_L10P_T1U_N6_QBC_AD4P_65_AU28 AV28 DDR4_0_RTL_DQS_C1 IO_L10N_T1U_N7_QBC_AD4N_65_AV28...
- Page 36 DaisyPlus Board User Guide AT22 DDR4_0_RTL_DQS_T13 IO_L13P_T2L_N0_GC_QBC_64_AT22 AT21 DDR4_0_RTL_DQS_C13 IO_L13N_T2L_N1_GC_QBC_64_AT21 DDR4_0_RTL_DQS_T14 IO_L1P_T0L_N0_DBC_67_AW9 DDR4_0_RTL_DQS_C14 IO_L1N_T0L_N1_DBC_67_AY9 AV12 DDR4_0_RTL_DQS_T15 IO_L7P_T1L_N0_QBC_AD13P_67_AV12 AW12 DDR4_0_RTL_DQS_C15 IO_L7N_T1L_N1_QBC_AD13N_67_AW12 AR13 DDR4_0_RTL_DQS_T16 IO_L13P_T2L_N0_GC_QBC_67_AR13 AR12 DDR4_0_RTL_DQS_C16 IO_L13N_T2L_N1_GC_QBC_67_AR12 BA23 DDR4_0_RTL_DQS_T17 IO_L1P_T0L_N0_DBC_64_BA23 BB23 DDR4_0_RTL_DQS_C17 IO_L1N_T0L_N1_DBC_64_BB23 AM28 DDR4_0_RTL_DQ0 IO_L17P_T2U_N8_AD10P_65_AM28 AN28 DDR4_0_RTL_DQ1 IO_L17N_T2U_N9_AD10N_65_AN28 AR28 DDR4_0_RTL_DQ2...
- Page 37 DaisyPlus Board User Guide AU21 DDR4_0_RTL_DQ24 IO_L11P_T1U_N8_GC_64_AU21 AV21 DDR4_0_RTL_DQ25 IO_L11N_T1U_N9_GC_64_AV21 AU20 DDR4_0_RTL_DQ26 IO_L12P_T1U_N10_GC_64_AU20 AV19 DDR4_0_RTL_DQ27 IO_L12N_T1U_N11_GC_64_AV19 AV22 DDR4_0_RTL_DQ28 IO_L8P_T1L_N2_AD5P_64_AV22 AW22 DDR4_0_RTL_DQ29 IO_L8N_T1L_N3_AD5N_64_AW22 AW20 DDR4_0_RTL_DQ30 IO_L9P_T1L_N4_AD12P_64_AW20 AW19 DDR4_0_RTL_DQ31 IO_L9N_T1L_N5_AD12N_64_AW19 AP20 DDR4_0_RTL_DQ32 IO_L17P_T2U_N8_AD10P_64_AP20 AR20 DDR4_0_RTL_DQ33 IO_L17N_T2U_N9_AD10N_64_AR20 AP19 DDR4_0_RTL_DQ34 IO_L18P_T2U_N10_AD2P_64_AP19 AR19 DDR4_0_RTL_DQ35 IO_L18N_T2U_N11_AD2N_64_AR19...
- Page 38 DaisyPlus Board User Guide AM10 DDR4_0_RTL_DQ58 IO_L18P_T2U_N10_AD2P_67_AM10 AN10 DDR4_0_RTL_DQ59 IO_L18N_T2U_N11_AD2N_67_AN10 AP10 DDR4_0_RTL_DQ60 IO_L14P_T2L_N2_GC_67_AP10 AR10 DDR4_0_RTL_DQ61 IO_L14N_T2L_N3_GC_67_AR10 AR15 DDR4_0_RTL_DQ62 IO_L15P_T2L_N4_AD11P_67_AR15 AR14 DDR4_0_RTL_DQ63 IO_L15N_T2L_N5_AD11N_67_AR14 BB20 DDR4_0_RTL_DQ64 IO_L5P_T0U_N8_AD14P_64_BB20 BB19 DDR4_0_RTL_DQ65 IO_L5N_T0U_N9_AD14N_64_BB19 BA18 DDR4_0_RTL_DQ66 IO_L6P_T0U_N10_AD6P_64_BA18 BB18 DDR4_0_RTL_DQ67 IO_L6N_T0U_N11_AD6N_64_BB18 AY23 DDR4_0_RTL_DQ68 IO_L2P_T0L_N2_64_AY23 AY22 DDR4_0_RTL_DQ69 IO_L2N_T0L_N3_64_AY22...
- Page 39 DaisyPlus Board User Guide CRZ Technology...
- Page 40 DaisyPlus Board User Guide CRZ Technology...
- Page 41 DaisyPlus Board User Guide CRZ Technology...
-
Page 42: Pcie X16 Endpoint [J11]
DaisyPlus Board User Guide 6.6. PCIe x16 Endpoint [J11] Device Pin Name Schematic Net Name Device Name PCIE_PERST_B_CON PERST# IO_L12P_AD0P_93_D9 PCIE_WAKE_B_CON WAKE# PS_MIO26_L27 AH11 MGTREFCLK0N_225_AH11 PCIE_REFCLK_N REFCLKn AH12 MGTREFCLK0P_225_AH12 PCIE_REFCLK_P REFCLKp AK11 B224_REFCLK_N OUT0b MGTREFCLK0N_224_AK11 AK12 B224_REFCLK_P OUT0 MGTREFCLK0P_224_AK12 MGTREFCLK1N_225_AG9... - Page 43 DaisyPlus Board User Guide PCIE_TX9_P PETp9 MGTHTXP2_225_AN6 PCIE_TX10_N PETn10 MGTHTXN1_225_AP7 PCIE_TX10_P PETp10 MGTHTXP1_225_AP8 PCIE_TX11_N PETn11 MGTHTXN0_225_AR5 PCIE_TX11_P PETp11 MGTHTXP0_225_AR6 PCIE_TX12_N PETn12 MGTHTXN3_224_AT7 PCIE_TX12_P PETp12 MGTHTXP3_224_AT8 PCIE_TX13_N PETn13 MGTHTXN2_224_AU5 PCIE_TX13_P PETp13 MGTHTXP2_224_AU6 PCIE_TX14_N PETn14 MGTHTXN1_224_AW5 PCIE_TX14_P PETp14 MGTHTXP1_224_AW6 PCIE_TX15_N PETn15 MGTHTXN0_224_AY3...
-
Page 44: Ethernet Phy[U16]-Ethernet 1G[J10]
DaisyPlus Board User Guide PCIE_RX10_N PERn10 MGTHRXN1_225_AR1 PCIE_RX11_P PERp11 MGTHRXP0_225_AT4 PCIE_RX11_N PERn11 MGTHRXN0_225_AT3 PCIE_RX12_P PERp12 MGTHRXP3_224_AU2 PCIE_RX12_N PERn12 MGTHRXN3_224_AU1 PCIE_RX13_P PERp13 MGTHRXP2_224_AV4 PCIE_RX13_N PERn13 MGTHRXN2_224_AV3 PCIE_RX14_P PERp14 MGTHRXP1_224_AW2 PCIE_RX14_N PERn14 MGTHRXN1_224_AW1 PCIE_RX15_P PERp15 MGTHRXP0_224_BA2 PCIE_RX15_N PERn15 MGTHRXN0_224_BA1 Table 21. Signal assignment of PCIe x16 Endpoint [J11] 6.7. -
Page 45: Usb To Dual Uart[U40] - Usb Micro[J26]
DaisyPlus Board User Guide AG31 PS_MIO77_AG31 ENET_MDIO MDIO Table 22. Signal assignment of Ethernet 6.8. USB to Dual UART[U40] – USB Micro[J26] Device Pin Name Schematic Net Name Pin Name Device TXD_ECI USB_UART1_TXD PS_MIO20_AH34 AH34 RXD_ECI USB_UART1_RXD PS_MIO21_AF35 AF35 TXD_SCI... - Page 46 DaisyPlus Board User Guide IO_L11P_T1U_N8_GC_71_H20 NAND_0_WE_P IO_L10N_T1U_N7_QBC_AD4N_71_J22 NAND_0_IO4 IO_L10P_T1U_N6_QBC_AD4P_71_K22 NAND_0_IO5 IO_L9N_T1L_N5_AD12N_71_J21 NAND_0_IO6 IO_L9P_T1L_N4_AD12P_71_K21 NAND_0_IO7 IO_L8N_T1L_N3_AD5N_71_K20 NAND_0_ALE IO_L8P_T1L_N2_AD5P_71_L20 NAND_0_CLE IO_L7N_T1L_N1_QBC_AD13N_71_J19 NAND_0_R/B_0 IO_L7P_T1L_N0_QBC_AD13P_71_K19 NAND_0_R/B_1 IO_T0U_N12_VRP_71_P22 NAND_0_R/B_2 IO_L6N_T0U_N11_AD6N_71_M21 NAND_0_R/B_3 IO_L6P_T0U_N10_AD6P_71_M22 NAND_0_R/B_4 IO_L5N_T0U_N9_AD14N_71_N21 NAND_0_R/B_5 IO_L5P_T0U_N8_AD14P_71_P21 NAND_0_R/B_6 IO_L4N_T0U_N7_DBC_AD7N_71_N19 NAND_0_R/B_7 NAND_1_WP IO_L20N_T3L_N3_AD1N_69_B37 NAND_1_CE_0 IO_L20P_T3L_N2_AD1P_69_B36 NAND_1_CE_1 IO_L19N_T3L_N1_DBC_AD9N_69_C37...
- Page 47 DaisyPlus Board User Guide IO_L10N_T1U_N7_QBC_AD4N_69_A32 NAND_1_IO4 IO_L10P_T1U_N6_QBC_AD4P_69_B31 NAND_1_IO5 IO_L9N_T1L_N5_AD12N_69_A30 NAND_1_IO6 NAND_1_IO7 IO_L9P_T1L_N4_AD12P_69_A29 NAND_1_ALE IO_L8N_T1L_N3_AD5N_69_B30 IO_L8P_T1L_N2_AD5P_69_C29 NAND_1_CLE NAND_1_R/B_0 IO_L7N_T1L_N1_QBC_AD13N_69_D29 NAND_1_R/B_1 IO_L7P_T1L_N0_QBC_AD13P_69_E29 NAND_1_R/B_2 IO_T0U_N12_VRP_69_H29 NAND_1_R/B_3 IO_L6N_T0U_N11_AD6N_69_H28 NAND_1_R/B_4 IO_L6P_T0U_N10_AD6P_69_J28 NAND_1_R/B_5 IO_L5N_T0U_N9_AD14N_69_F29 NAND_1_R/B_6 IO_L5P_T0U_N8_AD14P_69_G28 NAND_1_R/B_7 IO_L4N_T0U_N7_DBC_AD7N_69_F30 IO_L20N_T3L_N3_AD1N_68_B16 NAND_2_WP IO_L20P_T3L_N2_AD1P_68_C16 NAND_2_CE_0 IO_L19N_T3L_N1_DBC_AD9N_68_D16 NAND_2_CE_1 IO_L19P_T3L_N0_DBC_AD9P_68_E16 NAND_2_CE_2...
- Page 48 DaisyPlus Board User Guide IO_L10P_T1U_N6_QBC_AD4P_68_G18 NAND_2_IO5 IO_L9N_T1L_N5_AD12N_68_H18 NAND_2_IO6 IO_L9P_T1L_N4_AD12P_68_J18H16 NAND_2_IO7 IO_L8N_T1L_N3_AD5N_68_H16 NAND_2_ALE IO_L8P_T1L_N2_AD5P_68_J16 NAND_2_CLE IO_L7N_T1L_N1_QBC_AD13N_68_G15 NAND_2_R/B_0 IO_L7P_T1L_N0_QBC_AD13P_68_H15 NAND_2_R/B_1 IO_T0U_N12_VRP_68_R15 NAND_2_R/B_2 IO_L6N_T0U_N11_AD6N_68_K17 NAND_2_R/B_3 IO_L6P_T0U_N10_AD6P_68_L17 NAND_2_R/B_4 IO_L5N_T0U_N9_AD14N_68_K15 NAND_2_R/B_5 IO_L5P_T0U_N8_AD14P_68_K16 NAND_2_R/B_6 IO_L4N_T0U_N7_DBC_AD7N_68_L15 NAND_2_R/B_7 IO_L20N_T3L_N3_AD1N_70_A28 NAND_3_WP IO_L20P_T3L_N2_AD1P_70_A27 NAND_3_CE_0 IO_L19N_T3L_N1_DBC_AD9N_70_B28 NAND_3_CE_1 IO_L19P_T3L_N0_DBC_AD9P_70_C28 NAND_3_CE_2 IO_T2U_N12_70_D26 NAND_3_CE_3...
- Page 49 DaisyPlus Board User Guide IO_L9N_T1L_N5_AD12N_70_J24 NAND_3_IO6 IO_L9P_T1L_N4_AD12P_70_J23 NAND_3_IO7 IO_L8N_T1L_N3_AD5N_70_J26 NAND_3_ALE IO_L8P_T1L_N2_AD5P_70_K26 NAND_3_CLE IO_L7N_T1L_N1_QBC_AD13N_70_J27 NAND_3_R/B_0 IO_L7P_T1L_N0_QBC_AD13P_70_K27 NAND_3_R/B_1 IO_T0U_N12_VRP_70_M26 NAND_3_R/B_2 IO_L6N_T0U_N11_AD6N_70_L23 NAND_3_R/B_3 IO_L6P_T0U_N10_AD6P_70_M23 NAND_3_R/B_4 IO_L5N_T0U_N9_AD14N_70_N23 NAND_3_R/B_5 IO_L5P_T0U_N8_AD14P_70_P23 NAND_3_R/B_6 IO_L4N_T0U_N7_DBC_AD7N_70_K24 NAND_3_R/B_7 Table 24. Signal assignment of NAND SO-DIMM [J28] SW14 VCC_NAND 1.8V 2.5V 2.6V...
