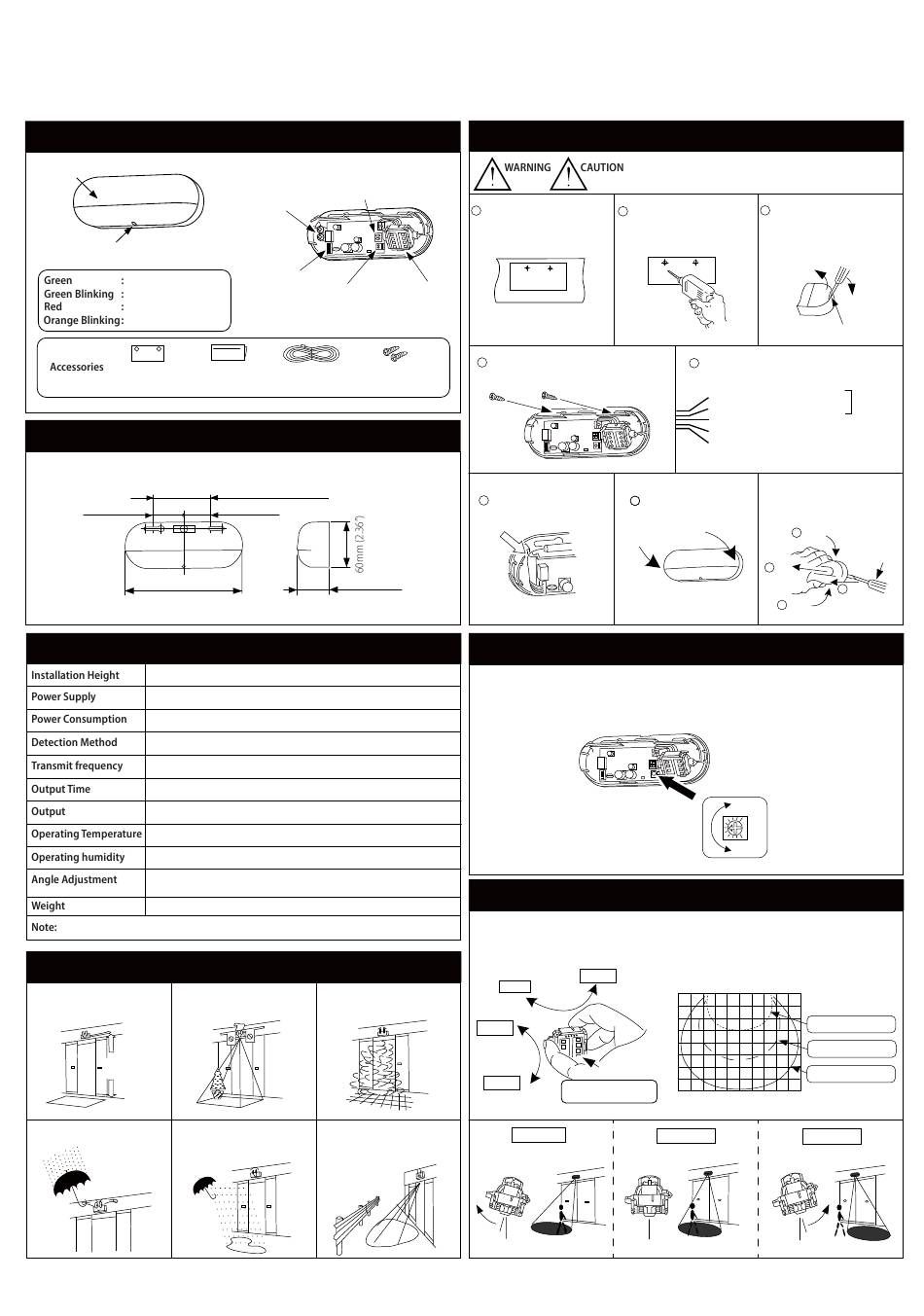

Gianni MCS-3H-KB02 Operation Manual

Microwave Sensor MCS-3H-KB02

1. Overview

Cover
Indicator LED
Standby
Initializing
Detecting
Change of DIP Switch
Mounting Installation
Template Instruction

2. Dimensions

75mm(2.95")=Standard Mounting Pitch
40mm (1.56")
155mm (6.10")

3. Specifications

4.0〔m〕(13.15〔ft〕Max
12~24 VAC/DC
＜2W (VA)
Doppler method: (moving body detection)
24.20 〔GHz〕
0.5 〔seconds〕App.
Form C Relay DC50〔V〕0.1〔A〕Resistor Load
-20℃~+60℃ (-4℉~140℉)
Below 80%
Depth Detection: +15~51 (MAX 54)
Adjust the left and right: Left 15 (MAX 30) Right: 15 (MAX 30)
0.24 〔lb.〕(0.11〔Kg〕)
Specifications may change without notice.

4. Mounting Precautions

Ensure there are no moving
Mounting height of
objects in the detection areas
4.0m (13.15ft) or lower
4.0m
(13.15ft)
Avoid heavy rain and snow If possible ensure no
accumulation of snow or water
on the floor
Operation Manual
Dip Switch
Mounting Screws
(2 pcs.)
Connector
Potentiometer
(Sensitivity Volume)
Mounting Screws
cable
(2 pcs.)
35mm (1.37")
43mm (1.69")
Ensure no condensation gets
onto the sensor
The Radar part of the MCS-3H-
KB02 sensor may be negatively
influenced by metal close to or
in the detection area
Copyright © All Rights Reserved. P-MU-MCS-3H-KB02 Published: 2019.10.16

5. Installation Instructions

1 Attach the template at the
mounting position.
Radar
Attach the sensor with the screws.
4
House connectors in the
6
space provided.

6. Adjusting Sensitivity

Turn the potentiometer clockwise to increase the sensor sensitivity.
Turn the potentiometer counterclockwise to decrease the sensor sensitivity when
there is nothing in the detection area.

7. Adjusting Detection Area Width and Depth

Detection Area Adjustment
※ Detection area varies depending on walking speed
※ Adjustment as illustrated below
Right
Left
Far
Near
Please do not touch
the surface
Left area
Drilling may cause electric shock. Be careful of hidden
wires inside the automatic door operator cover.
3 Remove the sensor cover as
2 Drill mounting (3.5mmø)
and wiring (10mmø) holes. illustrated
Lift the sensor cover.
5 Door Controller Wiring
Red
AC/DC
Black
12 to 24〔V〕±10%
White COM
Yellow
N.O.
Green
N.C.
Replace cover. ※Removing the cover after
7 7
2 Pull
Sensitivity Volume
H
L
Installation height "2.2m"and Sensitivity set to "High".
〔m〕 2.0 1.0 0 1.0
1.0
2.0
3.0
Radar
4.0
Center area
Flat screw
driver
Slit in base
Power
Input
(Non Pole)
installation
1 Push
Flat
screwdriver
2 Pull
1 Push
2.0
〔27 degree〕setting
〔42 degree〕setting
〔54 degree〕setting
Right area
