Instructions

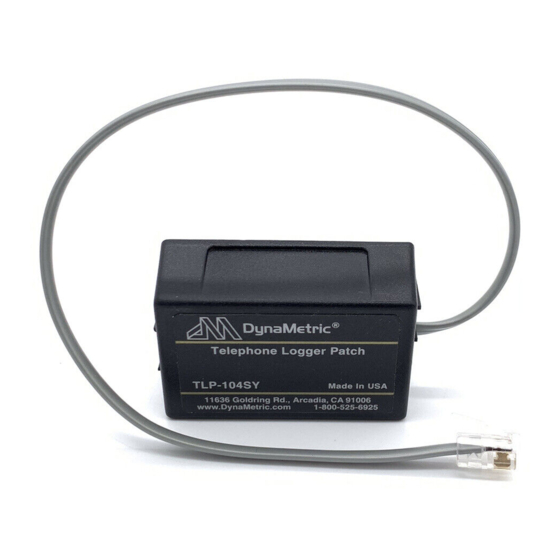

TLP-104SY Telephone Logger Patch
P/N 44160-3 C Series
The TLP-104SY provides an analog audio connection to loggers from telephones that
have modular connected handsets. The TLP-104SY will provide a clear recording of
both sides of your conversation from almost all telephones whether they are analog or
digital.
The TLP-104SY is similar to the TLP-104 except that the TLP-104SY has 15db of
amplification of the audio output to the logger. A recording will be made whenever the
handset is used. The unit is powered by a plug in AC adapter, which is included.
NOTE: Pins 3 & 4 of the RJ11 jack carry the analog audio to the logger and are the
only two conductors connected.

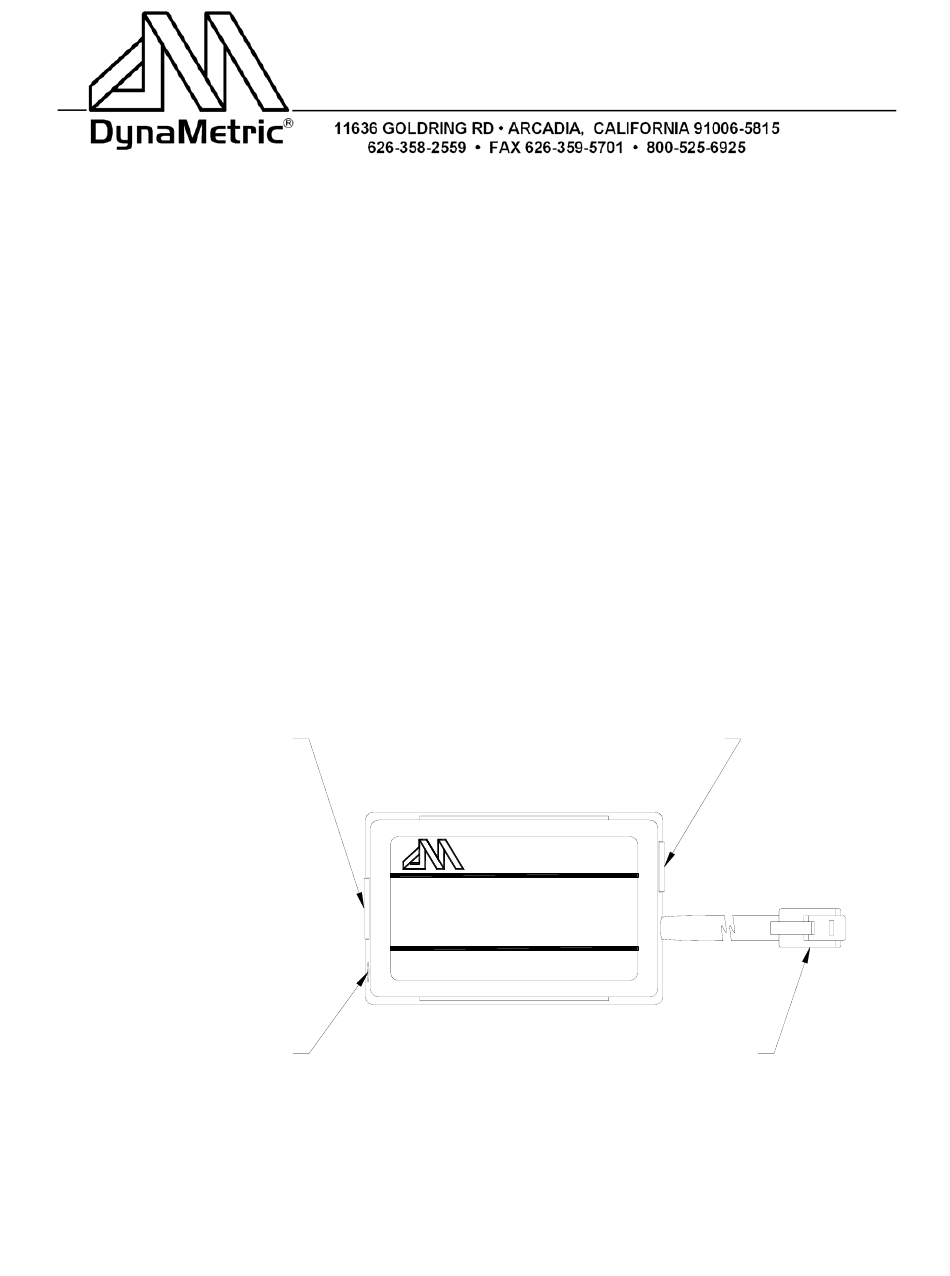

RJ-11 Receptacle
MINIMOD Handset Jack
(6 position, 4 pin)
®
DynaMetric
Telephone Logger Patch
TLP-104SY
Made In USA
717 S. Myrtle Ave., Monrovia, CA 91016
www.DynaMetric.com
1-800-525-6925
MINIMOD Plug
AC Adapter
Plug into
P/N 39184
Base of Phone
FOR LEGAL USE ONLY
3-19-08
www.DynaMetric.com
Page 1 of 2
©DynaMetric 2001 Doc 43685
Advertisement
Table of Contents
Related Manuals for DynaMetric TLP-104SY
Summary of Contents for DynaMetric TLP-104SY
- Page 1 The TLP-104SY is similar to the TLP-104 except that the TLP-104SY has 15db of amplification of the audio output to the logger. A recording will be made whenever the handset is used.
- Page 2 MINIMOD jack on the TLP-104SY. Connect a line cord from the logger into the RJ11 jack on the TLP-104SY. Plug in the AC Adapter to a nearby 120 VAC outlet and into the power jack on the TLP-104SY. The unit may be mounted at a convenient location on the base of the phone utilizing the adhesive pad.
