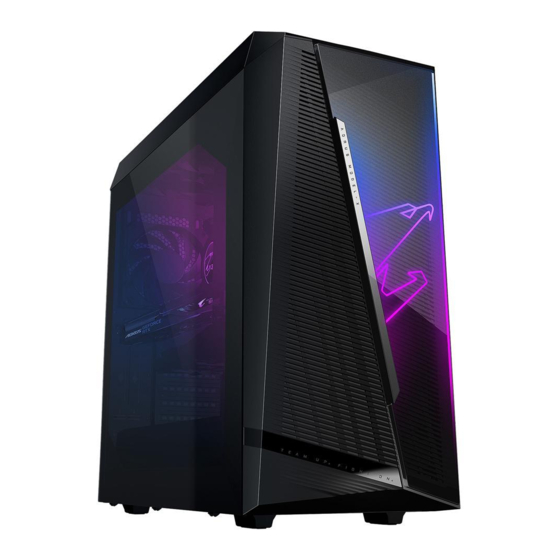

- Page 1 AORUS MODEL X GAMING DESKTOP PC (GB-AMXI9N8A-2051) User's Manual Rev. 1001 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
- Page 2 Copyright © 2021 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved. The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.
-
Page 3: Table Of Contents
Table of Contents Box Contents ........................4 Optional Items .........................4 Chapter 1 Hardware Setup .....................5 Safety Information .................... 5 Hardware Information ..................6 System Overview ......................6 Front View ........................6 Back View-A ........................7 Back View-B ........................10 Getting Started ....................11 Connecting Peripheral Devices ..................11 Connecting the Power Cord ...................12 Turning on ........................12 Chapter 2 BIOS Setup ....................13... -
Page 4: Box Contents
Box Contents 5 AORUS MODEL X GAMING DESKTOP PC 5 Quick Start Guide 5 AC power cord 5 Antennas 5 2.5" drive screws * The box contents above are for reference only and the actual items shall depend on the product package you obtain. -
Page 5: Chapter 1 Hardware Setup
Chapter 1 Hardware Setup Safety Information • Before connecting to the power outlet, make sure that the voltage rating of the power cable is compatible with the power specification in the country where you are located. • The power cord plug must be connected to a properly wired and grounded power outlet. •... -
Page 6: Hardware Information
Hardware Information System Overview Front View Power Button The power button allows users to turn on/off the computer. USB 3.2 Gen 1 Port The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specification and is compatible to the USB 2.0 specification. -
Page 7: Back View-A
Back View-A Q-Flash Plus Button (Note) This button allows you to update the BIOS when the power connector is connected but the system is not powered on. Clear CMOS Button Use this button to clear the CMOS values (e.g. BIOS configuration) and reset the CMOS values to factory defaults when needed. - Page 8 Settings\Thunderbolt Configuration ™ in BIOS Setup. The maximum supported resolution is 5120 x 2880@60 Hz with 24 bpp via single display output, but the actual resolutions supported are dependent on the monitor being used. Also, the connector is reversible and supports the USB 3.2 Gen 2 specification and is compatible to the USB 3.2 Gen 1 and USB 2.0 specification.
- Page 9 Center/Subwoofer Speaker Out Use this audio jack to connect center/subwoofer speakers. Rear Speaker Out Use this audio jack to connect rear speakers. Optical S/PDIF Out Connector This connector provides digital audio out to an external audio system that supports digital optical audio. Before using this feature, ensure that your audio system provides an optical digital audio in connector.
-
Page 10: Back View-B
Back View-B DisplayPort The connector supports DisplayPort 1.4a version. HDMI Port The connector supports HDMI 2.1 version. - 10 -... -
Page 11: Getting Started
Getting Started This product is designed and intended to be used in vertical position only. Connecting Peripheral Devices Connect your peripheral devices such as keyboard, mouse, monitor, and etc. to the desktop computer. - 11 -... -
Page 12: Connecting The Power Cord
Connecting the Power Cord Connect the included power cord to the desktop computer and a power outlet. Turning on Press the power button to turn on the desktop computer. - 12 -... -
Page 13: Chapter 2 Bios Setup
Chapter 2 BIOS Setup Entering the BIOS Setup To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to keep the configuration values in the CMOS. -
Page 14: Setting The Bios Display Language
Setting the BIOS Display Language To set the BIOS display language, go to the System Info. menu. The BIOS Language setting allows you to select the default language used by the BIOS. - 14 -... -
Page 15: Setting Administrator/User Password
Setting Administrator/User Password Go to the Boot menu to set the administrator password or user password for your desktop computer. & Administrator Password Allows you to configure an administrator password. Press <Enter> on this item, type the password, and then press <Enter>. You will be requested to confirm the password. Type the password again and press <Enter>. -
Page 16: Loading Optimized Defaults
Loading Optimized Defaults Go to the Save & Exit menu to load the BIOS default settings. & Load Optimized Defaults Press <Enter> on this item and select Yes to load the optimal BIOS default settings. The BIOS defaults settings help the system to operate in optimum state. Always load the Optimized defaults after updating the BIOS or after clearing the CMOS values. -
Page 17: Saving The Bios Settings And Exiting
Saving the BIOS Settings and Exiting & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &... -
Page 18: Chapter 3 Appendix
Chapter 3 Appendix Installing a 2.5" Drive Refer to the following steps to install a 2.5" drive: 1. Remove the two screws from the side panel. Then pull out the side panel. 2. Release the thumb screw from the 2.5" drive bracket to take out the bracket. 3. -
Page 19: Installing A 3.5" Drive
Installing a 3.5" Drive Refer to the following steps to install a 3.5" drive: 1. Remove the two screws from the side panel. Then pull out the side panel. 2. Press the tabs of the 3.5" drive bracket on both sides to pull the bracket out of the desktop computer. 3. -
Page 20: Cleaning The Dust Filter
Cleaning the Dust Filter We suggest that you clean the dust filter regularly to ensure effective ventilation. Refer to the following steps to remove the dust filter: 1. Pull the front panel outwards from the bottom. 2. Remove the front panel in the direction of the arrow as indicated. 3. -
Page 21: Using Q-Flash Plus
Using Q-Flash Plus A. Before You Begin 1. From GIGABYTE's website, download the latest compressed BIOS update file that matches your product model. 2. Uncompress the downloaded BIOS file, save it to your USB flash drive, and rename it to GIGABYTE.bin. Note: The USB flash drive must use the FAT32/16 file system and it must be a USB 2.0 flash drive. -
Page 22: Regulatory Notices
Regulatory Notices United States of America, Federal Communications Commission Statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: GIGABYTE DESKTOP PC Trade Name: GIGABYTE Model Number: GB-AMXI9N8A-2051 Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com FCC Compliance Statement:... - Page 23 Under Industry Canada regulations, this radio transmitter may only operate European Union (EU) CE-Konformitätserklärung using an antenna of a type and maximum (or lesser) gain approved for Dieses Produkte mit CE-Kennzeichnung erfüllen folgenden EU-Richtlinien: the transmitter by Industry Canada. To reduce potential radio interference EMV-Richtlinie 2014/30/EU, Niederspannungsrichtlinie 2014/35/EU, to other users, the antenna type and its gain should be chosen so that Funkanlagen Richtlinie 2014/53/EU, RoHS-Richtlinie 2011/65/EU erfüllt...
- Page 24 European Community Radio Equipment Directive Compliance Statement: This equipment complies with all the requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU. This equipment is suitable for home and office use in all the European Community Member States and EFTA Member States. The low band5.15 -5.35 GHz is for indoor use only.
-
Page 25: Contact Us
Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com - 25 -...
