  • Page 5 Series 421B3X Differential Input Charge Amplifier Installation and Operating Manual PCB Piezotronics, Inc. 3425 Walden Avenue, Depew, New York 14043-2495 24-Hour SensorLine 716 684-0001 Fax 716 684-0987 Toll Free (USA) 1-800-828-8840 E-Mail info@pcb.com Manual Number: 70284 Manual Revision: NR ECN: 49931...
  • Page 6: Table Of Contents

    Table of Contents Introduction .................................3 Description ..................................3 Installation ...................................3 Wiring and Operation ..............................4 Calculation of Gain ..............................5 Structural Diagram ..............................6 Ordering Information ..............................7 Special Considerations ...............................7 Use with High Temperature Sensors ..........................7 ESD Warning Information ............................8 Warning 1 – ESD sensitivity ............................8 Warning 2 –...
  • Page 7: Introduction

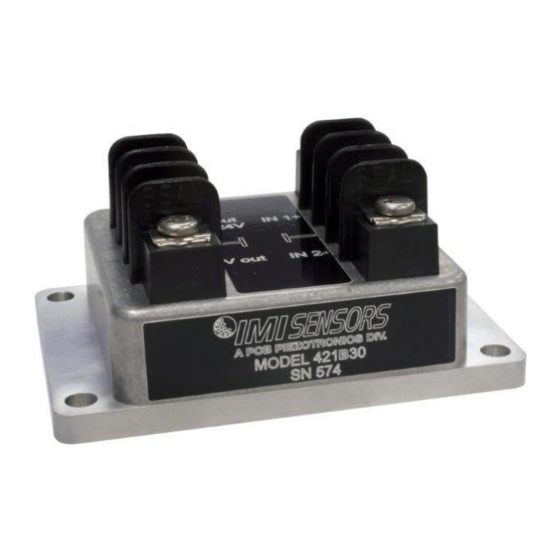

    Introduction The 421B3X-Series Differential Charge Amplifiers are designed to convert the high-impedance output of a differential, charge-mode piezoelectric sensor to a low-impedance voltage output. These amplifiers may be used with either quartz or ceramic, differential charge-mode piezoelectric sensors. Description The amplifier operates on a 22 to 28 VDC power supply. The amplifier employs a high gain amplifier to perform the impedance transformation.
  • Page 8: Wiring And Operation

    Wiring and Operation Input Signal:  Differential Piezoelectric Sensor: Connect the sensor’s positive charge output to the positive input (IN1+) and the sensor’s negative charge output to negative input (IN2-) using low-noise cable.  Non-Differential Piezoelectric Sensor: Connect the sensor output to the negative input (IN2-) and short the positive input (IN1+) and common (Ⱶ) using low-noise cable.
  • Page 9: Calculation Of Gain

    Calculation of Gain An amplifier is selected by specifying an input sensitivity and an output sensitivity. As a result, the gain is inherently determined without specifically calling it out. The gain of the amplifier can be calculated using one of the following equations: Note: ...
  • Page 10: Structural Diagram

    Structural Diagram The amplifier structural diagram is shown below: The amplifier converts the charge-based signal from a piezoelectric transducer into a current and voltage signal.  Current Output: The current signal is transmitted to the processing electronics via a 2-wire transmission cable.
  • Page 11: Ordering Information

    Ordering Information To configure a 421B3X-Series amplifier, construct a full model number according to the below scheme. INPUT SENSITIVITY OUTPUT SENSITIVITY FILTERS MODEL Value Units Value Units High-Pass Low-Pass 0001-1000 G/B/P 0001-2000 G/I/M/P/B X5-10 002-200 421B3X 0010-2000 mV/g 0001-0005 002=200 Hz 0001-0200 mV/in/s X5=0.5 Hz...
  • Page 12: Esd Warning Information

    Warning 2 – ESD sensitivity This equipment is designed with user safety in mind; however, the protection provided by the equipment may be impaired if the equipment is used in a manner not specified by PCB Piezotronics, Inc. Caution 1 – ESD sensitivity Cables can kill your equipment.
  • Page 13: Warranty

    Warranty A. Total Customer Satisfaction. PCB guarantees Total Customer Satisfaction through its “Lifetime Warranty Plus” on all Platinum Stock Products sold by PCB and through its Limited Warranties on all other PCB Stock, Standard and Special products. B. Platinum Stock Products – Lifetime Warranty Plus. Under PCB’s Lifetime Warranty Plus, if any PCB Platinum Stock Product ever fails, PCB will repair, replace or exchange the product at no charge.
  • Page 14: Return Procedure

    Return Procedure To expedite returned instrumentation, contact a factory PCB Customer Service Representative for a RETURN MATERIAL AUTHORIZATION (RMA) NUMBER. When calling, please have information such as model, serial number and description of the problem available. When preparing the package for return, it is helpful to provide a written description of the symptoms and problems experienced with the equipment.
