Summary of Contents for Mercator Ikuü SDC56

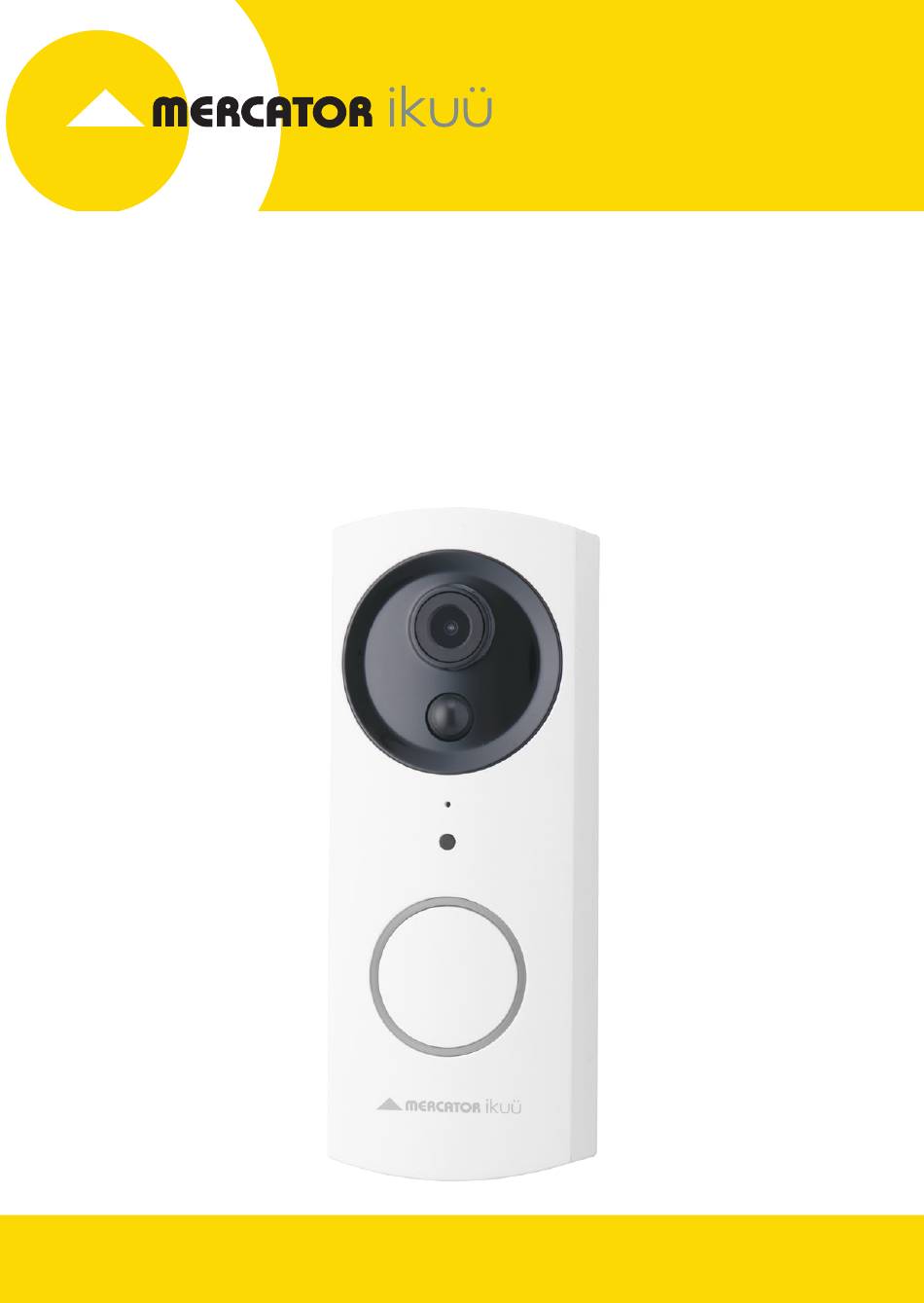

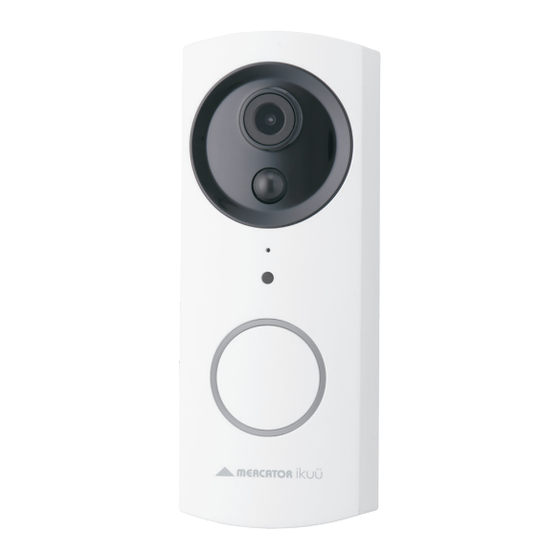

- Page 1 SMART VIDEO DOORBELL QUICK START GUIDE SDC56 www.ikuu.com.au...
- Page 2 Introduction This smart video doorbell is designed for use in homes, apartments, offices, garages and sheds. It’s easy to set up and operate, giving you and your family the security and peace of mind that you deserve. You can monitor your video doorbell remotely through the Mercator Ikuü app, which can be downloaded for free from the Apple App Store and Google Play Store.
- Page 3 Identification Light Sensor/ Infrared LEDs Camera Lens 1080p HD, with Detects low light 120° angle of view and turns on the infrared lights which Speaker allow the camera to capture both day Two way audio and night images. Microphone Status Light Entering Pairing Mode Purple, red,...
-
Page 4: Preparing Your Device
Preparing Your Device Remove the battery compartment cover. Pull off the isolation strip to allow the battery to make electrical contact. Reinstall the battery cover. Note: Ensure the battery polarity (+/-) matches the battery compartment sign. Set Up the App 1. - Page 5 Connect Your Video Doorbell to the App (cont.) When the Select prompt ‘Doorbell’ from appears, tap the sidebar, ‘next step’. and then tap the Video Doorbell icon. Enter your When the Wi-Fi name and prompt password, then appears, tap tap ‘Confirm’. ‘Continue’.
- Page 6 Connect Your Video Doorbell to the App (cont.) The app Place the will begin camera eye connecting over the QR to your video code to scan doorbell. (holding the When it camera 15cm reaches 100%, away from your you will be mobile screen).
- Page 7 Doorbell Functions Take a photo of the live video feed, which will be saved to the photo album. Speak through the doorbell speaker via your phone microphone. Take a video of the live video feed, which will be saved to the photo album.
-
Page 8: To Install Batteries
Pairing Your Indoor Chime Unit 1. In a location near your door and with good Wi-Fi coverage, power on your indoor chime unit with 3 x 1.5V “AA” type batteries (Alkaline batteries recommended). Press the “Volume” button for 5 seconds till the melody changes. Press the doorbell button to test the indoor chime unit. -
Page 9: Installation Instructions
1. Drill appropriately sized hole and insert wall plug (if required). 2. Fit screw provided, ensuring that there is a gap of approx. 3mm between mounting surface and head of screw to enable attachment of unit. 3. Attach Chime Unit by sliding ‘Keyhole’ shaped slot over screw. Alternatively unit can be left unmounted, in this form it can also be used as a portable paging device. - Page 10 1. Plug DC power adaptor into a power source and connect it with doorbell using provided USB cable (Fig 2 & 3). 2. During charging, the charging indicator should turn red. We suggest charging the doorbell for 6-8 hours before installation. INSTALLATION Note: Product should be fully charged before installation.
-
Page 11: App Features
App Features Want more from your products? The Mercator Ikuü app can help you to customise your smart products any way you like. Detailed guides on these features can be found at www.ikuu.com.au. Rooms Separate your products within the app for easy control based on their location. Scenes Control multiple products from any room at the same time. -
Page 12: Warranty
Warranty Mercator guarantees this product against defects of materials and workmanship for a period of 36 months from the date of purchase provided the product is used for its proper purpose, in accordance with Mercator’s recommendations and within such voltage and current limits as are specified by Mercator in relation to the product.
