Summary of Contents for Huvema HU W1016X1,5

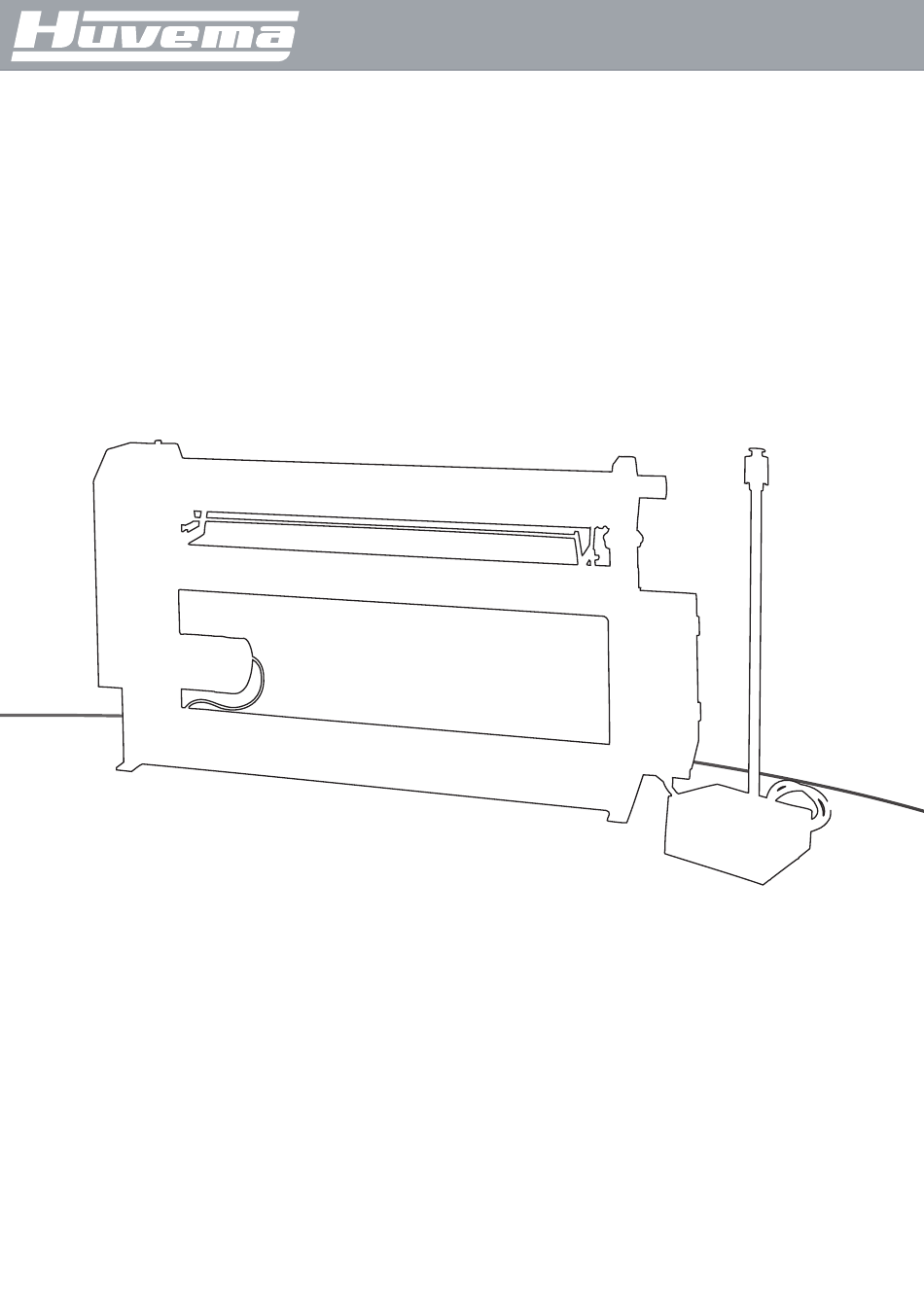

- Page 1 Electric slip roll machine HU W1016x1,5 HU W1300x1,5 Operation manual...
-
Page 3: Main Specification
1 Main specification MODEL HU W1016X1 .5 HU W-1300X1.5 Max rolling width 40" (1010mm) 50" (1280mm) Max rolling thickness 16gauge(1.5mm) 16gauge(1.5mm) Rolling diameter 3"(75mm) 2"(50mm) Rotate speed 22rpm 22rpm Motor Power 0.75kw 0.75kw Overall dimension 1285x520x935( mm) 1650x520x960(mm) 350kg Weight 400kg H Machinery general safety warnings 1. -
Page 8: Part Lists
Part lists Description Part No Description Part No Slide cover Electric box Stand Spring Left support Flat washer Right support Fixed mount Rear roll Bolt Upper roll wheel Lock sleeve Chain Lower roll Emergency Square bushing upper roll switch Pole Busing real roll Box cover Bushing lower roll... - Page 9 Scale Washer Safeguard rope Hex cap screw Fixed mount Handle Stop block L plate Bolt L plate Set screw Hex cap screw Lock sleeve Bolt Bolt Bushing Screw Emergency switch Screw Hex cap screw Spring washer Flat washer...
- Page 10 All rights reserved. No part of this booklet may be reproduced in any form, by print, photoprint, microfilm or any other means without written permission from the publisher. © Huberts bv, Kennedylaan 14, Veghel, the Netherlands. Internet: www.huvema.nl CHANGES AND T YPING ERRORS RESER VED...
-
Page 11: Ce Declaration Of Conformity
(in accordance with supplement II A of the Machinery Directive) Industrie & Handelsonderneming Huberts bv, Kennedylaan 14, 5466 AA Veghel, the Netherlands, in the capacity of importer, is to be held responsible for declaring that the Huvema machines: HU W1016X1,5 & HU W1300X1,5...
