Transmitter Solutions MONARCH 318DOPW2K-C Manual

318DOPW2K- C MONARCH
Transmitter
Solutions®
Thank you for choosing a Transmitter Solutions® product .
Please read this manual carefully before using the product.
Made in Italy . Copyright © 2013 by Transmitter Solutions®
CONTENTS
1 - TRANSMITTER OVERVIEW
1A - General information
1B - Technical specifications
1C - Main components
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information
The Transmitter Solutions® Monarch 318DOPW2K- C transmitter is a 2
key chain style mini transmitter operating at 318 MHz. It has been
designed for use with programmable telephone entry, security, and
access control systems operating with a 318 MHz frequency receiver.
The protocol is MicroCLIK® compatible and the code sent by the
transmitter includes a 14 bit security code which allows up to 16384
code combinations and 6 bits of facility code, which allows up to 64
facility codes .
The Transmitter Solutions® 318R receiver which operates with this
transmitter has a W iegand 26 bit output and can operate any type of
access control system equipped with the same protocol. The CR 2016
lithium batteries of the transmitter have a shelf life of about 6 months.
The product fully complies with Part 15 of FCC Regulations and the
European Directives 99/5/CE , 89/336/CEE , 73/23/CEE .
with Patented
ChargeGuard ®
1B - Technical specifications
Circuit
Operating frequency
Number of keys:
Battery :
Battery life:
Number combinations :
Protocol :
Different F acilities codes
Operating temperature:
Overall dimensions:
W eight:

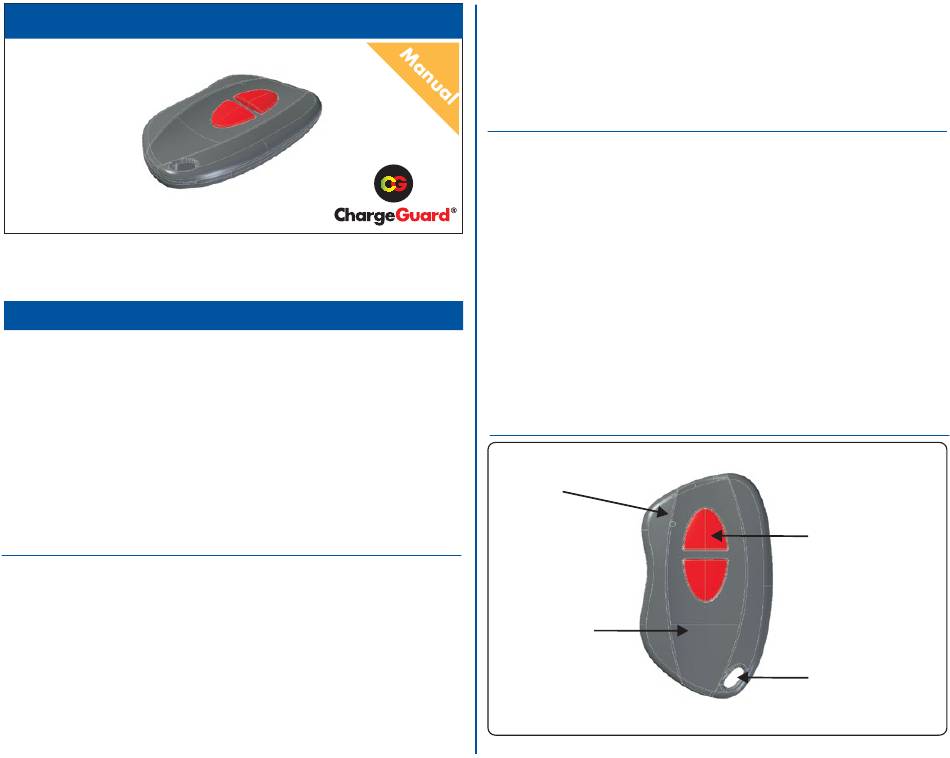

1C - Main components
tri- color
LED
Dark grey
Fig. 2
318 MHz
2
2 x 3V lithium batteries CR2016
18 ÷ 24 months
16,384
MicroCLIK® compatible
64
-20°F÷+131°F (-20°C÷+55°C)
2.4"x1.4"x0.51" (61x36x13 mm)
0.49 oz. (14 gr .)
case
RED
push-button
Key ring
holder
