bbf A191573 Assembly Manual

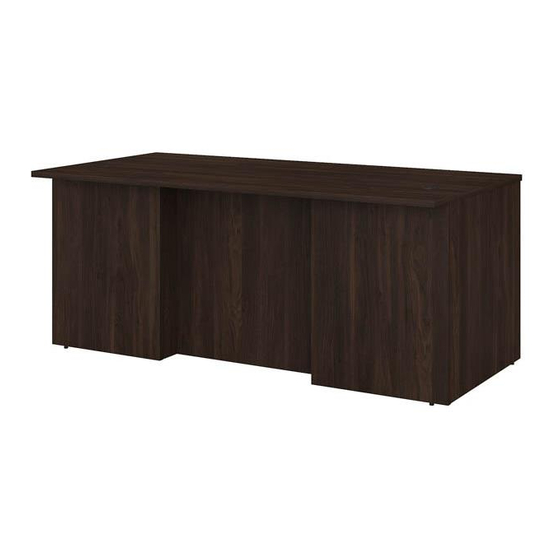

72 x 36 breakfront desk
Hide thumbs

Advertisement

Quick Links

Download this manual
72 x 36 Breakfront Desk
Lot Code #
Part Number A191573
Keep manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the A191573 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for bbf A191573

Summary of Contents for bbf A191573

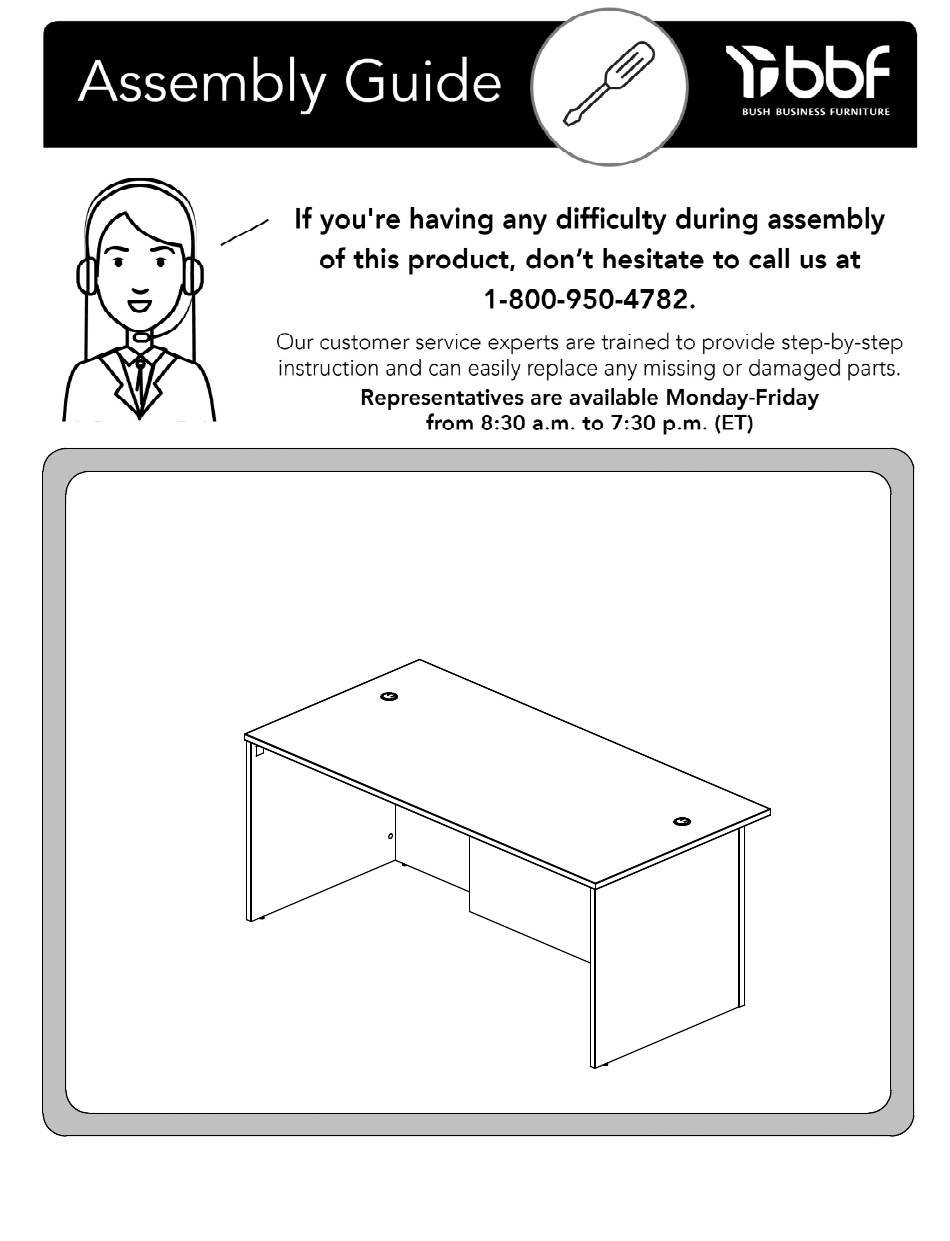

  • Page 1 72 x 36 Breakfront Desk Lot Code # Part Number A191573 Keep manual for future reference.
  • Page 2 Get Ready to Assemble A191573...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION PLEASE READ WARNINGS Improper use can cause safety hazards, or damage to your furniture and household items. Warning Don't Why it's important Serious injury • • Assemble following all instructions Do not move unit when Improper assembly, may occur.
  • Page 4 Get to know your Boards A191573 Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 5 Get to know your Fasteners A191573 Fasteners are shown actual size. [ 18 ] H72988 KD Bolt [ 18 ] H181468US KD Cam3000 [ 10 ] H38169 Wood Dowel 8 x 30 Have an assembly question or need a replacement part? Just call...
  • Page 6 Get to know your Hardware A191573 Hardware not to scale. [ 4 ] H184043 Leveler Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 7 STEP Prepare Panel A191573 [ 3 ] H72988 [ 1 ] H184043 KD Bolt Leveler [ 1 ] H38169 Wood Dowel 8 x 30 Safety glasses Gafas de seguridad Lunettes de protection Orientation Orientación L’orientation Have an assembly question or need a replacement part? Just call...
  • Page 8 STEP Prepare Panel A191573 [ 3 ] H72988 [ 1 ] H184043 KD Bolt Leveler [ 1 ] H38169 Wood Dowel 8 x 30 Safety glasses Gafas de seguridad Lunettes de protection Orientation Orientación L’orientation Have an assembly question or need a replacement part? Just call...
  • Page 9 STEP Prepare Panels A191573 [ 4 ] H38169 Wood Dowel 8 x 30 Safety glasses Gafas de seguridad Lunettes de protection Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 10 STEP Assemble Panels A191573 190° Minimum [ 2 ] H181468US KD Cam3000 [ 2 ] Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 11 STEP Prepare Sides A191573 [ 2 ] H184043 Leveler [ 4 ] H38169 Wood Dowel 8 x 30 Safety glasses Gafas de seguridad Lunettes de protection Orientation Orientación L’orientation Have an assembly question or need a replacement part? Just call...
  • Page 12 STEP Assemble Side A191573 190° Minimum [ 2 ] H181468US KD Cam3000 [ 2 ] Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 13 STEP Assemble Side A191573 190° Minimum [ 2 ] H181468US KD Cam3000 [ 2 ] Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 14 STEP Prepare Panel A191573 [ 10 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 15 STEP Assemble Side A191573 [ 4 ] H181468US 190° Minimum KD Cam3000 [ 4 ] Team Lift Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 16 STEP Assemble Side A191573 [ 4 ] H181468US 190° Minimum KD Cam3000 [ 4 ] Team Lift Cover Cap Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 17 STEP Prepare Panel A191573 [ 2 ] H72988 KD Bolt Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 18 STEP Assemble Panel A191573 [ 4 ] H181468US 190° Minimum KD Cam3000 [ 4 ] Cover Cap Team Lift Have an assembly question or need a replacement part? Just call 1-800-950-4782, we are here to help.
  • Page 19 STEP Maximum Loading and Cleaning A191573 Gently clean surfaces with a damp sponge eraser. [ 2 ] Grommet Team Lift Maximum Weight: 200 Lbs. Peso Máximo: 200 Libras Poids Maximum: 90.7 kilogramme Have an assembly question or need a replacement part? Just call...

  • Page 20: Parts List

    PARTS LIST A191573 OFD172MH OFD172BW W193088 W191574 W190389 W191575 W193090 W191576 W193091 W191578 W193092 W191577 W193094 W191580 W193093 W191579 [ 18 ] H83021 [ 18 ] H191633 Cover Cap Cover Cap [ 2 ] H151406 [ 2 ] H118700 Grommet...
