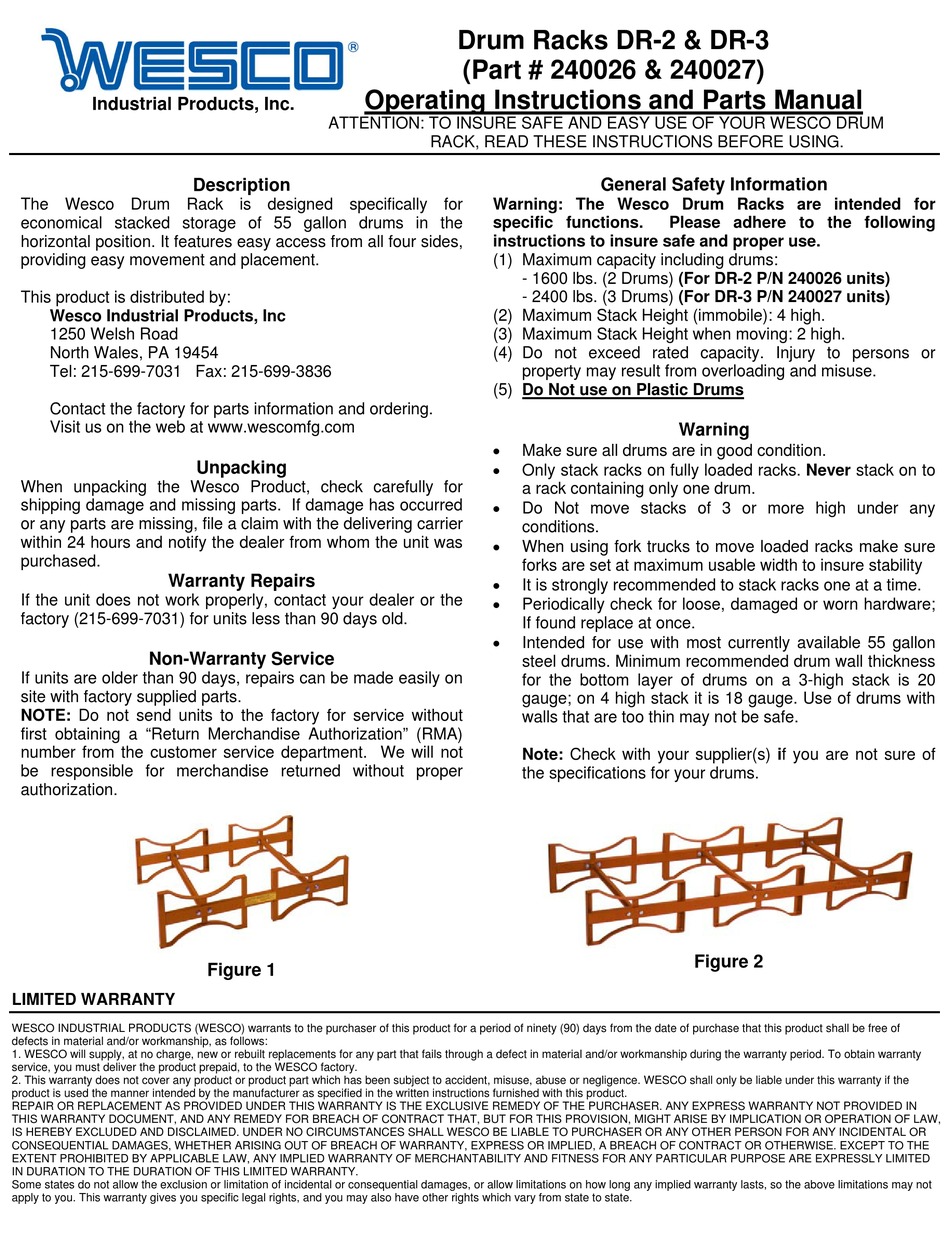

Wesco DR-2 Operating Instructions And Parts Manual

Industrial Products, Inc.
The Wesco Drum Rack is designed specifically for
economical stacked storage of 55 gallon drums in the
horizontal position. It features easy access from all four sides,
providing easy movement and placement.
This product is distributed by:
Wesco Industrial Products, Inc
1250 Welsh Road
North Wales, PA 19454
Tel: 215-699-7031 Fax: 215-699-3836
Contact the factory for parts information and ordering.
Visit us on the web at www.wescomfg.com
When unpacking the Wesco Product, check carefully for
shipping damage and missing parts. If damage has occurred
or any parts are missing, file a claim with the delivering carrier
within 24 hours and notify the dealer from whom the unit was
purchased.
Warranty Repairs
If the unit does not work properly, contact your dealer or the
factory (215-699-7031) for units less than 90 days old.
Non-Warranty Service
If units are older than 90 days, repairs can be made easily on
site with factory supplied parts.
NOTE: Do not send units to the factory for service without
first obtaining a "Return Merchandise Authorization" (RMA)
number from the customer service department. We will not
be responsible for merchandise returned without proper
authorization.
LIMITED WARRANTY
WESCO INDUSTRIAL PRODUCTS (WESCO) warrants to the purchaser of this product for a period of ninety (90) days from the date of purchase that this product shall be free of
defects in material and/or workmanship, as follows:
1. WESCO will supply, at no charge, new or rebuilt replacements for any part that fails through a defect in material and/or workmanship during the warranty period. To obtain warranty
service, you must deliver the product prepaid, to the WESCO factory.
2. This warranty does not cover any product or product part which has been subject to accident, misuse, abuse or negligence. WESCO shall only be liable under this warranty if the
product is used the manner intended by the manufacturer as specified in the written instructions furnished with this product.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. ANY EXPRESS WARRANTY NOT PROVIDED IN
THIS WARRANTY DOCUMENT, AND ANY REMEDY FOR BREACH OF CONTRACT THAT, BUT FOR THIS PROVISION, MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW,
IS HEREBY EXCLUDED AND DISCLAIMED. UNDER NO CIRCUMSTANCES SHALL WESCO BE LIABLE TO PURCHASER OR ANY OTHER PERSON FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, EXPRESS OR IMPLIED, A BREACH OF CONTRACT OR OTHERWISE. EXCEPT TO THE
EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE ARE EXPRESSLY LIMITED
IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long any implied warranty lasts, so the above limitations may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Operating Instructions and Parts Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO DRUM
Description
Unpacking
Figure 1
Drum Racks DR-2 & DR-3
(Part # 240026 & 240027)
RACK, READ THESE INSTRUCTIONS BEFORE USING.
General Safety Information
Warning: The Wesco Drum Racks are intended for
specific functions.
instructions to insure safe and proper use.
(1) Maximum capacity including drums:
- 1600 lbs. (2 Drums) (For DR-2 P/N 240026 units)
- 2400 lbs. (3 Drums) (For DR-3 P/N 240027 units)
(2) Maximum Stack Height (immobile): 4 high.
(3) Maximum Stack Height when moving: 2 high.
(4) Do not exceed rated capacity. Injury to persons or
property may result from overloading and misuse.
(5) Do Not use on Plastic Drums

Make sure all drums are in good condition.

Only stack racks on fully loaded racks. Never stack on to
a rack containing only one drum.

Do Not move stacks of 3 or more high under any
conditions.

When using fork trucks to move loaded racks make sure
forks are set at maximum usable width to insure stability

It is strongly recommended to stack racks one at a time.

Periodically check for loose, damaged or worn hardware;
If found replace at once.

Intended for use with most currently available 55 gallon
steel drums. Minimum recommended drum wall thickness
for the bottom layer of drums on a 3-high stack is 20
gauge; on 4 high stack it is 18 gauge. Use of drums with
walls that are too thin may not be safe.
Note: Check with your supplier(s) if you are not sure of
the specifications for your drums.
Please adhere to the following
Warning
Figure 2
