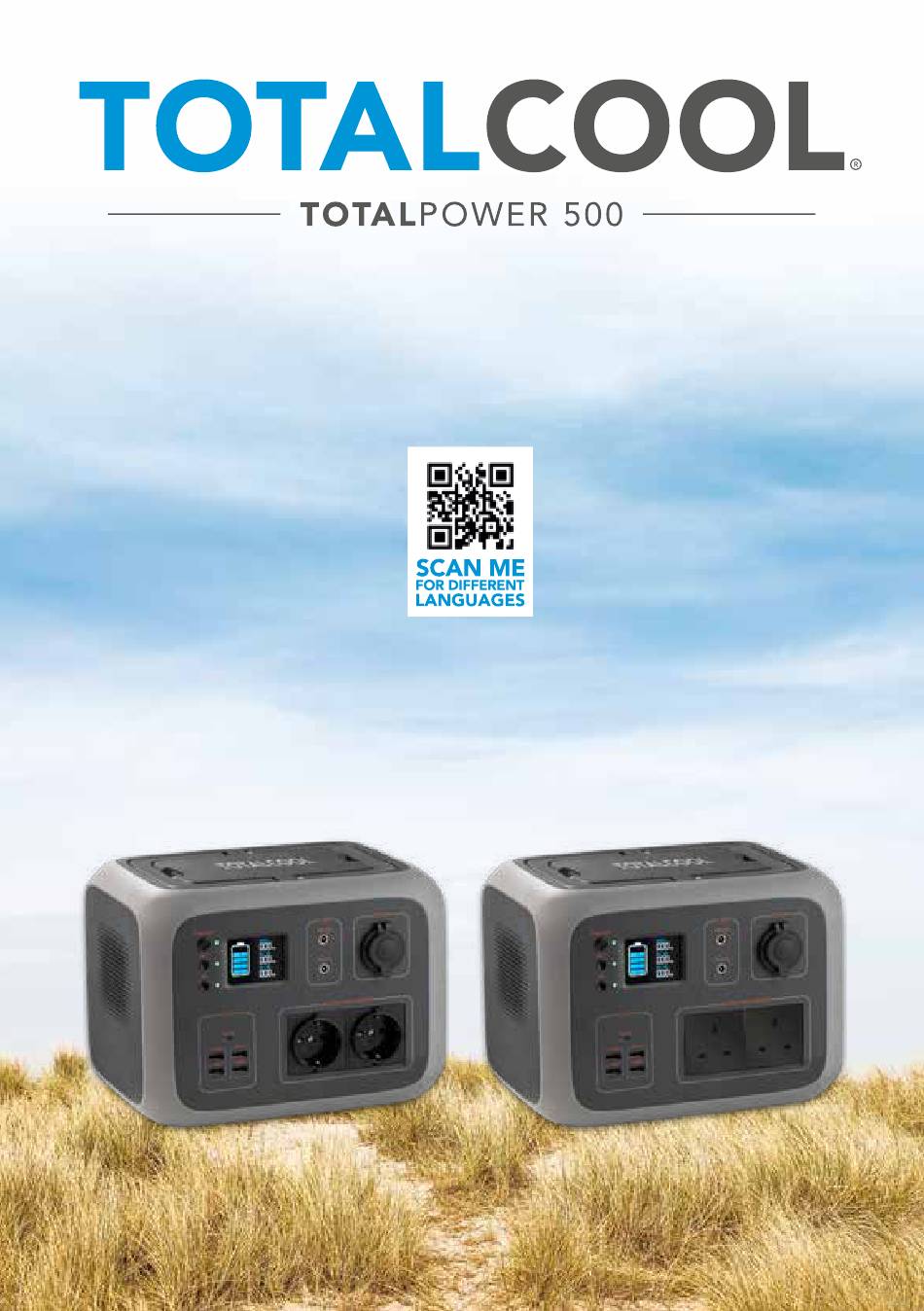

  • Page 1 USER GUIDE...
  • Page 2 INTRODUCTION Please note the below comments while reading this user guide. • Due to product improvements, partial changes in appearance and specifications may be made without prior notice. • This manual cannot be copied or reproduced. • If the product requires maintenance, please contact your place of purchase for further information.

  • Page 3: Safe Operating Guidelines

    SAFE OPERATING GUIDELINES Please be sure to observe the following for safe use: The situation in which people die or are seriously injured to a large DANGER extent due to improper operation. WARNING The possibility of death or serious injury due to incorrect operation. ATTENTION Human or property damage may occur due to incorrect operation.
  • Page 4 DANGER Do not use metal to contact AC output interface. It may cause electric shock, fever, fire and other dangers. If any liquid from this product become in contact with your eyes, please wash with clean water and see a doctor immediately or there may be a risk of blindness. Do not put in general waste disposal.
  • Page 5 WARNING If the liquid inside the product touches the skin or clothes, please wash off with water immediately. Otherwise this may cause skin irritation or injury etc. Remove the AC cable from the socket if lightning strikes during charging. Do not use in thunder storms, as large currents from the socket may be generated and cause fire and other accidents.

  • Page 6: Packed Items

    USER GUIDE Please read this user guide before use and follow its guidance. Keep this user guide for future reference. 1. PACKED ITEMS Before opening the package, please check whether the package is damaged and after opening the package please check whether the product is damaged or missing accessories.

  • Page 7: Function Introduction

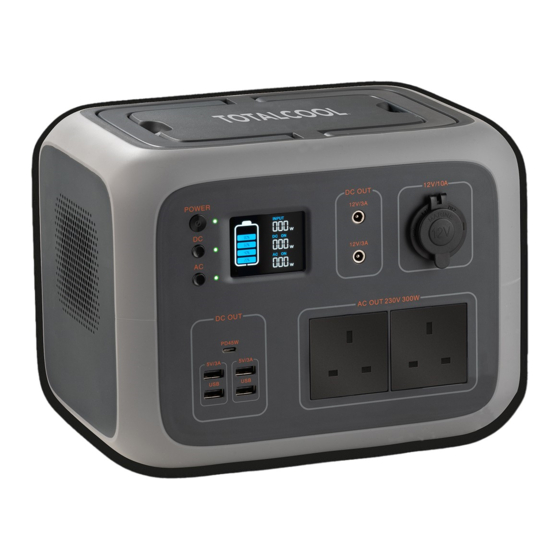

    USER GUIDE 2. FUNCTION INTRODUCTION 1. Main power button 7. Wireless charging pad 2. DC power button 8. DC 12V 5521 output port 3. AC power button 9. DC12V car ignitor output port 4. LCD screen 10. AC outlets 5. 45W USB-C PD output 11.

  • Page 8: Charging Instructions

    USER GUIDE 3. CHARGING INSTRUCTIONS Note: Please charge the product to 100% before using. When charging the product, the battery capacity display icon on the LCD screen will be on dynamic status. After the battery is charged fully, the display icon will be on static status.

  • Page 9: How To Charge This Product

    USER GUIDE HOW TO CHARGE THIS PRODUCT • Using a Solar Panel to charge the product. 1. Chose suitable solar panel (DC12-40V/120W). 2. Put the solar panel under strong sunshine, face to the sun. 3. Take the part MC4 cable, connect the solar panel and the product. 4.

  • Page 10: Connectible Devices

    • DC 12V 5521 output port: mainly used for LED light bulb lighting. • DC12V Cigarette Lighter output port: Totalfreeze portable fridge freezer, Totalcool 3000 cooling system, Sat Nav and other 12V equipment. • AC output port: notebook computer, camera, display devices and other AC power supply working equipment.
  • Page 11 USER GUIDE Note: Please make sure that the connected electrical products are working properly before using this product. Note: AC output will work with electrical products that use power below 300W. Note: According to different electrical products, rated power below 300W may not be used (air conditioning, motor and other equipment requiring instantaneous high current).

  • Page 12: Storage And Maintenance

    USER GUIDE 5. STORAGE AND MAINTENANCE 1. Fully charge the machine before storage. 2. Switch off all power buttons. 3. If there is any dirt on the product, soak and wring out a cloth to wipe it clean. 4. Please do not use gasoline, volatile oil, thinner, kerosene, etc. which have the function of dissolving the resin.

  • Page 13: Troubleshooting

    USER GUIDE 6. TECHNICAL SPECIFICATION (CONTINUED) Note: 1. It may cause input low-voltage protection of some equipment if the voltage is low. 2. Solar panel charge type: MPPT 7. TROUBLESHOOTING If the product cannot charge or power other devices, please check according to following steps: 1.
  • Page 14 USER GUIDE 7. TROUBLESHOOTING (CONTINUED)

  • Page 15: Frequently Asked Questions And Answers (Faq)

    USER GUIDE 8. FREQUENTLY ASKED QUESTIONS AND ANSWERS (FAQ) How to check the state of charge? 1. The battery icon display on the LCD display shows the battery level and charge status. How to use the product to charge other electronic devices? 1.
  • Page 16 If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. Totalcool Ltd Company number: 9633704 United Kingdom www.totalcool.co.uk...
