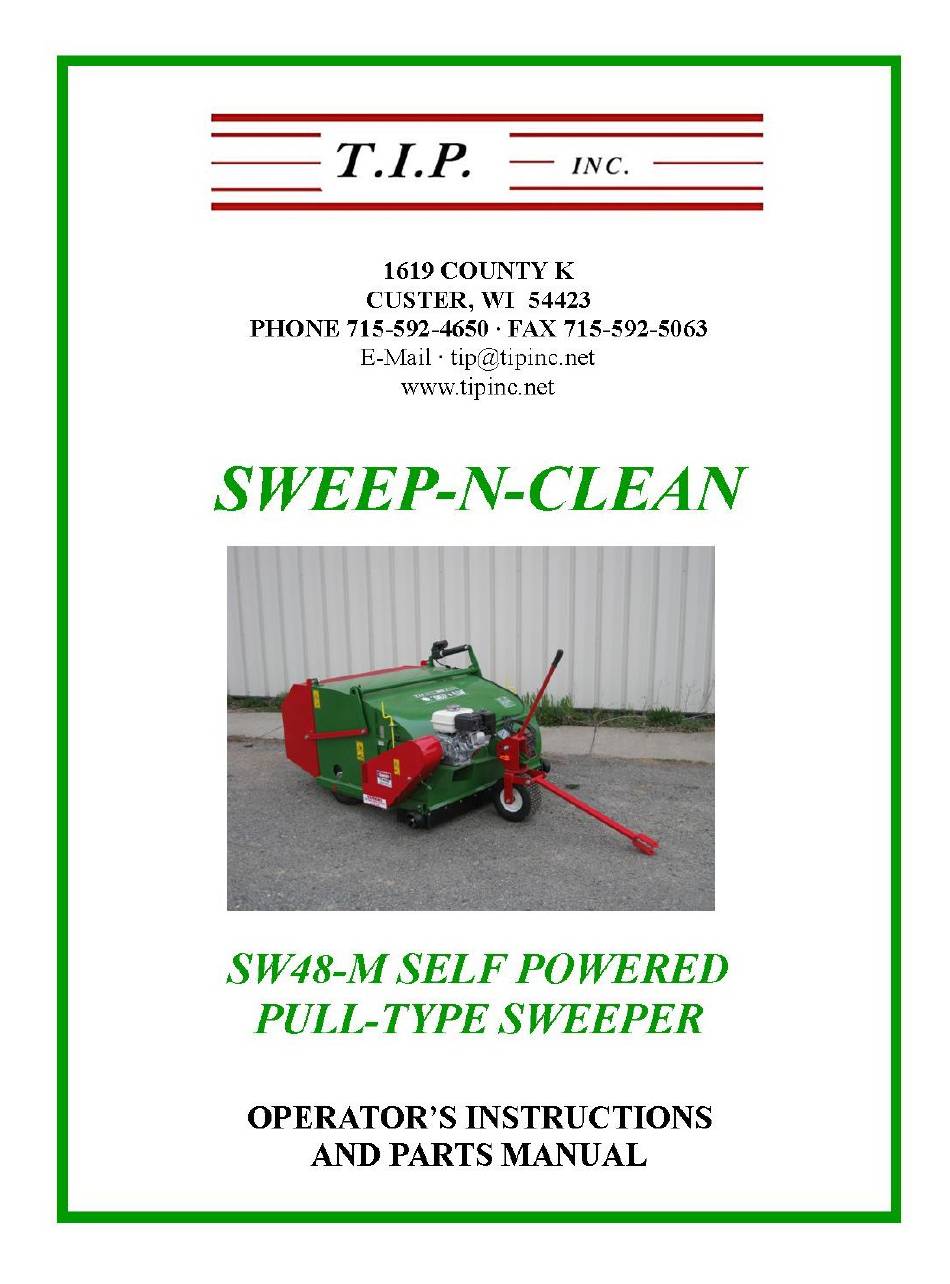

T.I.P. SWEEP-N-CLEAN SW48-M Operator Instructions Manual
T.I.P. SWEEP-N-CLEAN SW48-M Operator Instructions Manual

T.I.P. SWEEP-N-CLEAN SW48-M Operator Instructions Manual

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWEEP-N-CLEAN SW48-M and is the answer not in the manual?

Questions and answers

Summary of Contents for T.I.P. SWEEP-N-CLEAN SW48-M

  • Page 2: Table Of Contents

    SW48-M =T.I.P. Inc.= SW48-M Sweep-N-Clean Congratulations on your purchase of the T.I.P. SW48-M Sweep-N-Clean! You can rest assured that you have one of the highest quality multi-purpose sweepers on the market today. With proper care and maintenance, your Sweep-N-Clean will provide you with years of reliable service. If you have any questions about the Sweep-N-Clean, or any of our other turf care products, feel free to call us or drop us a line.
  • Page 3: Section Page

    SW48-M Section Page Maintenance Lubrication/Maintenance Schedule Cleaning Repairs Environment Troubleshooting Specifications Wiring Diagram #1 Wiring Diagram #2 TP4001A Kit Decal Placement Parts: Figure 1 Figure 2 Figure 3 Safety Decals Warranty Registration Card...
  • Page 4: Limited Warranty

    SW48-M =T.I.P. Inc.= Limited Warranty T.I.P. Inc. warrants that the equipment it manufactures will be free from defects in materials and workmanship for a period of one year from delivery date. This warranty is extended to the Original Purchaser only, and is non-transferrable. Should a defect in materials or workmanship be experienced within the warranty period, T.I.P.
  • Page 5: General Information

    SW48-M GENERAL INFORMATION SW48-M SWEEP-N-CLEAN Congratulations on your purchase of the T.I.P. SW48-M Sweep-N-Clean! You can rest assured that you have one of the highest quality multi-purpose sweepers on the market today. With proper care and maintenance, your Sweep-N-Clean will provide you with years of reliable service.
  • Page 6: Application

    SW48-M Maintenance Mechanic: The person who knows the entire Sweep-N-Clean, its function and safety standards, who can adjust safety controls and provide the machine's maintenance. It is the company's responsibility to ensure the Maintenance Mechanic is sufficiently trained. Safety Symbols: The Sweep-N-Clean has standardized safety pictogram stickers in several places.
  • Page 7: Features

    SW48-M FEATURES SW48-M SWEEP-N-CLEAN 10 11 12 13 14 18 19 20 2 1 22 23 Figure 1 1…Hopper 9…Electric Clutch 17…Transport Lever 2…Rear Wheel (x2) 10…Brush Frame 18… Belt Tension Spring 3…Hopper Linkage (x2) 11… Height Adjust. Screw (x2) 19…...
  • Page 8: Switch Box

    SW48-M The height adjustment of the brush (more or less aggressive sweeping) is accomplished by the Height Adjustment Screws (11). The height of the Sweep-N-Clean can be moved to the transport position with the use of the lever (17) and the transport locking pin. The SW48-M is provided with a pair of Bogey Wheels (20) to prevent gouging of the ground over rolling terrain.
  • Page 9: Safety

    SW48-M SAFETY SW48-M SWEEP-N-CLEAN UNDERSTAND AND FOLLOW SAFETY INFORMATION ALL OPERATORS should read and understand all safety information and operating instructions for the Sweep-N-Clean, and learn how to use the controls properly. DO NOT let anyone operate without proper instruction. NEVER use the Sweep-N-Clean for any purpose other than what it is designed for.
  • Page 10 SW48-M CAUTION! Danger of serious injury through pinching between the main frame the closing hopper. Be sure that all personnel are at least 15 feet away before operating the hopper. CAUTION! Danger of injury through pinching around the Front Transport Height Adjustment and near the hitch pivot point.
  • Page 11 SW48-M CAUTION! Danger of serious injury. The engine on the Sweep-N-Clean produces more than 80dbA of noise. Always use proper hearing protection. CAUTION! Danger from fire. Keep all cigarettes, lighters, matches or other open flames away from fuel tank. Fill the fuel tank only in areas with proper ventilation. Keep the engine free of dust and other flammable materials.
  • Page 12 SW48-M CAUTION! Danger of serious injury. Keep all unauthorized people and especially children away from the operating Sweep-N-Clean. CAUTION! There is a danger of serious injury if the Sweep-N-Clean is operated by: Persons younger than 16 years of age. Persons who are not qualified to drive the tow vehicle. Persons without sufficient knowledge concerning the dangers in and around the Sweep-N-Clean.
  • Page 13: Set-Up

    SW48-M SET-UP SW48-M SWEEP-N-CLEAN CONNECTION TO TOW VEHICLE If your Sweep-N-Clean came delivered on a pallet, first remove machine from pallet. Connect the pin-type hitch to your tow vehicle using a pin that is the appropriate diameter, and secure with a safety clip to ensure pin does not come out during operation. CAUTION! Be sure that the tow vehicle has sufficient power and braking capacity to safely pull the Sweep- N-Clean before use.
  • Page 14 SW48-M Fig. 1: 1. Brush Adjustment Transport Pin. 2. Brush Height Adjustment Screw (x2). 3. Brush Up-Down Lever in "Up" (forward) Position. With machine sitting on a flat, level surface similar to the type to be swept, hold on to the Brush Up-Down Lever, remove the Brush Adjustment Transport Pin, and then ease the Brush Up- Down lever to the appropriate down (rearward) position.
  • Page 15: Engine/Drive Train

    SW48-M The Brush Height Adjustment Arm has a scale that indicates brush position on both sides (Fig. 3). Make sure this setting is the same on both sides. Fig. 3 When sweeping operation is complete, be sure to store brushes in the "Up" position, and not in contact with the ground.
  • Page 16: Operation

    SW48-M OPERATION SW48-M SWEEP-N-CLEAN Review and follow all safety information before operating the Sweep-N-Clean. Only properly trained personnel should operate the Sweep-N-Clean. Be sure all Set-Up procedures have been completed. CHECK BEFORE USE The operator must check the following points on the Sweep-N-Clean before every use of the machine: Check for any bent, dented, cracked, or otherwise broken parts Check the brushes for damage or wear.
  • Page 17: Hopper Operation

    SW48-M CAUTION! Be sure to have a good hold on the Brush Up-Down lever before pulling the Transport Pin. When brushes are down, replace the Transport Pin back in the proper Pin hole. Start the engine, if you haven’t already. Start the brushes rotating by turning on the electric clutch toggle switch.
  • Page 18: Transport

    SW48-M CAUTION! Make sure to NOT hold the switch in either the Open or Close position beyond the mechanical limit of the actuator. Prolonged operation at the mechanical limits will cause actuator failure. WARNING! Keep all personnel away from the clamshell hopper cover and all it’s components during operation.
  • Page 19: Maintenance

    SW48-M MAINTENANCE SW48-M SWEEP-N-CLEAN CAUTION! Be sure to read and understand the SAFETY section of this manual before performing any maintenance on the machine. Be sure motor is off and all power is disconnected before performing maintenance. All maintenance on the Sweep-N-Clean should only be performed by a qualified, properly trained Maintenance Mechanic.
  • Page 20: Cleaning

    SW48-M g = grease o = oil d = daily w = weekly m = monthly d/w/m 7 Check actuator for proper operation. Inspect particularly for unusual noise or for binding. 8 Check electric clutch for proper engagement. 9 Inspect all wiring for pinching, wear or cuts. 10 Inspect entire machine for wear spots in the paint.
  • Page 21: Environment

    SW48-M ENVIRONMENT SW48-M SWEEP-N-CLEAN GENERAL Dispose of old lubricating oil, oil stained cleaning cloths and any detergents separately as chemical waste. ENVIRONMENTAL CONSEQUENCES LIFE SPAN The Sweep-N-Clean's life expectancy depends on maintenance, operating hours and conditions in the surrounding areas (dust, pollution, humidity and similar factors). Good maintenance increases the Sweep-N-Clean's life expectancy.
  • Page 22: Troubleshooting

    SW48-M TROUBLESHOOTING SW48-M SWEEP-N-CLEAN PROBLEM POSSIBLE CAUSE SOLUTION Brush is Not Running Electrical Supply Cable Make connection. Unplugged Brush Engine is Not Start Engine. Running Check Fuel Tank. See Engine Manual. Contact Your Dealer. V-Belt Broken or Tension Adjust Tension or Replace Too Low Belt.
  • Page 23: Specifications

    SW48-M SPECIFICATIONS SW48-M SWEEP-N-CLEAN Metric Height: 43” 1.1 m Width: 59” 1.5 m Length (including hitch): 112” 2.85 m Empty Weight: 650lbs. 295 kg Hopper Capacity: 20 cu. Ft. 570 l Engine Size: 5.5 hp 4 kW Fuel Capacity: .66 gal. 2.5 l Drive Belt: BX49 (52") (1320 mm)
  • Page 24: Wiring Diagram #1

    SW48-M WIRING DIAGRAM #1 SW48-M Sweep-N-Clean...
  • Page 25: Wiring Diagram #2

    SW48-M Wiring Diagram #2 Part# Description SW90 – 32070 Back Plate WA189101361 16/4 SJ Service Cord (12ft) SW2237 12V Solenoid...
  • Page 26: Tp4001A Kit

    SW48-M TP4001A Kit Ref Part# Description SW90 – 31079 Cover WA189101361 16/4 SJ Service Cord (12 ft) MC7236K15 Alligator Clip – Heavy Duty MC7236K211 Insulator Sleeve – Red – Large MC7236K212 Insulator Sleeve – Black – Large SW2237 12V Solenoid SW90 –...
  • Page 27: Decal Placement

    SW48-M DECAL PLACEMENT SW48-M SWEEP-N-CLEAN...
  • Page 28 SW48-M Figure 1 Ref# Part# Description EP554100 Engine, 5.5hp Honda TPE-4630 Brush Adjustment Screw FN26346 Shoulder Screw, 1/2x1/2 TP6008 Step Bushing TPE-6220 Rear Axle TP6001 Turf Tire/Wheel Assy. 13/6.50x6 2 Ply TP6002 Electric Clutch KABX49 BX49 Belt TP7002 2” Belt Tensioner Idler, 3/8” Bore ACBK52x3/4 Sheave, 5"...
  • Page 29 SW48-M Figure 2 Ref# Part# Description TP6001 Tire Assy, 13/6.50x6 Turf TP6014 Replacement Bearing for TP6009 Axle, Front Wheel FN13209 Bolt, 1/2x1-1/2 TOSC12 Set Collar, ¾" FN33626 Lock Washer, ½” MC92627A434 Pin, Hi-Vis Orange FN13324 Bolt, 5/8x5-1/2 FN37036 Nut, 5/8 Nylock FN40361 Washer MC7236K15...
  • Page 30 SW48-M Figure 3 Ref. # Part# Description IPF205 2-Bolt Flange Housing IPSA205-16G 1" Bearing Insert TPE-4620 Shaft, Sweeper Assy. AC35M552999 Rubber Apron Belt FN41132 3/16 Steel Rivet IBA-4457 Brush, 48" White FN33092 ¾" SAE Flat Washer FN65126 Cotter Pin TP6001 13/6.50x6 Turf Wheel FIM111489 Bogey Wheel...
  • Page 31: Safety Decals

    SW48-M Safety Decals Ref# Part# Description TP6010 Caution, Before Towing Decal SP106 Warning, Rotating Brush Decal QS3018 Caution, Do Not Reach Decal QS66 No Riders Decal TP6012 Recom. Brush Adjust. Decal TP6013 Do Not Remove Cover Decal GPDNO T.I.P. Do Not Operate Decal IM449-460 Decal, Stop Power Before Servicing IM452-315...
  • Page 32: Warranty Registration Card

    SW48-M MAIL THIS WARRANTY CARD TODAY IF IT IS NOT REGISTERED IN THE HOME OFFICE OF T.I.P. INC. CUSTER, WI 54423 ANY CLAIM YOU HAVE UNDER THE WARRANTY WILL NOT BE HONORED…. DON’T DELAY PLEASE COMPLETE THE WARRANY REGISTRATION RETURN IMMEDIATELY. CUT HERE T.I.P.
  • Page 33 1619 COUNTY K CUSTER, WI 54423 PHONE 715-592-4650 • FAX 715-592-5063 E-Mail • tip@tipinc.net www.tipinc.net...
