Summary of Contents for Gamatronic GMAC-5

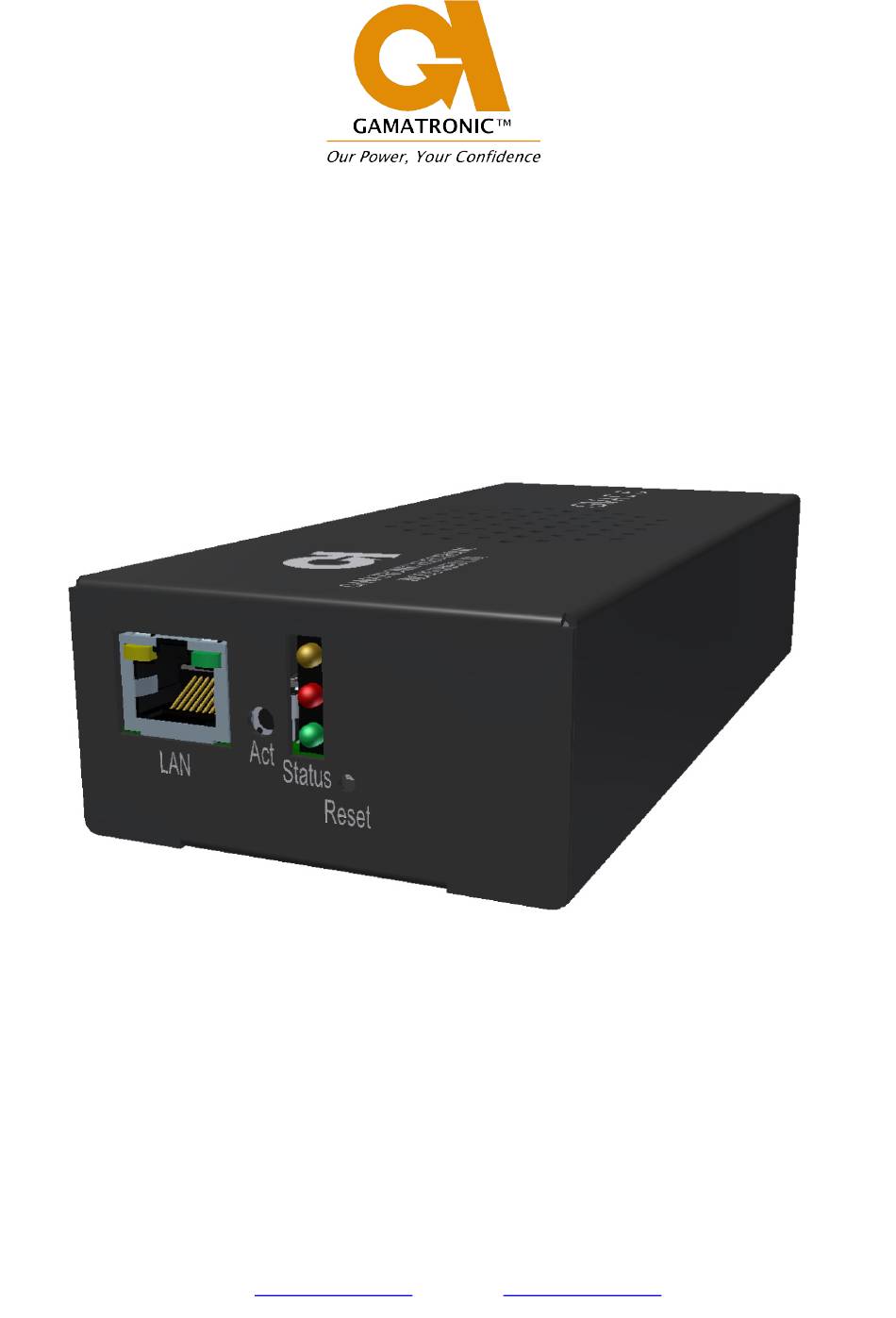

- Page 1 GMAC-5 USER GUIDE Release 1.0, March 2015 AMATRONIC LECTRONIC NDUSTRIES 17 H ., P.O.B. 45029, J 9777517, I ARTUM ERUSALEM SRAEL Tel: +972-2-588-8222 Fax: +972-2-582-8875 Email: info@gamatronic.co.il Website: www.gamatronic.com...
- Page 2 Gamatronic is not responsible for any damage to the product due to unauthorized repair work, misuse or abuse of the product, or force majeure.
-
Page 3: Table Of Contents
1.4 Package contents ......................... 2 1.5 Physical description ......................3 1.5.1 Front panel ......................3 1.5.2 Restore GMAC-5 factory settings ................3 ..........................4 NSTALLATION 2.1 Physical setup ........................4 2.2 Access the web interface setup ................... 4 ..........................5 SER INTERFACE 3.1 Dynamic updates ......................... - Page 4 Figure 18: Defining an email recipient ................... 18 Figure 19: Define a shutdown target ....................19 Figure 20: Define or update the username and password for access to GMAC-5 ....20 Figure 21: This button does NOT restore the default username and password......20 Figure 22: Define a target for alarm notifications.
-
Page 5: Introduction
General GMAC-5 is a communication device for power system monitoring. GMAC-5 is accessed through a built-in web interface, and can be accessed remotely through a web browser. The interface is intuitive and simple, and configuration is straightforward. GMAC-5 enables the user to remotely monitor all current Gamatronic products. -
Page 6: Package Contents
12 Vdc power adaptor. (for external model) • RS232 crossover cable (DB9 to DB9) for connecting to external device like a UPS. (for external model) • Ethernet crossover cable for direct GMAC-5-to-computer connection during configuration. • Quick start guide. G5 User Guide... -
Page 7: Physical Description
1.5.2 Restore GMAC-5 factory settings If desired, you can clear GMAC-5’s entire current configuration at any time and return the settings to the factory default values. To do this: Press and hold the Act button on the front panel for at least 20 seconds, until all three •... -
Page 8: Installation
DHCP on the network. In the case that there is no DHCP server available in the network – for example, when you are connecting GMAC-5 directly to a computer – or in any other case of failure to set the IP address automatically, the device falls back to the default address of 192.168.0.198, subnet class C. -
Page 9: User Interface
AMATRONIC LECTRONIC NDUSTRIES SER INTERFACE The User Interface (UI) is built for quick and intuitive access. The usual page structure is: Figure 3: Layout of the user interface screen Company logo, name, and the current firmware version, required for support purposes. UPS, volt-free contacts, environment, and other system indicators showing current status. -
Page 10: Main Screen
AMATRONIC LECTRONIC NDUSTRIES Main screen After typing in the unit's IP address in the web browser, you will see the main screen that shows general system condition and basic information about all features that have been enabled. Figure 4: The main web interface screen G5 User Guide... -
Page 11: Ups / Power System
To monitor a UPS or other power system, a serial connection to the device in question must be established. This is done by connecting the device to be monitored to the serial connector on the GMAC-5’s rear panel, and configuring the connection in GMAC-5, using the “Serial” option in the “Configuration” menu. -
Page 12: Log
AMATRONIC LECTRONIC NDUSTRIES Figure 6: UPS actual values Figure 7: Issuing commands to a UPS or other power system 3.2.2 The log menu shows you the total amount of events saved in the log, and will offer to either download the log to your computer (as a csv file) or clear it. -
Page 13: Additional Features
If a UPS is being monitored by GMAC-5, and that UPS is providing power to computers, you can instruct GMAC-5 to shut down any of those computers in an orderly fashion in the event of a prolonged ac input failure, before the UPS’s battery is exhausted. To achieve that you must install Shutdown Agent software on the computers to be shut down. -
Page 14: Using Bootloader Mode
NDUSTRIES 4.2.1 Using bootloader mode Using a web browser, put the GMAC-5 in bootloader mode by pressing the “Switch to bootloader” button in the "Configuration" webpage (see Figure 8). Then follow the simple screen prompts to perform the required function. -
Page 15: Upgrades
AMATRONIC LECTRONIC NDUSTRIES 4.2.2 Upgrades You will not have to upgrade the software unless serious issues are reported and fixed. Your distributor will contact you if a critical update is required. Never try to upload any *.gam or *.bin files unless instructed to do so by an authorized distributor or the manufacturer. -
Page 16: Configuration
It is possible that when switching to bootloader mode the device will receive a different IP address. In bootloader mode GMAC-5 takes its IP address as per the user’s instruction in the “Actual IP address” field in the “Configuration > Network” screen (see section 5.1 “Network configuration”). -
Page 17: Network Configuration
Use the “Network” configuration function to specify the details of your connection to the local Ethernet network. Under "Static IP address" specify the connection details to be used by GMAC-5 when no DHCP address is available, or when you specify that the static address is to be used at all times. -
Page 18: Date/Time Configuration
"Set current time from SNTP server" will simply try to access the server immediately and return a reply. This will also instantly update system time upon successful reply. Figure 13: Setting the GMAC-5’s internal clock with the current date and time G5 User Guide... -
Page 19: Configure A Serial Connection
NDUSTRIES Configure a serial connection The “Serial” function is used to describe GMAC-5’s communication link with a UPS or other power system. Select the protocol and additional serial communication settings. Use the GMAC-5 compatibility table (Table 6) to find out what protocol is supported by your device. -
Page 20: Defining An Snmp Connection
NDUSTRIES Defining an SNMP connection Use the “SNMP” menu option to define the GMAC-5’s relationship with your site’s SNMP system. GMAC-5 supports SNMPv2c and SNMPv3. Consult your IT manager to determine which version of SNMP is implemented at your site. -
Page 21: Defining An Snmpv3 Connection
Heartbeat time Interval at which “keep alive” messages will be sent to the SNMP manager. You can allow GMAC-5 to accept SNMP requests from any host, or in the “Add SNMP SNMP Managers manager” field, specify the IP address(es) of authorized requestors. -
Page 22: Defining An Email Server
The values for items 1 through 5 must be determined in coordination with your site’s email administrator. Note that only basic authentication is supported (username/password). GMAC-5 does not support Internet-based email servers such as Google’s Gmail or Microsoft’s Hotmail. G5 User Guide... -
Page 23: Define A Shutdown Target
AMATRONIC LECTRONIC NDUSTRIES Define a shutdown target Use this screen to define a network-connected computer that is to be automatically shut down under certain conditions. In order for the shutdown to take place, the Shutdown Agent must be installed on the target computer. The Shutdown Agent can be downloaded from the link on this screen, or can be obtained from your dealer. -
Page 24: Define A Username And Password
LECTRONIC NDUSTRIES Define a username and password Access to the GMAC-5 system can be password protected. Use this screen to define or update a username or to change a username’s password. Only one username-and-password combination exists at any given time. -
Page 25: Define A Target For Alarm Notifications
AMATRONIC LECTRONIC NDUSTRIES Define a target for alarm notifications Use the “Recipients” screen to define email targets (destinations) for alarm notifications. Enter the target email address and/or telephone number. Select one or more message groups from which the target is to receive notifications. If any of the alarm conditions defined in the selected group occurs, a message indicating the specific alarm condition will be sent to the target. -
Page 26: Define Event Properties
The conditions include events related to the status of the UPS or other power system, the status of the power system’s serial link with GMAC-5, the status of the GMAC-5’s input and output voltage-free contacts, and more. -
Page 27: Define Message Group Names
AMATRONIC LECTRONIC NDUSTRIES 5.10 Define message group names The “Groups” configuration function enables you to change the names of message groups. The group names must be entered using English characters only. Figure 24: The Group screen, for defining message group names GMAC 5 User Guide... -
Page 28: Vents And Alarms
Type and amount of events in the device depends on the product it is monitoring, and there are also some general alarms (related to I/O and the system itself) that are always available. Product compatibility table Table 6: GMAC-5 compatibility table AMATRONIC RODUCT... -
Page 29: Sec Protocol Alarms
AMATRONIC LECTRONIC NDUSTRIES SEC protocol alarms Table 8: SEC protocol alarms ESCRIPTION Temperature fault Over temperature in the UPS AC input failure Input ac voltage failure Output bad Output voltage fault Overload current Overload Bypass bad Bypass input ac voltage fault No AC output to load No ac voltage to the load UPS shutdown... -
Page 30: Power+ Protocol Alarms
AMATRONIC LECTRONIC NDUSTRIES Power+ protocol alarms Table 10: PowerPlus protocol alarms UMBER ESCRIPTION UPS modules warning More than 1 UPS Module is sending an alarm or fault warning One UPS module warning Single UPS Module is sending an alarm or fault warning More than 1 master N.A. -
Page 31: 1Udc+ Protocol Alarms
AMATRONIC LECTRONIC NDUSTRIES 1UDC+ protocol alarms Table 11: 1UDC+ protocol alarms UMBER ESCRIPTION AC voltage high Ac input voltage exceeds maximum settings AC voltage low Ac input voltage is lower than minimum DC voltage extremely low Dc voltage exceptionally low – Boost (equalizing) or floating DC voltage low Dc voltage below minimum –... -
Page 32: Preventive Maintenance
GMAC-5 requires periodic preventive maintenance inspections. At the least, these inspections should include a visual inspection of the GMAC-5 and the tightening of any screws that have over time become loosened. - Page 33 Headquarters and Factory: 17 Hartom Street, POB 45029, Jerusalem 9777517, Israel Gamatronic Singapore Sales Office: email: singapore@gamatronic.co.il Gamatronic (UK) Ltd.15 Chester Road, Eaton Socon, St. Neots, Cambridgeshire PE19 8YT United Kingdom Tel: +44 (0)1480 479 889 Fax: +44 (0)1480 407 865 email: info@gamatronic.net...
- Page 34 AMATRONIC LECTRONIC NDUSTRIES HANGE Release 1.0, March 2015 G5 User Guide...
