Tilting Wall Mount
47" – 80" Flat-panel TVs

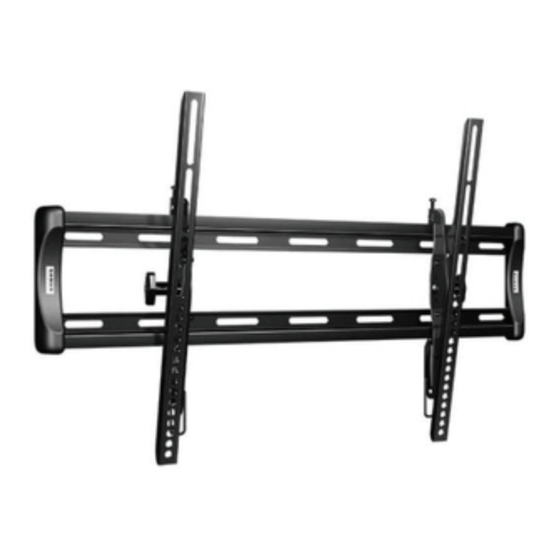

Tilting Wall Mount
The SANUS Tilting Wall Mount is an unparalleled wall
mount solution for most 47" – 80" flat-panel TVs up to
59kglbs.
This mount features an exclusive tilting technology for
e ortless adjustment of viewing angles, helping to reduce
glare with up to 5º upto -10º of tilt without the use of tools.
Technical Diagram
in.
[mm]
16.93
430.0
6.50
165.2
25.00
635.0
UP TO 25.59
650.0
OFFSET 0.38
9.7
28.05
712.5
Powered by
Conceal exposed hardware with decorative cover.
Easily adjust your TV without tools.
Expandable TV brackets ensure a perfect fit.
Hardware included.
Leveling adjustments allow TV to be perfectly positioned
after hanging.
Locking system secures your TV to the wall.
47"
TV
80"
51MM (2.04")

TECHNICAL INFORMATION

Specifications:

Weight Capacity:

Tilt:

Roll:

TV size range:

Minimum depth from wall:

Colour:

Tools required

15.94
405.0
STUD FINDER AWL
3.91
99.4
5.5MM
DRILL
WOOD DRILL BIT

THE PACKAGE CONTAINS

1 x Instrucation Manual
2 x Tv Brackets
8 x Washers
PACKAGING DIMENSIONS
D
Product
Package
www.ellies.co.za
Product Code: BAMVTL2
Barcode:
BRACKETS
& MOUNTS
130lbs
59kgs
EASY
INSTALLATION
LOAD CAPACITY
59 kg
+5º/-10º
2º / -2º
47" - 80"
51mm
Black
SPIRIT LEVEL
PENCIL
13MM
SCISSORS
SOCKET
4 x Spacers
32 x Screws
Height
Depth Width
(mm) (mm)
430 710
51
70 770
220
793795529572
2 PERSON
Tilt
INSTALLATION
5° / -10°
RECOMMENDED
SCREW DRIVER TAPE MEASURE
Weight
(mm) (kg)
-
-
