AV-220

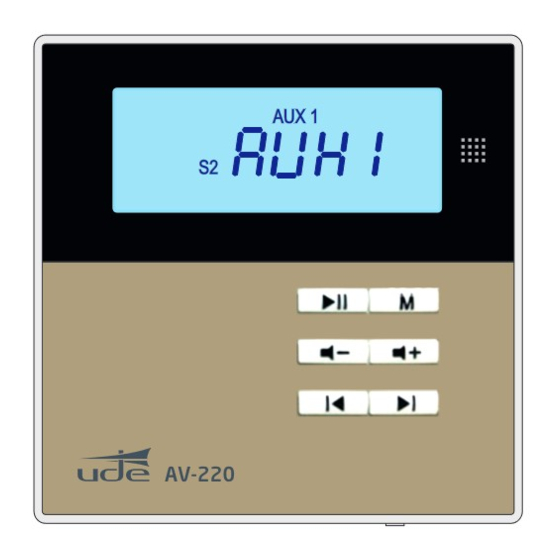

IN-WALL STEREO AUDIO SYSTEM. 2 x 10 W RMS
Built-in D-Class amplifier (stereo) 2x10W RMS.
Functional design that harmonizes with the majority of elements used in decoration.
Multiple music source options: FM Tuner, SD, USB, Bluetooth, AUX1, AUX2.
Adjustable sensibility for AUX inputs.
Digital FM tuner. Up to 30 saved presets.
IR Remote controller included.
Assembly options: Surface mount (surface box included) and flush mount.
EQUIPOS Y SISTEMAS MEGAFONÍA / INTERCOM
Tel.: +34 934 772 854 / +34 609 914 787

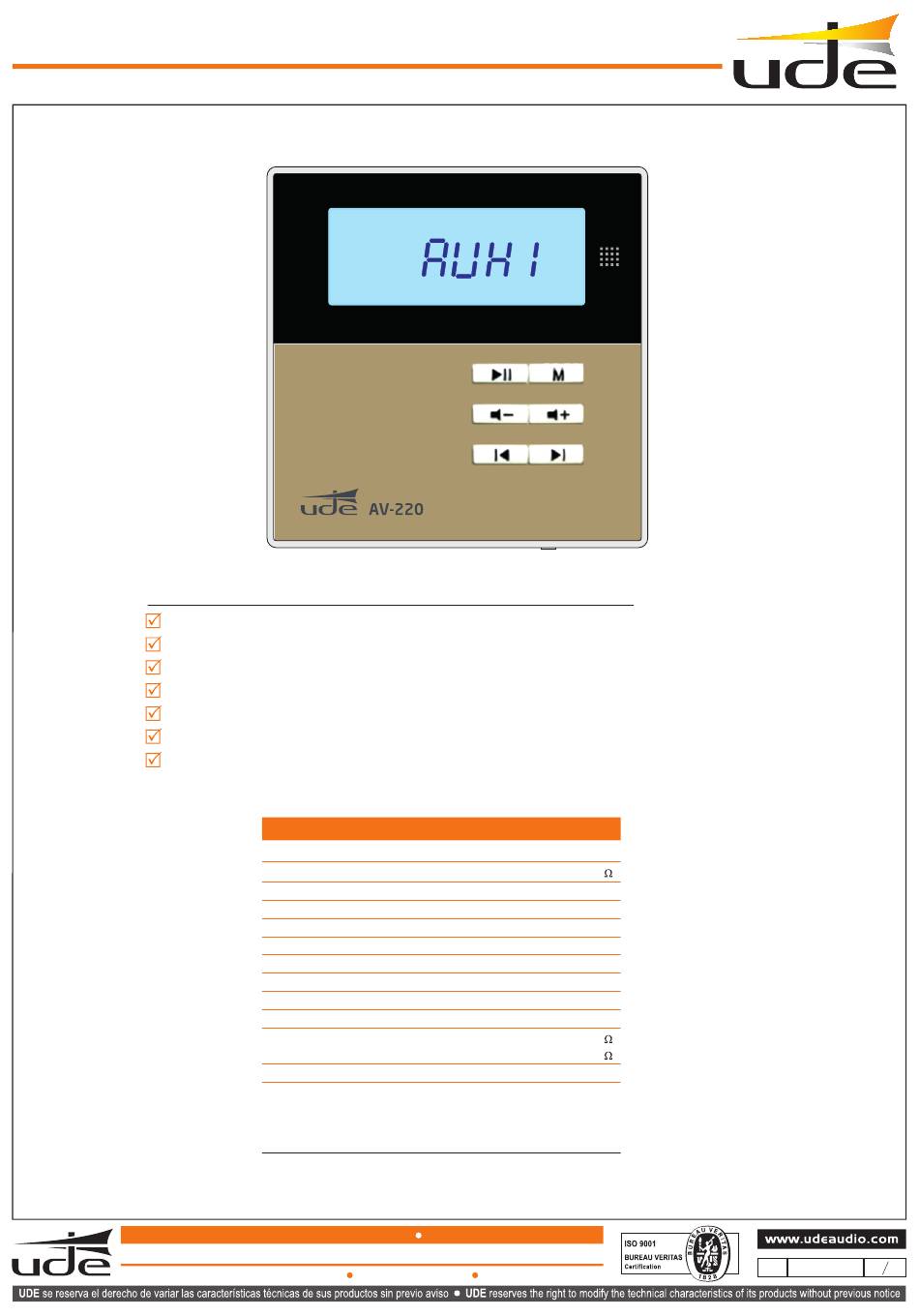

TECHNICAL FEATURES
Power:
Impedance:
Distortion:
S/N ratio:
Frequency response:
FM range:
Audio Formats:
Mini SD card:
USB:
Bluetooth:
Input Sensitivity AUX1/AUX2:
-Adjustable with frontal controls:
Power supply:
AV-220 COMPOSITION:
ACCESSORIES
(optional)
UNIÓN DESARROLLOS ELECTRÓNICOS
ude@udeaudio.com
AUX 1
S2
<=0.03%.
20Hz to 20KHz.
87 Hz - 108 MHz.
MP3 - WMA - WAV - FLAC
32GB max.
32GB max.
BT2.1 +EDR
S1: 500mV / 1 k .
S2: 1000mV / 1 k .
100-240 VAC (50/60 Hz).
1 AV-220 station.
1 Remote controller.
2 Fixing screws for cover.
1 Box for surface mount assembly.
-Flush mount box
Ref. UDE 305.332.
PUBLIC ADDRESS SYSTEMS
BARCELONA - SPAIN
MAIN FEATURES
2x10W.
8 .
>81 dB.
1
5
0
610.510A
rev.
