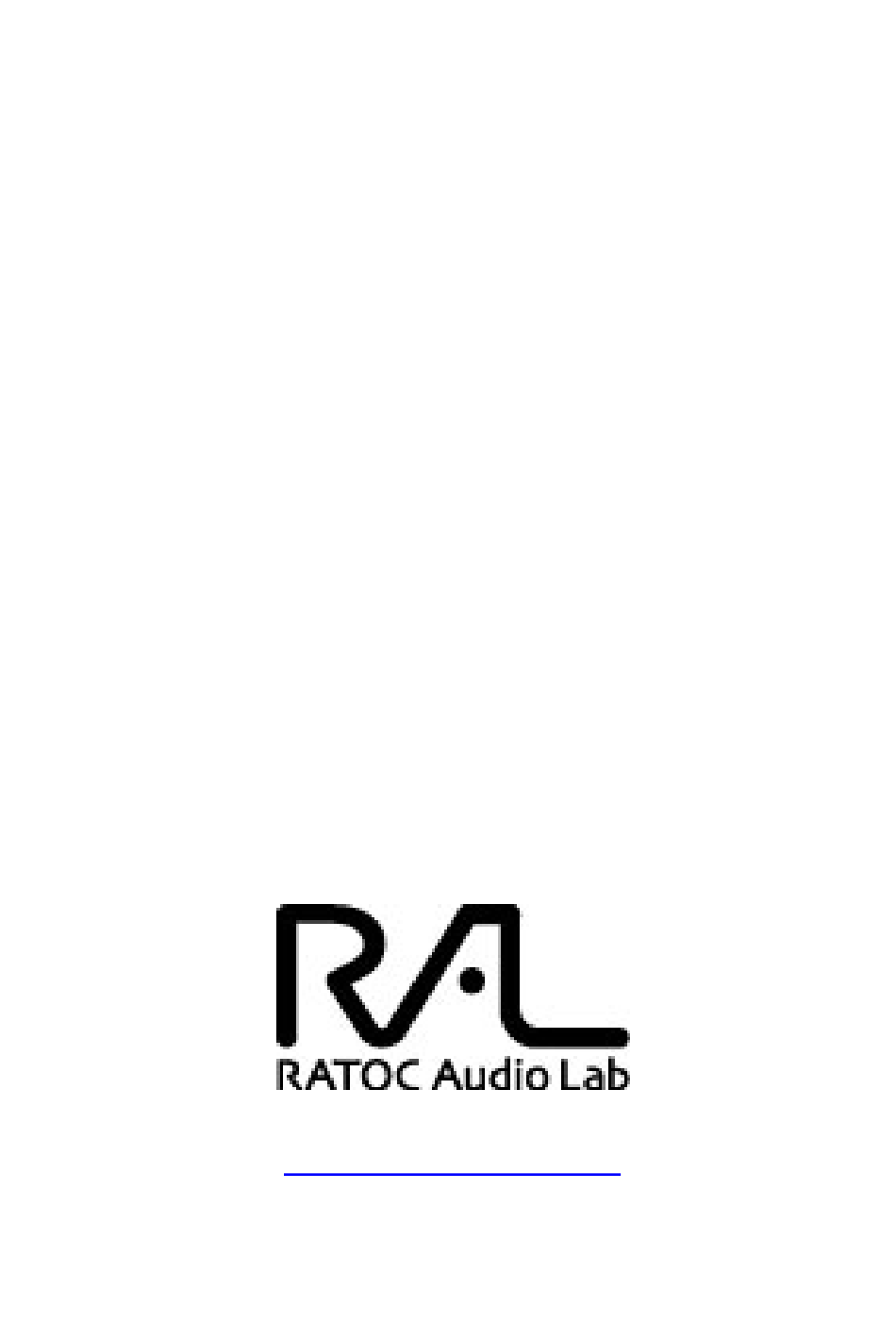

- Page 1 RAL-KEB02iP USB_DAC Mode Setup Guide Rev. 1.0 01/July/2014 Rev. 2.0 for RAL-KEB02iPL version 01/Nov./2015 RATOC Systems, Inc. www.ratocsystems.com Osaka, Japan...
-
Page 2: Table Of Contents
7-1. Installation of USB Audio 2.0 Class Driver ..........19 8. Grade up setting for Windows ......25 9. Specifications ............29 iPod.iPad,iPhone, MacOS X are registered trade mark of Apple Inc. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015... -
Page 3: Introduction
*** "Apple", "iPod","iPhone","iPad" and "iOS" are the Registered Trade Mark of Apple, Inc. in USA or other countries. **** "RAL" is the Registered Trade Mark of RATOC Systems, Inc. in USA and Japan. "REX" is the Trade Mark of RICHO Corporation in Japan. RATOC has the license to use it for RATOC's products. -
Page 4: 1-1.Features
●This mode requires 30P Dock connector to USB-A cable or Lightning to USB-A cable to connect KEB02ip and iPhone, iPad or iPod. iPod Compatible Mode User's Guide about this mode. *** Refer and lean more RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015... -
Page 5: System Requirements
Device', 'Device Manager', Audio Music Player application such as foobar, MediaPlayer, iTunes and CD Ripping applications are required to use RAL-KEB02iP. Refer to the User Guide, Instruction Guide or Online Help of these Applications. 2-2. MacOS X 10.7 or newer ●One USB 2.0 HS(480Mbps) enabled Host port. -
Page 6: Ios Devices, Iphone, Ipad And Ipod
*** iAP such as "ONKYO HF Player" is required to play back High-Res and DSD music. 2-4. Stereo Earphone ●Stereo earphone equipped with Standard 3.5mm mini Stereo Phone Plug. ●Stereo earphone equipped with balanced cable and Standard 2.5mm mini-mini phone plug. ●Impedance 8-Ohm to 110-Ohm RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015... -

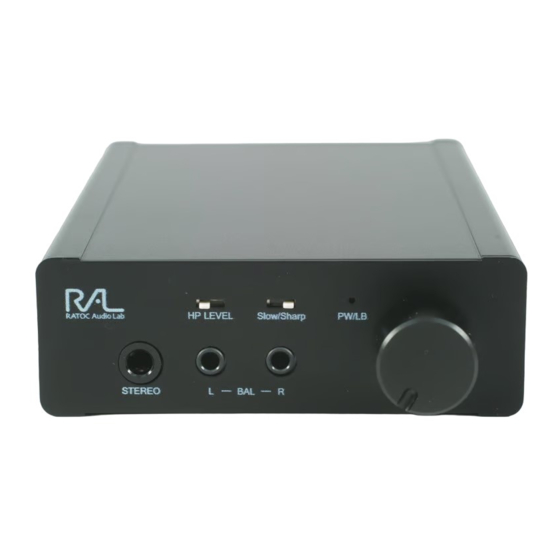

Page 7: Package Contents
(2). PW/LB LED. Light on to indicate the operating state. Green light indicates Battery level is over 3.4V and Red light indicates Low Battery state below 3.4V. In this case, charging is required. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015... - Page 8 Stereo analog audio output for earphones. Supports 8 Ohm to 110 Ohm impedance. (6). 2.5mm micro jack ( L –BAL – R ) Analog Audio Balanced amp output to drive 4-wire ( 2 wire for L, 2wire for R) type earphone. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015...
- Page 9 Power supply unit to charge internal battery with USB-A to micro USB-B cable. *AC adapter is not included in the box. Soled separately. * Use DC+5V(+0.25V -0.25V)/1 to 2A Switching type AC adaptor or USB port of PC/Mac. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015...
- Page 10 : iPod Legacy Support mode. KEB02iP works as an USB Host and iPod/ iPhone/iPad works as an USB Device. Must be set this position before turning Power_ON KEB02iP to use this mode. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015...
- Page 11 KEB02ip requires USB Bus_Power to charge internal battery at BP position. In this case you can connect to USB high-speed enabled HOST port of PC or Mac. **** Must set BT position to use Lightning to mini-B cable to enable iOS USB Host Audio mode. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015...
- Page 12 KEB02iP is working and charging internal battery with the external power source or USB Bus_power(BP mode). (5-4) Charge. Indicates internal battery is being charged with the external power or USB Bus_Power(BP mode). RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015...
-
Page 13: Setting Up Mac/Macos X
(1) Turn off Power of KEB02iP and select USB_DAC mode. And then turn on power of KEB02iP. (2) Connect RAL-KEB02iP mini-B port to Mac USB port with USB-A to mini-B cable. The cable should be compliant with USB High-Speed(480Mbps) certification. -
Page 14: Setting 'Sound Effects' Output To Internal Speakers
5-2. Setting 'Sound Effects' output to Internal Speakers Click on the "Sound Effects" tab to prevent alerts and effect sounds such as "e-mail received notification sound" from being routed to Audio System. Set Play sound effects through 'Internal Speakers'”. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015... -
Page 15: Setting Ral-Keb02Ip As An Audio Output
5-3. Setting RAL-KEB02iP as an Audio Output Click on the "Output" tab and select "RATOC RAL_KEB02iP Audio Out". This selection will route the sound from iTunes or other Audio Applications to your Audio system. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015... -
Page 16: Setting Up 'Audio Midi Setup' Application
5-4. . Setting up 'Aud dio MIDI S Setup' Ap pplicatio (1) I f "Audio Mi idi Setup" a application i is not found d on Dock, o open the Ha ard Disk ico n and open the "A Applications "... -
Page 17: Launch And Play Itunes Or Other Music Player Application
Launch iTunes or other Music Player application. Start it and select Music file. You will listen and enjoy fine and clear sound from your Audio system. To learn more about Music Player application, refer to User Guide or Online Help of the application. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015... -
Page 18: Iphone, Ipad, Ipod With Usb_Dac Mode
KEB02iP. After a couple of seconds, turn Power KEB02iP ON and connect the cable again. 6. Launch and start 'Music' player app. on iOS device and select music. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015... -
Page 19: Setting Up Windows Pc ( Windows 7 )
6-1. Installation of USB Audio 2.0 Class Driver RAL-KEB02iP requires USB Audio Class 2.0 Driver. You need to install it before using it. If you forgot it or failed to install the driver, RAL-KEB02iP would not be configured as a USB Audio Device. - Page 20 (6) "RAL-KEB02iP installer" will start automatically. Click 'Next' to start installation. InstallShield will start and show status. (7) Click 'Install' button at 'Windows Security' dialog box below and continue installing the driver. (8) Windows Security dialog box may be shown up again, if so, click 'Install' to continue the installation.
- Page 21 (9) Connect RAL-KEB02iP to your PC when the dialog box below is shown up. Click 'OK' after the connection is completed. InstallShield Wizard will check system, prepare and start the installation. *** It may take few minutes for searching Windows update by Windows device manager.
- Page 22 (11) Open Device Manager Window and check "RAL USB 2.0 Audio Devices". Audio Devices REX-KEB02iPL' will be shown up. Open "Sound" at "Control Panel", RAL_KEB02iPL will be shown up. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015...
- Page 23 -2. Uninstall RAL-KEB02iP Device Driver If you failed in RAL-KEB02iP Driver installation or desire to remove it from your Windows PC, uninstall it and re-install again. Follow the instructions below. (1) Open 'Control Panel' and select 'Programs and Features' icon.
- Page 24 (4) Click "Finish" at InstallShield Window below. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015...
-
Page 25: Grade Up Setting For Windows
(2) Select "Built-in Sound card" at the "Playback" tab. Click "Set Default" button to route system sound such as "new mail received" to built-in speaker. (3) Select "RAL-KEB02iP" at the "Playback" tab and click "Properties" button. (4) Click "Advanced" tab. And set check mark at both "Allow applications to take exclusive control of this device"... - Page 26 7-1.Listen HD Music with Direct Sound and Kernel Mixer (1) Double click "RAL-KEB02iP Audio" at "Playback" tab. Click "Properties" button. You can change icon and device name as you like. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015...
- Page 27 "Default Format" box. Note) 24bit/88.2kHz, 24bit/176.4kHz, 24bit/352.8kHz and 24bit/384kHz are not shown up at the list box. This is the known issue of Windows 7/Vista Direct Sound Driver. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015...
- Page 28 (1) Click "Start" and launch "Control Panel". (2) Double click "Sound". (3) Double click "RAL-KEB02iP Audio" at "Playback" tab. And click "Properties" button. (4) Click "Advanced" tab and mark Checkbox of both "Allow applications to take exclusive control of this device" and "Give exclusive mode applications priority" at "Exclusive Mode"...
-
Page 29: Specifications
131mW/ch. @22 ohm load. Stereo output (3.5mm mini) 38mW/ch. @68 ohm load. Internal Battery Li-Polymer 3.7V 1200mAh. USB charger required. Unit Dimensions/Weight 70 (W) x 103 (D) x 24 (H) mm. 230g. RAL-KEB02iP (USB_DAC Mode) User's Guide Rev 2.00_L 01/Nov./2015...
