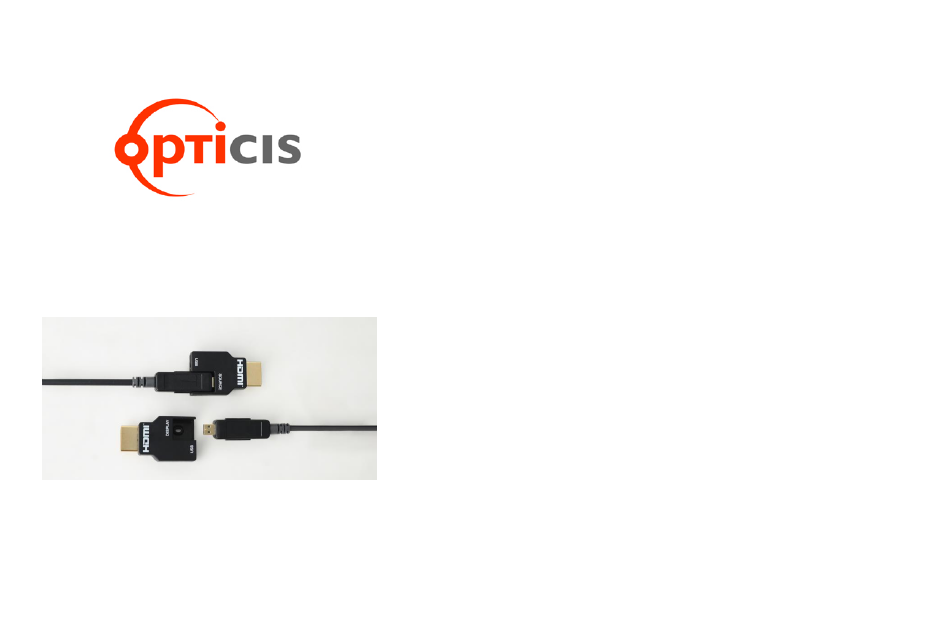

- Page 1 Preliminary Stretch HDMI HDMI 2.0 Detachable Active Optical Cable User Manual LHM2-Pxxx Doc No. : OEC-H210910-L2 / Ver 1.0...
- Page 2 Installation Troubleshooting, Maintenance, Technical Support OPTICIS active optical HDMI 2.0 cable, LHM2-Pxxx is designed for critical Product Specifications display applications that demand flawless HDMI signal integrity and it Warranty Information provides transparent signal transmission over plenum graded, LSZH graded, or TPU hybrid cable.
- Page 3 System Requirements for Setup Installation Hardware requirements Important: Please use the installation procedure below. Improper or no operation may result if the start-up sequence is not correctly followed. You must have a HDMI display source (Media player, PC or laptop).
- Page 4 Minimum bending radius: 6mm Outer diameter of cable: 3.4mm (±0.2) Visit us at www.opticisusa.com to learn more about Opticis products Mechanical specifications of TX and RX module parts Dimensions: 71.7mm / 24.2mm / 10.1mm (L/W/H) ...
- Page 5 Opticis warrants this optical HDMI extension cable to be free from defects in workmanship and materials, under normal use and service, for a period of one (1) year from the date of purchase from Opticis or its authorized resellers. If a product does not work as warranted during the applicable warranty period,...
