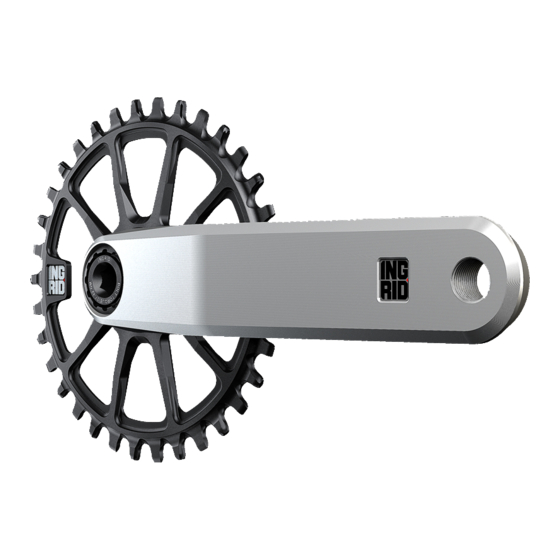

Ingrid CRS-POP Manual

CRS Manual EN
Rev. 1.0 2021/07

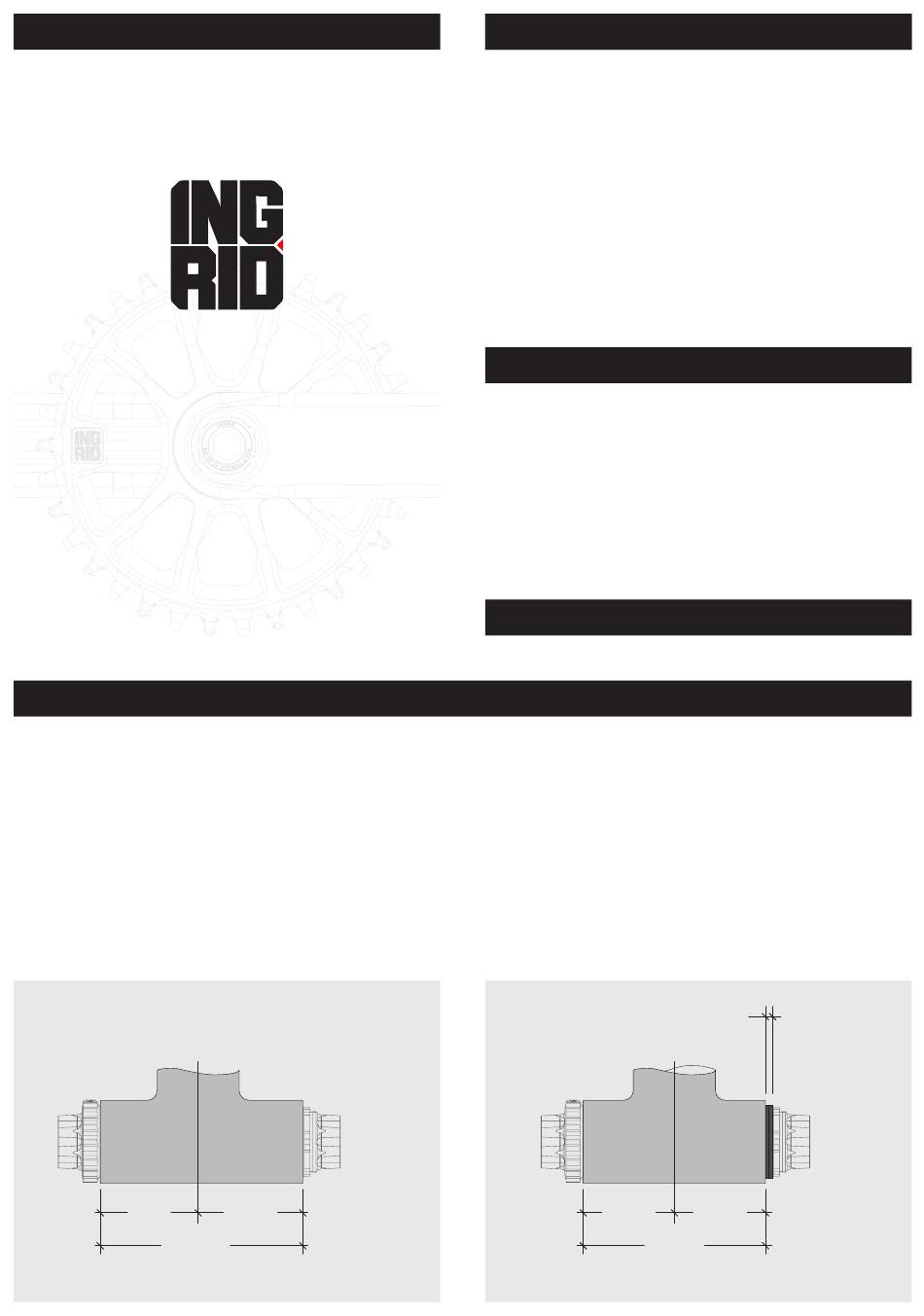

BOTTOM BRACKET SPECIFICATION

OUR CRANKSET SYSTEM IS DESIGNED WITH
AN ASIMMETRY OF +2.5MM ON DRIVE SIDE
The common MTB frames/BB cups are asymmetrical and that
provides the necessary configuration (fig.1)
The common ROAD frames/BB cups are symmetrical.
In this case add 2.5 mm on the drive side (fig.2)
VERIFY THAT THE FRAME/BB CUPS COMPLIES WITH THE REQUIRED
DIMENSIONS FOR OUR SPINDLES
MTB
NDS
47mm
L136
Spindle
~96.5mm
Total width of the bottom bracket
fig.1
DS
IF NECESSARY,
49.5mm
ADJUST THESE
DIMENSIONS USING
THE INCLUDED
SPACERS

IMPORTANT NOTICE

SPECIFICATION

This manual is intended primarily for use by professional bicycle
mechanics. Users who are not professionally trained for bicycle assembly
should not attempt to install the components
If any part of the information on the manual is unclear to you, do not
proceed with the installation. Instead, contact your dealer or a local bicycle
shop for their assistance.
Make sure to read all instruction manuals included with the product.
You can find all the manuals and specs on our website http://ingrid.bike

MAINTENANCE

This product is not guaranteed against natural wear and deterioration from
normal use and aging.
!!! PERIODICALLY CHECK THE TIGHTENING. INCORRECT
TIGHTENING CAN CAUSE MALFUNCTIONS OR BREAKAGE
MOSCONI s.r.l. | via la Villa 28 zona artigianale Ghilardino 61034 Fossombrone, PU
ROAD
(2 x included spacers)
NDS
44.5mm
L131
Spindle
~89 mm
Total width of the bottom bracket
fig.2
+2.5mm
DS
IF NECESSARY,
44.5mm
ADJUST THESE
DIMENSIONS USING
THE INCLUDED
SPACERS
