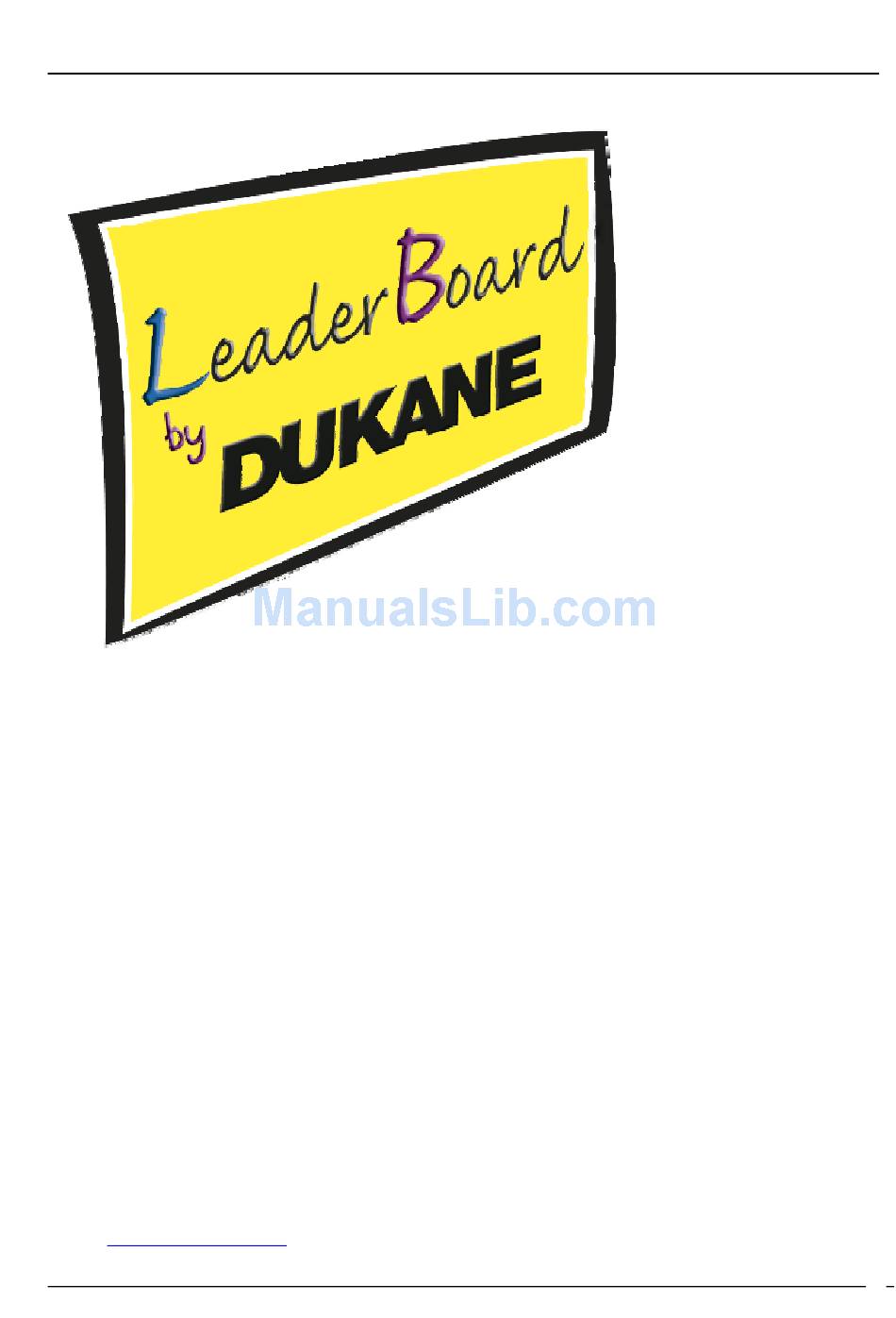

USER GUIDE
LEADERBOARD
INTERACTIVE WHITE BOARD
MODEL
LB77H
USER GUIDE
DUKANE AUDIO VISUAL PRODUCTS DIVISION
Thank you for purchasing the Dukane interactive whiteboard. This Guide will assist you with
installation and operation of the board. We welcome your feedback and are ready to assist you.
Please forward you comments and suggestions to:
Dukane AV Division
2900 Dukane Drive
St Charles, IL 60174
Or call 1-800-676-2487
Email:
avserdept@dukcorp.com
401-LB77H-00
0
Advertisement
Table of Contents
Related Manuals for Dukane LEADERBOARD LB77H
Summary of Contents for Dukane LEADERBOARD LB77H
- Page 1 USER GUIDE DUKANE AUDIO VISUAL PRODUCTS DIVISION Thank you for purchasing the Dukane interactive whiteboard. This Guide will assist you with installation and operation of the board. We welcome your feedback and are ready to assist you. Please forward you comments and suggestions to:...
-
Page 2: Legends
Legends Instruction: additional instruction for software operations. Note: Special items that may require your attention during use of the board. Warning: This symbol indicates information that if ignored could possibly result in personal injury or major damage to the product. Caution Note To avoid electric shock, please do not install the interactive whiteboard in wet or very humid locations. - Page 3 Only erasable interactive whiteboards can be written on with dry erase colored pens. For some boards use only electronic pens. To remove accidental permanent marker on the board, write over the marker with a dry erase pen and then wipe off with a cloth. The dry erase ink acts as a removal agent for the permanent ink.
-
Page 4: Table Of Contents
Contents LEGENDS ... 1 CAUTION NOTE ... 1 CONTENTS... 3 INTRODUCTION ... 4 ... 4 NTRODUCTION ... 4 EATURES ... 4 OPOLOGICAL IAGRAM ... 4 YSTEM EQUIREMENTS UNPACKING THE INTERACTIVE WHITEBOARD... 5 1. T HE INTERACTIVE WHITEBOARD COMPONENTS 2. S ... -
Page 5: Introduction
Introduction Introduction The Interactive whiteboard is a combination of electronic, software, and Internet technologies. It is a revolution replacing the old blackboard-and-chalk that has lasted for hundreds of years. Interactive whiteboard is a computer based input device, which, when connected with projector can provide functions such as writing, annotating, drawing, editing, printing and storage. -
Page 6: Unpacking The Interactive Whiteboard
1. The interactive whiteboard components: One interactive whiteboard package: The shipping carton. One Interactive whiteboard package contains: Interactive white board set (such as the LB77H Interactive WhiteBoard ) Hangers for installing the interactive whiteboard Wall hanger Tray Hanger installed on the rim of whiteboard... -
Page 7: Standard Accessories
2. Standard Accessories Standard Accessories include: Description Specification Electronic whiteboard USB-RS232 33 FT. connecting (10 meters) cable Software Disc Interactive Whiteboard User Guide 3. Optional Accessories If the interactive whiteboard is not installed on a wall, it may be installed on a mobile floor stand. A mobile floor stand includes side beam, crossbeam, lift board and screws. -
Page 8: Description Of Appearance
Description of Appearance WhiteBoard with USB port Supply Power： Writing Area； 1． Serial port; 2. Power Socket II Function keys； III Interface Board... -
Page 9: Installation
Installation 1. Install Interactive WhiteBoard Wall mounted Select proper wall location, and install hanger parts on the wall. Then hang the interactive whiteboard. (Prior to installation, please install the tray). Refer to the Installation Diagram of Interactive whiteboard. Bracket type installation( brackets are optional parts) Assembly the brackets according to Bracket installation Diagram found with the brackets. -
Page 10: Install Leaderboard Software
Insert 《LEADERBOARD Install Software》 CD disc; Click program logo Enter the LEADERBOARD setup wizard page: Click； 5) Select install remote:... -
Page 11: Uninstall Leaderboard Software ( Not For The Installation)
6) Select install type: 7) Select “Launch the Program” and then “Finish” the installation. For a XP installation the program may display the login screen with boxes for the “User Name” and “Password”. If this appears， click on the “Login” box leaving the “User Name” and “Password” blank. 5、Uninstall LEADERBOARD software ( Not for the installation) Open Add or Delete program window, select LB Software, Click button for Change or Delete program(or insert 《LEADERBOARD Install Software》... -
Page 12: Install Usb－Rs232 Connection Cable Driver
6、Install USB－RS232 connection cable Driver If USB-RS232 connection cable is used, the corresponding driver must be installed. If a serial port cable is exclusively employed, it is not necessary to install the driver for the USB cable. When USB-RS232 connection cable is used to connect the electronic whiteboard to the computer (as shown in the following figure), the driver for USB-RS232 connection cable should be installed. - Page 13 Click This will Install the USB-RS232 connection cable driver. Once connected correctly, in My Computer-Device Manager, you will see the device “CP210X USB to UART Bridge Controller,” as shown in the following figure: When USB-RS232 connection cable is used to connect the electronic whiteboard to the computer, the driver for USB-RS232 connection cable must be installed.
-
Page 14: Operating The Board
Operating the board Startup driver of interactive whiteboard 1) Click “Start"→"All programs"→”Dukane LeaderBoard Software"→"LeaderBoard Software"→ "USB DRIVER", and click the “USB Driver”. A icon of the communication module the status bar tray in the lower-right corner of the desktop. 2) Click the tray icon after successfully connecting interactive whiteboard, select "Option" from the popup menu to set the correct model for the whiteboard driver. - Page 15 When there has been no change from the last session, please select "default orientation". Application software 1) Click "Start"→"All programs "→" Dukane LeaderBoard Software"→"LeaderBoard Software"→ "LB77H SOFTWARE", this will produce a Logon window as shown below;...
-
Page 16: Software Operation
Select “Orient” and then “Default orientation”. The board should then begin normal operation. SOFTWARE OPERATION The software operation and functions are described in the “Help” section which can be accessed from the main menu found by using START/ALL PROGRAMS/DUKANE LEADERBOARD SOFTWARE/HELP. -
Page 17: Function Keys (Across Bottom Of Board)
Opening the LeaderBoard • Go to “START” / “ALL SOFTWARE” / “DUKANE LEADREBOARD SOFTWARE” / LEADERBOARD / LB77H SOFTWARE • Or create a Desktop Icon by right clicking to “CREATE SHORTCUT” on the “LB77H SOFTWARE “. Window Mode Annotation Mode Orientation Orientation... -
Page 18: Trouble Shooting
Trouble Shooting If message appears " Failed to verify the IPBOARD, the program can't run further!", please check whether there is a good connection between whiteboard and PC.” Please check if cable is connected on both ends. Check if the whiteboard has power. ( red indicator on) Check if a serial port from COM1 to COM4 has been assigned to the board. - Page 19 The projector should have the following three properties: Front projector Support resolution of the PC The luminous output should be more than 500 lumens. Hookup when the serial port is occupied. Both table model and notebook PCs allow added serial ports: Install a serial port card on PC (note: generally, PCMCIA serial port card for notebook PC) Using"USB2.0 to RS232C plus the special cable.
-
Page 20: Specifications For The Pc And Board
-20C to +55C Power capability < 2W Service If there are any problems or suggestion please contact the Service Dept; Dukane Corp. Audio Visual Products 2900 Dukane Drive St Charles, IL 60174 Service Dept; 800-676-2487 Fax; 630-584-5156 Email; avserdept@dukcorp.com Sales dept ;...
