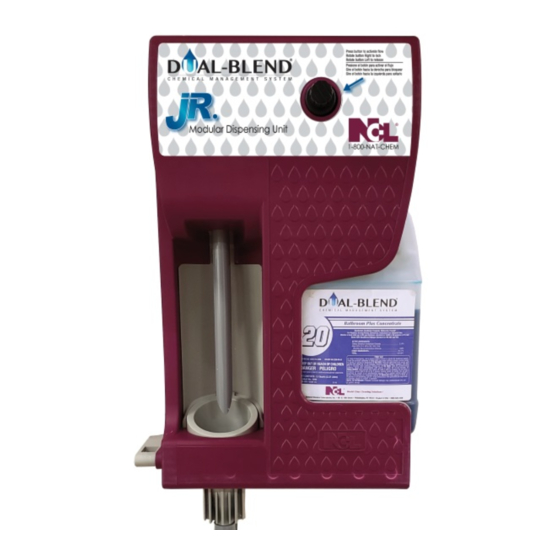

The NCL DUAL BLEND
®
Jr. Modular Dispensing Unit accurately blends proportioned chemical with water for cleaning,
Disinfecting or other needs. The dispensing system uses a water valve designed for easy maintenance. The NCL DUAL BLEND
Jr. Modular Dispensing Unit makes maintenance personnel more efficient, filling bottles and buckets with quickly with ease.
Warning
ALWAYS WEAR PROTECTIVE CLOTHING AND EYEWEAR WHEN WORKING WITH CHEMICAL PRODUCTS.
Modular Dispensing Unit
Part #4114
Installation and Setup Guide
All installations must conform to local plumbing codes and use approved backflow prevention
devices. A pressure indicating tee is to be installed with existing faucets according to local
plumbing codes in the state of Wisconsin and any other state that requires the use of a pressure
indicating tee.
LIST OF PARTS ENCLOSED:
(1) DUAL BLEND
Jr. Unit
®
(2) Attached Water Supply Hose
(3) Solution Supply Hoses for Spray
Bottle Filling and Mop/Bucket or
Auto Scrubber Filling
(4) Mounting Hardware
®
Page 1 of 7
Advertisement
Table of Contents
Summary of Contents for NCL DUAL-BLEND 4114
- Page 1 ® Jr. Modular Dispensing Unit accurately blends proportioned chemical with water for cleaning, Disinfecting or other needs. The dispensing system uses a water valve designed for easy maintenance. The NCL DUAL BLEND ® Jr. Modular Dispensing Unit makes maintenance personnel more efficient, filling bottles and buckets with quickly with ease.
-
Page 2: Installation And Service
Remove the burgundy dispenser cover by pressing in the tabs on the upper left and right sides, and the underside center of the dispenser. Locate the upper two key shaped mounting holes in the back plate. Mount the NCL DUAL BLEND ®... -
Page 3: Operation
Operation Dispenser Activation Points – Bottle Fill To fill a bottle, place the dispenser outlet tube into the bottle and push the activation button until the bottle is nearly full. Release the activation button, and slowly lower the bottle from the outlet tube. Dispenser Activation Points –... -
Page 4: Parts List
Parts List Page 4 of 7... -
Page 5: Dispenser Replacement Parts
Parts List DISPENSER REPLACEMENT PARTS ITEM QTY. NCL NO. DESCRIPTION NDBJ 41447.1 BASE BACK PLATE NDBJ 41448.1 COVER NDBJ 41450.1 ANTI-SKID TRAY NDBJ 41449.1 SWITCH-OVER FUNNEL NDBJ 56.25.12 DOCKING ASSEMBLY NDBJ X41454.1 VALVE ASSEMBLY NDBJ 16.3 ACTION GAP NDBJ 163M.NB PROPORTIONER ASSEMBLY NDBJ 40.970.1... -
Page 6: Valve Body
Parts List VALVE REPLACEMENT PARTS QTY. NCL NO. DESCRIPTION NDBJ 40.083.2 VALVE BODY NDBJ 41.15.10 1-1/16" DIAPHRAGM NDBJ 63.35 MAGNET NDBJ 41.7.25 ENCLOSING TUBE NDBJ 63.37 TUBE SPACER NDBJ 63.38 PLUNGER NDBJ 63.36 CLOSING SPRING NDBJ 41.1.8 KICK-OFF SPRING NDBJ 66.139.6 633 MAGNET HOUSING (BLACK) NDBJ 66.140.5... -
Page 7: Specifications
Rubber and synthetic rubber parts such as “O”-rings, diaphragms, PVC tubing, and gaskets are considered expendable and are not covered under warranty. This warranty is extended only to the original buyer of NCL products. If products are altered or repaired without prior approval of NCL, this warranty is void.
