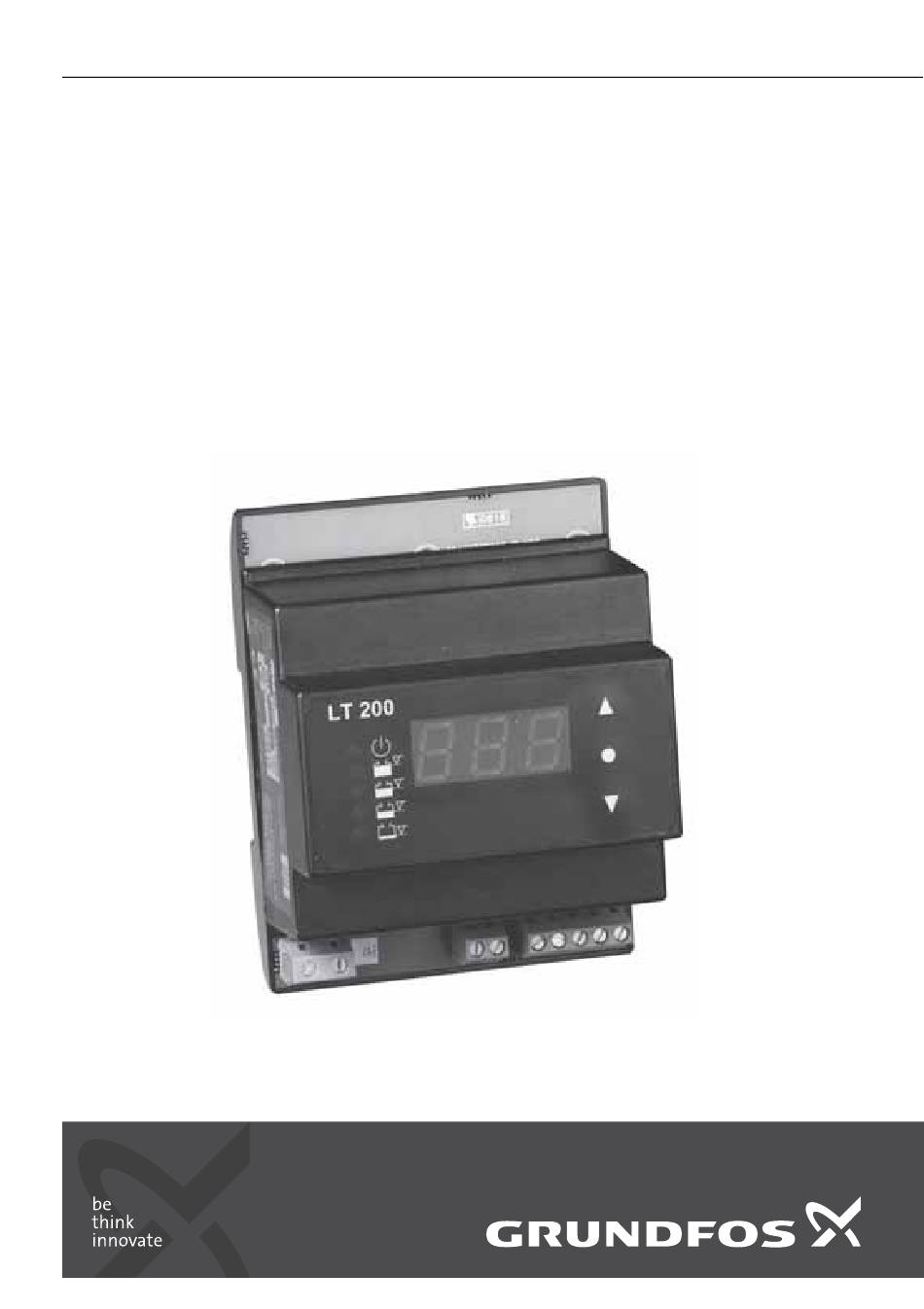

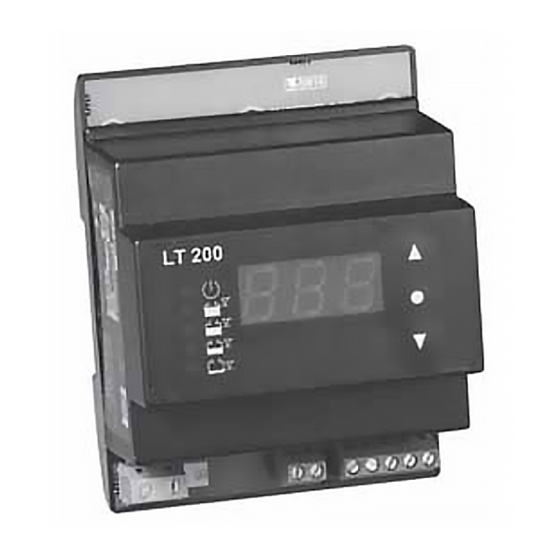

GRUNDFOS INSTRUCTIONS
LT 200
Installation and operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grundfos LT 200

Summary of Contents for Grundfos LT 200

  • Page 1 GRUNDFOS INSTRUCTIONS LT 200 Installation and operating instructions...

  • Page 2: Table Of Contents

    Note easier and ensure safe operation. 2. Introduction The LT 200 is a unit enabling the use of an analog 4-20 mA pressure transmitter for registration of level together with Grundfos controllers, types LC, LCD 108 and 110, instead of rod electrodes and float switches.

  • Page 3: Installation

    24 VDC. Connect the screen of the cable from the pressure transmitter via a metal clamp to Caution the earthed metal back plate of the box where the LT 200 is to be installed.

  • Page 4: Installation Of Pressure Transmitter

    CU 21X or to these terminals of LC, LCD 108: Terminal 31 Terminal 12 Terminal 22 Terminal 32 Terminal 42 LT 200 CU 21X.XXX.X AC 1 2 G 3 4 Level switches or Level switches or electrodes...

  • Page 5: Connections To Lc, Lcd 110

    98 of the thermal relay in LC, LCD 110. See wiring diagram. Do not connect terminal G to terminal 11 of Caution LC, LCD 110. LT 200 CU 21X.XXX.X AC 1 2 G 3 4 Level switches or Level switches or...

  • Page 6: Setting And Operation

    4. Setting and operation 4.1 Setting You can set these parameters to adapt the LT 200 to When the LT 200 is connected to the power supply, the application: the display normally shows the actual level (metres head). If no pressure transmitter is connected •...

  • Page 7: Technical Data

    The LT 200 does not check if the individual setpoints are logical. L2 can for instance be set to a lower level...
  • Page 8 We, Grundfos, declare under our sole responsibility that the product Ние, фирма Grundfos, заявяваме с пълна отговорност, че LT 200, to which the declaration below relates, is in conformity with продуктът LT 200, за който се отнася настоящата декларация, the Council Directives listed below on the approximation of the laws отговаря...
  • Page 9 Chúng tôi, Grundfos, tuyên bố trong phạm vi trách nhiệm duy nhất Ne, Grundfos, deklarojmë vetëm nën përgjegjësinë tonë se produkti của mình rằng sản phẩm LT 200 mà tuyên bố dưới đây có liên quan LT 200, me të cilin ka lidhje kjo deklaratë, është në pajtim me tuân thủ...
  • Page 10 Argentina China Hong Kong Bombas GRUNDFOS de Argentina S.A. GRUNDFOS Pumps (Shanghai) Co. Ltd. GRUNDFOS Pumps (Hong Kong) Ltd. Ruta Panamericana km. 37.500 Centro 10F The Hub, No. 33 Suhong Road Unit 1, Ground floor Industrial Garin Minhang District Siu Wai Industrial Centre 1619 Garín Pcia.
  • Page 11 Malaysia Serbia Turkey GRUNDFOS Pumps Sdn. Bhd. Grundfos Srbija d.o.o. GRUNDFOS POMPA San. ve Tic. Ltd. 7 Jalan Peguam U1/25 Omladinskih brigada 90b Sti. Glenmarie Industrial Park 11070 Novi Beograd Gebze Organize Sanayi Bölgesi 40150 Shah Alam Phone: +381 11 2258 740...
