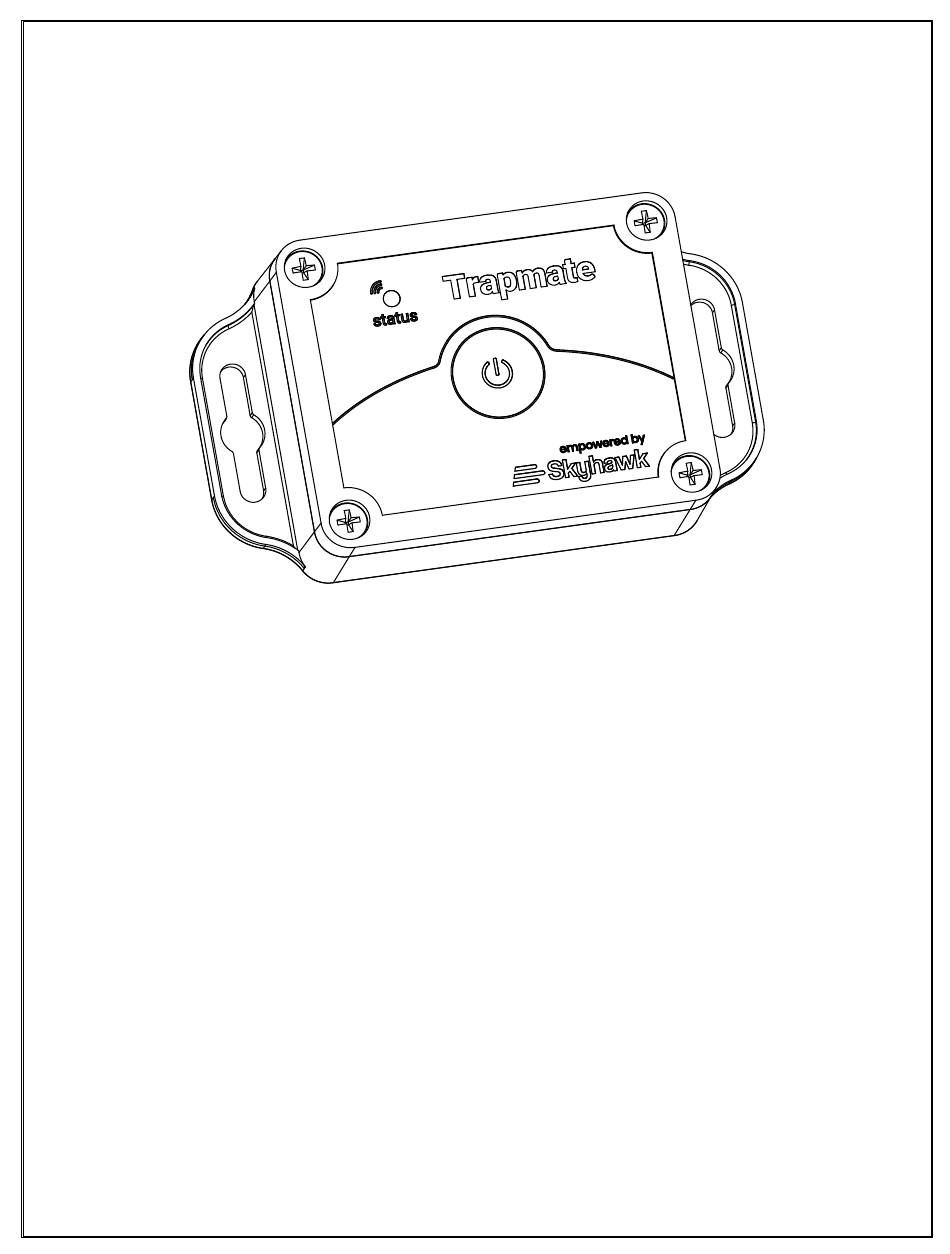

Trapmate
Installation & User Manual
Please setup and register the Skyhawk Hub BEFORE using this device!
In order to receive alerts from your Trapmate device, it must be used in conjunction with
your Skyhawk Hub (sold separately) and the Skyhawk CE smartphone app.
See the Skyhawk Hub user manual for additional information on connecting your devices.
Advertisement
Related Manuals for Skyhawk Trapmate
Summary of Contents for Skyhawk Trapmate
- Page 1 Installation & User Manual Please setup and register the Skyhawk Hub BEFORE using this device! In order to receive alerts from your Trapmate device, it must be used in conjunction with your Skyhawk Hub (sold separately) and the Skyhawk CE smartphone app.
-
Page 3: Table Of Contents
Safety, FCC and Warranty....................18 - 19 In order to receive alerts from your Trapmate device, it must be used in conjunction with your Skyhawk Hub (sold separately) and the Skyhawk CE smartphone app. See the Skyhawk Hub user manual for additional information on connecting your devices. -
Page 4: Layout Summary
Mounting Cutout Function Button LED Indicator - This multicolored LED indicator will indicate when the Trapmate is powering on or off, has been triggered or is acknowledging a transmission. More details on the indicator colors can be found on page 17. - Page 5 Front of Unit (with cover removed) Battery Access (from opposite side) LED Indicator Mounting Pins Accelerometer Sensor Mounting Pins - Once the case is opened the circuit board rests on top of four plastic mounting pins. Accelerometer Sensor - Used to sense sudden movement or vibration of the monitored item. Battery Access - The board can be removed to access the battery holder on the opposite side of the circuit card.
- Page 6 Bottom of Circuit Card (circuit card removed from case) Feature Jumpers Reed Sensor Battery Holder Reed Sensor - Used to sense the removal of the supplied pull magnet. Feature Jumpers - These jumpers allow user-configurable features to be turned ON and OFF. The default position of the jumpers is shown in the image.
- Page 7 Trapmate User-Configurable Features The Trapmate has two feature jumpers: Jumper #1 - Not Used Jumper #2 - Used to enable or disable the accelerometer sensor Step 1: Open case as outlined in the Battery Replacement section of this manual and remove batteries.
-
Page 8: Installation
Step 3: Peel off the adhesive backing paper on the magnets and affix them to the circular recessed areas cleaned in Step 2. Step 4: The Trapmate is ready to be mounted. Make sure the area where the Trapmate will be attached is ferrous, iron or steel. - Page 9 Step 1: In the accessory kit, locate the tacky puddy strip. Step 2: Tacky puddy can be attached to the bottom or sides of the Trapmate. It is recommended that the tacky puddy pieces are not attached to the top of the unit since that would limit visibility to the LED indicator and function button.
- Page 10 Trapmate Pull-Magnet Installation The Trapmate is supplied with a pull-magnet kit for users who choose to use the reed switch option. Step 1: Locate the pull-magnet kit and take out the magnet mount while setting the other items off to the side.
- Page 11 Step 5: Snap the magnet into the holder on the Trapmate. Step 6: Tie the other end of filament line to the object being monitored, such as a door or trap; making sure that when tripped, the line will pull easily from the magnet mount on the Trapmate.
-
Page 12: Start-Up Operation
Press and Hold Step 3: After the unit is powered up, it will automatically send a power ON alert to the Skyhawk HUB that will in turn send an acknowledgement back to the Trapmate. The acknowledgment on the Trapmate will be indicated by a rapid flashing GREEN LED for 5 seconds. -
Page 13: Shut-Down Operation/Reset Operation
Trapmate Shut-Down Operation When the Trapmate is not going to be used for more than a few weeks it should be powered down to conserve battery life. Step 1: Power OFF the Trapmate by pressing and holding the function button; release when the RED LED starts blinking. -
Page 14: Battery Replacement
AA alkaline battery like an Energizer or Duracell. Follow the instructions below to replace these batteries. Step 1: Remove the cover screws of the Trapmate using a Phillips screwdriver. Make sure to turn the screws counterclockwise. Step 2: Remove the front cover. There will be a gasket holding the unit together so it might take a bit of force to... - Page 15 Trapmate Battery Replacement (continued): Step 3: Remove the PC card with attached battery holder from the enclosure. This can easily be done by turning the unit over and allowing the battery holder to fall into your hand. Step 4: Remove and dispose of the old batteries properly.
- Page 16 Trapmate Battery Replacement (continued): Step 5: Insert new batteries taking note of the direction symbols. Step 6: Replace PC card with attached battery holder by aligning holes to the mounting pins in the enclosure. Replace cover making sure to align LED indicator on the cover to the LED on the PC Card (take note of image...
-
Page 17: Led Indicators & Sensitivity Adjustment
Trapmate LED Indicators The Trapmate is equipped with a multi-color LED indicator for feedback status to the user. Below is a chart of the status indicators: Status LED Power Up w/Acknowledgement (PASS)---> Blinking GREEN LED five times, pause, rapid flashing GREEN 5s Power Up w/Acknowledgement (FAIL)--->... -
Page 18: Safety, Fcc And Warranty
IMPORTANT NOTICE: The Skyhawk Trapmate uses a 3rd-party Wireless Service which uses radio technologies and is subject to transmission and service area limitations, which may include interruptions and dropped connections caused by atmospheric, topographical or environmental conditions, cell site availability, cellular network equipment or its instal- lation, governmental regulations, system limitations, maintenance or other conditions or activities affecting the operation of the Wireless Service. - Page 19 Product (“you”/ “your”). It does not extend to any subsequent owner or other transferee of the Product. WHAT DOES THIS WARRANTY COVER? This limited warranty covers defects in materials and workmanship of the SKYHAWK TRAPMATE (the “Product”) for the Warranty Period as defined below. WHAT DOES THIS WARRANTY NOT COVER? This limited warranty does not cover any damage due to: (a) transportation;...
- Page 20 PICA Product Development, LLC 4 Ash Street Extension - Unit 1 Derry, NH 03038 sky-hawk.com Rev A8 - 7/21 Copyright © 2020 - 2021 by PICA Product Development, LLC. All specifications are subject to change without notice.
