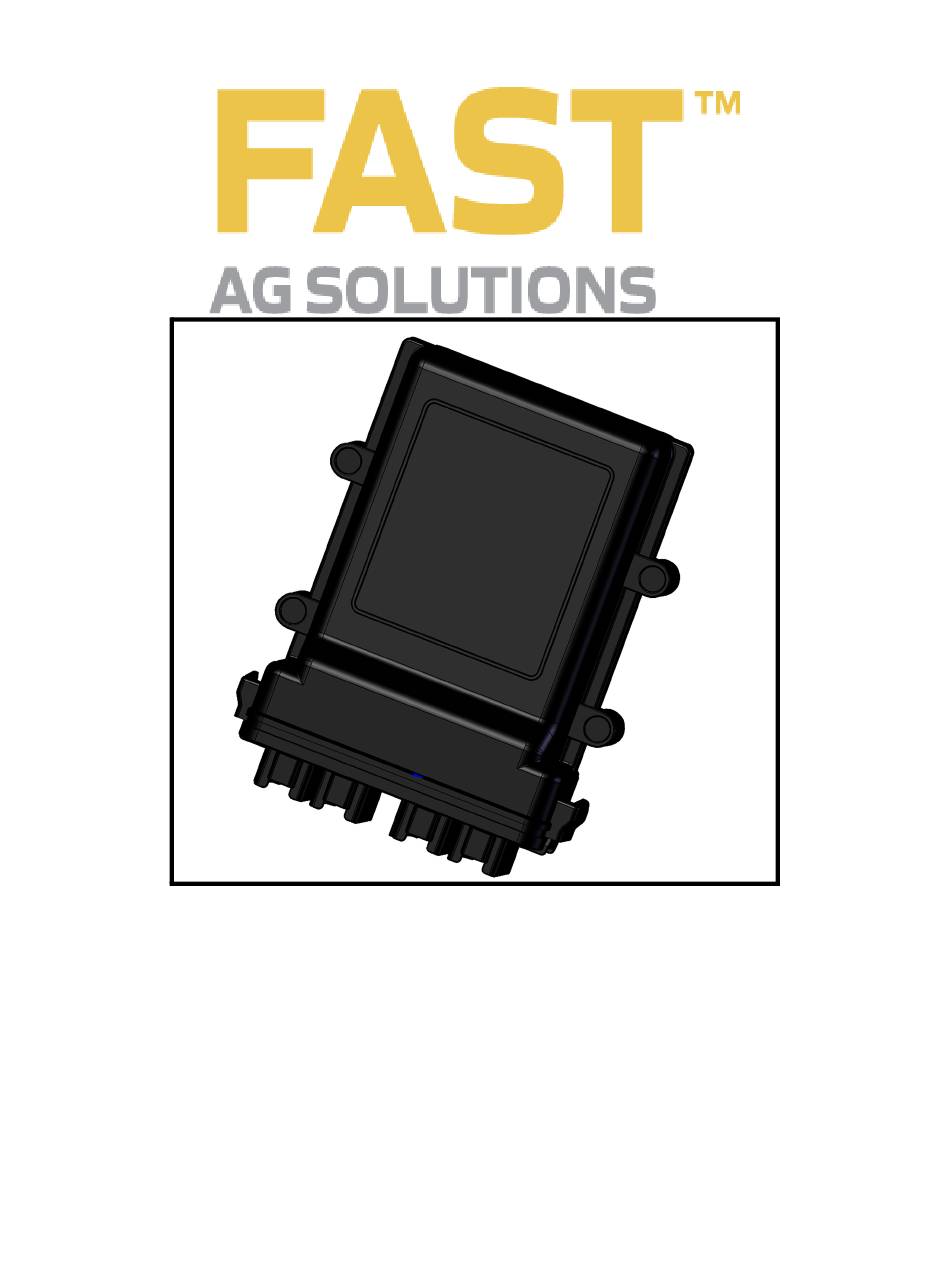

- Page 1 RAVEN HAWKEYE SETUP MANUAL Click here for Raven Complete Setup Instructions Click here for Raven Quick Start Guide Click here for Raven Installation Instructions 80-600043-01 RAVEN HAWKEYE SETUP 5-20-2020...
- Page 2 80-600043-01 RAVEN HAWKEYE SETUP 5-20-2020...
-
Page 3: Calibration Reference Sheet
CALIBRATION REFERENCE SHEET PAGE 1... - Page 4 EXAMPLE NOZZLE SETTINGS Hawkeye 90 foot 15" spacing Hawkeye 90 foot 20" spacing Hawkeye 120 foot 15" spacing SECTIONS TIPS INCHES SECTIONS TIPS INCHES SECTIONS TIPS INCHES TOTAL 1080 TOTAL 1080 TOTAL 1440 Hawkeye 120 foot 20" spacing Hawkeye 132 foot 22" spacing SECTIONS TIPS INCHES SECTIONS TIPS INCHES TOTAL 1440 TOTAL 1584 PAGE 2...
- Page 5 RAVEN HAWKEYE SETUP Enter nozzle spacing in inches. Press Accept. Select Machine Type: For Sprayers use: “Sprayer” For Applicators use “Liquid Fert. Tool” Press Next. Nozzle spacing entered. Press Next. Enter left nozzle count. Press Next. Enter NCV tip size.
- Page 6 Enter number of boom sections. Press next to start auto indexing nozzles. Press next. Auto indexing is preparing. Enter boom section widths in inches for each boom section. Press Next. Place a check mark in to enable fence rows. Press Next. PAGE 4...
- Page 7 Enter the boom offset number in inches. Click each field and enter the value. Press Next. See manufacturer nozzle tip charts. Press Accept. Click field, enter the value. Repeat until each boom section has the Click Accept. correct value entered. Press Next.
- Page 8 Flowmeter calibration number entered. Boom calibration wizard. Press Next. Press Next. Flowmeter tag Pulse/Units number. Enter the pressure sensor range. Press Next. Flowmeter tag Pulse/Units number. Enter the flowmeter calibration number. Press Next. PAGE 6...
- Page 9 Enter the target pressure. Enter the target rate. Consult your chemical Dealer for proper Press Next. settings. Press next. Target rate entered. Consult your chemical Dealer for proper Home screen. settings. Press the tools button. Press Next. PAGE 7...
- Page 10 Check the following boxes in the user set- Review and verify settings. tings screen. Press Home. Press Next. Boom section 1 screen. Calibration summary screen. Use arrows to scroll through to view each Select Standard. section. Select Virtual. Press Next. PAGE 8...
- Page 11 NOTES 80-600043-01 RAVEN HAWKEYE SETUP 5-20-2020...
- Page 12 80-600043-01 RAVEN HAWKEYE SETUP 5-20-2020...
- Page 13 FAST GLOBAL SOLUTIONS 4130 Commerce Boulevard Windom, MN 56101 1-800-772-9279 Toll Free 1-507-427-3861 Voice 1-507-427-3030 Fax www.fastsprayers.com 80-600043-01 RAVEN HAWKEYE SETUP 5-20-2020...
