Summary of Contents for VDO DLKPro

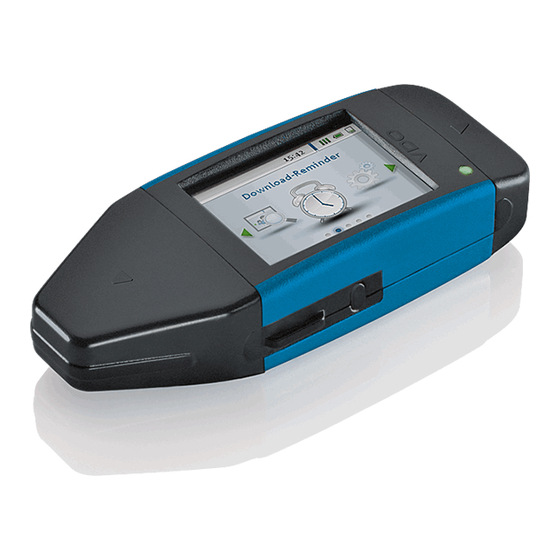

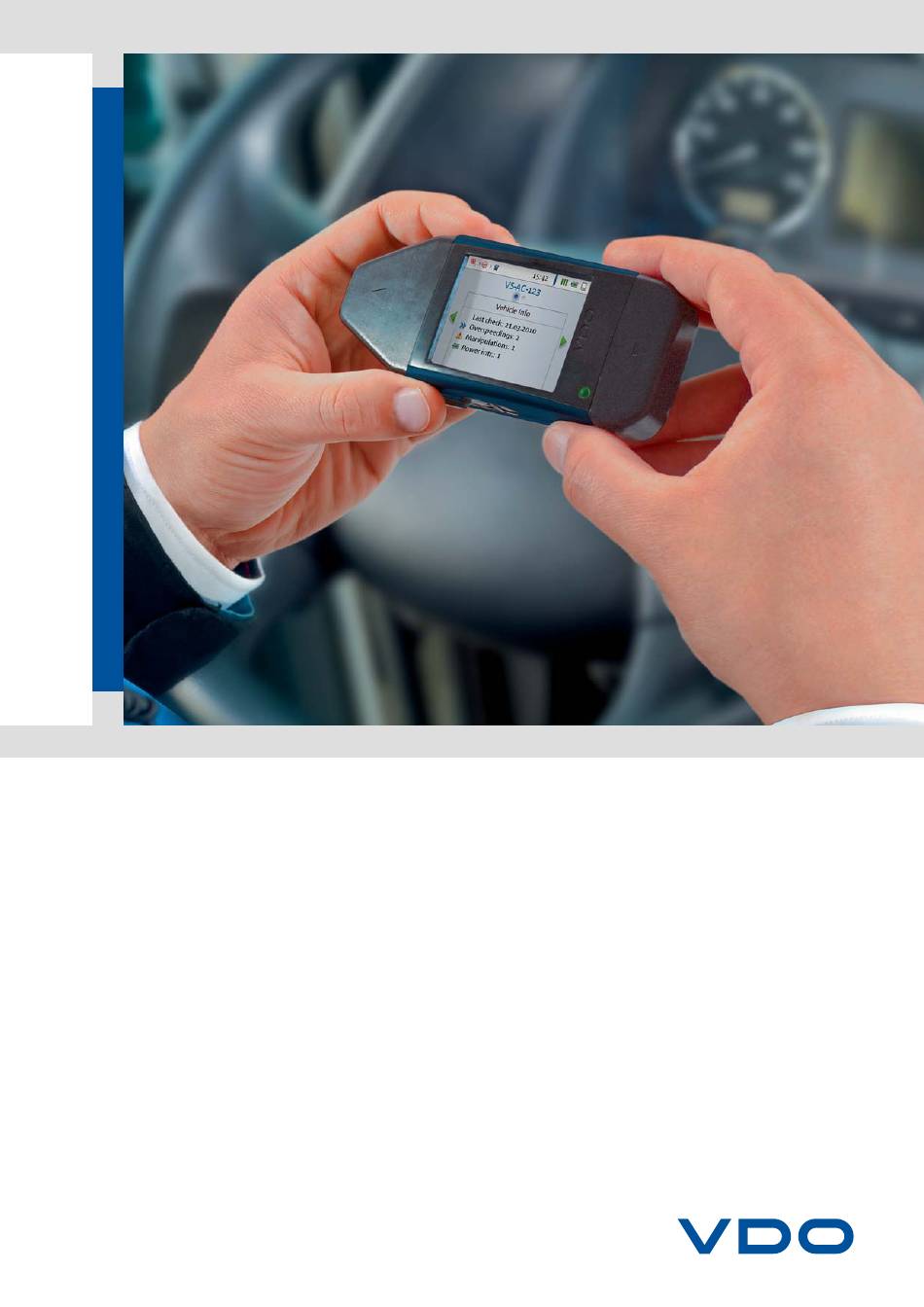

- Page 1 DLKPro Inspection Key Advanced Digital Tachograph Solution for legal checks...
-
Page 2: Table Of Contents
The icons and what they mean ......20 7 Connecting to the computer......23 8 “DownloadTools” PC programme.....26 Displaying, checking and printing suspicious events ........28 Configuring the DLKPro and the infringement analysis ......32 Getting support ...........37 DLKPro Inspection Key • Operating Instructions – Edition 03/2012... -
Page 3: General Information
Data transfer reader. Caution: The DLKPro must never be pulled out of the Note: The DLKPro is available in four versions: download interface or removed from the computer • DLKPro Download Key, during data transfer. - Page 4 Disposal in household waste is prohibited! Please take the DLKPro to a collection point for professional disposal or contact your service partner. DLKPro Inspection Key • Operating Instructions – Edition 03/2012...
-
Page 5: Dlkpro Inspection Key
The DLKPro product family by VDO sets new standards for mobile checks for suspicious events, data downloading and archiving. With the DLKPro you can download mass memory and driver card data and view and evaluate suspicious events from driver and vehicle checks either directly on the screen or in the “DownloadTools” PC programme. -
Page 6: Getting Started With The Dlkpro
12. The mass memory and driver card data is downloaded. The DLKPro has an integrated real-time clock, which is The clock is synchronised. based on UTC time. The first time the device is connected to a digital tachograph the clock is You can carry out a first check of the downloaded automatically synchronised –... -
Page 7: Switching On The Dlkpro
Note: To save battery power, the DLKPro switches itself off automatically after 20 seconds of inactivity. Tip: If you use a USB hub as a DLKPro connection, make sure that the hub has its own power supply. Otherwise the DLKPro’s battery can only be charged with a minimal charging current. -
Page 8: Creating A Backup Copy On The Sdhc™ Card
KEYTOOLS partition). Otherwise the DLKPro will not recognise the existing partition and the configuration software cannot be started. In these Operating Instructions, ‘SDHC™ card’ also means an ‘SD™ card’. DLKPro Inspection Key • Operating Instructions – Edition 03/2012... -
Page 9: Performing A (Roadside) Inspection
Note: When downloading is complete, the driver card and mass memory data will be analysed based on the Switch the DLKPro on by pressing the on-off tolerance values of the selected tolerance profile. button. DLKPro Inspection Key • Operating Instructions – Edition 03/2012... - Page 10 (green LED, beeps indicating a successful download), you can terminate the check and remove the DLKPro from the digital tachograph. If no suspicious event is shown on the DLKPro screen (green LED and beeps indicating a successful download), you can terminate the check now.
- Page 11 You can now download the mass memory based on your configuration; see page 33. Note: If, after the quick check, the DLKPro remains plugged in for more than 10 seconds, the mass memory download will start automatically – based on the specified configuration.
-
Page 12: Downloading Data
5 Downloading data 5 Downloading data With the DLKPro you can download the following data: • the complete contents of the mass memory (data from at least 365 days), • mass memory data covering a specified period and including specific data blocks, •... -
Page 13: Downloading Mass Memory And Driver Cards
DLKPro flashes red and intermittent beeps can be heard. • In this case, check whether or not the DLKPro has enough memory available; see page 17. • Try the download again. If the download fails a second time, use the PC programme to collect the support files and contact your service partner;... -
Page 14: Downloading A Driver Card With The Dtco 1381, Rel. 1.4 And Later Releases
Remove the cover from the DLKPro’s download heard. plug. • In this case, check whether or not the DLKPro has enough memory available; see page 17. Insert the DLKPro's download plug into the • Try the download again, e. g. with the chip card download interface of the DTCO. -
Page 15: Downloading A Driver Card Using The Integrated Chip Card Reader
DLKPro flashes red and intermittent beeps can be heard. Note: Card download is not possible if the DLKPro is • In this case, check whether or not the DLKPro has plugged into the computer. enough memory available; see page 17. -
Page 16: The Screen - The First Data Check
6 The screen – the first data check 6 The screen – the first data check The DLKPro screen lets you view the downloaded data immediately on site. The screen elements Screen navigation Navigate on the screen by selecting the icons with your finger. -
Page 17: The Menu
DLKPro. You can check • when the DLKPro was last used to download data from a specific vehicle or driver card. • when the next download of a specific vehicle or driver (card) is due. -
Page 18: Selecting The Tolerance Profile
6 The screen – the first data check Selecting the tolerance profile During a driver or vehicle check, the DLKPro analyses the downloaded data based on the previously selected tolerance profile. Switch on the DLKPro by pressing the on-off button, choose the Settings menu and then the Inspection Profiles sub-menu. -
Page 19: Displaying Possible Infringements (Driver Card Data)
(signs of suspected tampering with the digital tachograph or of exceeding the programmed speed). You want to display the data at a later date: • Switch the DLKPro on by pressing the on-off You want to display the data at a later date: button. -
Page 20: The Icons And What They Mean
Selection of the tolerance profile for driver and (colour: green) vehicle checks Battery charge between 50% and 75% (colour: green) Battery charge between 25% and 50% (colour: green) Battery charge between 0% and 25% (colour: red) DLKPro Inspection Key • Operating Instructions – Edition 03/2012... - Page 21 DLKPro; otherwise the memory download) download reminders will be inaccurate. Number of power interruptions within the last 2 days (quick check) or 28 days (mass memory download) DLKPro Inspection Key • Operating Instructions – Edition 03/2012...
- Page 22 Information about the selected control card: Activities carried out Mass memory download Driver card download Printout from the digital tachograph Data viewed in the display of the digital tachograph DLKPro Inspection Key • Operating Instructions – Edition 03/2012...
-
Page 23: Connecting To The Computer
7 Connecting to the computer 7 Connecting to the computer Don’t worry: You only need a few manual operations to connect the DLKPro to the computer and start the PC programme. These routine actions will soon become second nature. And if you have sometimes to do something different – perhaps because you connected the device to a different computer –... - Page 24 SDHC™ card drives (if available). Note: If all of the programme selection dialogue boxes If the PC programme does not start automatically, ® don’t open, assign new drive letters to the DLKPro start Windows Explorer, open the KEYTOOLS using Disk Management.
- Page 25 Exit the PC programme by clicking on in the top right corner of the programme window. Note: As the DLKPro’s memory is distributed over two drives (three drives if you’re using an SDHC™ card) you cannot remove the device via the Safely Remove Hardware and Eject Media icon on the taskbar.
-
Page 26: "Downloadtools" Pc Programme
• configure the download, • perform any support tasks via the software. Please remember: The PC programme can only be started from the DLKPro. Module buttons Overview pane You can start the following modules using the In this pane (if you are in the Breach module), you... - Page 27 34. button Use this button to quit the PC programme. For information on charging the battery and removing the DLKPro from the computer, please refer to pages 7 and 25. DLKPro Inspection Key • Operating Instructions – Edition 03/2012...
-
Page 28: Displaying, Checking And Printing Suspicious Events
The current day is displayed with a red frame. In the overview pane in the calendar, select a date on which vehicle and/or driver card files were downloaded. Select the time the data was downloaded. DLKPro Inspection Key • Operating Instructions – Edition 03/2012... - Page 29 If you have downloaded mass memory files during the quick check, only the data for the last two days will be displayed. These files are denoted by the letter Q ( DLKPro Inspection Key • Operating Instructions – Edition 03/2012...
- Page 30 List of activity changes on the selected day, page 44. including details about the selected entry Note: If on the DLKPro no data is available for the Displaying the speed graph and/or activity chart selected file or if no activities were recorded, a corresponding message will be displayed in the display and editing pane.
- Page 31 Note: When copying files, the files are neither deleted from the DLKPro nor from the archive folder, but copied to the target folder. Move button In the function pane, click on...
-
Page 32: Configuring The Dlkpro And The Infringement Analysis
• change the file name format. • specify a password to protect the data stored on the DLKPro from third-party access. • specify tolerance profiles for the suspicious event check (driver and vehicle checks). DLKPro Inspection Key • Operating Instructions – Edition 03/2012... - Page 33 DLKPro. (M and C files). When the download is complete, please remember to change the settings for the next download procedures. Click on [Save] to apply the changes. DLKPro Inspection Key • Operating Instructions – Edition 03/2012...
- Page 34 • File format: PNG • Colour depth: 24 bits Common settings The DLKPro checks the new PNG file during the next Click on startup procedure. If the file does not fulfil the above • the Language list to change the user interface requirements, the new start screen will not be displayed language.
- Page 35 Click on [Set] to apply the changes. Choose the Configuration module and then the Password protection tab if you want to change the Note: The next time you connect the DLKPro you must DLKPro’s password protection settings. enter the new password to access the download files.
- Page 36 8 “DownloadTools” PC programme / Configuration module Specifying tolerances for driver and vehicle checks Before using the DLKPro for the first time to check Activating the tolerance profile drivers and vehicles, you should specify the tolerances for infringement and suspicious event checks.
-
Page 37: Getting Support
• if you want to update the software to the latest version. • if you want to carry out signature checking for all the files stored on the DLKPro. • if you want to install the Autostarter. DLKPro Inspection Key • Operating Instructions – Edition 03/2012... - Page 38 8 “DownloadTools” PC programme / Support module Collecting support files Starting Netviewer The DLKPro lets you to collect all the service-relevant If you agree, your service partner can also solve a files in a ZIP file in the support folder. These files also support problem directly on your computer: include a log file.
- Page 39 If a more up-to-date software version is available, a message to that effect is displayed. Click on [Install Update] to install the software. DLKPro Inspection Key • Operating Instructions – Edition 03/2012...
- Page 40 Automatic launch of the PC programme Click on [Install Autostarter] if you have not yet installed it. The DLKPro lets you check the signature of files after they have been downloaded. Note: You can see whether or not the Autostarter is installed in the notification area of the taskbar.
-
Page 41: Technical Specifications
EU member states. In the digital tachograph, all times are stored in UTC time The name of the files stored on the DLKPro depends on (Coordinated Universal Time based on the time zone “0", the configuration settings saved on the DLKPro. You... -
Page 42: Cleaning And Maintenance
DLKPro please contact your service partner. Reset function Declaration of Conformity In rare cases it may occur that the DLKPro can no longer Continental Automotive GmbH hereby declares that the be operated although it is switched on. If this happens, DLK described in these operating instructions is in use the reset button to switch off the DLKPro;... -
Page 43: Technical Data
L 126 x W 47 x H 28 mm Weight approx. 107 g Housing PC/ABS plastic Display TFT colour screen, resolution of 320x240 pixels and 262,000 colours Protection class IP 3X Rechargeable battery LiPo 3.7 V 960 mAh DLKPro Inspection Key • Operating Instructions – Edition 03/2012... - Page 44 ® ® ® DTCO 1381, TIS-Web and TIS-Office are registered trademarks of the Continental Corporation. In these operating instructions the above trademarks are sometimes used without reference to the trademark owner. DLKPro Inspection Key • Operating Instructions – Edition 03/2012...
- Page 45 VDO – A trademark of the Continental Corporation The information contained in this documentation merely consists of general descriptions and a compilation of performance features, which, under specific application conditions, may not always apply exactly as described, or which may change as a result of ongoing product development. This information is only a technical description of the product;...
