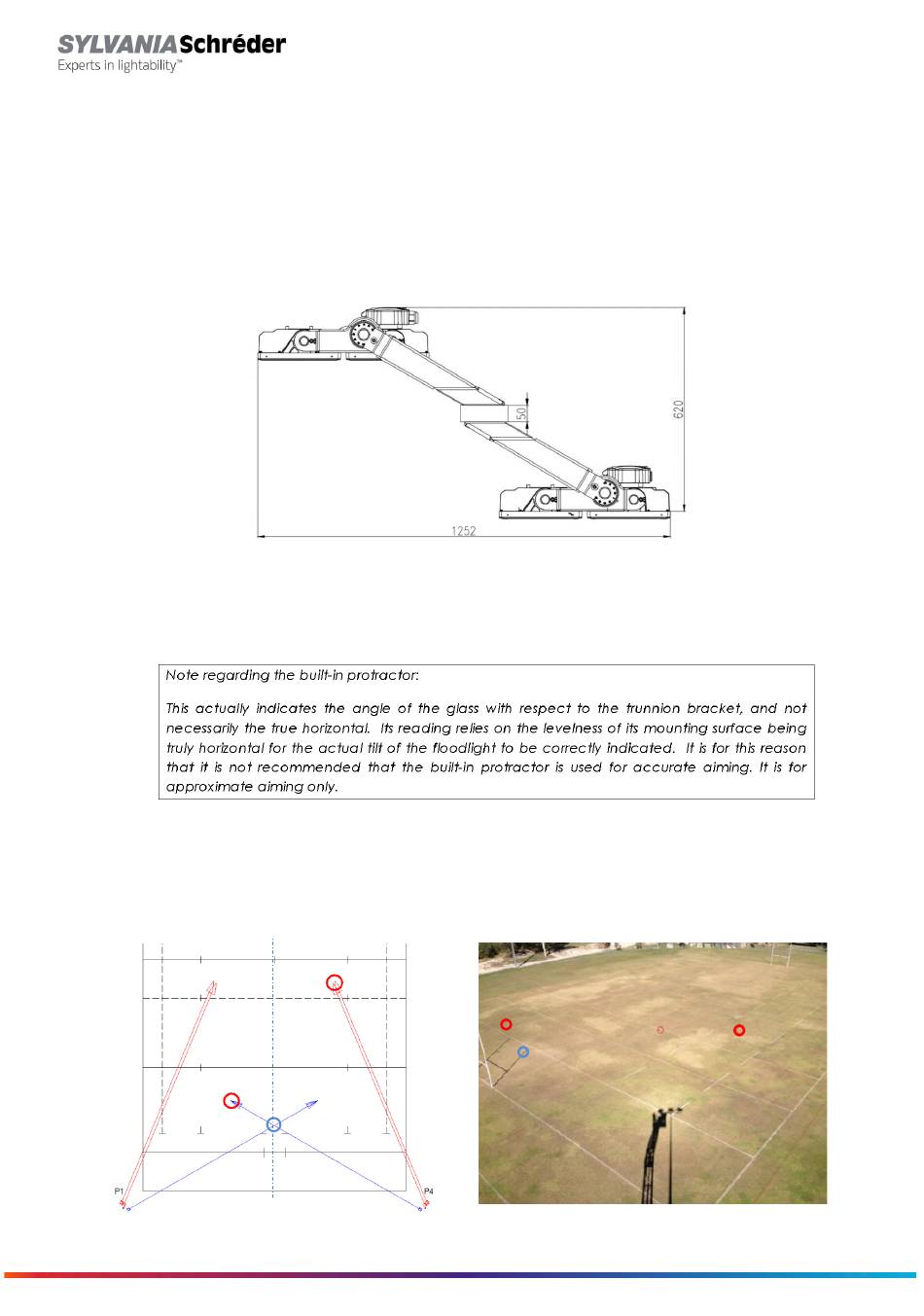

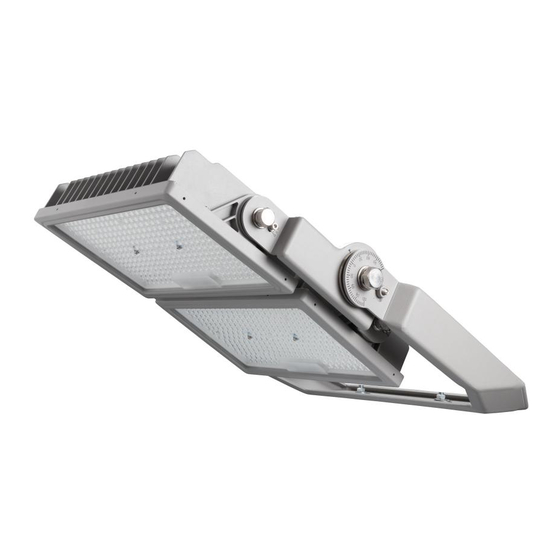

Aiming of Sylvania Sportsline LED floodlights

1. Fit Sylvania Sportsline to cross arm noting that OVERSLUNG units are on top and
UNDERSLUNG units are underneath the cross arm. Under-slung floodlights are offset
automatically from over-slung floodlights when mounted on single cross-arm. Cable glands
should be on back edge of connection box in both cases.
2. Tilt angles can be pre-set using the scale on the side, before cross arm lifting, (see notes 7 &
8 below for details). This angle relates to front tilt, which is 30 degrees different from beam
peak angle for asymmetric fittings, i.e.
front panel tilt.
3. Place markers such as safety cones, (visible from floodlight), at aiming points according to
lighting design aiming diagram and schedule. These points will either be the peak point or,
to minimise the number of targets, a crossover point may be used for multiple fittings, or
crossing a reference line.
Peak point
Crossover point
Aiming of Sylvania Sportsline LED Floodlight
70 degree peak beam angle from design is 40 degree

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sylvania Sportsline G2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Schreder Sylvania Sportsline G2

  • Page 1 Aiming of Sylvania Sportsline LED floodlights 1. Fit Sylvania Sportsline to cross arm noting that OVERSLUNG units are on top and UNDERSLUNG units are underneath the cross arm. Under-slung floodlights are offset automatically from over-slung floodlights when mounted on single cross-arm. Cable glands should be on back edge of connection box in both cases.
  • Page 2 4. Rotate floodlight up to enable lining up of the side of the trunion arm with the marker. If lining up from the rear is not possible, an observer at the aiming point looking back at the floodlight, (preferably using binoculars), can provide guidance to aiming personnel. 5.
  • Page 3 10. Tighten M20 side bolts to 220 Nm so floodlight will no longer move, and confirm installed tilt. Tighten M10 locking grub screw to 40Nm. Aiming of Sylvania Sportsline LED Floodlight...
