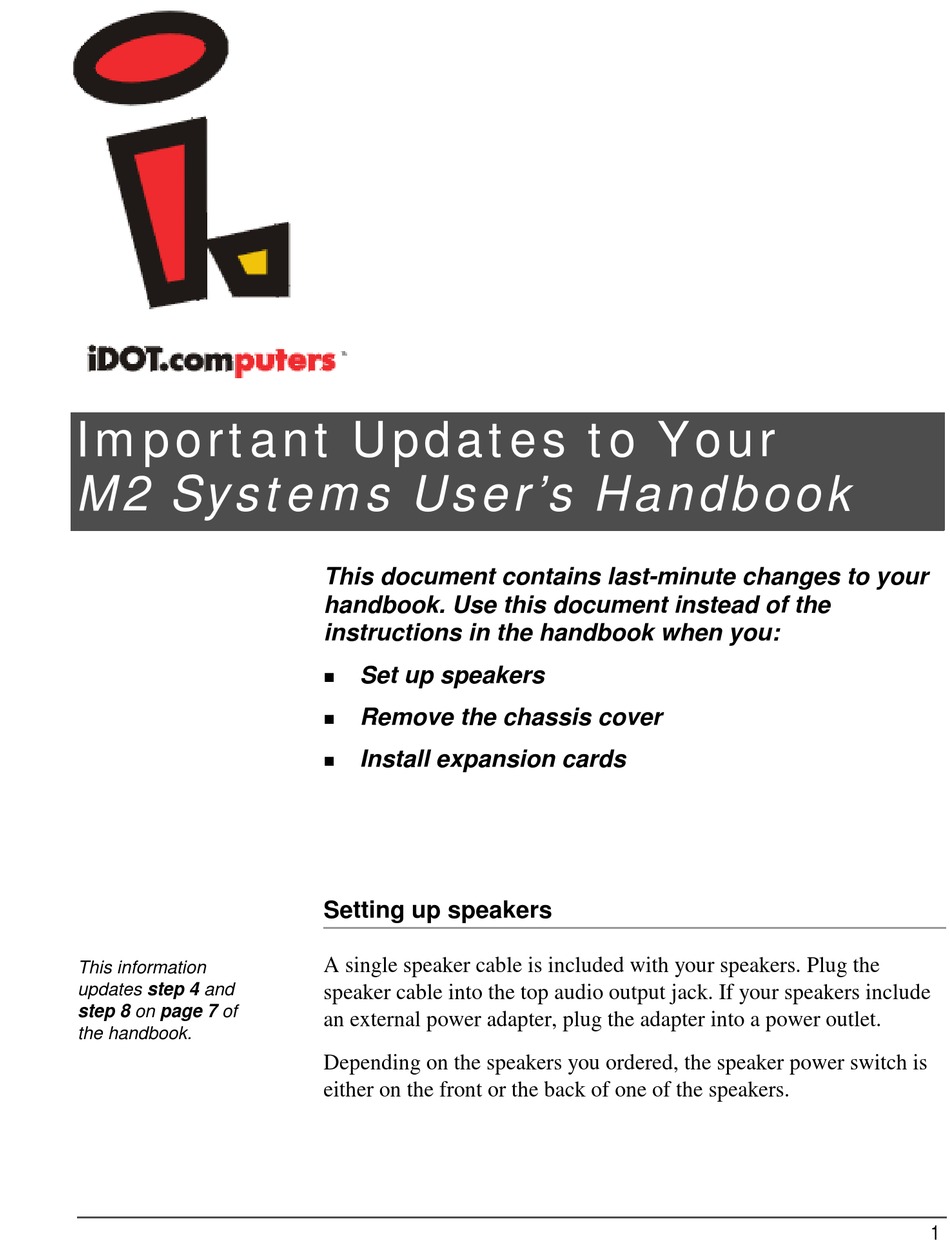

Important Updates to Your
M2 Systems User' s Handbook
This information
updates step 4 and
step 8 on page 7 of
the handbook.
This document contains last-minute changes to your
handbook. Use this document instead of the
instructions in the handbook when you:
Set up speakers
n
Remove the chassis cover
n
Install expansion cards
n
Setting up speakers
A single speaker cable is included with your speakers. Plug the
speaker cable into the top audio output jack. If your speakers include
an external power adapter, plug the adapter into a power outlet.
Depending on the speakers you ordered, the speaker power switch is
either on the front or the back of one of the speakers.
1
Advertisement
Table of Contents
Related Manuals for iDOT M2
Summary of Contents for iDOT M2
- Page 1 Important Updates to Your M2 Systems User’ s Handbook This document contains last-minute changes to your handbook. Use this document instead of the instructions in the handbook when you: Set up speakers Remove the chassis cover Install expansion cards Setting up speakers A single speaker cable is included with your speakers.
- Page 2 Press the pressure- release tabs. Slide the panel toward you about an inch. Tilt the top side of the panel out, to the right, away from the computer, then remove the panel from the computer. M2 Systems User’ s Handbook Update...
- Page 3 Turn off the primary system power switch on the back of the computer before installing or removing any device. Observe static electricity precautions. See the warnings on page 9 of the M2 Systems User’ s Handbook. Remove the chassis cover as described on page 2 of this document.
- Page 4 Reach inside and gently move the slot cover back and forth until it breaks free. Holding the edge of the expansion card, carefully align the edge connector with the expansion slot. M2 Systems User’ s Handbook Update...
- Page 5 Use this rocking motion until the card is firmly seated in the slot. Secure the board by replacing the retaining bracket you removed in step 3. Make sure the card has been placed evenly and completely into the expansion slot. M2 Systems User’ s Handbook Update...
- Page 6 © 1999 by iDOT.com, Inc. and Soyo Computer, Inc. All rights reserved. No part of this document may be reproduced in any form, including translation to another language, without the prior written consent of iDOT.com, Inc.
