Summary of Contents for Sercomm BC950

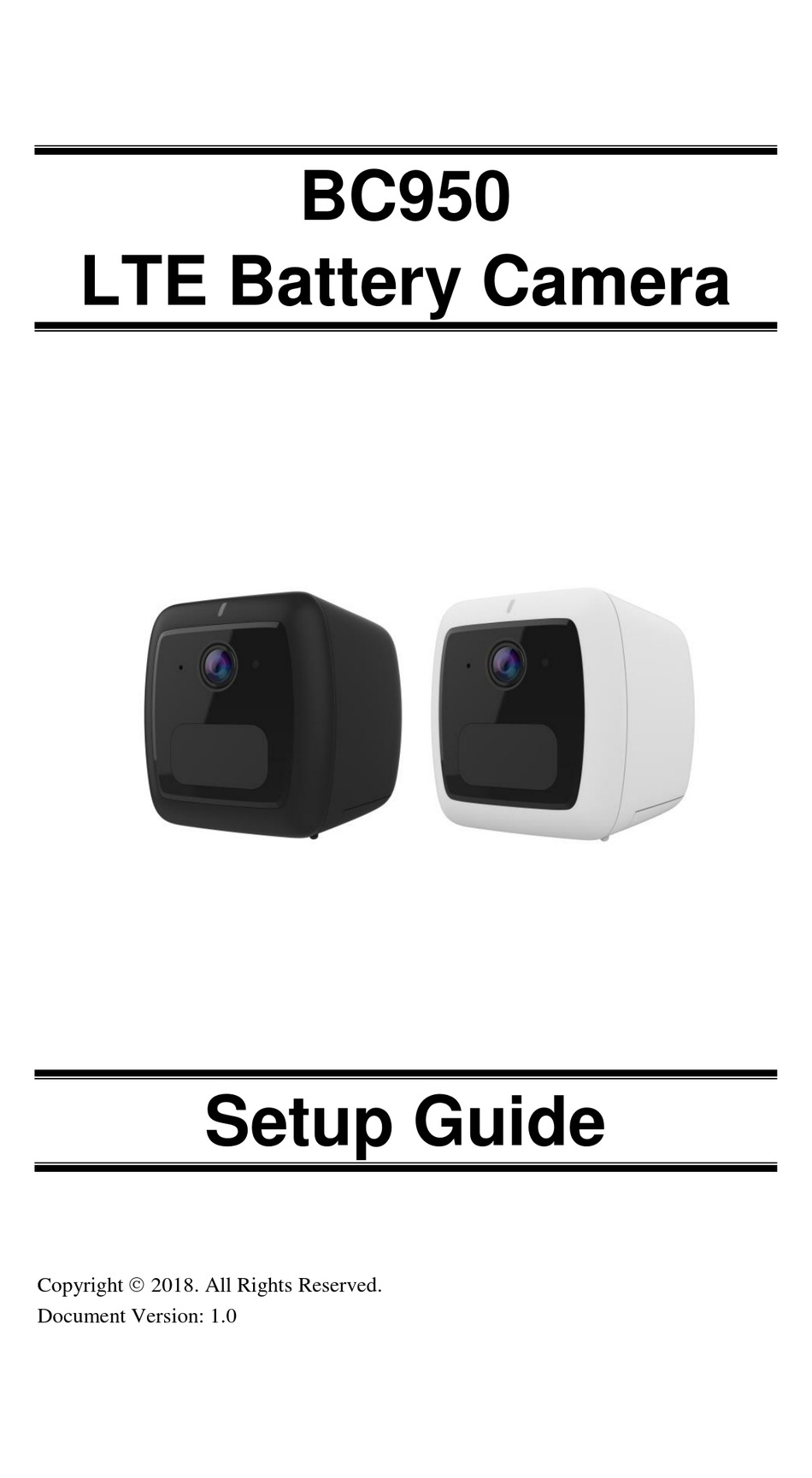

- Page 1 BC950 LTE Battery Camera Setup Guide Copyright 2018. All Rights Reserved. Document Version: 1.0...
-
Page 2: Table Of Contents
Table of Contents Chapter 1 Introduction ......................1 Overview ..........................1 Package Contents ......................2 Chapter 2 Setup ........................3 System Requirements ......................3 Physical Details - LTE Battery Camera ................3 Physical Details - Battery charging station ..............6 Pre-Installation ........................ -
Page 3: Chapter 1 Introduction

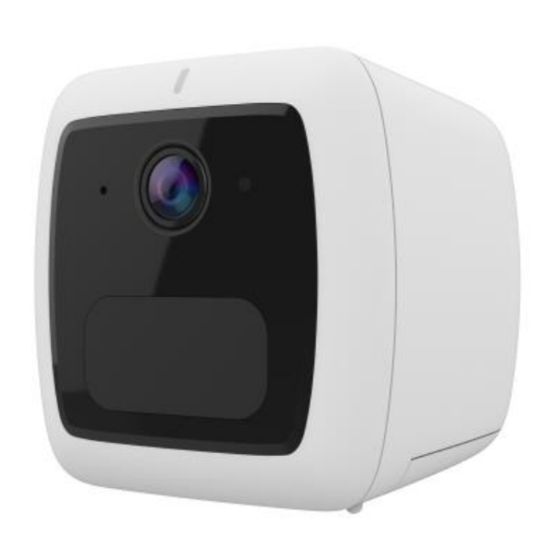

Chapter 1 Introduction This Chapter provides details of the LTE Battery Camera's features, components and capabilities. Overview This LTE Battery Camera that includes built-in LTE, which is designed for use in locations that need to be monitored but don’t have power or Wi-Fi, like a construction site. That means it’s powered by a rechargeable battery. -
Page 4: Package Contents
Package Contents The following items should be included: If any of these items are damaged or missing, please contact your dealer immediately. 1. LTE Battery Camera x 1 2. Battery(P2-01) x 1 3. Stand x 1 4. Power MicroUSB cable x 1 5. -
Page 5: Chapter 2 Setup
Chapter 2 Setup This Chapter provides details on how to install and configure the LTE Battery Camera. System Requirements A mobile device with Internet access • iOS based Smart Phone • Android based Smart Phone • Minimum OS Requirement: iOS 9.0 or later version Android 6.0 or later version An activated SIM card with a data plan 2.1 Confirm APN of your SIM... - Page 6 The camera is receiving a firmware upgrade. Blinking Green/Blue Front Panel The built-in microphone is useful for bi-direction voice Microphone conversation. PIR Sensor This is hardware sensor to detect motion This is hardware sensor to detect LUX. Light Sensor No physical adjustment is required or possible for the lens, but Lens you should ensure that the lens cover remains clean.
- Page 7 Rear Panel Micro-USB Connector This connector is used for charging the power. Connect the supplied Micro-USB cable to this port. Top Panel Sync./Reset This button has two functions: Pairing - When the green LED is flashing slowly, press the button until the green LED is flashing rapidly.
-
Page 8: Physical Details - Battery Charging Station
Physical Details - Battery charging station Color Status Battery Charging is on going Solid Amber Battery can’t be charged because battery level has been over 95%. Amber blinking three (**Battery can be charged to 100% once battery level under times, and then off 94%.) Battery Charging is completed... -
Page 9: Pre-Installation
Pre-Installation The camera sends the videos to the account in the cloud via the mobile network. To do this, the user needs an activated SIM card installed in the camera. See the instruction from your service provider for more information about how to activate the SIM card. Please ensure SIM card and the battery are inserted into the camera before using the camera. -
Page 10: Installation
Make sure that you activate the SIM card, and the SIM card is inserted in the camera as well. Tap the Ovu icon on your mobile device. If you already set up an Ovu account, log in, and click Add Camera icon. Select BC950. Then press "NEXT". - Page 11 Read and follow the on-line instructions. Press "NEXT". Press the Sync button on the camera. Read and follow the on-line instructions.
- Page 12 Let the App scan the QR code on the camera with an appropriate distance. Be sure to hold the cell phone steady while scanning the QR code.
- Page 13 The pairing is in process and it may take a while to connect the camera to the cloud server. Enter desired names for the camera and zone in the following screen. Then press "DONE".
-
Page 14: Mounting Installation
Mounting Installation Place the camera in a flat surface or mount it on the wall/ceiling. For best results, we recommend to locate the camera in a location where the Ovu app displays at least three bars of mobile network signal strength. ... -
Page 15: Chapter 3 Ovu App
Chapter 3 Ovu App This Chapter describes how to use the Ovu App to get the access to the camera system. Overview This Ovu app can help you to get more from your surveillance system. With this easy to use app, now it's simple to be in control, get alerts and watch videos in the palm of your hand. - Page 16 4. Click the following link to trust the App. 5. Once installed, tap the ″Ovu″ app icon from your screen to open it.
-
Page 17: Account Registration
Account Registration Simple setup is required only for the first time you launch the App. If you access the Mobile App for the first time, you will be asked for account registration: 1. Press the "Ovu" icon in the desktop. 2. - Page 18 5. When the app launched, enter the e-mail address and password. Then tap "SIGN IN" to login. 6. The following sample screen will be displayed when you logged in successfully. Note: The user needs to tab the icon to add a camera if the camera intended to use is not added.
- Page 19 Forget Password 1. Press "FORGET PASSWORD" in the login screen, 2. Enter the email address. 3. Press "RE-SENDING EMAIL" button. 4. Click "OK". 5. You will receive an email in your email box. Click on a link in the email and follow the instructions to reset the password.
-
Page 20: Camera Settings
Camera Settings The camera screen will display the still picture of the added camera (updated every 10 minutes). The camera name is displayed in the upper right corner. The setting button is located in the upper left corner. Other information like camera location, battery status, WIFI signal and Share button are located in the lower edge. - Page 21 Deleting BC950 Press icon of the selected camera in the screen. Press "REMOVE THE CAMERA" button in Camera Settings screen. Note: AFTER REMOVING THE CAMERA, THE USER NEEDS TO RESET THE CAMERA TO DEFAULT FACTORY SETTINGS BEFORE RE-ADDING TO THE ACCOUNT AGAIN.
- Page 22 All related videos are deleted after camera is removed. Camera Settings Press icon of the selected camera to go to the Camera Settings screen.
- Page 23 Settings (settings may differ according to camera models) General Camera Name Enter the name of the camera. Use this to turn on/off the voice. Voice On/Off Enter the location of the camera. Camera Location Camera The following information will be displayed: Information ...
- Page 24 Active Settings Press to go to the Active Settings screen. Motion Detection - Turn this on if you want to get notifications when motion is detected. Audio Detection - You will get an event notification if there is a sound detection. ...
- Page 25 Firmware Upgrade There are generally two ways to update the firmware: automatic updates or manual updates. Automatic Updates Press icon of the selected camera to go to the Camera Settings screen Tap CAMERA INFORMATION. Enable "Auto Firmware Update" option. After turning the option on, the firmware updates will roll out to the devices automatically.
- Page 26 Manual Updates Press icon of the selected camera to go to the Camera Settings screen Tap CAMERA INFORMATION. Scroll down and check the firmware version. If you see new update instead, your device has new firmware available. Tap UPDATE and follow the onscreen instructions to update the firmware.
-
Page 27: Chapter 4 Troubleshooting
Chapter 4 Troubleshooting This chapter covers the most likely problems and their solutions. Overview This chapter covers some common problems that may be encountered while using the LTE Battery Camera and some possible solutions to them. If you follow the suggested steps and the LTE Battery Camera still does not function properly, contact your dealer for further advice. -
Page 28: Appendix A Specifications
Appendix A Specifications LTE Battery Camera Model LTE Battery Camera Dimensions 80.8 mm *83 mm * 97.3mm (H x W x D) Operating Temperature C to 50 Charging Temperature C to 30 Storage Temperature C to 55 Network Protocols TCP/IP, HTTP, HTTPS, DHCP, NTP, RTP, RTCP, RTSP, DNS... -
Page 29: Regulatory Approvals
Regulatory Approvals FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 30: P2-01 Battery Caution
P2-01 Battery Caution...
