Middle Atlantic FlexView FVS Series Instruction Sheet

Electric lift

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

THANK YOU

Thank you for purchasing the FlexView™ FVS Series Electric Lift. Please read these instructions

thoroughly before installing this product.

PRODUCT FEATURES

• Middle Atlantic PD-815SC (8) outlet, 15 amp power strip with surge and circuit breaker.

• Simple display mounting with electric height adjustment.

• Lever Lock™ for easy mounting of Codecs and smaller components.

• Adjustable cable management included.

Instruction Sheet

FlexView ™

FVS Series Electric Lift

I-00669

Rev D

Table of Contents

Need help?

Do you have a question about the FlexView FVS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Middle Atlantic FlexView FVS Series

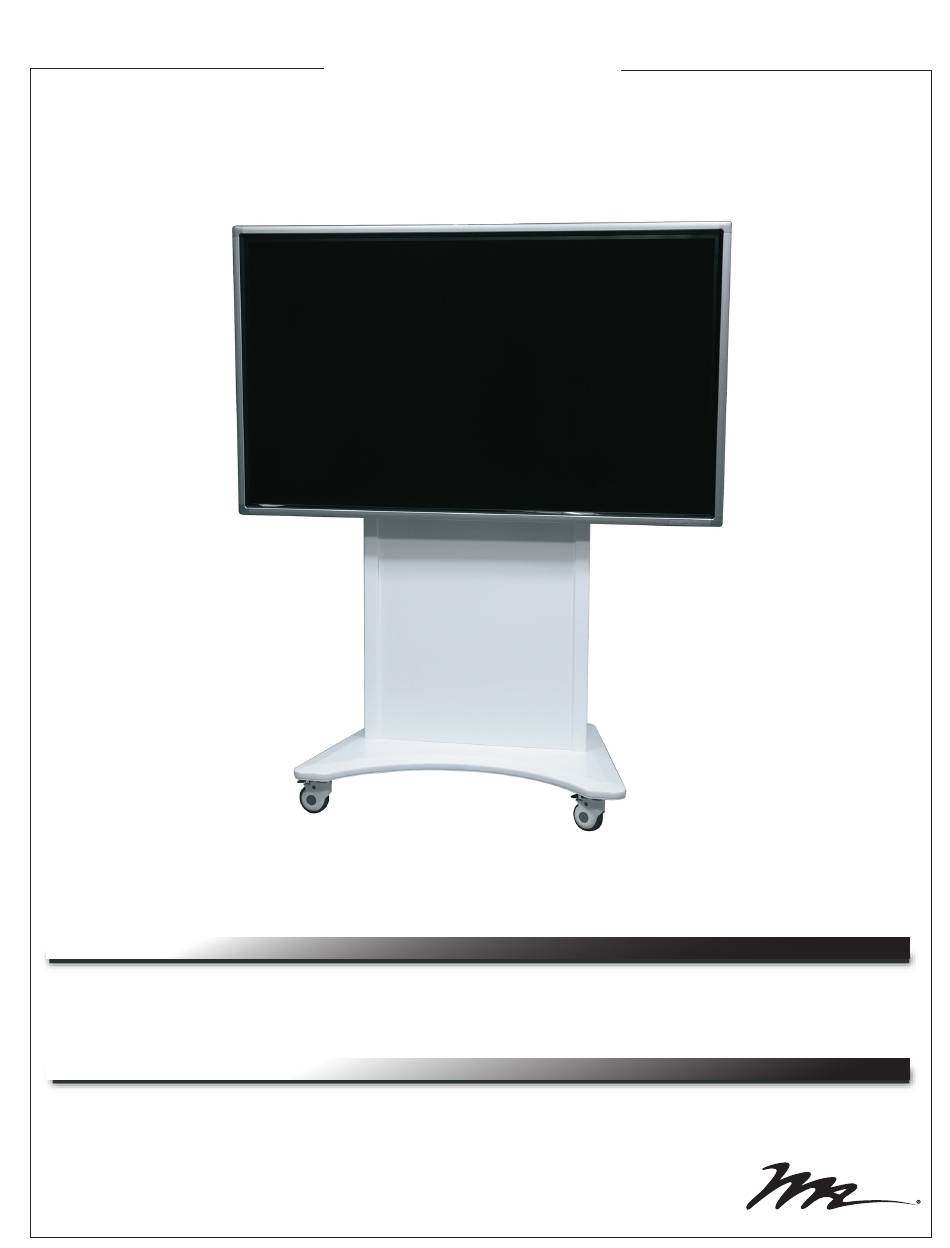

Page 1 PRODUCT FEATURES • Middle Atlantic PD-815SC (8) outlet, 15 amp power strip with surge and circuit breaker. • Simple display mounting with electric height adjustment. • Lever Lock™ for easy mounting of Codecs and smaller components.
Page 2: Table Of Contents
TABLE OF CONTENTS Grounding Instructions Page 3 Important Safety Instructions Page 4 - 6 Weight Ratings Page 7 Required Tools Page 8 Mobility Features Page 8 Operation Page 8 Supplied Components and Hardware Page 9 Display Installation Page 10 Vesa 800 Extension Bracket Installation (If Required) Page 11 Display Installation (Continued) Page 11...
Page 3: Grounding Instructions
GROUNDING INSTRUCTIONS - INSTRUCTIONS DE MISE À LA TERRE This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.
Page 4 IMPORTANT SAFETY INSTRUCTIONS - INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ CAUTION! To avoid an unstable condition, place heavier WARNING/CAUTION! The exclamation point within an components at the bottom of the cabinet. When more than equilateral triangle is intended to alert the user to the one component is placed in the cabinet, begin at the presence of important operating and maintenance bottom of the cabinet and place equipment at the lowest...
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed, including the following: • For institutional use. • Read and follow all instructions before using. • WARNING – Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on the child.
Page 6 INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ Lorsque vous utilisez des mobiliers électriques, toujours respecter les précautions de base, notamment : • Usage institutionnel. • Lire et suivre toutes les instructions avant l'utilisation du matériel. • AVERTISSEMENT - Des blessures graves ou mortelles peuvent survenir si un enfant grimpe sur le meuble d'un équipement audio ou vidéo.
Page 7: Weight Ratings
WEIGHT RATINGS Item Weight Rating 175 lbs. (79.4 kg) Maximum Display (40” - 90”) 190 lbs. (97.5 kg) Maximum Display (40” - 90”, Including Camera Mount, and Soundbar Mount) 50 lbs. (23 kg) Maximum Internal 240 lbs. (109 kg) Maximum Total Rated Load CAMERA MAXIMUM: 20LBS (9.1KG) DISPLAY MAXIMUM: 175 LBS (79.4 KG);...
Page 8: Required Tools
REQUIRED TOOLS • #2 Phillips • Adjustable WARNING: Use tools with caution and follow all Screwdriver Wrench necessary safety protocols. • Protective Eyewear • ½” Socket AVERTISSEMENT: Utiliser des outils avec prudence • Toothpick or Small • 7/16” Socket et suivre tous les protocoles de sécurité nécessaires. Straw MOBILITY FEATURES •...
Page 9: Supplied Components And Hardware
SUPPLIED COMPONENTS AND HARDWARE If any pieces are missing or damaged, please report it immediately to Technical Support at av.support@legrand.com or (866) 977-3901. #6 Washer Pan Head Flange Nut For Mounting Screw Cable 5/16-18 Flange Nut Small-Screw 8-32 (Qty 8) Management (Qty 8) Key (Qty 2)
Page 10: Display Installation
DISPLAY INSTALLATION NOTE: It is recommended to position the display so that it is centered with the eye line of the viewer. Selecting The Mounting Hardware To Attach Brackets To Display 1. Identify the correct diameter screw for the display threaded inserts. The correct screws should thread easily and not pull out when tension is applied.
Page 11: Vesa 800 Extension Bracket Installation (If Required)
VESA 800 EXTENSION BRACKET INSTALLATION (IF REQUIRED) 1. For displays that require VESA 800 spacing, the VESA 800 display adapter bracket must be used (not required for VESA 600 or less spacing). 2. Place vertical display mounting brackets over VESA 800 adapter bracket studs and secure using (4) 5/16-18 flange nuts.
Page 12 DISPLAY INSTALLATION (CONTINUED) Attaching Vertical Mounting Brackets to Display NOTE: The brackets are indicated (L) Left and (R) Right. 1. Place the displayl face down on a soft, flat surface and Mounting Screw identify the number and location of screws. Vertical Mounting Bracket...
Page 13 DISPLAY INSTALLATION (CONTINUED) 4. Slide display sideways until vertical mounting brackets drop into notches in horizontal mounting bracket. (FIGURE G) NOTE: Several notch locations are provided for horizontal position adjustment. Notches FIGURE G 5. Raise display to highest position. Screws (2) 10-32 x ¾”...
Page 14: Door Reversal Procedure
DOOR REVERSAL PROCEDURE 1. Lift and twist door hinges to remove desired door. (FIGURE J) FIGURE J 2. On lower door only, remove and reinstall hinge on opposite side. (FIGURE K) 3. Re-attach doors using holes provided. FIGURE K Page 14...
Page 15: Lever Lock™ Tool Free Internal Management System
LEVER LOCK™ TOOL FREE INTERNAL MANAGEMENT SYSTEM The FlexView comes equipped with the following Lever Lock™ items: (6) LL receptacle brackets, (2) LL-HC21 horizontal channels, and (1) LL-VP1710 vertical 10” deep plate. Use Receptacle Brackets To Lace Use Vertical Cable Bundles Plate To Mount From Top To Bottom Small Devices...
Page 16: Display Leveling
DISPLAY LEVELING 1. Loosen two pre-installed display leveling screws. (FIGURE P) 2. Loosen three pre-installed display bracket screws. 3. Place level on display mount. 4. Make fine adjustments by tightening top display leveling screw (to adjust clockwise) or bottom display leveling screw (to adjust counterclockwise). 5.
Page 17: Cable Management And Equipment Mounting
Position and secure clips in channels as necessary using screws. (FIGURE R) Clip Screw Cable Cable Service Loop Routing To Display Middle Atlantic PD-815SC (8) outlet, 15 amp power strip Accessory / with surge and circuit breaker Storage Trough FIGURE R UNIT MAINTENANCE 1.
Page 18: Warranty
P: (866) 977-3901 | F: (877) 894-6918 | legrandav.com | av.support@legrand.com Middle Atlantic Canada P: (888) 766-9770 | F: (888) 599-5009 | ca.middleatlantic.com | av.canada.customerservice@legrand.com Middle Atlantic EMEA Technical Support P: +31 495-726-003 | av.emea.middleatlantic.support@legrand.com Factory Distribution United States: New Jersey, California, and Illinois | Canada: Ontario | The Netherlands: Weert At Legrand AV Inc.
