Summary of Contents for iDTRONIC C4 GREEN

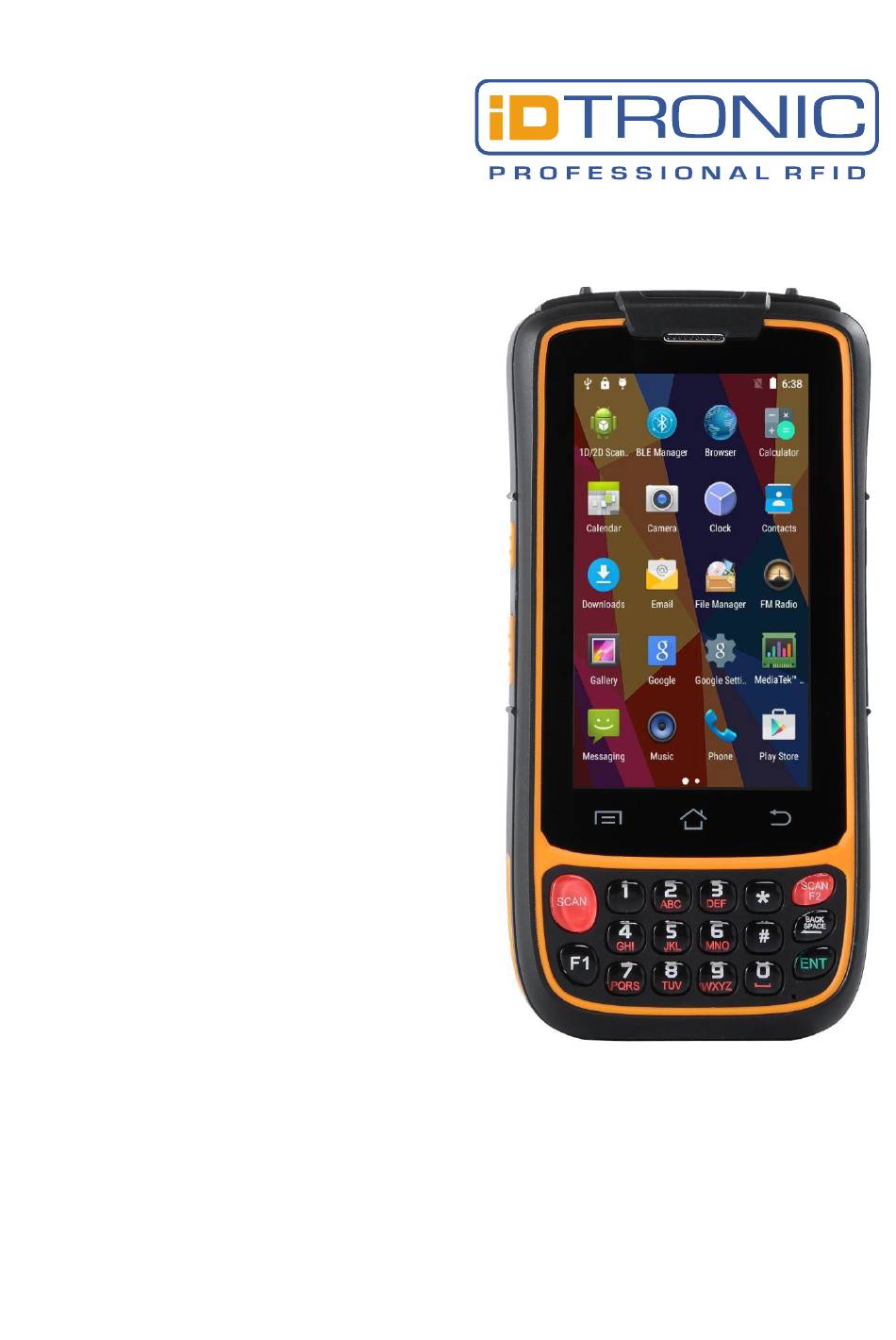

- Page 1 C4 GREEN Quick Manual...
- Page 2 Issue 1.0 – 27. February 2017 – Germany/Deutschland Phone: +49 621 6690094-0 Fax: +49 621 6690094-9 Subject to alteration without prior notice. E-Mail: info@idtronic.de © Copyright iDTRONIC GmbH 2017 Web: idtronic.de Printed in Germany Page 2 of 9 Handheld Terminal...
-
Page 3: Table Of Contents
C4 GREEN Quick Manual Contents Features and Structure ............................. 4 Basic Operation ................................ 5 Wake up ................................5 Shutdown ................................5 Software Installation and Data Transfer with a PC .................... 5 Uninstall Apps ..............................6 Add Google Playstore Account .......................... 6 Remove Google Playstore Account ........................ -
Page 4: Features And Structure
Quick Manual Hardware Description Features and Structure Barcode Scan Window DC/USB Port Volume Button Power Button Reserved Button Return Button Menu Scan Button ENTER Battery Pins SIM Slot Micro SD Slot PSAM Slot 2 PSAM Slot 1 Page 4 of 9 Handheld Terminal... -
Page 5: Basic Operation
C4 GREEN Quick Manual Accessories Basic Operation Wake up System would enter standby mode automatically after the default 1 minute idle status, or we can press the power button to enter the standby mode forcedly; For tablets in standby mode, please the power button slightly to wake it up;... -
Page 6: Uninstall Apps
Quick Manual Hardware Description Uninstall Apps Open “Settings” => go to section “Device” => open “Apps” => select desired app, this will open an information and action screen. Add Google Playstore Account If you open Google Playstore for the first time, you are requested to input the e-mail address and password of your Google Playstore account. -
Page 7: Technical Data
C4 GREEN Quick Manual Technical Data Physical Characteristics Dimension 158 × 75 × 28 ±2 mm (H × W × D) Weight Net Weight :300 g (including battery & wrist strap) Display Gorilla Glass 3 9H 4.0 in. TFT-LCD (WVGA 480 × 800) touch screen with backlight... - Page 8 Quick Manual Hardware Description Data Capturer Barcode Reader (Optional) 1D Barcode 1D laser engine Symbol SE955 Symbologies All major 1D barcodes 2D Barcode 2D CMOS Imager Honeywell N6603 Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal.
-
Page 9: Troubleshooting
C4 GREEN Quick Manual Troubleshooting Camera already in use by other app This happens because 2D and camera share the same physical hardware connection, so they cannot be open at the same time. You need to close one hardware module before opening the other one. This limitation exists in all the 2D devices including devices from the other manufacturers.
