Ensure that the controller is turned off and the power
!
cord is disconnected from the outlet before attempting
to install the 4-20 mA option board. The option board
CAUTION
has very fragile pins, which are protected by anti-static
foam for shipping. Please use extreme care in handling.
The circuit can be damaged by electrostatic discharge
or rough handling. ESD protection is recommended.

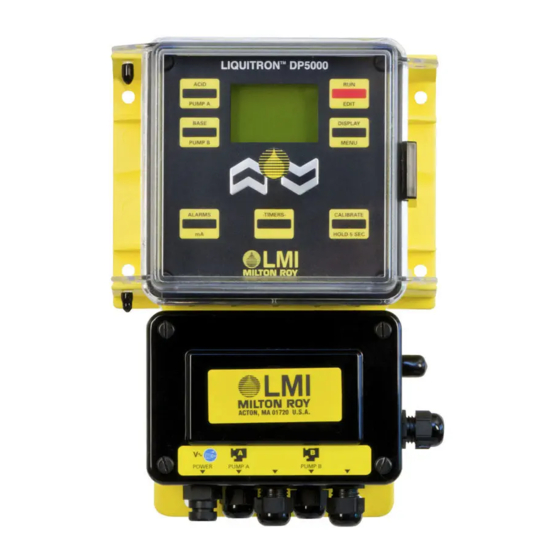

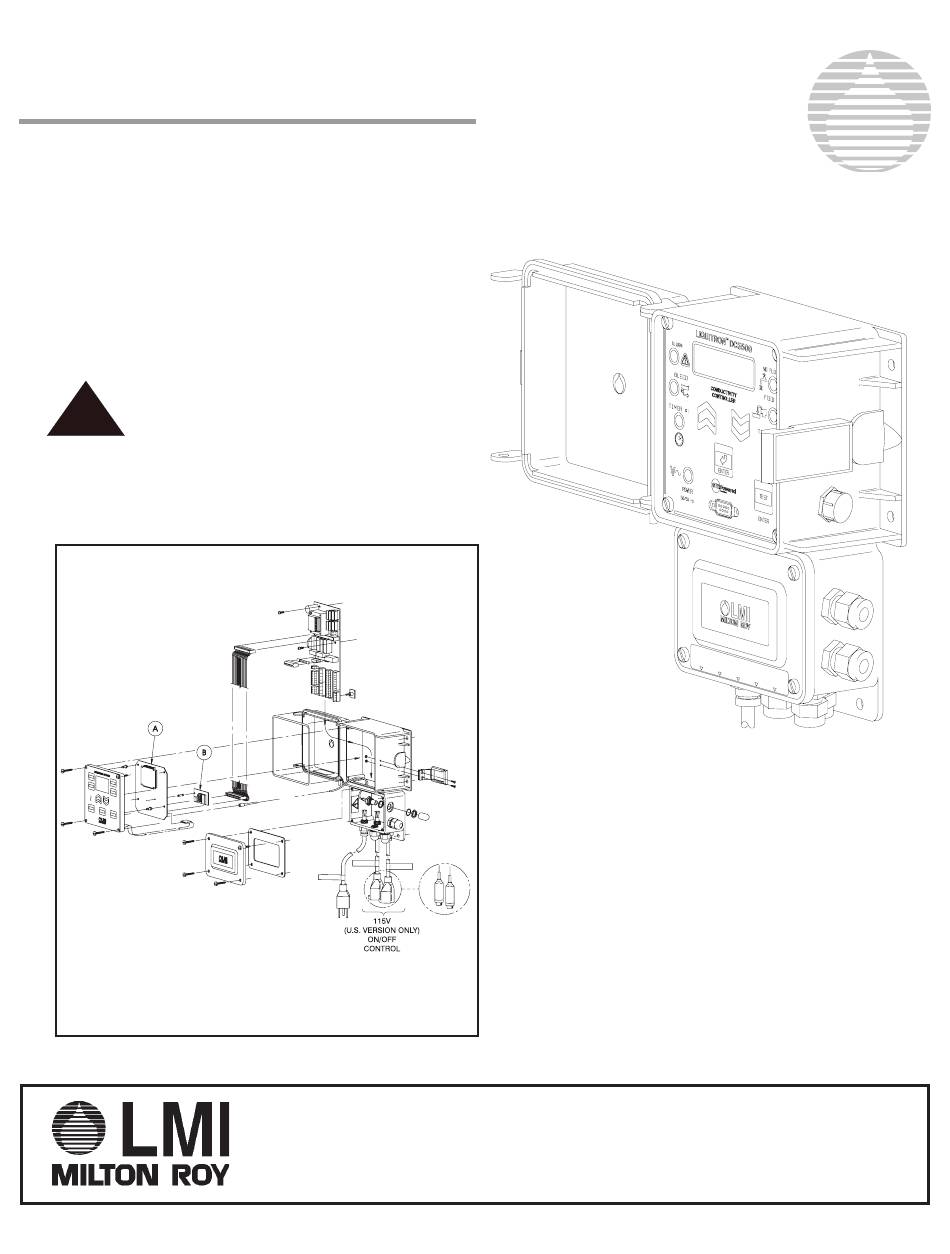

Figure 1
Instruction
Liquitron™ DP5000/DR5000 Series
1. Disconnect AC power and open the front clear plastic
cover. Remove the four screws from the top keypad
display panel (see Figure 1).
2. Remove the keypad panel from the controller.
Do Not disconnect the keypad from the cable ribbon.
Sheet
4-20 mA Option Board
Part # 37830
201 Ivyland Road
Ivyland, PA 18974 USA
TEL: (215) 293-0401
FAX: (215) 293-0445
http://www.lmipumps.com
Replaces same of Rev. B 6/01
1774.C 10/2010
