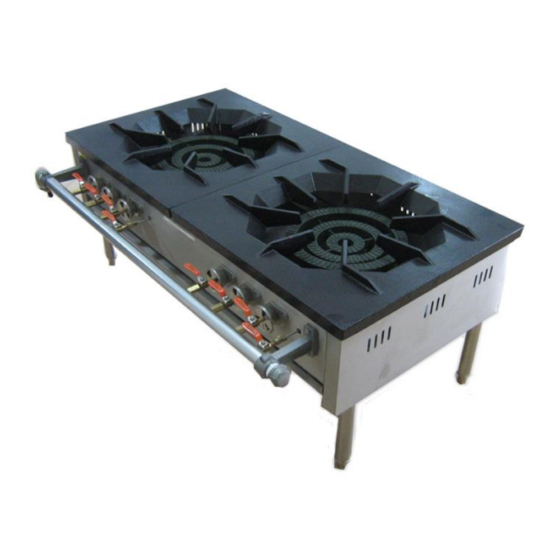

Stainless steel stock pot
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
SP 1-H T
SP 1-H P
Made in Malaysia
(Buatan Malaysia)
Thank you for purchasing BERJAYA product. Please read this
service manual carefully before operating the product.
Please keep this manual in a safe place for future reference.
(Terima kasih kerana membeli produk BERJAYA. Sila baca
manual penyelenggaraan dengan teliti sebelum menggunakan
produk ini. Simpankan panduan operasi ini dengan selamat
untuk rujukan masa depan.)
(SM - Stainless Steel Stock Pot / REV 00 / 2018 / 04)
Service Manual
(Manual Penyelenggaraan)
Stainless Steel Stock Pot
Contents (Kandungan) : -
- Installation (Pemasangan) ............................
- Leak Testing (Ujian Kebocoran) .....................
- Technical Data (Data Teknikal) .......................
- Operation (Operasi) ......................................
- Warning (Amaran) ........................................
- Cleaning (Pembersihan) ...............................
- Memo (Memo) .............................................
SP 2
2
2
2
3
3-4
3-4
5
5
6
6
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP 1-H T and is the answer not in the manual?

Questions and answers

Summary of Contents for BERJAYA SP 1-H T

  • Page 1 - Leak Testing (Ujian Kebocoran) ………………… - Explosive Drawing (Rajah Terperinci) ………….. - Component List (Senarai Komponen) …………. Thank you for purchasing BERJAYA product. Please read this - Technical Data (Data Teknikal) ………………….. service manual carefully before operating the product.
  • Page 2 INSTALLATION (PEMASANGAN) - Installation and maintenance are to be performed by authorized person. (Pemasangan dan penyelenggaraan alat ini hendaklah dilakukan oleh wakil yang bertauliah.) - Must conform with local codes, building regulation and any other authority having inspection. (Penggunaan alat ini hendaklah mematuhi peraturan-peraturan tempatan.) SITE PREPARATION (PERSEDIAAN TEMPAT) - Only install the appliance in a well ventilated place.
  • Page 3 0.25mm Ø 1.10mm Ø (Outer) 0.50mm Ø (Inner) SP 2-H P 0.25mm Ø 1.10mm Ø (Outer) 0.50mm Ø (Inner) SP 1-H T 0.30mm Ø 0.60mm Ø SP 2-H T 0.30mm Ø 0.60mm Ø LEAK TESTING (UJIAN KEBOCORAN) - Never use an open flame for leaking testing.
  • Page 4 EXPLOSIVE DRAWING (RAJAH TERPERINCI) - SP 1-H T, SP 2-H T - HIGH PRESSURE (TEKANAN TINGGI) COMPONENTS LIST (SENARAI KOMPONEN) - SP 1-H T, SP 2-H T - HIGH PRESSURE (TEKANAN TINGGI) Description (Butir-Butir) LPG & NG Cast Iron Plate - 600 X 600 (Plat Besi - 600 X 600)
  • Page 5 - For fire lifting, adjust the air mixing plate. (Jikalau nyalaan api terapung, laraskan plat penyekat udara untuk mengubahkan nisbah campuran udara dengan gas.) OPERATION (OPERASI) - SP 1-H T, SP 2-H T - HIGH PRESSURE (TEKANAN TINGGI) - Connect the equipment to high pressure gas regulator.
  • Page 6 WARNING (AMARAN) - This appliance is designed for cooking foodstuffs. It is intended for commercial use only. Any other use is to be considered improper. (Alat ini direkabentuk khas untuk memasakkan makanan secara komersil. Kegunaan alat ini untuk tujuan lain adalah tidak sesuai.) - Do not spray aerosols in the vicinity of this appliance while it is in operation.
  • Page 7 - Over supply of oxygen. - Control the burner air mixing plate. (Oksigen terlalu banyak.) (Kawalkan plat campuran udara.) - Clean up the nozzle. Back fire (Nyalaan api (Bersihkan mucung penunu.) tersedut balik dan padam) - Under supply of gas. - Check and control the gas regulator.
