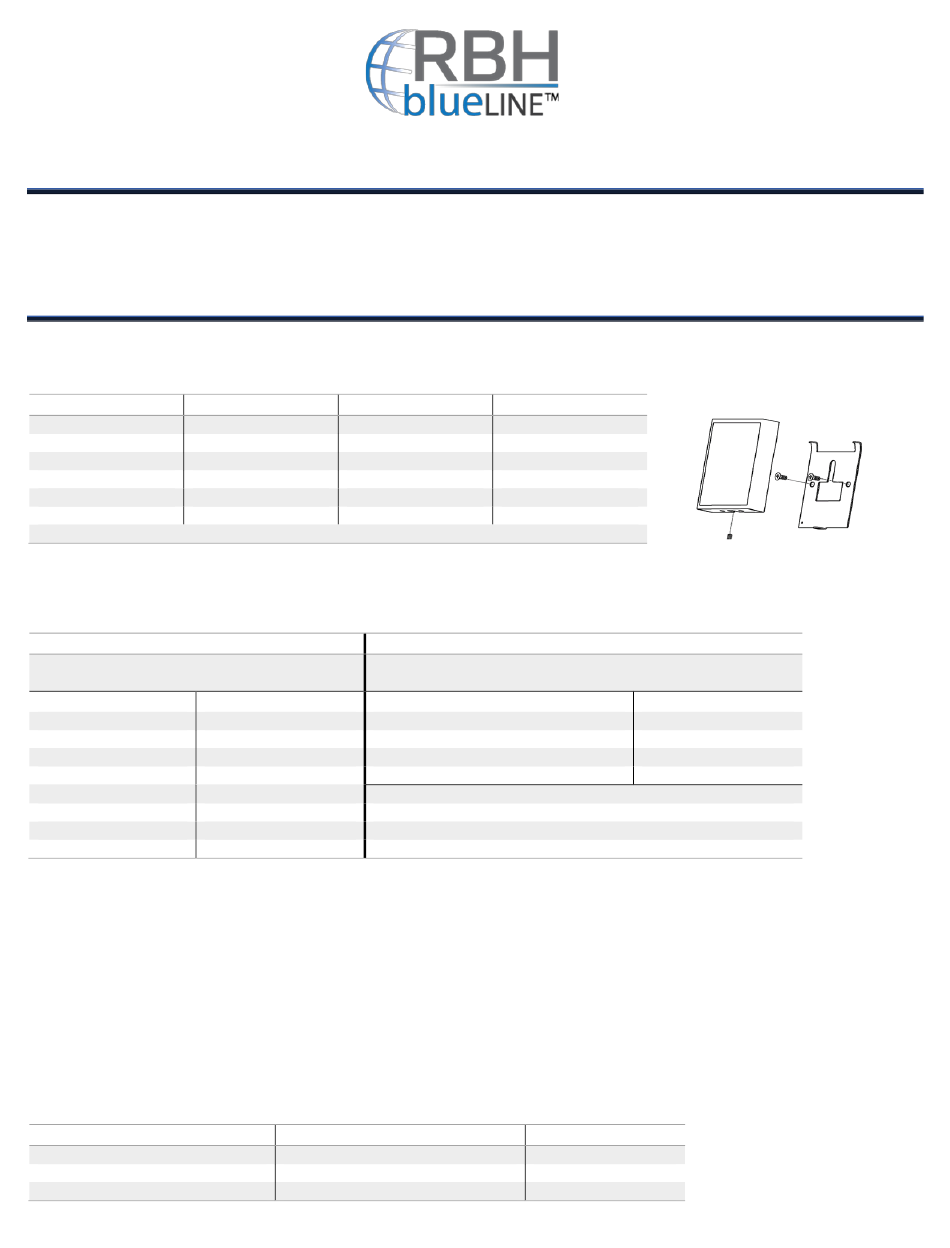

RBH Sound blueLINE RBH-N86-D Installation Manual

TM
Readers in the blueLINE
bit credentials are supported. Communication to controllers can be using standard Wiegand or OSDP version 1 & 2 for increased security where
maximum integrity and tamper conditions are required. All blueLINE
operating system devices for build revision version 17-1.0.8g and up.
TM
I. BlueLINE Readers Models and Mounting
Model

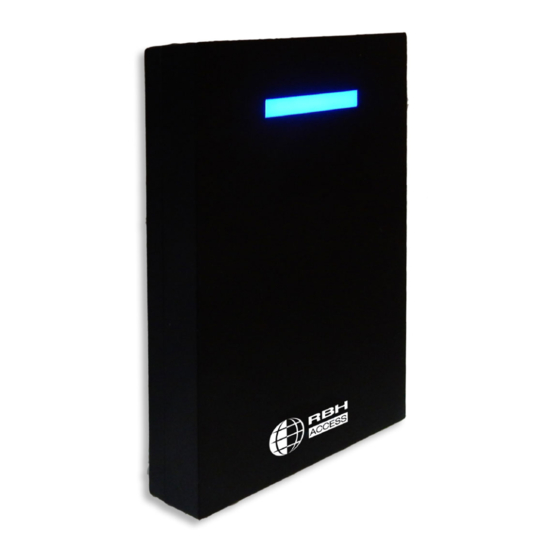

RBH-N86-D
RBH-N86-DNB
RBH-M45-D
RBH-M45-DNB
RBH-NK86-D
RBH-NK86-DNB
*** D=Desfire(EV1 & EV2)
II.

Cabling and Communication

Wiring is in accordance with the National Electrical Code, ANSI/NFPA 70
Wiegand
500' (152m) max, 18-22 AWG, 6-7 conductor
shielded cable
Wire Color
Red:
Black:
Brown:
Orange:
Green:
White:
Blue:
Yellow:
III.

Power Supply

DC power for this reader is generally supplied from terminals of the Wiegand reader port on the system's panel and panel is battery backed up. If
this is not possible, use an independent power supply. Power should be nominal 9 - 15 volts DC @ 120ma regulated output. If the power supply is
independent from the panel's reader port, the reader's black wire must be connected to both the power supply's Negative terminal and the panel's
Ground terminal.
IV.

Operation

1. When the reader is first powered on it will beep twice and the LED will turn blue.
2. When presented with a supported access credential the reader will perform the following operations:
Access Granted
Access Denied
Standby (Card Swipe not needed)
RBH blueLINE
series are capable of using DESFire (EV1 & EV2) and Mifare credentials for the highest of security standards and up to 128
Single Gang Mount Mullion Mount
X
X
X
X
DNB=Desfire(EV1 & EV2), NFC and Bluetooth ***
Function
9 – 12 VDC
Ground
RS485+
RS485-
WD0
WD1
LED
Buzzer
LED
Turn Green for unlock time
Flashes Red and Green
Stays Blue
TM
Readers Installation Manual
TM
readers use UHSC via NFC or Bluetooth and supports both Android and IOS
Firmware
10-XXXX
11-XXXX
X 10-XXXX
X 11-XXXX
10-XXXX
11-XXXX
RS485: 2,000' (610m) max, 20-22 AWG, 1 twisted stranded shielded
pair cable
Wire Color
Red:
Black:
Brown:
Orange:
Default Baud rate: 9600 bps
Default Address: 1
Default Secure Channel Key:
SCBK_D = 0x303132333435363738393A3B3C3D3E3
Buzzer
Beeps Once
Beeps Twice
No Sound
Surface Mounting using 2 provided
anchoring screws:
OSDP
Function
9 – 12 VDC
Ground
RS485+
RS485-
