Summary of Contents for BISLEY Glide V2

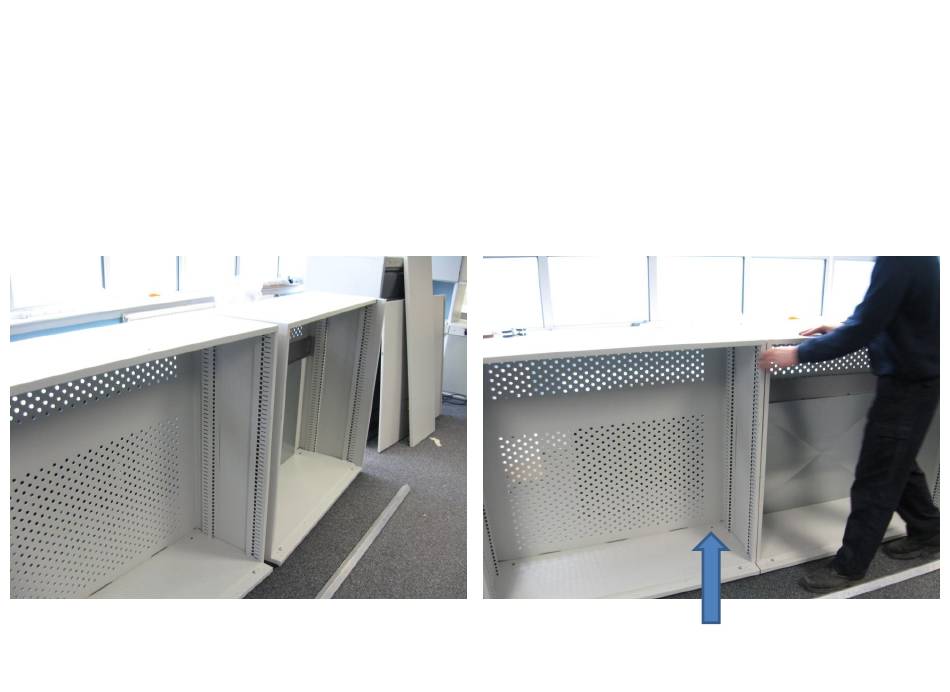

- Page 1 Glide V2 Assembly Instructions Level the unit One Left and one Right handed unit. Place inner sides together matching front and tops and level units using adjustable feet...
- Page 2 Glide V2 Assembly Instructions Fitting the top Screw 2x No.8 Dome head screws into Place the over-sailing top assembly the holes at each corner across the two cabinets.
- Page 3 Glide V2 Assembly Instructions Fitting the top Lower the top and push it back flush With the Aluminium track at the front. with the front as far as it goes Locate the keyhole cut-outs over the screws...
- Page 4 Glide V2 Assembly Instructions Fitting the top Fix top down with screws. Fit hanging rails at same time using these fixings. M6 x 14mm Pan head screws (not shown)
- Page 5 Glide V2 Assembly Instructions Fitting the top Use all screws provided in both carcases.
- Page 6 Glide V2 Assembly Instructions Fitting bottom plinth rail. Place the rail at an angle to the front edge of the carcase base, line up the ob- round cut-outs to the screw threads and press home.
- Page 7 Glide V2 Assembly Instructions Fitting Bottom Plinth Rail Use supplied No.8 x 3/8 pan head Screw in securely in pre-drilled screws. positions.
- Page 8 Glide V2 Assembly Instructions Fitting Base Channel Cover Fit supplied Base Channel Covers to sit over the screw heads, covers are handed...
- Page 9 Glide V2 Assembly Instructions Fitting Doors Check there is 2x top running gear in the outer top channel and 2x in the The Outer door (LH) has a lock fixed in the inner channel right hand edge opposite the handle.
- Page 10 Glide V2 Assembly Instructions Fitting Doors Fit the Inner Door (RH) first, place the base sliders into the rear bottom channel. Top running gear has spring clips to the sides so will ‘snap fit’ when located correctly into the doors top fixings.
- Page 11 Glide V2 Assembly Instructions Fitting Doors Tighten off the centre screws in the upper running gear. Fit the Outer Door in the same way, locating the bottom running rear into the front channel...
- Page 12 Glide V2 Assembly Instructions Fitting Door Stop Bracket Screw into position with 2x screws Door Stop Bracket supplied...
-
Page 13: Door Adjustment
Glide V2 Assembly Instructions Door Adjustment Height at which door can run, can be adjusted by turning this screw. - Page 14 Glide V2 Assembly Instructions Door Adjustment Soft Closing can be adjusted by the repositioning of this component within the top track, using an Allen key to loosen the grub screw.
- Page 15 Glide V2 Assembly Instructions Finished Unit.
