Summary of Contents for Dukane ImagePro 8038

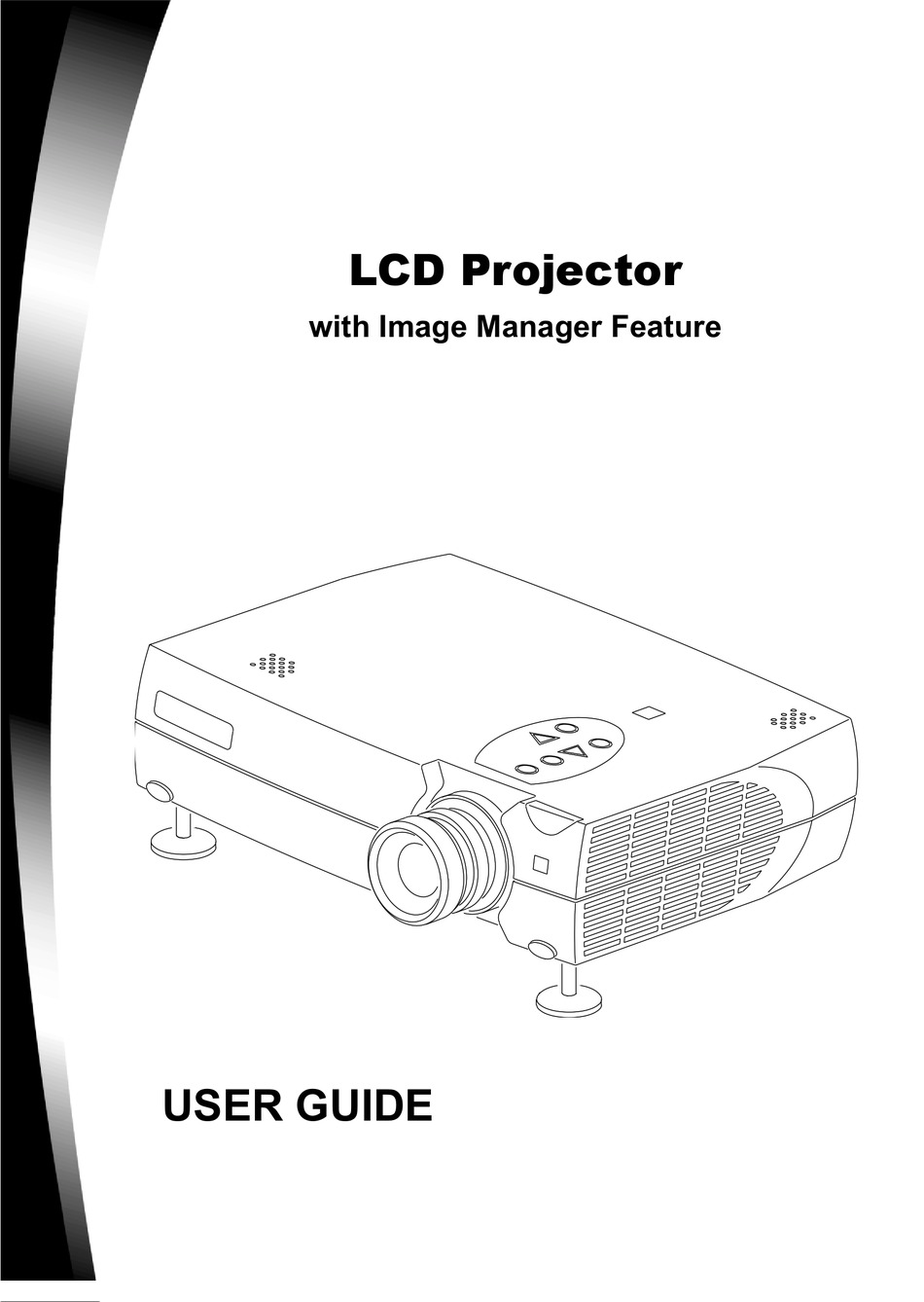

- Page 1 LCD Projector 75-4/71,-...
-
Page 2: Table Of Contents
Setting Up the Image Source ... 13 Selecting a Language ... 14 Checking the Status ... 15 To reset lamp hours ... 15 Turning Off the Projector ... 15 Transporting the Projector ... 16 Maintenance ... 17 Changing the Lamp Module ... 17 Cleaning the Projection Lens ... -
Page 3: Introduction
W ith this feature, you can select the image display setting best suited for your specific presentation material and projection environment. In only minutes you can have your LCD Digital Projector ready to go. Just connect the projector to an image source such as a computer, DVD, VCR, or digital camera. -
Page 4: How And Where To Get Help
_______________________________________________________________________________ ________________________________________________________________________________ ________________________________________________________________________________ Note: If you need help using third-party peripherals or software with your multimedia projector, please refer to the documentation provided with the third party peripheral or software or contact the manufacturer for technical support or customer service. -
Page 5: Where To Get Help
LCD Projector User Guide Where To Get Help Your authorized dealer Note: Please record the contact information for the authorized dealer from which you purchased your multimedia projector. Company Name Contact Address Telephone Home Page E-Mail Hours of Operation... -
Page 6: Projector Features
Projector Features Projector Features keypad remote control sensor focus ring zoom ring ( Zoom model only) foot release button (2) connection panel adjustable feet connection for optional Kensington Lock... -
Page 7: Connecting The Projector
S-VIDEO The cables are color coded to assist you with making the connections. When you connect the power cable to the projector, the Power light on the keypad begins to blink. You can connect more than one image source at a time. Use the Setup tab on the menu screen to select which image source you want to view. -
Page 8: Starting The Presentation
• Computer 1. Connect the signal cable to the computer or video source. 2. Connect the power cord to the projector and to a power source. The Power light begins to blink. 3. Turn on the presentation components in the order listed. To turn on the projector, remove the lens cap and press the Power button on either the remote control or the keypad. - Page 9 LCD Projector User Guide 4. Position the projector by using the adjustable feet on the bottom of the projector. Press the foot release buttons on the front of the projector to raise or lower the feet. 5. Turn the focus ring to focus the image and turn the zoom ring (zoom model only) to zoom in or out on the image.
-
Page 10: Using The Remote Control And Keypad
Using the Remote Control and Keypad The remote control and projector keypad perform similar operations, with one exception-the remote control has a volume control. Power - turns the projec- tor on and off Menu - display the menus on the projected image... -
Page 11: Positioning The Projector
LCD Projector User Guide Positioning the Projector The projector should be at least 2.5 feet (.9 m) from the screen but no more than 32 feet (10 m) away from the screen. Fixed lens model - screen sizes are: Distance Width x Height 3' (.9 m) -
Page 12: Using Image Manager
Using Image Manager W ith one click, Image Manager lets you choose the best image settings for your presentation type. Important:The Image Manager settings work best if you select Reset from the Adjust tab each time before selecting an Image Manager setting. 1. -
Page 13: Adjusting The Display And Volume
LCD Projector User Guide Adjusting the Display and Volume The features available on the Adjust tab depend on your image source. Note: We recommend using the Image Manager to optimize the display. Then, if further adjustments are needed, use the brightness and contrast settings on the Adjust tab. -
Page 14: Setting Up The Image Source
If you wish to return to the factory default settings, use Next to highlight Reset and press Enter. Source options are computer, video and S-video. W hen you change sources, a source status message appears indicating if the projector is receiving a signal from that source. Signal is received:... -
Page 15: Selecting A Language
• Rear projection reverses the image if you wish to project from behind the screen. • Use ceiling projection when you attach the projector to a permanent ceiling bracket. H Position and V Position adjustments are available only for images from a computer. -
Page 16: Checking The Status
The lamp turns off immediately but the fan continues to run until the projector cools down. The Power light continues to blink after the projector has cooled and as long as the live power cord is connected to the projector. Checking the Status... -
Page 17: Transporting The Projector
LCD Projector User Guide Transporting the Projector When you place the projector in the carrying case make sure the lens is positioned inside the lens notch of the foam insert. Secure the projector with the velcro strap. Velcro Strap Lens Notch... -
Page 18: Maintenance
Doing so may result in electric shock. To replace the lamp module: 1. Turn off the projector and let the projector cool for at least 30 minutes. The fan continues to run after the projector has been turned off. -
Page 19: Cleaning The Projection Lens
Do not spill any camera lens cleaner on the exterior case as it may fade, deform or melt the exterior case. 4. Lightly wipe the cleaning cloth over the lens. 5. If you do not intend to use the projector immediately, replace the lens cap. -
Page 20: Cleaning The Exterior Case
Note: Standing the projector on its side keeps dust from getting inside. 4. Locate the air filter cover on the bottom of the projector and slide the cover latch downward to remove the cover. The air filter is attached to the inside of the air filter cover. -
Page 21: Troubleshooting
Light Status Lamp is off but live power cord is connected to Blinking the projector. Projector is in standby mode. Lamp is off and fan is running. Projector is cooling down. Lamp is on and fan is running. Steady Projector is ready. -
Page 22: Image Quality
But this projector can compress an image source. resolutions up to 1024 x 768. • Be sure that the projector is at a 90° angle to Image isn’ t centered on the the screen. screen. -
Page 23: Sound
Image is wider at one Make sure the projector is at a 90 degree angle to the screen. side than the other Use the Image Manager to select a setting that is more Projected colors acceptable. -
Page 24: Remote Control
• Make sure that you have removed the lens cap • Make sure you have pressed the Power button • Check the projector’ s lamp to make sure that it • Make sure that the lamp module door is fully •... -
Page 25: Image Source
Cause and Solution Some inexpensive cables are not compatible with the projector. Be sure to use the cable that came with your projector. • Verify that the cables are connected correctly. See “ Connecting the Projector” on page 7. -
Page 26: Safety
Doing so may result in electric shock. Caution: Don’ t set liquids on the projector. Spilled liquids may damage your projector. Caution: Don’ t put the projector on a hot surface or in direct sunlight. Caution: Do not drop the projector. Safety... -
Page 27: Battery Safety
Doing so may damage the projector. Caution: Proper ventilation is important. Don’ t block ventilation openings. Never operate this projector in an enclosed area. Do not place the projector on a tablecloth or other soft covering that may block the vents. W ith ceiling installations, use approved mounting hardware. -
Page 28: Specifications
Specifications Specification Fixed lens model Weight in lbs. (kg) 7.5 (3.4) Dimensions (inches) (WxDxH) 12.8 x 9.8 x 3.6 (with lens) Dimensions (mm) (WxDxH) 325 x 250 x 92 (with lens) Color Palette 16.7 million (24 bit) Resolution 800 x 600 XGA compression(1024 x 768) Three 0.9”... - Page 29 LCD Projector User Guide Specification Connections on projector Analog RGB (15 Pin HD) Composite video (RCA) Stereo Audio (1/8” mini-plug) S-video Power Supply Voltage (AC RMS) Frequency (Hz) Auto Sense Typical Power Consumption (watts) Operating Temperature Range Storage Temperature Range...
