Third Millennium RX Series Installation Manual

TAMPER detection
NSTALLAT ON GU DE
for
RX1/RX1K and RX4 BACKBOXES
www tm-readers com
Specifications subject to change without notice
© 2021Third Millennium Systems Limited All rights
reserved
100-02866-B

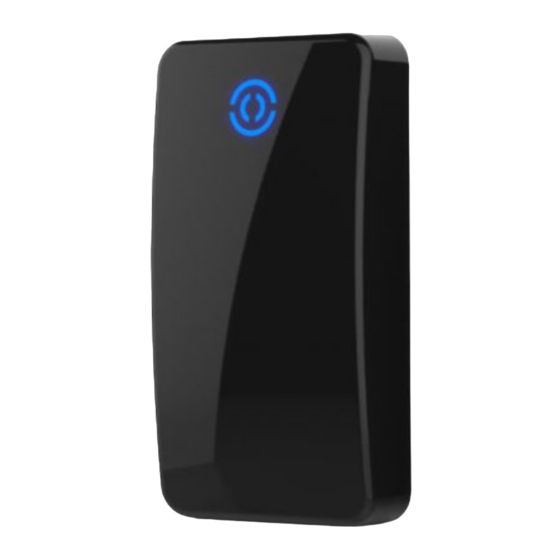

READER STYLES: This document applies only to readers
fitted with tamper detection optical sensors, and refers
to the BACKBOXES to the readers shown below
When tamper detection is enabled, please ensure you
follow these instructions carefully
OU DO NOT HAVE TO INSTALL THIS MECHANISM
IF THE TAMPER DETECTION SENSOR ON OUR
READER IS NOT ENABLED.
This mechanism has been designed as a fixture
independent to the reader and backbox, to minimise
the risk of bypassing the tamper sensor if an attempt is
made to remove the reader and backbox together
TAMPER DETECTION MECHANISM
tamper pillar
Using the backbox as a TEMPLATE,
mark onto the wall the centre positions
of the fixing holes and tamper pillar
aperture Drill and plug the wall as
required
tamper pillar
aperture
Twist the tamper pillar to When correctly fixed, the backbox and
4 5
ensure it is vertical, as tamper pillar should appear as shown
shown below Tighten the tamper pillar screw
further ... but do not overtighten
Carefully position and fix
2 3
Secure the BACKBOX to
to the wall the tamper
the wall using a minimum
pillar using the wall plug
of 2 fixings
and screw supplied
NOTE:
Lightly tighten the tamper screw
Make connections to the
6
reader and test the
tamper sensor by gently
lifting the bottom edge of
the reader away from the
backbox
You may opt to use
an M3x10mm
countersunk
security screw.
.T.O
