...our glider...

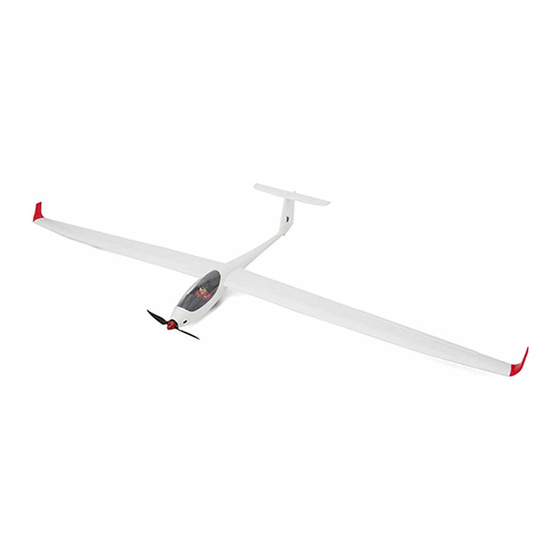

This model is best suited for slope flying and aero tow, but will do well on a good thermal day. Due to its high aspect ratio, the ASW-28
will cover a lot of ground, but due to it's low wing loading, it has very smooth handling.
This medium sized 4m version of the ASW-28 can open up new soaring areas on slopes too small for large scale birds, but still give that
"Bigger is Better" feeling in the air.
...you will receive the...
The kit comes completely finished. The wings are finished and covered, spoilers installed and the ailerons are hinged, the
winglets are fiberglass molded. The clear plastic canopy is fitted to the fiberglass tray, wing joiner system is installed in the
fuselage. All what's required is your radio gear. You will need 4 micro servos fro the ailerons and airbrakes, two regular
servo for the rudder and elevator.
WARRANTY
TOP modeltehnik ltd Model Manufacturing
This warranty does not cover any component parts damaged by use, modification or tranposrt.
Further, TOP modeltehnik ltd reserves the right to change or modify this warranty without notice.
In that TOP modeltehnik ltd has no control over the final assembly or material used for final assembly, no liability shall be assumed nor
accepted for any damage resulting from the use by the user of the final user-assembled product. By the act of using the user-assembled
product, the user accepts all resulting liability.
If the buyer is not prepared to accept the liability associated with the use of this product, the buyer is advised to return this kit
immediately in new and unused condition to the place of purchase.
www.top-modeltehnik.com , info@topmodeltehnik.com

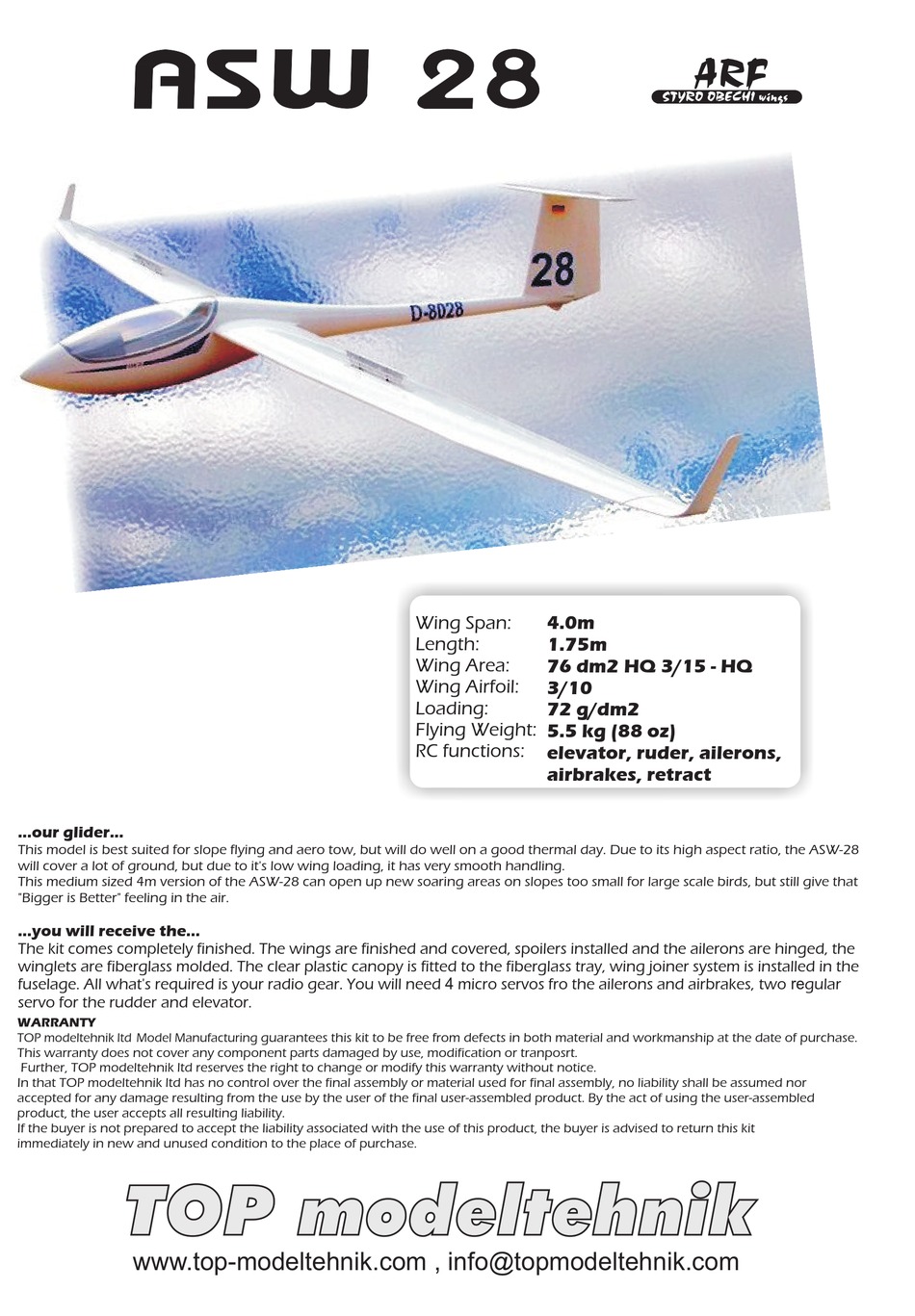

instruction manual
Wing Span:
Length:
Wing Area:
Wing Airfoil:
Loading:
Flying Weight:
RC functions:
guarantees this kit to be free from defects in both material and workmanship at the date of purchase.
ARF
STYRO OBECHI wings
4.0m
1.75m
76 dm2 HQ 3/15 - HQ
3/10
72 g/dm2
5.5 kg (88 oz)
elevator, ruder, ailerons,
airbrakes, retract
Advertisement
Table of Contents
Summary of Contents for Volantex ASW 28
- Page 1 STYRO OBECHI wings instruction manual Wing Span: 4.0m Length: 1.75m Wing Area: 76 dm2 HQ 3/15 - HQ Wing Airfoil: 3/10 Loading: 72 g/dm2 Flying Weight: 5.5 kg (88 oz) RC functions: elevator, ruder, ailerons, airbrakes, retract ...our glider... This model is best suited for slope flying and aero tow, but will do well on a good thermal day. Due to its high aspect ratio, the ASW-28 will cover a lot of ground, but due to it's low wing loading, it has very smooth handling.
- Page 2 The ASW 28 is one of the best scale ships to learn on. If you have never flown a glider, you will be surprised 9. WARNING: The fuselage and other parts included in how docile this glider is in the air.
- Page 3 Replacment parts Replacement parts for our planes are available using the order numbers in the Replacement Parts List that follows. The fastest, most economical service can be provided by your hobby dealer or mail-order company. To locate a hobby dealer, visit our web site at www.topmodeltehnik.com.
- Page 4 WINGS 1. Using epoxy, glue the 4mm plywood final rib inside the fuselage where shown. Before doing it, assure that rudder have enough space for moving left an right. You can firstly fix the plywood with few points of CA glue. After checking that it's on right position pull the rudder with hinges out and use plenty of glue to fill any unevenness inside the fuselage.
- Page 5 ASSEMBLE THE FUSELAGE 1. Inspect the hinges and the hinging motion of the elevator now and before each flight. Cut the 52mm nylon bolts to 19mm long. Attach the stab to the fuse using the two nylon bolts. Be careful not to overtighten.
- Page 6 1. The balance point (Center of Gravity) is 3-1/4" Install the Elevator and Rudder Pushrods [82mm] from the leading edge of the wing. This is the balance point at which your model should balance for your first flights. Later, you may wish to shift the balance up to 1/2"...
- Page 7 15mm 85 mm...
