Summary of Contents for Powr-Flite PDH2

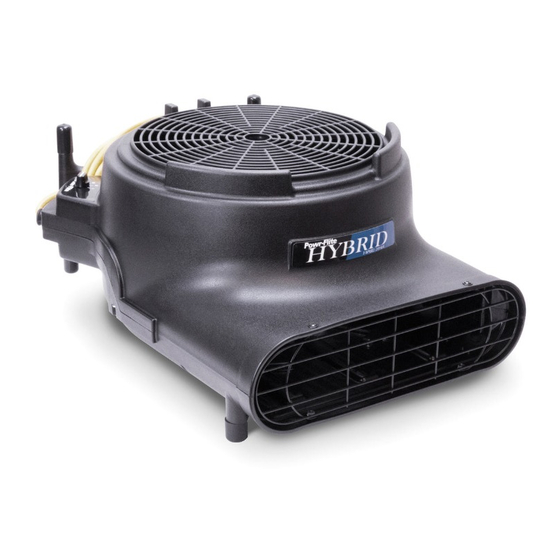

- Page 1 OPERATOR’S MANUAL & PARTS LIST HYBRID DRYER PDH2 WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved PDH2-MAN 02/2021 Save These Instructions...
-
Page 2: Table Of Contents
Introduction ...........2 Check the carton for shipping damage. Carefully unpack and inspect your new Powr-Flite dryer for shipping damage. Each unit is tested and thoroughly inspected Safety Instructions ........3 prior to shipping. If damage is discovered, immediately notify the transportation company that delivered your Grounding Instructions .........4... -
Page 3: Safety Instructions
WARNING! Read all instructions before using. Save These Instructions. Following the cleaning instructions will prolong the life of your Powr-Flite Dryer. When using an electrical appliance, basic precautions should always be followed. • Use only as instructed in this manual. Use only the recommended attachments and replacement parts. -
Page 4: Grounding Instructions
roundIng nStructIonS This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This machine is equipped with a cord having an equipment -grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 5: Operating Instructions
Operating Positions The Hybrid dryer can be used in multiple positions. The PDH2 model can be used in the vertical position (Figure 1), the horizontal position (Figure 2), with the kickstand (Figure 3), and using the side bumpers (Figure 4). -
Page 6: Maintenance
3. If using an extension cord, make sure it is in good condition, proper gauge and firmly connected. 4. Check to see if the building circuit breaker is tripped. If circuit is overloaded, move the unit to another circuit. On PDH2 - check circuit breaker on unit. -
Page 7: Machine Specifications
POWER CORD INTAKE GUARD CORD WRAP EXHAUST PORT SPEED SWITCH EXHAUST PORT GUARD Specifications and parts are subject to change without notice. Please refer to www.Powr-Flite.com for the latest schematic drawing and parts list. Model PDH2 Running Amps Power 115V Motor .4 hp... -
Page 9: Schematic And Parts List
chematIc and artS Part No. Description X9051 Caution Label X8278 Screw 8-32 x 1/2” X8976 Warning Label X9726-SAN Front Label X8260 Nyloc Nut X8897 Switch X1023 Fan Blade X8871 Dryer Discharge Grill X9705 Grommet X9700 Bottom Housing X8946 Rivet PD3B Dryer Foot Tall X9704 Screw, Hi-Lo 8-18 x... - Page 10 For warranty information go to www.Powr-Flite.com A Tacony Company 3101 Wichita Court • Fort Worth, TX 76140-1755 1-800-880-2913 • Fax: 1-817-551-0719 PDH2-MAN 02/2021...
