Full Boar FBDCDS-640 Instruction Manual

Core drill stand

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

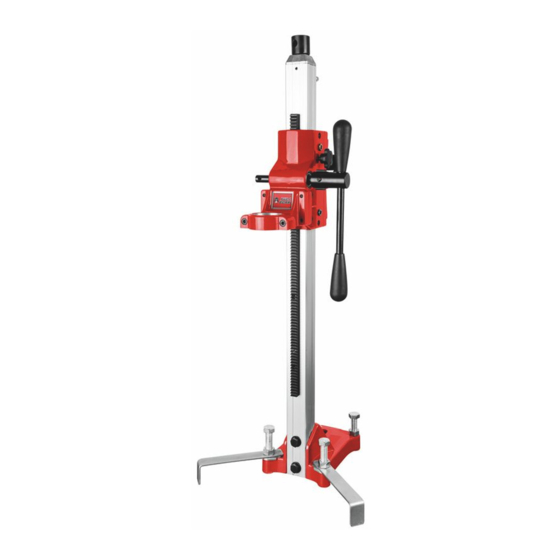

KNOW YOUR PRODUCT

CORE DRILL

STAND

• SUITS FBDCD-22150

• Ø60MM COLLAR

• 640MM CLEARANCE

LENGTH

• 460MM LENGTH OF

STROKE

INSTRUCTION MANUAL

WARNING: Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

1219

Table of Contents

Need help?

Do you have a question about the FBDCDS-640 and is the answer not in the manual?

Questions and answers

Summary of Contents for Full Boar FBDCDS-640

Page 1 KNOW YOUR PRODUCT CORE DRILL STAND • SUITS FBDCD-22150 • Ø60MM COLLAR • 640MM CLEARANCE LENGTH • 460MM LENGTH OF STROKE INSTRUCTION MANUAL WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
Page 2: Specifications
SPECIFICATIONS - MODEL NO. FBDCDS-640 Height: 935mm Length of stroke: 460mm Clearance length: 640mm Collar: Ø60mm Weight (tool only): 10.2 kg KNOW YOUR PRODUCT...
Page 3 KNOW YOUR PRODUCT (cont.) 1. Carriage 7. Carriage lock 13. Clamping nut M12 2. Collar 8. Feed handle 14. Hex keys x 3 3. Balance prongs x 2 9. Levelling bolt x 4 15. Anchor sleeve M12x50 4. Column bolts x 2 10.
Page 4: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS............Page 02 KNOW YOUR PRODUCT........... Page 02 INTRODUCTION............Page 05 SAFETY INSTRUCTIONS........... Page 05 ASSEMBLY..............Page 06 SET-UP & PREPARATION........... Page 07 OPERATION.............. Page 09 MAINTENANCE............Page 10 DESCRIPTION OF SYMBOLS........Page 10 CONTENTS............... Page 11 WARRANTY...............
Page 5: Introduction
INTRODUCTION Congratulations on purchasing a Full Boar Core Drill Stand. Your Full Boar Core Drill Stand FBDCDS-640 is ideal for use with the FBDCD-22150 Core Drill to ensure straight holes are drilled in a safe manner by the user. The anchor set will secure the stand to the work surface to allow efficient drilling in a controlled operation.
Page 6: Assembly
ASSEMBLY WARNING! Properly assemble the core drill stand before mounting the power tool. Proper assembly is important to prevent risk of collapse. Fitting the feed handle The feed handle (8) can be fitted on either side of the core drill stand. 1.
Page 7: Set-Up & Preparation
SET-UP & PREPARATION Fastening the base (fig. 3) WARNING! It is essential to secure the base (10) to the work surface to reduce the risk of injury and to protect the core drill from damage. An unsecured core drill and stand could rotate during drilling, cause the core bit to chatter against the work surface or bind in the hole, which can fracture the diamond segments Place the core drill stand on a solid, flat and level surface before mounting the...
Page 8 SET-UP & PREPARATION (cont.) Mounting the core drill WARNING! Please read these mounting instructions in conjunction with the instruction manual for the Core Drill. WARNING! Ensure the power tool has been switched off and disconnected from the power supply and completely stopped before performing any of the following operations.
Page 9: Operation
OPERATION 1. Before drilling, do a test run without load to ensure the position is correct. 2. Loosen the carriage lock (7) and lower the core drill by turning the feed handle (8). 3. Rotate the feed handle (8) in the opposite direction to raise the core drill. 4.
Page 10: Maintenance
MAINTENANCE • After each use remove any dirt or debris by wiping down with a damp cloth and allow to dry. • Reapply grease on the gear rack as necessary. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the core drill stand by an unauthorised person or by mishandling of the core drill stand.
Page 11: Contents
CONTENTS 1 x Core drill stand 2 x Balance prongs 1 x Large washer 1 x Clamping nut M12 1 x Anchor sleeve M12 x 50mm 1 x Anchor bolt M12 3 x Hex keys 1 Instruction manual Note: The manufacturer’s liability shall be deemed void if the tool is modified in any way and the manufacturer shall therefore accept no liability for any damages arising as a result of modifications.
Page 12: Warranty
WARRANTY YOUR WARRANTY FORM SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE (see www.bunnings.com.au or www.bunnings.co.nz for store locations) WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE: Australia 1800 069 486 New Zealand 0508 069 486...
