Section
1.
Description ................................. 1
2.
Connections ............................... 2
3.
Adjustment ................................. 2
4.
Calibration .................................. 3
1.
Description

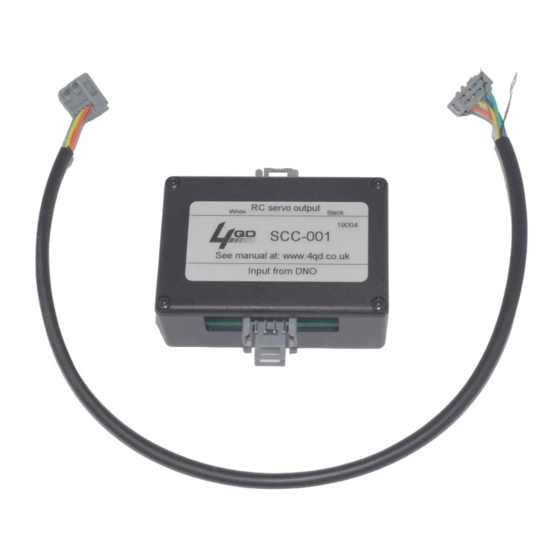

The SCC-001 is a sound card control module that is designed to go between 4QD
motor controllers and those sound cards that require a standard radio control input,
such as the ESS-Dual from Sense Hobbies.
SCC-001 V1.1 07/19
Instruction Manual
SCC-001
Contents
Page Section
Page 1
5.
Auto-Off ....................................... 3
6.
Output ......................................... 3
7.
Battery Eliminator Circuit ........... 3
©4QD Ltd www.4qd.co.uk
Page
Advertisement
Table of Contents
Summary of Contents for 4qd SCC-001
- Page 1 Battery eliminator circuit ... 3 Calibration ........3 Description The SCC-001 is a sound card control module that is designed to go between 4QD motor controllers and those sound cards that require a standard radio control input, such as the ESS-Dual from Sense Hobbies.
- Page 2 Connections The SCC-001 was designed to work with the DNO series of controllers and can be plugged directly into the expansion port of the DNO. The pin connections are shown below. The SCC-001 can also work with other controllers by feeding a speed related positive voltage into the speed terminal, and then adjusting the pot as required.
- Page 3 2.0 mS Battery eliminator circuit The SCC-001 provides a 5V supply on the RC output port which can support currents up to 100mA. This is enough to power most RC receivers, but any additional servos should be selected with this current limit in mind.
