Wizard ON-AP9526K-H User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual (AC)
)
LAN1
LAN2
POE Port connect with any port of AP
POE LAN port connect with PC(Switch or NVR)
NOTE:
1.Both RJ45 ports(black and yellow) on AP are LAN connections.
2.If you want to enter web page, you need manually bound IP address of PC.
3.The PoE power adapter has 3 inputs. One is for the AC cord, and two are
for networking.
4.Please note the PoE adapter and power cord are not designed for outdoor
use and should be used indoors only.

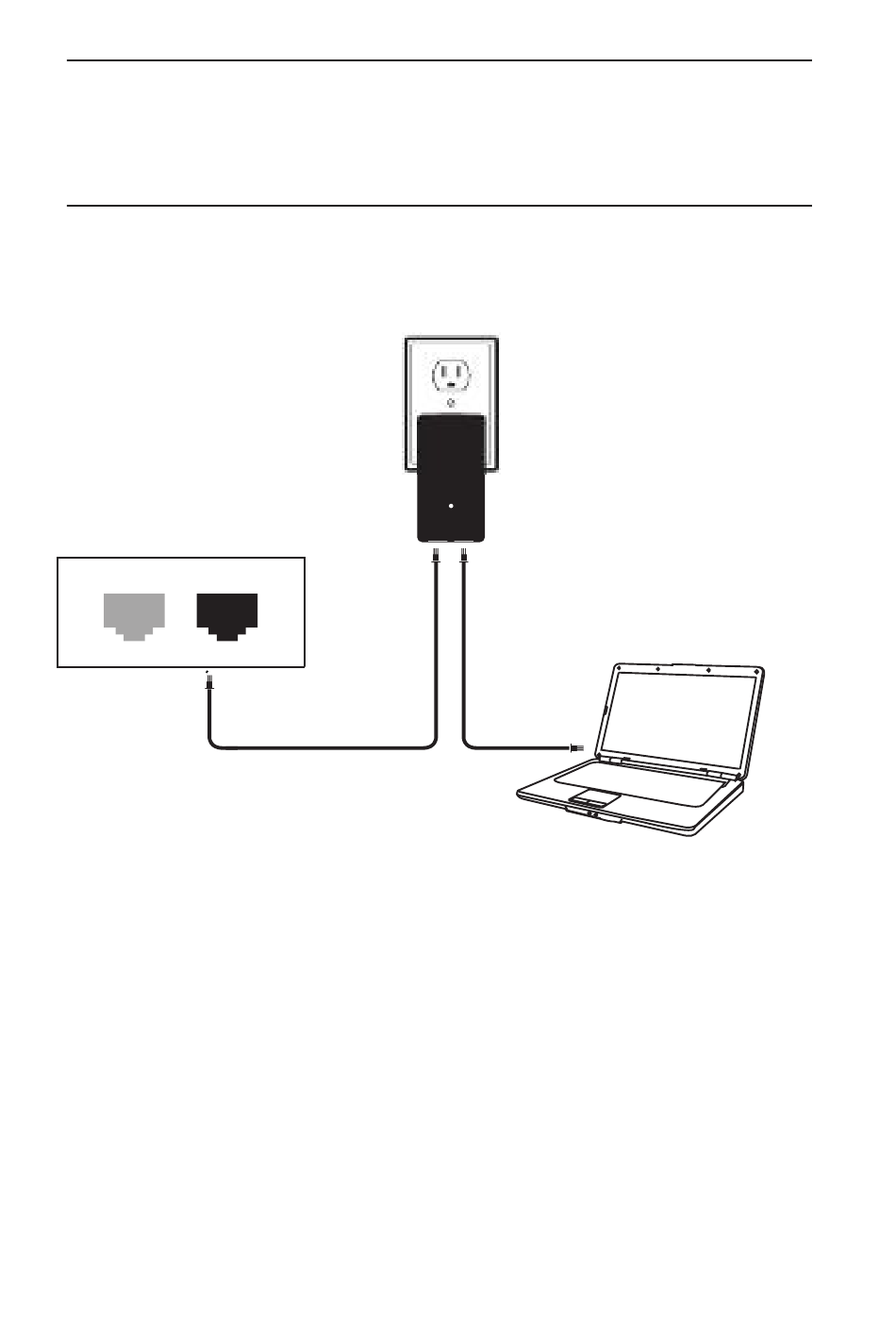

Connecting diagram
POE
Gigabit
LAN

Advertisement

loading
Need help?

Need help?

Do you have a question about the ON-AP9526K-H and is the answer not in the manual?

Questions and answers

Related Manuals for Wizard ON-AP9526K-H

Summary of Contents for Wizard ON-AP9526K-H

  • Page 1 User Manual (AC) Connecting diagram Gigabit LAN1 LAN2 POE Port connect with any port of AP POE LAN port connect with PC(Switch or NVR) NOTE: 1.Both RJ45 ports(black and yellow) on AP are LAN connections. 2.If you want to enter web page, you need manually bound IP address of PC. 3.The PoE power adapter has 3 inputs.
  • Page 2 Connecting diagram PoE Power LAN1 LAN2 The bottom of the adapter has two RJ45 connections. One marked POE and one marked LAN. Using one CAT5 cable(Network cable) , connect one end to ”LAN” and the other end to your camera, recorder, PC, etc.
  • Page 3 DIP device instructions IP Key Working Mode Key Matching Key Button 1 changes the mode of the device. UP is access point (AP) mode for use with your recorder, PC, etc.. DOWN is for use with your camera. Button 2 through 8 are for matching AP devices together. There are 128 various combinations that can be made from the 7 keys, which corresponds to 128 different SSIDs and 128 different segments.
  • Page 4 3.You cannot duplicate the switch settings between Cameras for switches 9 & 10 or you will experience interference, thus the max of 4 points. Remarks 1.Turn off the AP power before setting the button. 2.The SSID of DIP type AP defaults is not broadcast, password has been set up and can be customized.
  • Page 5 The specific operation for setting management 5.8G:C 172.19.127. Camera Down Down 172.19.127.3 5.8G:CP 5.8G:CPE 5.8G:AP 172.19.12 Camera2 Down Transmitter Up:Working mode key Matching key Default 172.19.127.4 5.8G:CPE Camera3 Down 5.8G:CPE 172.19.127.5 Camera4 Down Down 5.8G:CPE NOTE: For the point-to-point case, either of the four camera options above is available.
  • Page 6 Signal power setting Step 1 Manual disposes static IP address as it's shown in figure1 (type corespon-ding device IP address at browser, default password: password) You can get IP settings assigned automatically if your network supports this capability.Otherwise,you need to ask your network administrator for the appropriate IP settings.
  • Page 7 Signal power setting Step 2 Type the IP address of corresponding AP device in IE browser to get into the WEP page, the default password is “password”. Signal power can be set after logging. Transmit Power Configuration: The default is the maximum value, the transmit power should be reduced appropriately when the signal is too strong.
  • Page 8 Q&A Q1: What should be noted when setting the AP button? A1: Make sure the power is off. logging. Q2: How does the AP work without power supply? A2: The AP gets the power via the cable. It is called POE. Two cables are needed for the connection. STP CAT5e cable is strongly recommended for this case.
  • Page 9 Q6: How to log in the WEP page? A6: Set the computer with static IP address as shown in Page 4-5, and type the IP address of the corresponding device in IE browser. Q7: After the connection of the AP and NVR, why the IP address of the camera can be found but no video available on the monitor? A7: Connect the adapter which links to the NVR with the yellow LAN port of the POWE...
  • Page 10 The dial-up code corresponding to the text(manual) mode, the network segment and frequency can refer to the following table. Group 2-8Dial IPsegment Frequency No.1 2345678 172.19.0.X 5180 No.2 172.19.1.X 5200 2345678 No.3 2345678 172.19.2.X 5220 No.4 172.19.3.X 5240 2345678 No.5 172.19.4.X 5260 2345678...
  • Page 11 Ps: The shadow marks are the national standard frequencies, and the remaining frequencies are only for testing. (X is the last IP address) Group 2-8Dial IPsegment Frequency No.17 2345678 172.19.16.X 5660 No.18 172.19.17.X 5680 2345678 No.19 2345678 172.19.18.X 5700 No.20 172.19.19.X 5720 2345678...
  • Page 12 Ps: The shadow marks are the national standard frequencies, and the remaining frequencies are only for testing. (X is the last IP address) Group 2-8Dial IPsegment Frequency No.33 2345678 172.19.32.X 5320 No.34 172.19.33.X 5500 2345678 No.35 2345678 172.19.34.X 5520 No.36 172.19.35.X 5540 2345678...
  • Page 13 Ps: The shadow marks are the national standard frequencies, and the remaining frequencies are only for testing. (X is the last IP address) Group 2-8Dial IPsegment Frequency No.49 2345678 172.19.48.X 5805 No.50 172.19.49.X 5845 2345678 No.51 2345678 172.19.50.X 5180 No.52 172.19.51.X 5200 2345678...
  • Page 14 Ps: The shadow marks are the national standard frequencies, and the remaining frequencies are only for testing. (X is the last IP address) Group 2-8Dial IPsegment Frequency No.65 2345678 172.19.64.X 5620 No.66 172.19.65.X 5640 2345678 No.67 2345678 172.19.66.X 5660 No.68 172.19.67.X 5680 2345678...
  • Page 15 Ps: The shadow marks are the national standard frequencies, and the remaining frequencies are only for testing. (X is the last IP address) Group 2-8Dial IPsegment Frequency No.81 2345678 172.19.80.X 5280 No.82 172.19.81.X 5300 2345678 No.83 2345678 172.19.82.X 5320 No.84 172.19.83.X 5500 2345678...
  • Page 16 Group 2-8Dial IPsegment Frequency No.97 2345678 172.19.96.X 5765 No.98 172.19.97.X 5785 2345678 No.99 2345678 172.19.98.X 5805 No.100 172.19.99.X 5845 2345678 No.101 172.19.100.X 5180 2345678 No.102 172.19.101.X 5200 2345678 No.103 2345678 172.19.102.X 5220 No.104 2345678 172.19.103.X 5240 No.105 172.19.104.X 5260 2345678 No.106 172.19.105.X 5280...
  • Page 17 Ps: The shadow marks are the national standard frequencies, and the remaining frequencies are only for testing. (X is the last IP address) Group 2-8Dial IPsegment Frequency No.113 2345678 172.19.112.X 5580 No.114 172.19.113.X 5600 2345678 No.115 2345678 172.19.114.X 5620 No.116 172.19.115.X 5640 2345678...
