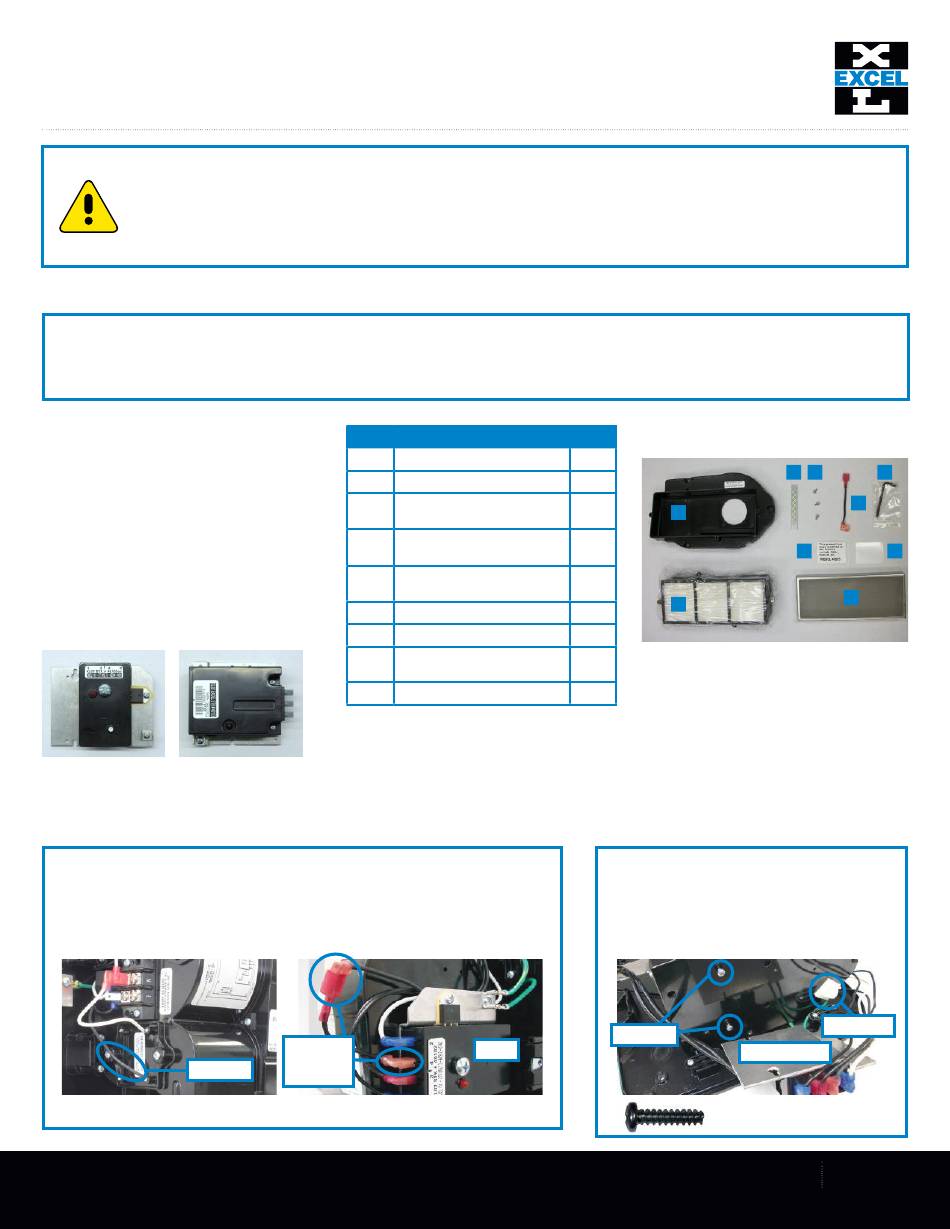

XLERATOR FILTER RETROFIT KIT OWNER'S MANUAL
®
40525 HEPA FILTER RETROFIT KIT
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE & PERSONAL INJURY, INSTALLATION MUST BE
PERFORMED BY QUALIFIED ELECTRICAL SERVICE PERSONNEL. DISCONNECT POWER TO THE DRYER BEFORE
INSTALLING THE FILTER KIT.
IMPORTANT: KIT ONLY TO BE INSTALLED ON XLERATOR DRYERS PRODUCED AFTER 1/1/2009 SERIAL #370656
AND HIGHER, AND WITH CONTROLS #40102 OR 40103.
INSTALLATION INSTRUCTIONS
TOOLS NEEDED
• Phillips Head Screwdriver (Not Included)
• Tamper-Proof Hex Wrench (Included)
Disconnect power to the dryer before
installing the Filter Kit. Remove the cover
of the dryer using the Tamper-Proof
Hex Wrench (F) supplied in the Filter
Hardware Kit.
The HEPA Retrofit Kit comes packaged with
parts (A, B, G) fitted together. They can
easily be pulled apart to begin assembling.
Parts (C, D, E, F, H & I) are packaged in an
envelope labeled "FILTER HARDWARE KIT."
See below for where Control Dryer
Identifier is located
40102 Control 40103 Control
Step 1. Before going through the installation steps, make sure that the dryer is clean and working properly. Then identify which
control your dryer has. To install into dryer with #40102 Control Assembly, follow steps 2-1 through 2-14. To install into dryer
with #40103 Control Assembly, proceed to Page 5 and follow steps 3-1 through 3-12.
Step 2-1. Trace the black, brown or red wire (Figure 2-1) from the heating element to
the control (It may go to the #3 or #4 labeled terminal on the control) and disconnect
from the control. Attach the heater extension wire (E) to the wire just disconnected
by inserting the female flag terminal into the male connector on the extension wire.
Connect the other end of the extension wire back to the Control (Figure 2-2).
Heater wire
Figure 2-1
E X C E L D R Y E R , I n c .
E a s t L o n g m e a d o w , M A
MODELS COVERED
XL- followed by W, C, GR, BW, BSP, SB, SPO, SS, SW, SC, SSP, SI
or SP, followed by V or 8 or X, and or H, and or -ECO
REF
A HEPA Filter Adapter
B HEPA Filter
Control Adapter Plate
C
(used with 40102 control only)
#6-32 Self Tapping Machine
D
Screws
Heater Extension Wire
E
(used with 40102 control only)
F Tamper-Proof Hex Wrench
G HEPA Pre-Filter
Label for HEPA Filter Adapter
H
(used with 40102 control only)
I Retrofit Label for Dryer Cover
Extension
wire
connections
P h o n e 1 . 8 0 0 . 2 5 5 . 9 2 3 5
F a x 1 . 4 1 3 . 5 2 5 . 2 8 5 3
Verify your kit has the following parts:
PART QTY
1
1
1
3
1
1
1
1
1
Step 2-2. Remove the two (2) screws that
fasten the control bracket onto the dryer and
save them for Step 2-13. Remove the four
wires from the white wire clip while keeping
them attached to the Control (Figure 2-3).
Two screws
Control
Figure 2-2
s a l e s @ e x c e l d r y e r. c o m
w w w . e x c e l d r y e r. c o m
C D
A
I
G
B
Wire clip
Control bracket
Figure 2-3
F
E
H
Figure 1
